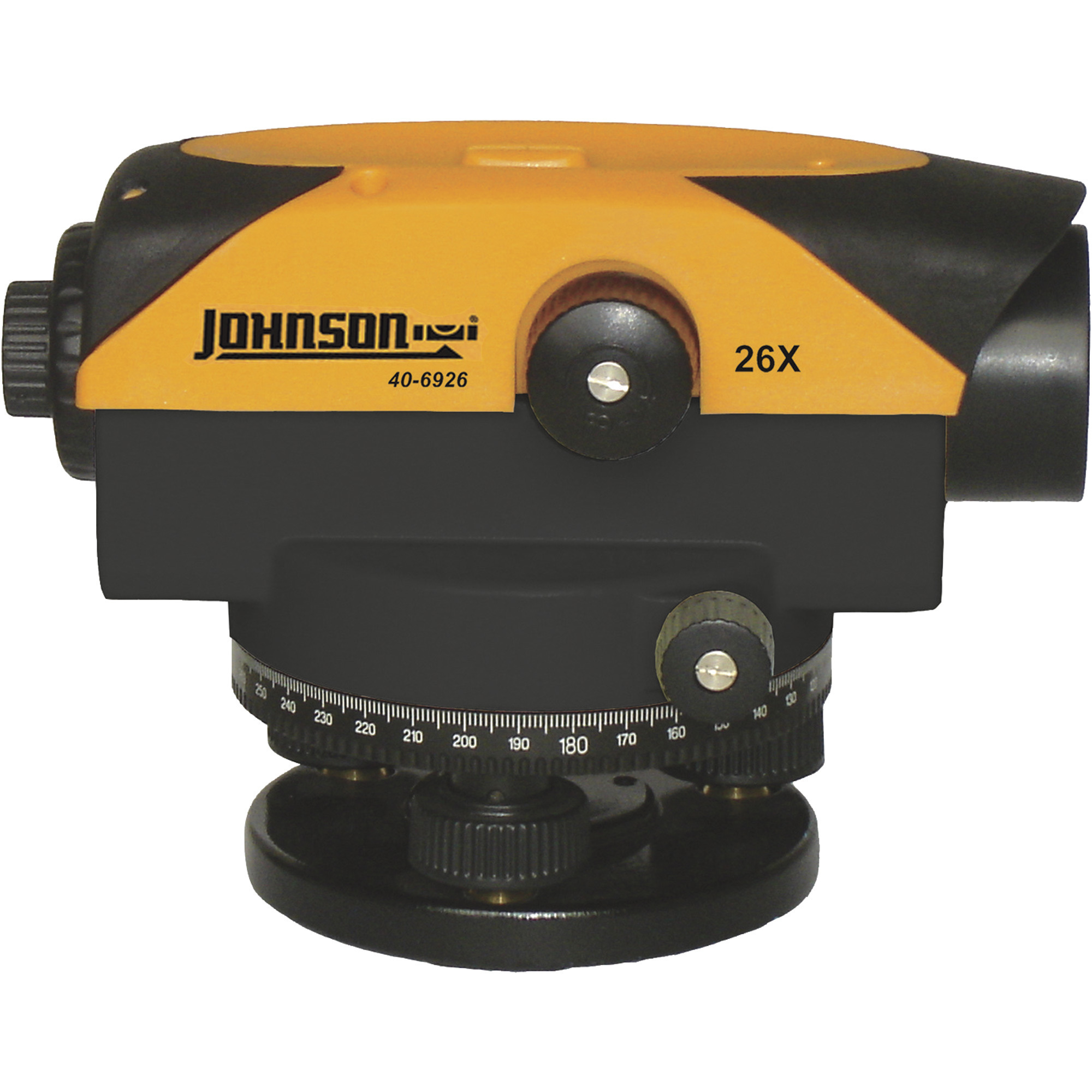

Johnson Level & Tool 26X Automatic Level, Model# 40-6926

Item# 436347
"Johnson Level & Tool 26X Automatic Level, Model# 40-6926"
Johnson Level & Tool 26X Automatic Level, Model# 40-6926

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Johnson Level & Tool 26X Automatic Level, Model# 40-6926

Click or Tap image to Zoom

$314.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Wire hung, magnetically dampened compensator
  • Penta prism for bubble viewing
  • 1:100 stadia for distance estimation
  • Telescope: Erect
  • Clear objective aperture: 40 mm

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Automatic Level has a top-mounted optical sight for quick reference, 360° horizontal circle and fine adjustment knobs on left and right sides with endless horizontal drive. Water and dust resistant for use in most weather conditions.

What's Included

    (1) 26X Automatic level (1) Hardshell case (1) Manual

Downloads

Product Manual

Features + Benefits

  • Wire hung, magnetically dampened compensator
  • Penta prism for bubble viewing
  • 1:100 stadia for distance estimation
  • Telescope: Erect
  • Clear objective aperture: 40 mm
  • Field of view: 1° 30ft.
  • Shortest focusing distance: 0.315in. (0.8m)
  • Stadia addition: 0
  • Sensitivity of bubble: 8ft. (2mm)
  • Circle graduation: 1°
  • Standard deviation for 1km double-run leveling: 0.689in. (1.75mm)
  • Compensator working range: ±15ft.
  • Compensator setting accuracy: ±0.8in.

Key Specs

AttributeSpecification

item#

436347

Brand

Johnson Level

Manufacturer's Warranty

3 year limited warranty

Ship Weight

5.29 LB

Level Type

Automatic

Length

7.5 in

Accuracy

0.062 in

Frame Material

ABS

Level Indicators (qty.)

1

Display Type

Color
AttributeSpecification

Storage Type

Case

Storage Type

Case

Self-Leveling

No

Multi-Plane Leveling

No

Product Weight

lb

Indicator Included

Yes

Dimensions L x W x H (in.)

7.5 x 5.18 x 5.37 in

Product Weight

lb

Dimensions L x W x H (in.)

7.5 x 5.18 x 5.37 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Does it come with the tripod?

    1 answer

    1. A tripod is not included. Our item #436326 would be a compatible tripod.

      Helpful?

  2. With this level is it operational by a single person or does it need two people to use. If building a deck and needing to level it by myself is that possible

    1 answer

    1. If you need to use a leveling rod, two people would be needed. If you have a surface to direct the laser onto, it could be used with one person.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
