JET Wood Planer 15in. Helical Cutterhead, 3 HP, 230 Volt, Model# JWP-15BHH

Item# 99156
JET Wood Planer 15in. Helical Cutterhead, 3 HP, 230 Volt, Model# JWP-15BHH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Wood Planer 15in. Helical Cutterhead, 3 HP, 230 Volt, Model# JWP-15BHH

Click or Tap image to Zoom

$3739.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • JET helical head planer delivers 1/8in. max. depth of cut, 6in. cutting height and 15in. width capacity
  • Innovative JET Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
  • Helical cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
  • Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer
  • Powerful 3 HP motor with V-belt transmission reduces vibration and running noise

See full description

Complete Your Solution

  • JET Wood Planer 15in. Helical Cutterhead, 3 HP, 230 Volt, Model# JWP-15BHH
  • Shop Fox Dust Collector - 1.5 HP, 1,280 CFM, 6in. Inlet, Dual 4in. Ports, Model# W1685
Price for all two:

$4308.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The new JET 15in. Helical Cutterhead Planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutterhead housing 48 staggered carbide quick change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. The conveniently located two-speed gear box allows for quick and easy feed rate adjustments while removing up to 1/8in. material with each pass for a smooth finish. A large precision cast-iron table and infeed/outfeed tables make this planer a beautiful addition to the shop.

What's Included

    (1) JET 15in. Helical Cutterhead Planer, 3 HP, 230 Volt, Model# JWP-15BHH

Downloads

Product Manual

Features + Benefits

  • JET helical head planer delivers 1/8in. max. depth of cut, 6in. cutting height and 15in. width capacity
  • Innovative JET Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
  • Helical cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
  • Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer
  • Powerful 3 HP motor with V-belt transmission reduces vibration and running noise
  • Dual infeed speed control for 16 FPM or 20 FPM, maximizes cut efficiency
  • Large cast iron precision ground infeed/outfeed tables provide support for large work pieces

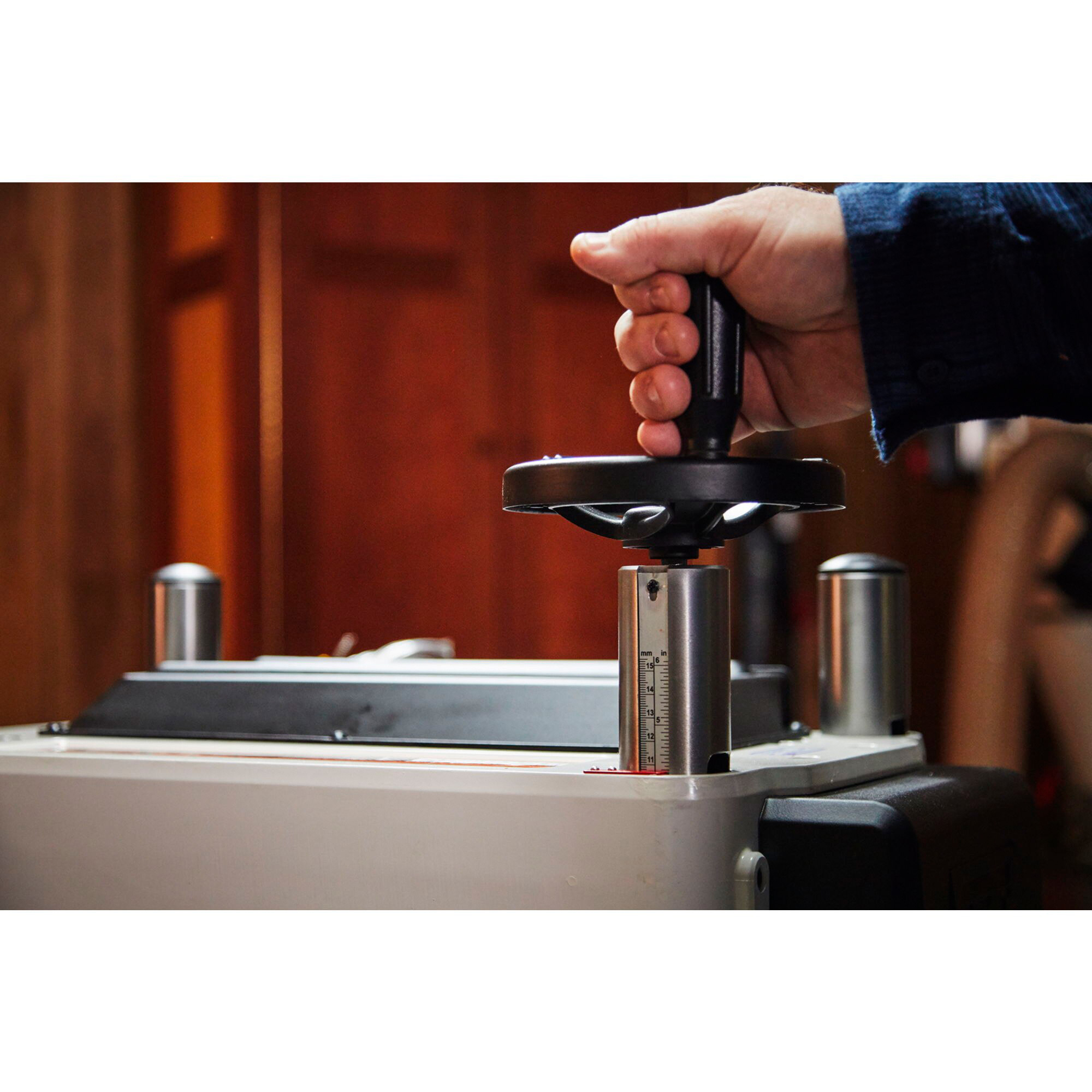

  • Large hand wheel with positive gear drive easily moves the head to the desired board thickness

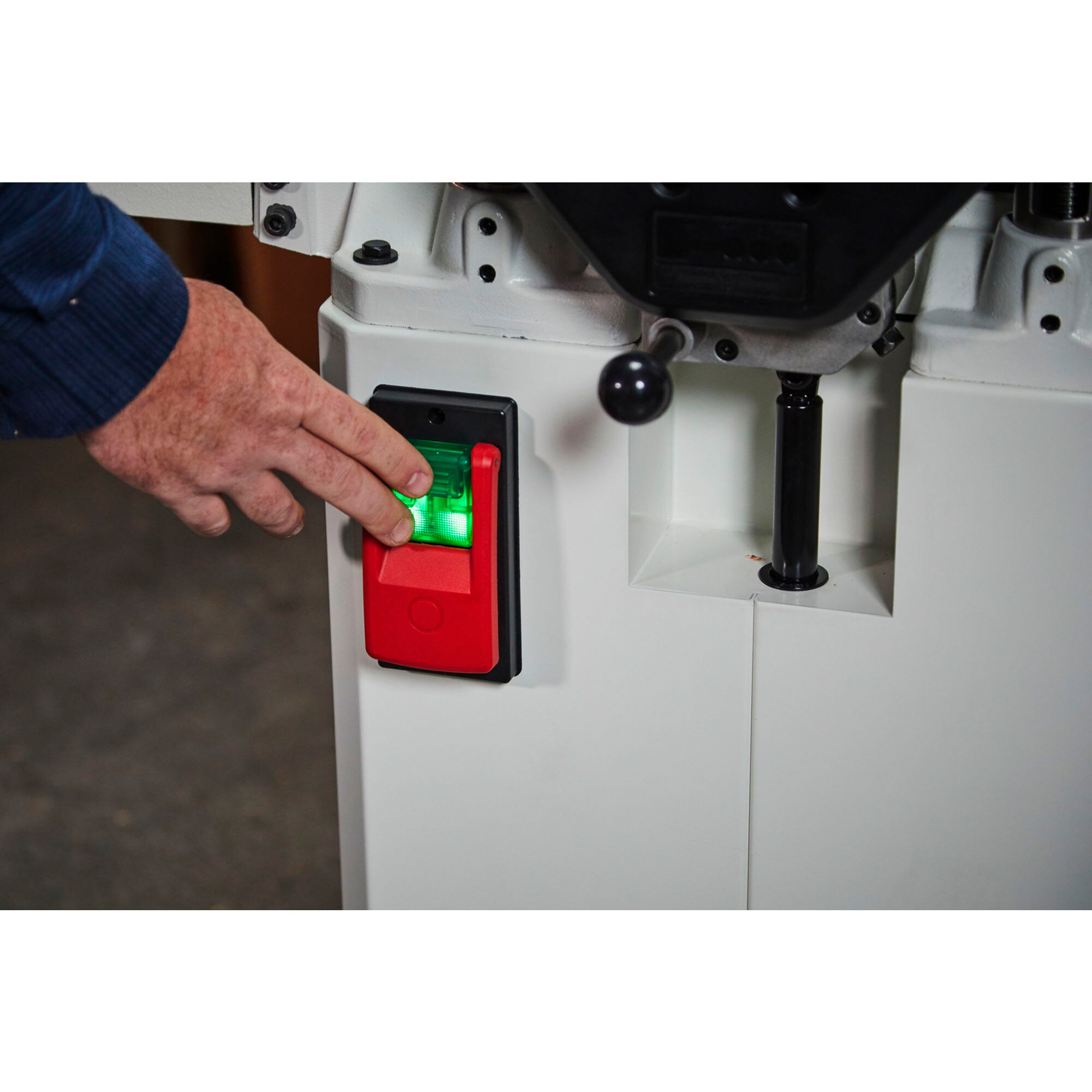

  • Magnetic switch with green safety light illuminates when powered

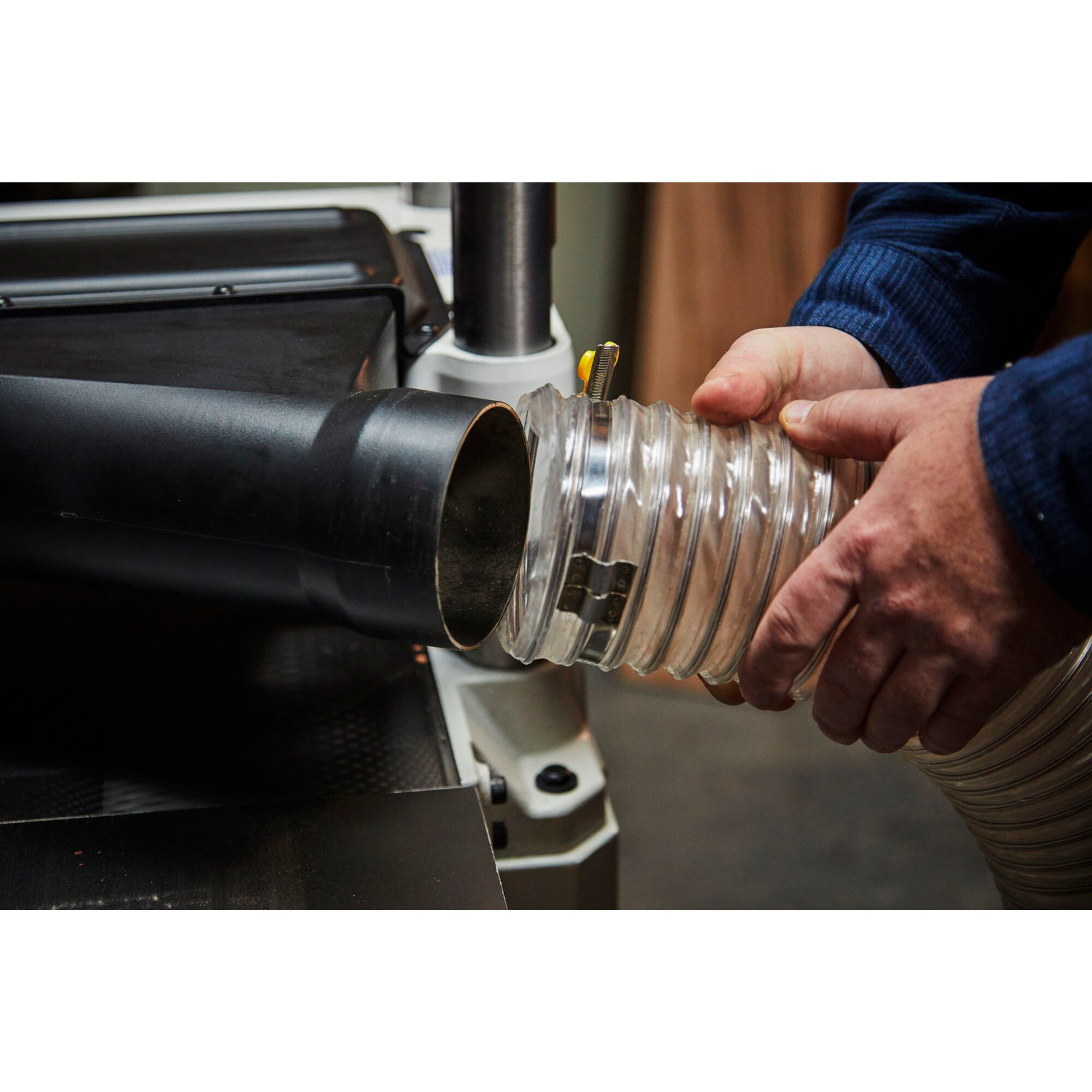

  • 4in. dust port hooks up to dust management system and helps keep shop clean

Key Specs

AttributeSpecification

item#

99156

Brand

JET

Manufacturer's Warranty

5 year limited warranty

Ship Weight

330.5 LB

Product Type

Planers

Max. Cutting Depth

0.125 in

Knives (qty.)

48
AttributeSpecification

Cutterhead Speed

5,200 rpm

Volts

230

Amps

15

Helical Head

Yes

Product Weight

330.5000 lb

Dimensions L x W x H (in.)

30.0 x 26.75 x 44.87 in
