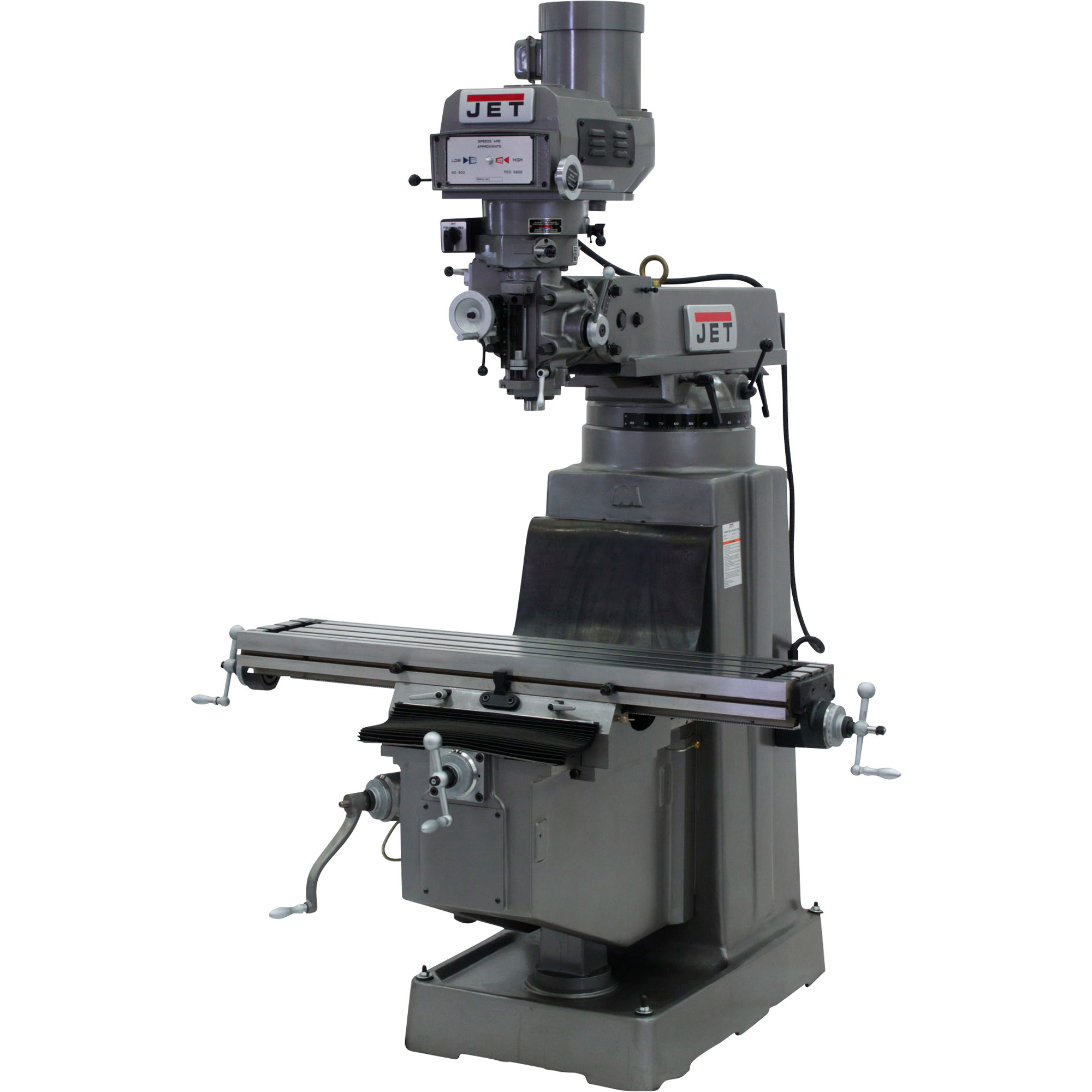

JET Variable Speed Milling Machine with X and Y-Axis Powerfeeds, 10in. x 50in., 230 Volt, 3-Phase, Model# JTM-1050

Item# 71832
JET Variable Speed Milling Machine with X and Y-Axis Powerfeeds, 10in. x 50in., 230 Volt, 3-Phase, Model# JTM-1050

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Variable Speed Milling Machine with X and Y-Axis Powerfeeds, 10in. x 50in., 230 Volt, 3-Phase, Model# JTM-1050

Click or Tap image to Zoom

$21,994.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Certified Meehanite® castings
  • Hardened and ground table
  • Chrome lead screws on X and Y axis
  • Turcite B on X and Y axis
  • Satin chrome finish on dials

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Variable Speed Milling Machine with X and Y-Axis Powerfeeds, 10in. x 50in., 230 Volt, 3-Phase, Model# JTM-1050
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
Price for all four:

$22,018.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET Variable Speed Milling Machine with X and Y-Axis Powerfeeds is constructed using the Meehanite® casting process to provide consistent and reliable operation. Features a heavy-duty hardened and ground 10in. x 50in. table. High precision class 7 precision bearings support the spindle. The precision bored and honed milling heads ensure quality cuts, and the 3-stage power downfeed with automatic stop makes it easy to use. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Milling machine with X and Y-axis powerfeeds

Features + Benefits

  • Certified Meehanite® castings
  • Hardened and ground table
  • Chrome lead screws on X and Y axis
  • Turcite B on X and Y axis
  • Satin chrome finish on dials
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearing
  • Spindle head is internally cooled
  • No fuse breaker power connection
  • Heavy-duty motor drive
  • Chrome plated motor shaft with bearing support at end
  • 1-piece quill pinion and shaft
  • 3-stage power downfeed with automatic stop
  • Heavy-duty spindle break
  • Locks on all movable surfaces
  • Hardened and ground square vertical knee ways and cross ways
  • Adjustable gibs throughout
  • Internal coolant tank built into base for use with coolant system (coolant pump not included)
  • Tolerance test sheet included

Key Specs

AttributeSpecification

item#

71832

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

2900.0 LB

Horsepower

3 HP

Volts

230

Max. Speed

3,800 rpm

360 Degree Head Swivel

No

Product Type

Milling Machine
AttributeSpecification

Vertical Stroke

5 in

Light Included

No

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

19 in

Draw Bar

Yes

Swing

26 in

Product Weight

lb

Dimensions L x W x H (in.)

68.75 x 95.75 x 87.0 in
