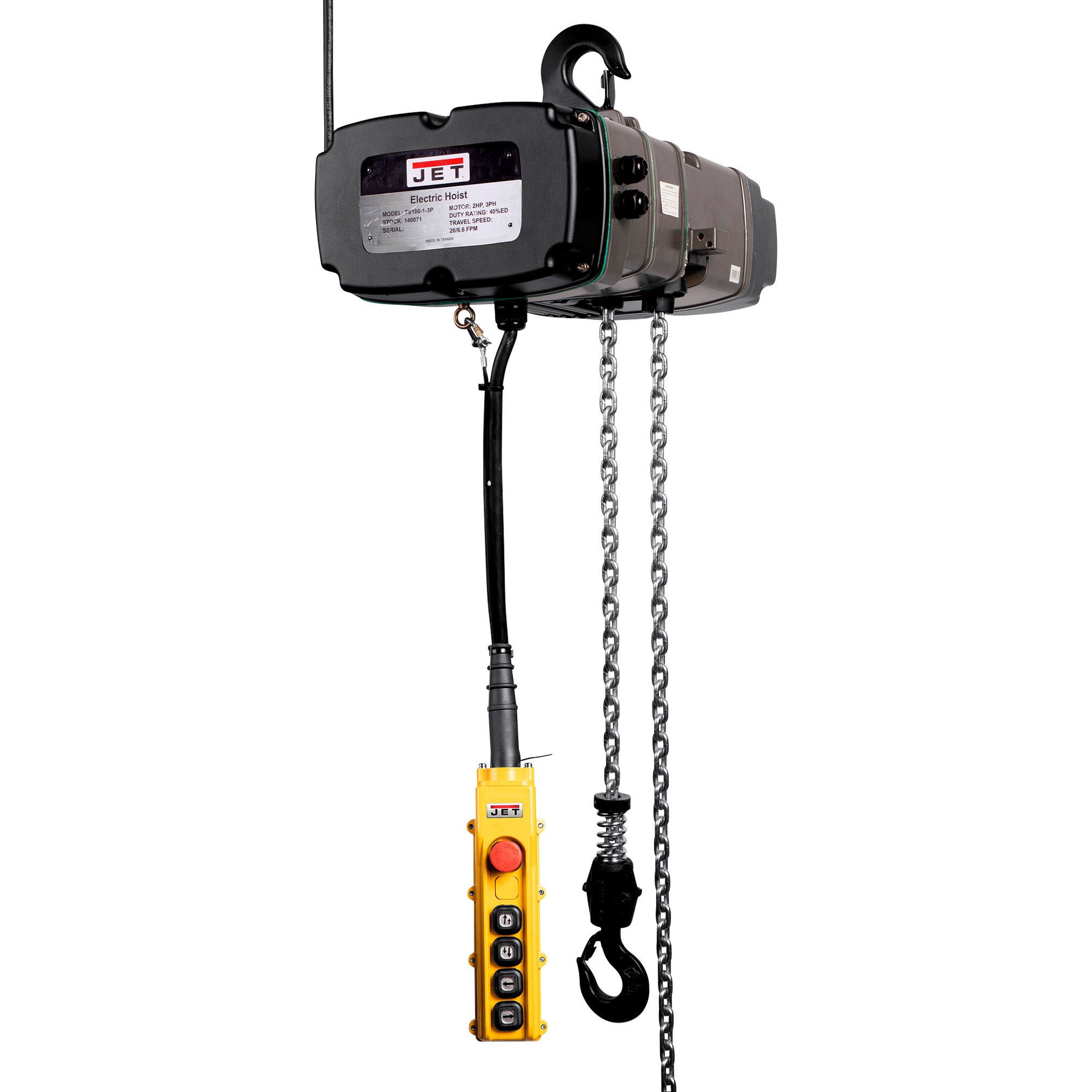

JET TS Series Electric Hoist, 3-Ton Load Capacity, 20ft. Lift Height, Model# TS500-020

Item# 107200
JET TS Series Electric Hoist, 3-Ton Load Capacity, 20ft. Lift Height, Model# TS500-020

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET TS Series Electric Hoist, 3-Ton Load Capacity, 20ft. Lift Height, Model# TS500-020

Click or Tap image to Zoom

$10,520.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Grade 80 hardened and galvanized alloy steel load chain built to withstand harsh conditions such as rain, saltwater and chemicals with minimal wear
  • Pendant control is IP65 rated, fully water-proof, insulated and impact resistant for years of service
  • Built-in heat protection will not allow lifting if internal temperatures exceed 285° F (+/-40°)
  • Load will be allowed to be lowered until unit cools to save internal components and extend product life
  • Comes with 10ft. power supply cord

See full description

Complete Your Solution

  • JET TS Series Electric Hoist, 3-Ton Load Capacity, 20ft. Lift Height, Model# TS500-020
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • JET HDT Series Manual Trolley, 3-Ton Capacity, Fits 4in.W-8in.W Beams, Model# 3-HDT
  • OZ Lifting Products Geared Beam Trolley, 3-Ton Capacity, 3.46-7.99 Flange Width, Model# OZ3GBT
Price for all four:

$11,481.38

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The JET TS Series Electric Hoist is designed and built for safety, durability and efficient operation in the toughest industrial applications. Two speeds allow you to move materials quickly and safely. This unit can also be slowed down to place materials exactly where you need them without excessive bump firing. The 2in.-1 mechanical brake and overload protection assure you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. The patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of these features with safe lifting speeds up to 33ft. per min. and as low as 3ft. per min. give you the ability to be highly efficient with every load.

What's Included

    (1) Electric hoist

Features + Benefits

  • Grade 80 hardened and galvanized alloy steel load chain built to withstand harsh conditions such as rain, saltwater and chemicals with minimal wear
  • Pendant control is IP65 rated, fully water-proof, insulated and impact resistant for years of service
  • Built-in heat protection will not allow lifting if internal temperatures exceed 285° F (+/-40°)
  • Load will be allowed to be lowered until unit cools to save internal components and extend product life
  • Comes with 10ft. power supply cord
  • IP55 TEFC motor with Class F insulation for working in harsh environments
  • 2-in-1 design of mechanical brake and overload protection ensure operator safety, extended product life
  • DC motor brake actuates instantly in event of power failure to ensure operator safety
  • Patented gear limit switch to turn off power instantly in the case of over lifting or lowering position
  • 5-pocket chain sprocket provides reduced vibration, smoother operation and reduced chain wear during long lifting or lowering of loads

Key Specs

AttributeSpecification

item#

107200

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

465.0 LB

Capacity

6,000 lb

Lift Height

20 ft

Lift Speed

4.33 ft./min.

Volts

230

Brake Type

Motor
AttributeSpecification

Control Type

Push Button

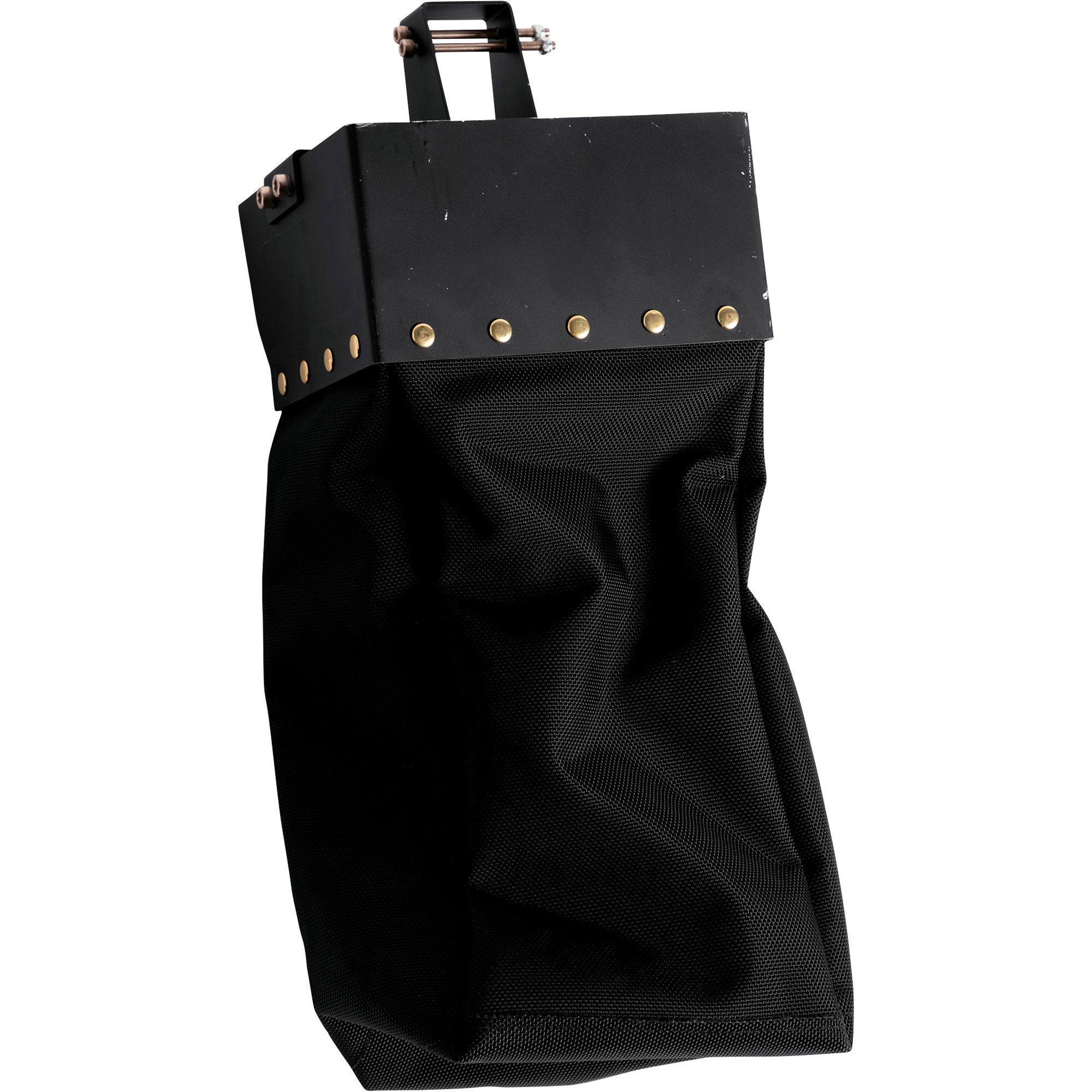

Chain Bag Included

Yes

Required Head Room

43.3 in

Motor Output

4.167

Thermal Overload Protection

Yes

Hoist Classification

H4

Dimensions L x W x H (in.)

37.0 x x in

Product Weight

465.0000 lb
