JET, TS/MT Electric Hoist Trolley Kit, Capacity 11000 lb, Lift Height 20 ft, Model# TS500-230-020 KIT

Item# 5698031
JET, TS/MT Electric Hoist Trolley Kit, Capacity 11000 lb, Lift Height 20 ft, Model# TS500-230-020 KIT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET, TS/MT Electric Hoist Trolley Kit, Capacity 11000 lb, Lift Height 20 ft, Model# TS500-230-020 KIT

Click or Tap image to Zoom

$12,368.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life
  • DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
  • Two Speed Motor ensures the correct speed for the job with a click of a button

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

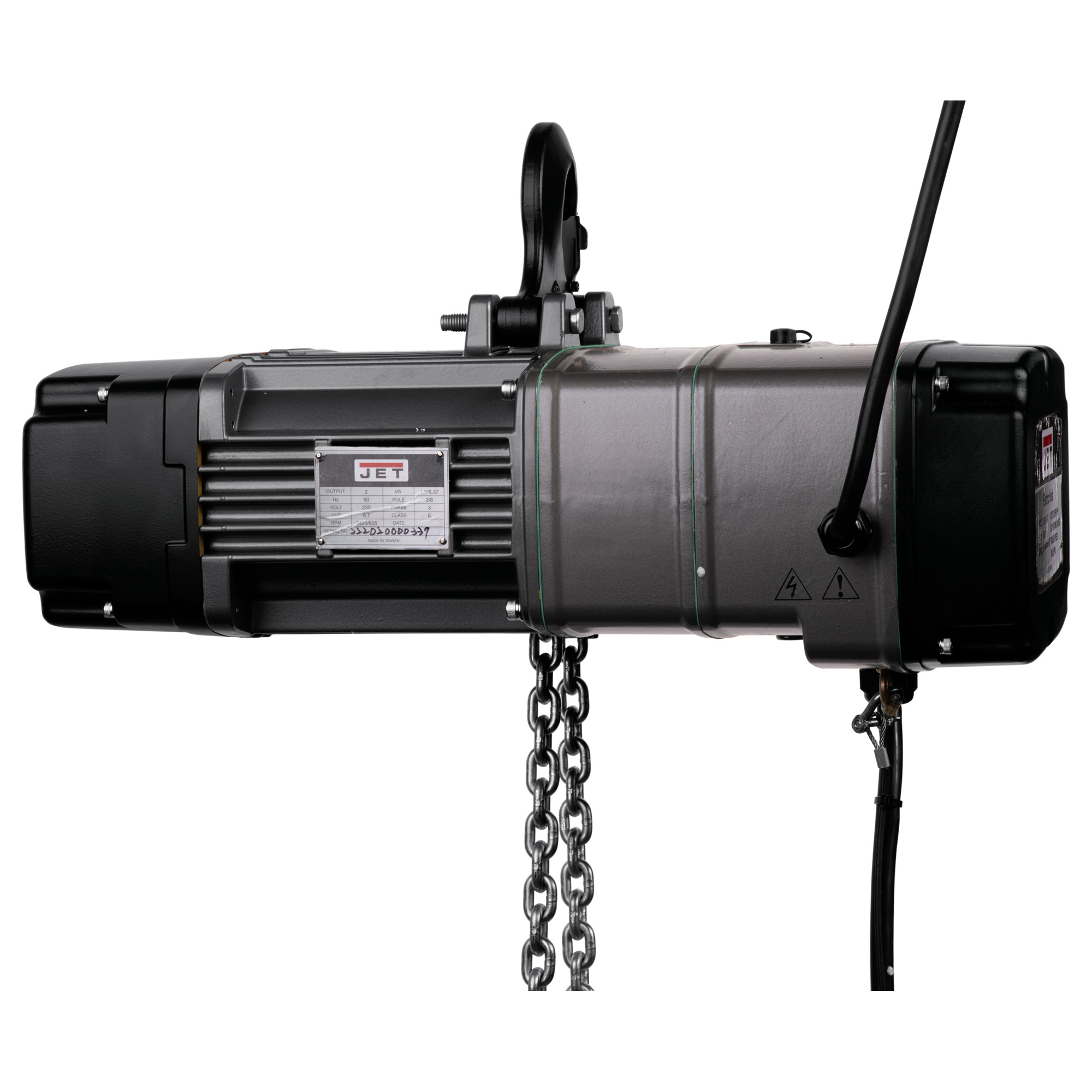

JET TS Series Electric Hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. Additionally, a two in one mechanical brake and overload protection assures you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. We engineered this hoist to keep the operator safe and prolong the life of your tool. Lastly a patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33ft. per minute and as low as 3ft. per minute to give you the ability to be more efficient with every load. The TS Series is available from 1/2 Ton to 5 Ton capacities. Let’s Get to Work.

What's Included

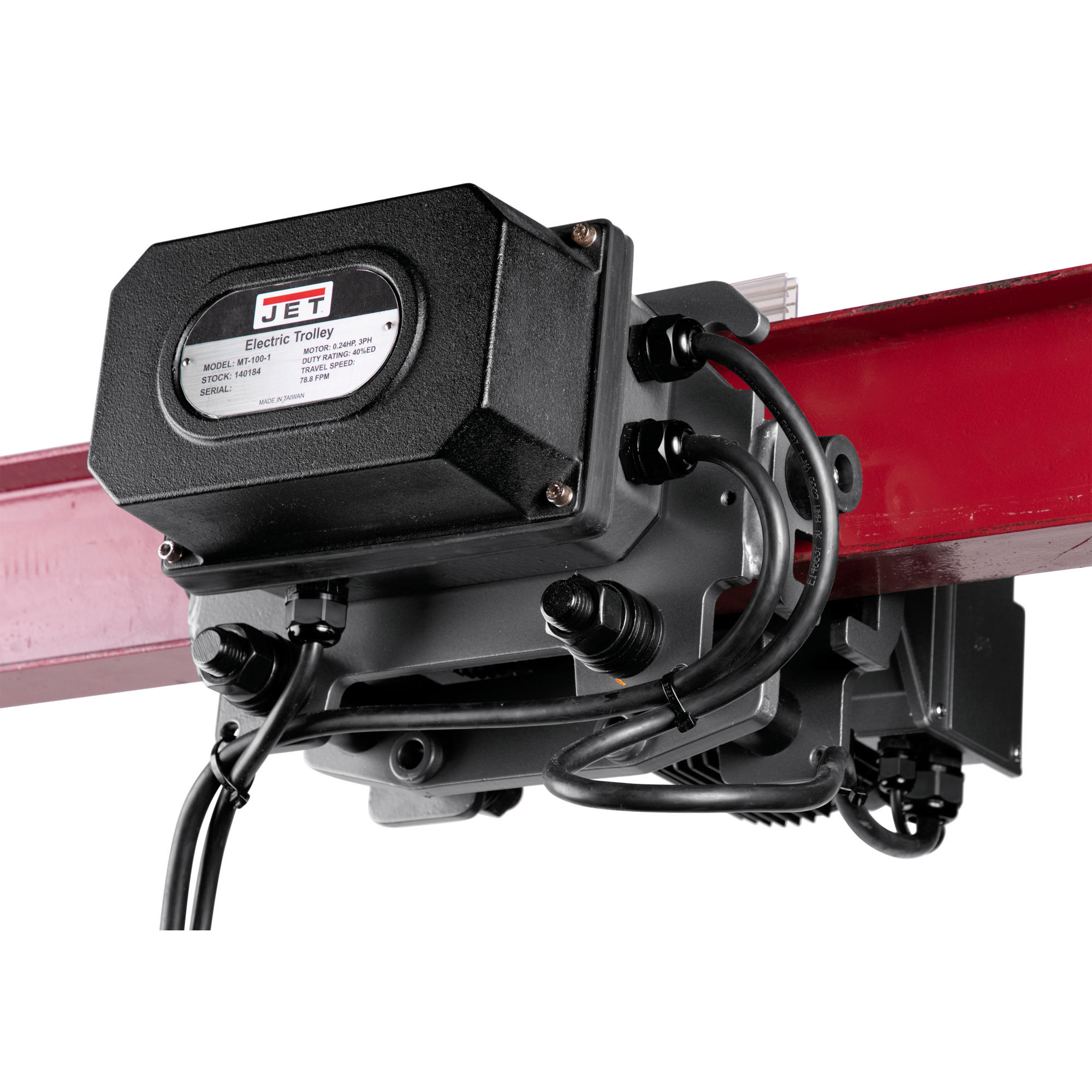

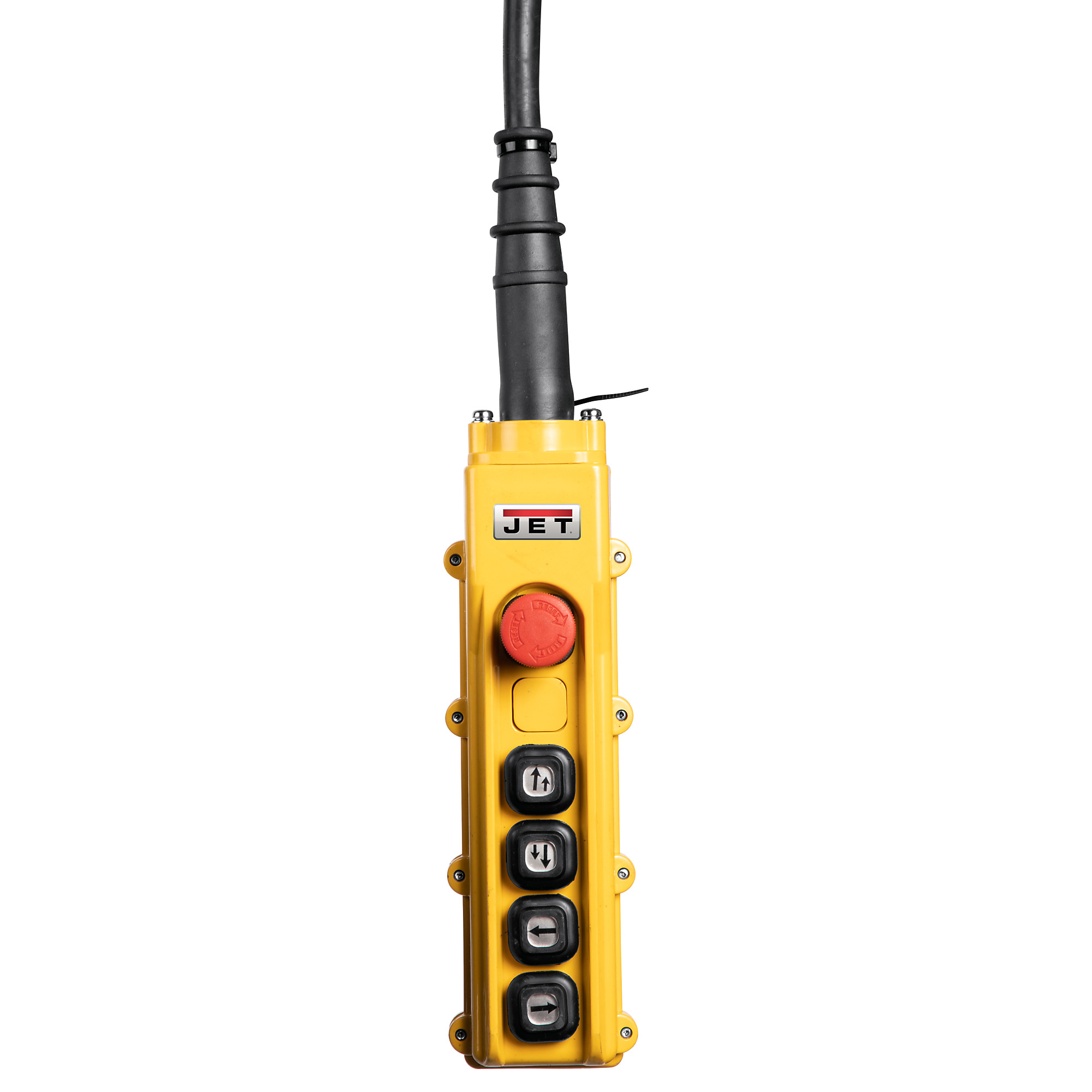

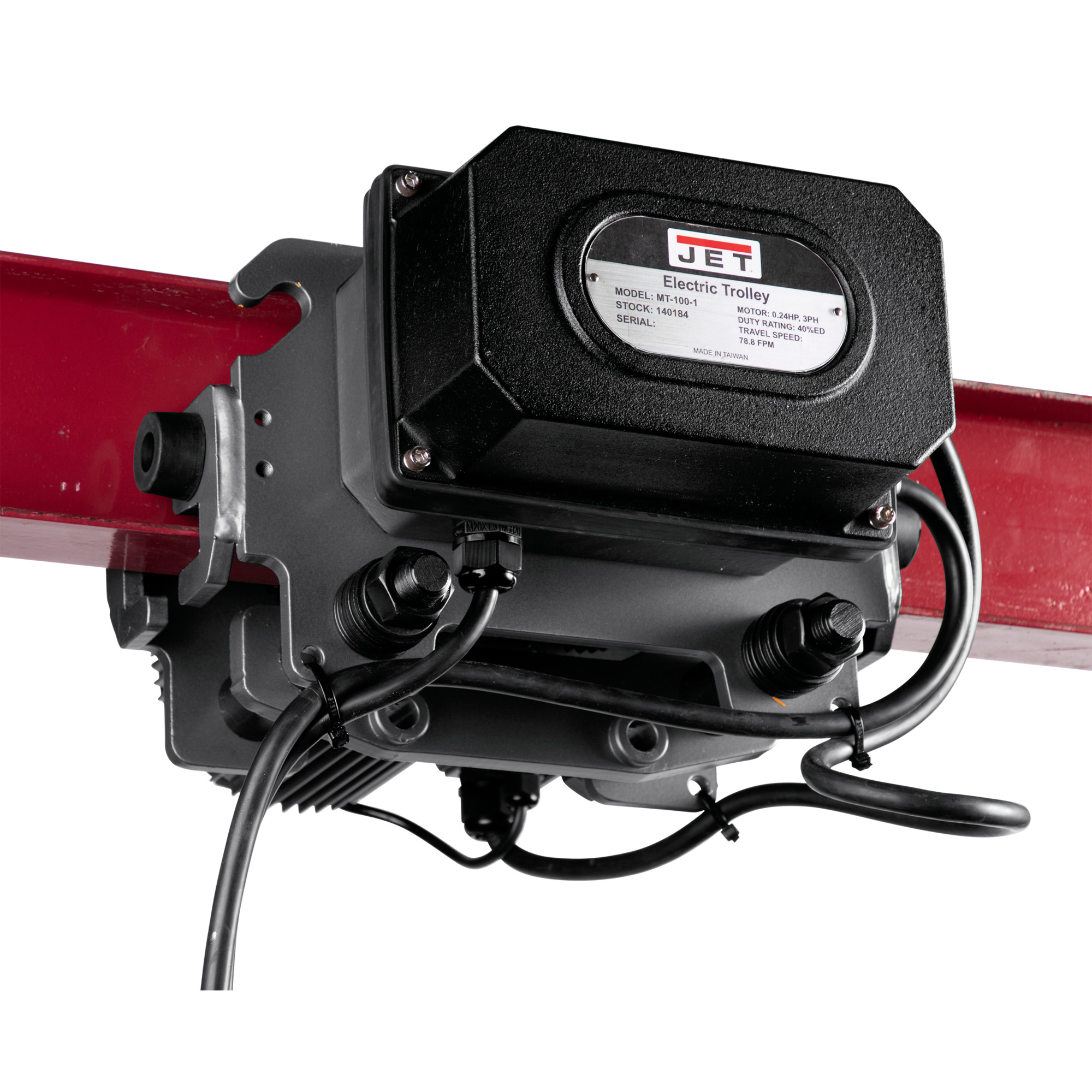

    (1) Electric Hoist, Electric Trolley, Pendant

Features + Benefits

  • The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life
  • DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
  • Two Speed Motor ensures the correct speed for the job with a click of a button

Key Specs

AttributeSpecification

item#

5698031

Brand

JET

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

465.0 LB

Capacity

11,000 lb

Lift Height

20 ft

Lift Speed

33 ft./min.

Volts

230
AttributeSpecification

Brake Type

Other

Control Type

Push Button

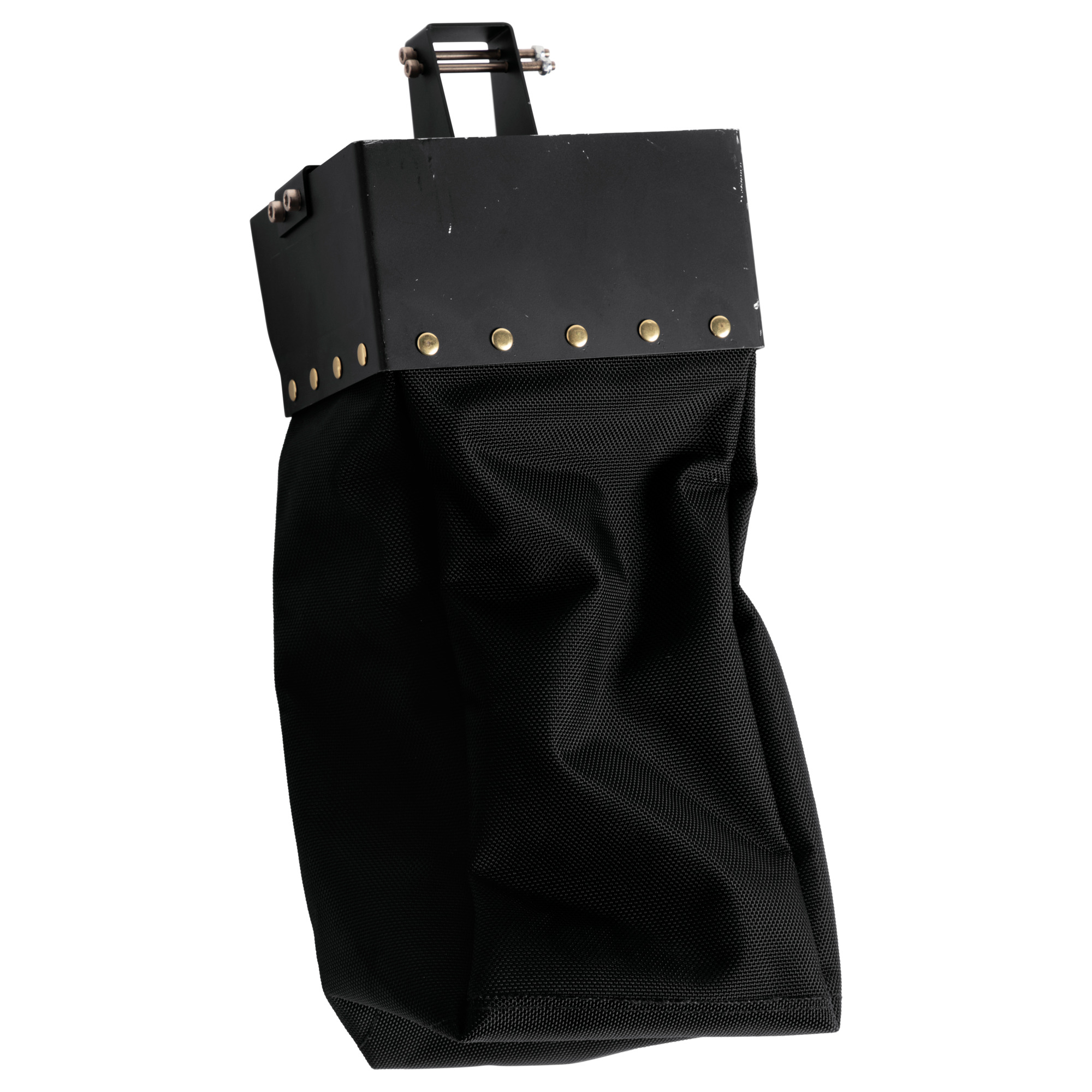

Chain Bag Included

Yes

Thermal Overload Protection

Yes

Hoist Classification

H4

Dimensions L x W x H (in.)

37.008 x 27.165 x 23.622 in

Product Weight

465.0000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
