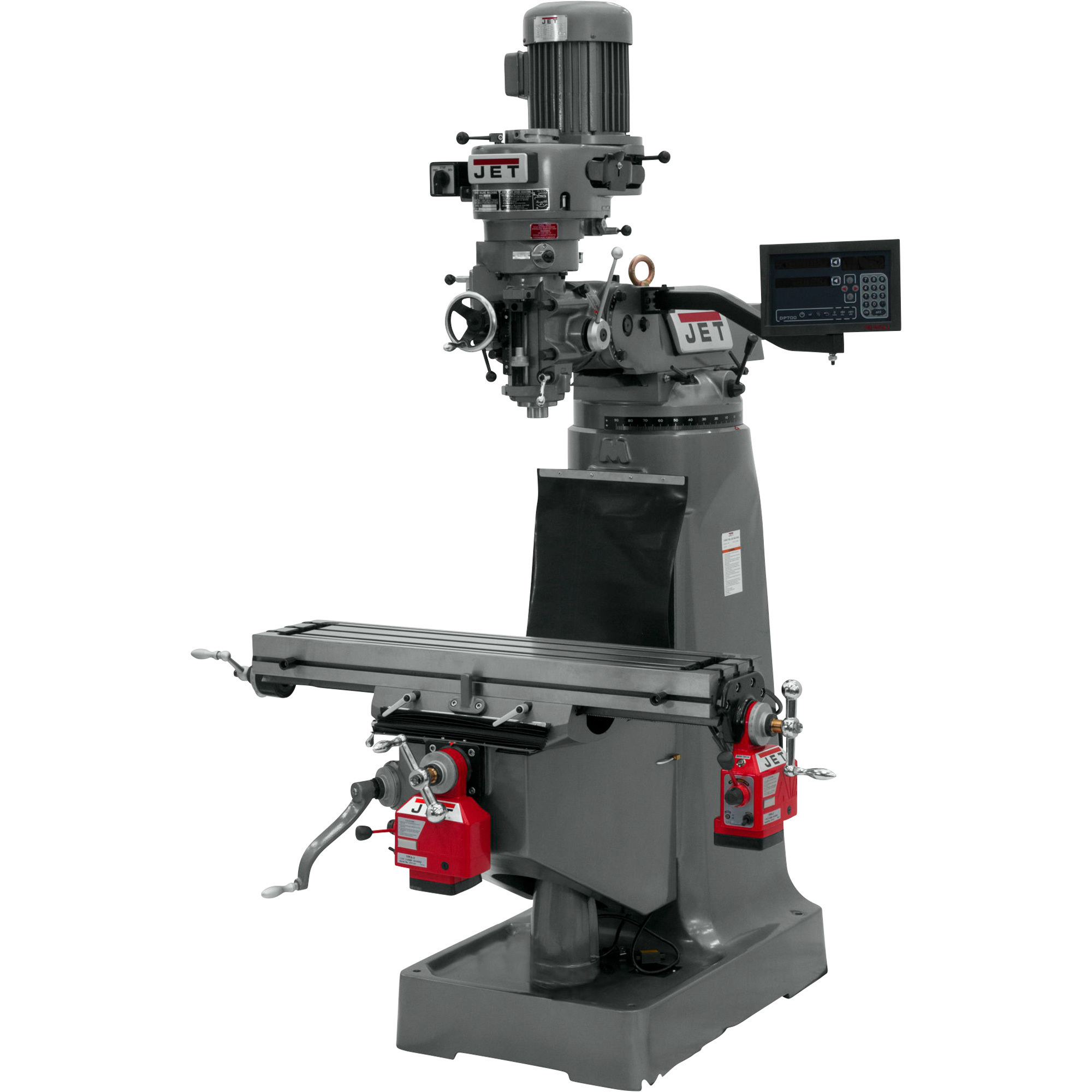

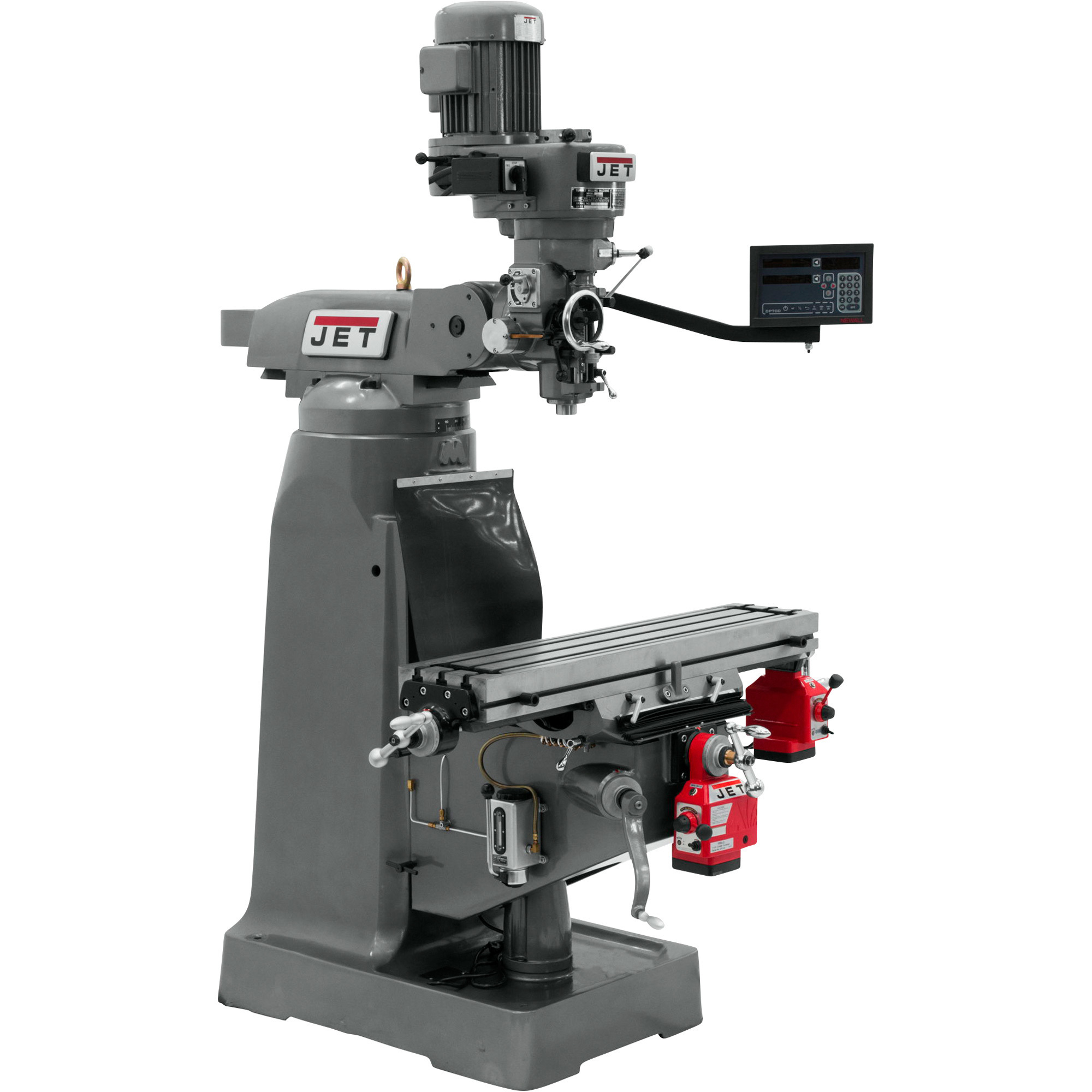

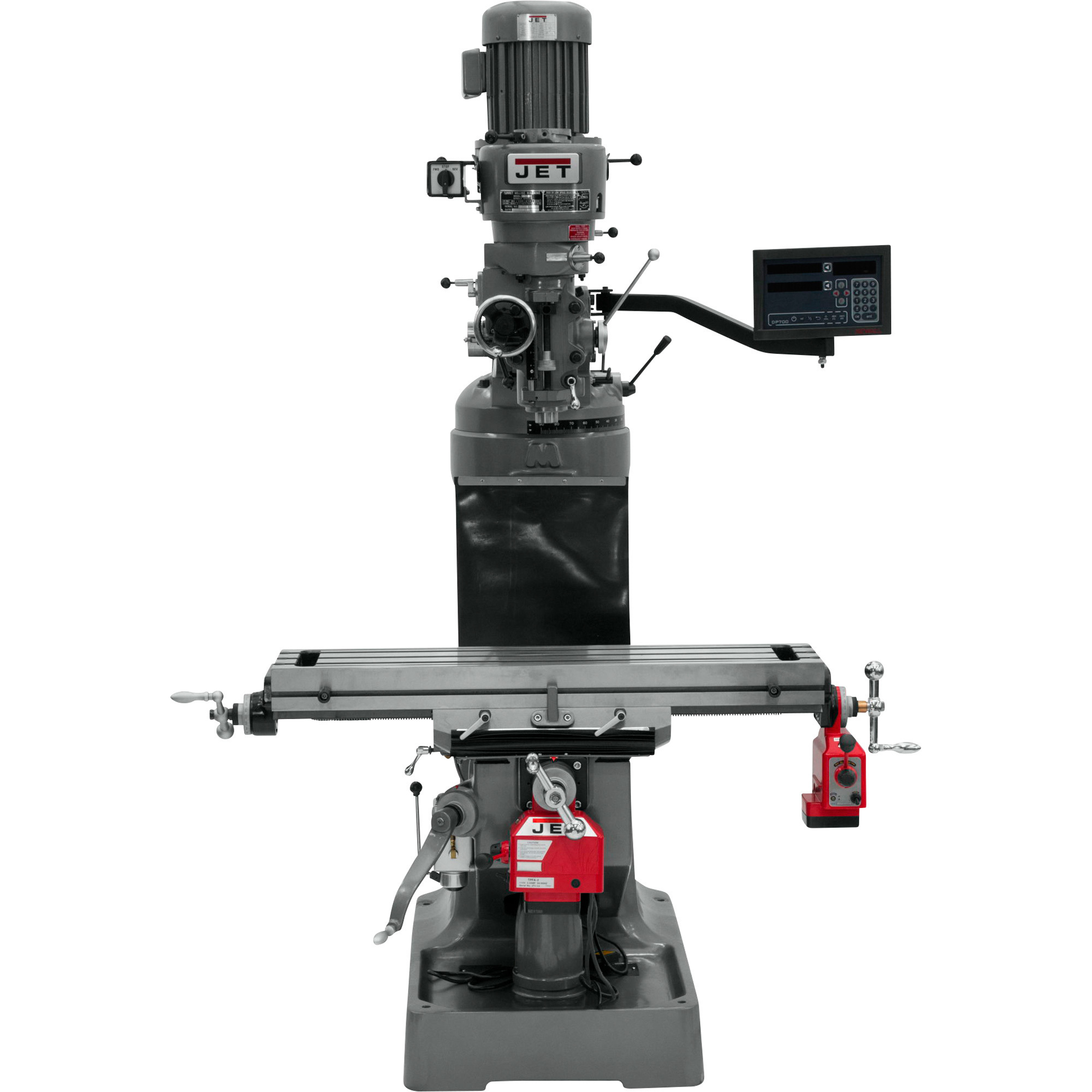

JET Milling Machine with Newall DP700 DRO and X and Y-Axis Powerfeeds-- 9in. x 42in., 115/230 Volt, Single-Phase, Model# JTM-2

Item# 71837
JET Milling Machine with Newall DP700 DRO and X and Y-Axis Powerfeeds-- 9in. x 42in., 115/230 Volt, Single-Phase, Model# JTM-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Milling Machine with Newall DP700 DRO and X and Y-Axis Powerfeeds-- 9in. x 42in., 115/230 Volt, Single-Phase, Model# JTM-2

Click or Tap image to Zoom

$19,575.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Newall DP700 digital readout for exceptional accuracy
  • Certified Meehanite® castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High-precision Class 7 spindle bearings

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Milling Machine with Newall DP700 DRO and X and Y-Axis Powerfeeds-- 9in. x 42in., 115/230 Volt, Single-Phase, Model# JTM-2
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
Price for all four:

$19,599.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET Milling Machine with Newall DP700 DRO and X and Y-Axis Powerfeeds has 3-stage power downfeed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings to ensure you get everything you need. The precision bored and honed milling heads ensure consistent, quality cuts. An internally cooled spindle head prevents seizing. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Milling Machine with Newall DP700 DRO and X and Y-axis powerfeeds

Features + Benefits

  • Newall DP700 digital readout for exceptional accuracy
  • Certified Meehanite® castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High-precision Class 7 spindle bearings
  • Spindle head is internally cooled
  • Heavy-duty splined motor drive
  • 1-piece quill pinion and shaft
  • 3-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Precision hardened and ground ways
  • Precision ground table
  • Internal coolant tank built into base for use with coolant system (coolant pump not included)
  • Tolerance test sheet included
  • One shot lubrication system
  • Includes way covers, draw bar and tool box with tools

Key Specs

AttributeSpecification

item#

71837

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

2200.0 LB

Horsepower

2 HP

Volts

115/230

Max. Speed

2,720 rpm

360 Degree Head Swivel

No

Speeds (qty.)

8

Product Type

Milling Machine
AttributeSpecification

Vertical Stroke

5 in

Light Included

No

Stand Included

Yes

Variable Speed

No

Max. Spindle Distance

17.5 in

Draw Bar

Yes

Swing

19 in

Product Weight

lb

Dimensions L x W x H (in.)

69.0 x 59.0 x 72.0 in
