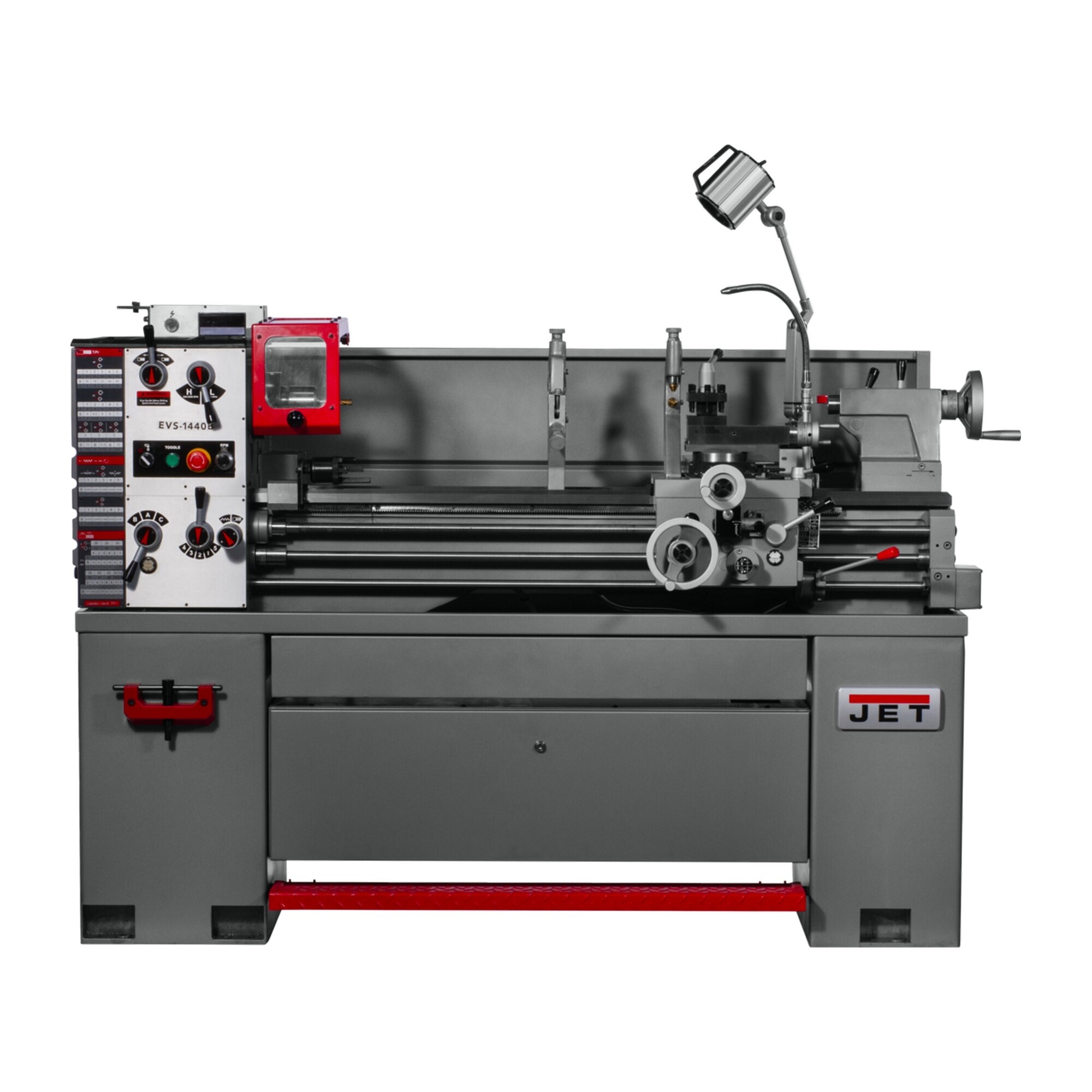

JET, Metalworking Lathe, Model# EVS-1440B

Item# 5718290
JET, Metalworking Lathe, Model# EVS-1440B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET, Metalworking Lathe, Model# EVS-1440B

Click or Tap image to Zoom

$23,594.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

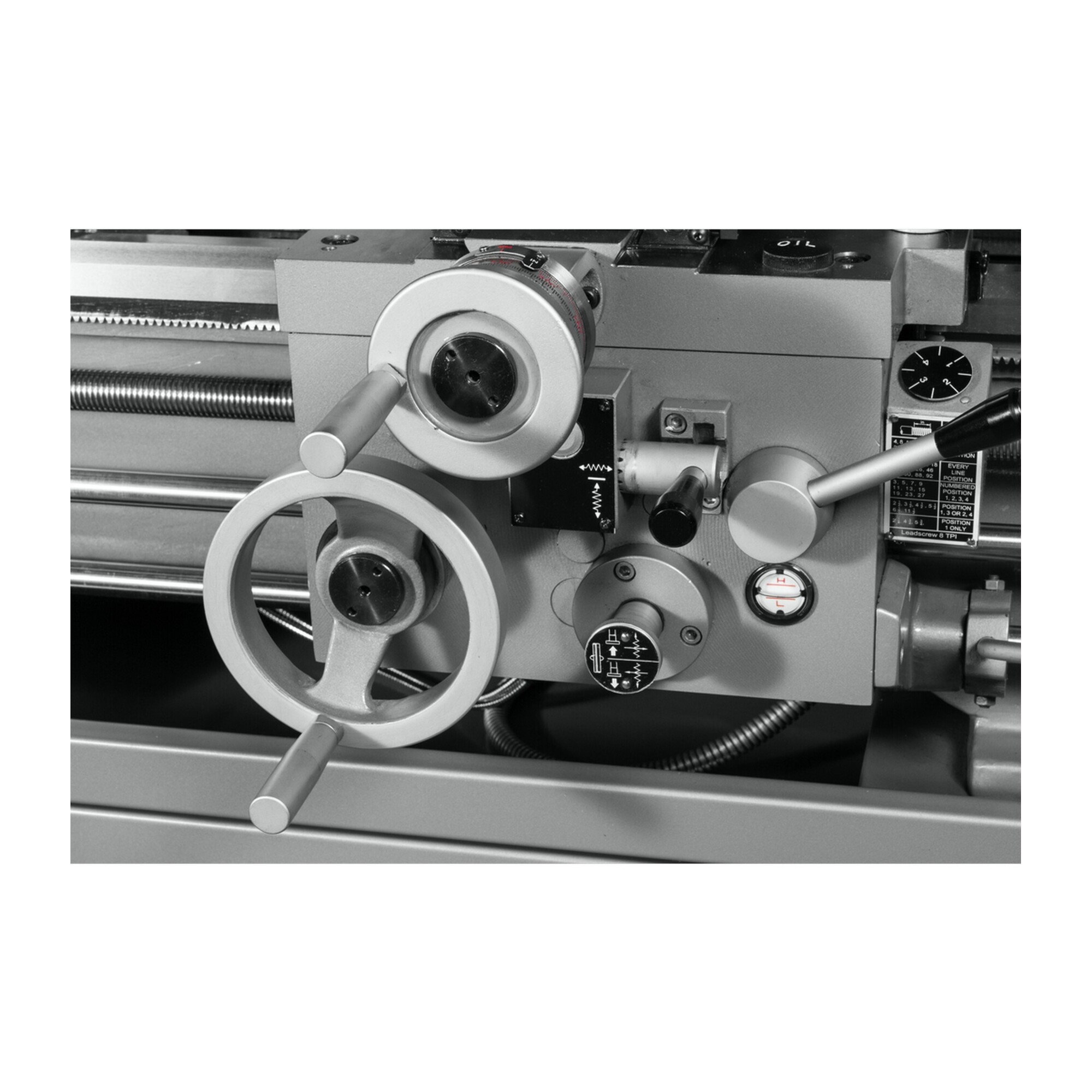

  • Compound and cross slide have backlash elimination

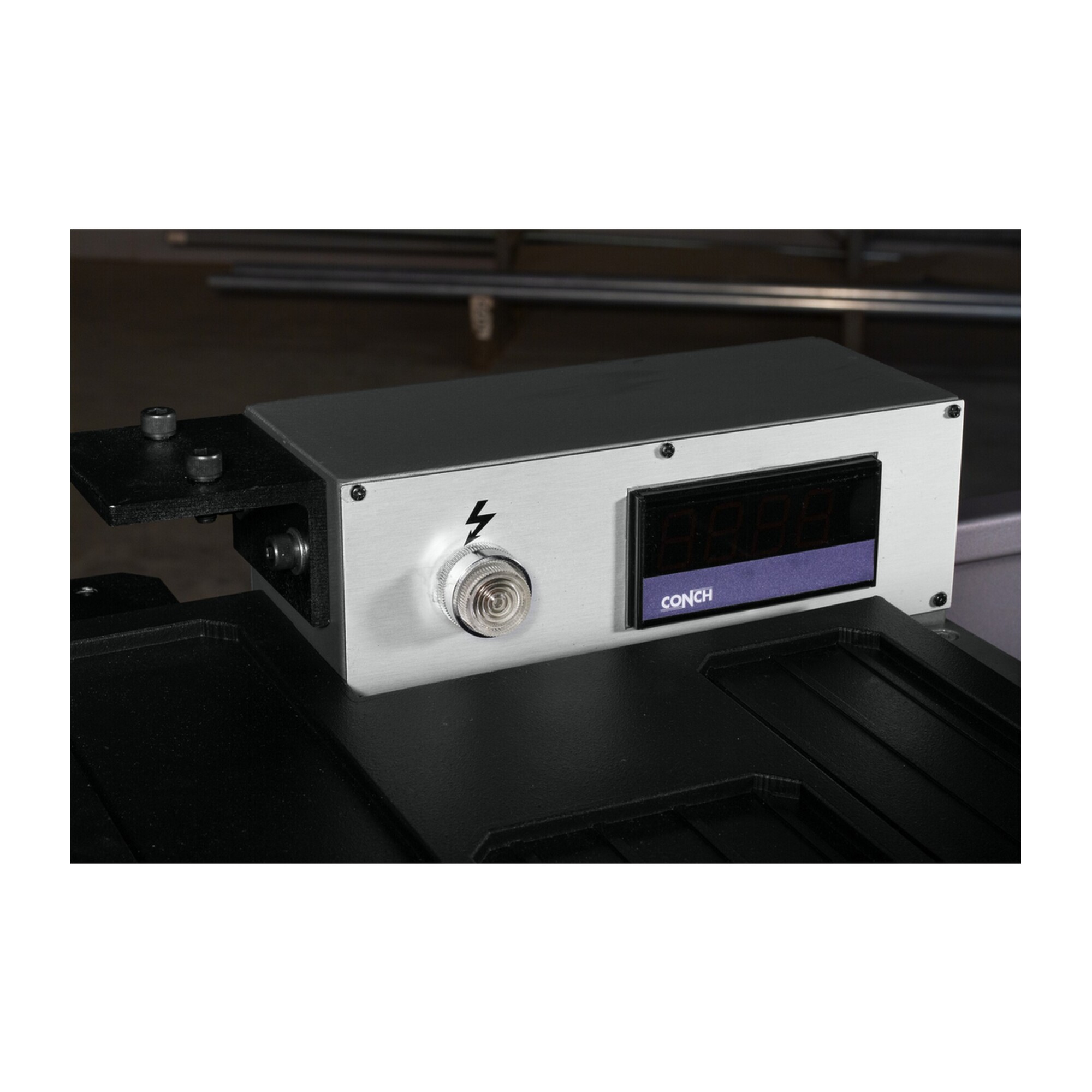

  • Electronic Chuck Key Docking Station

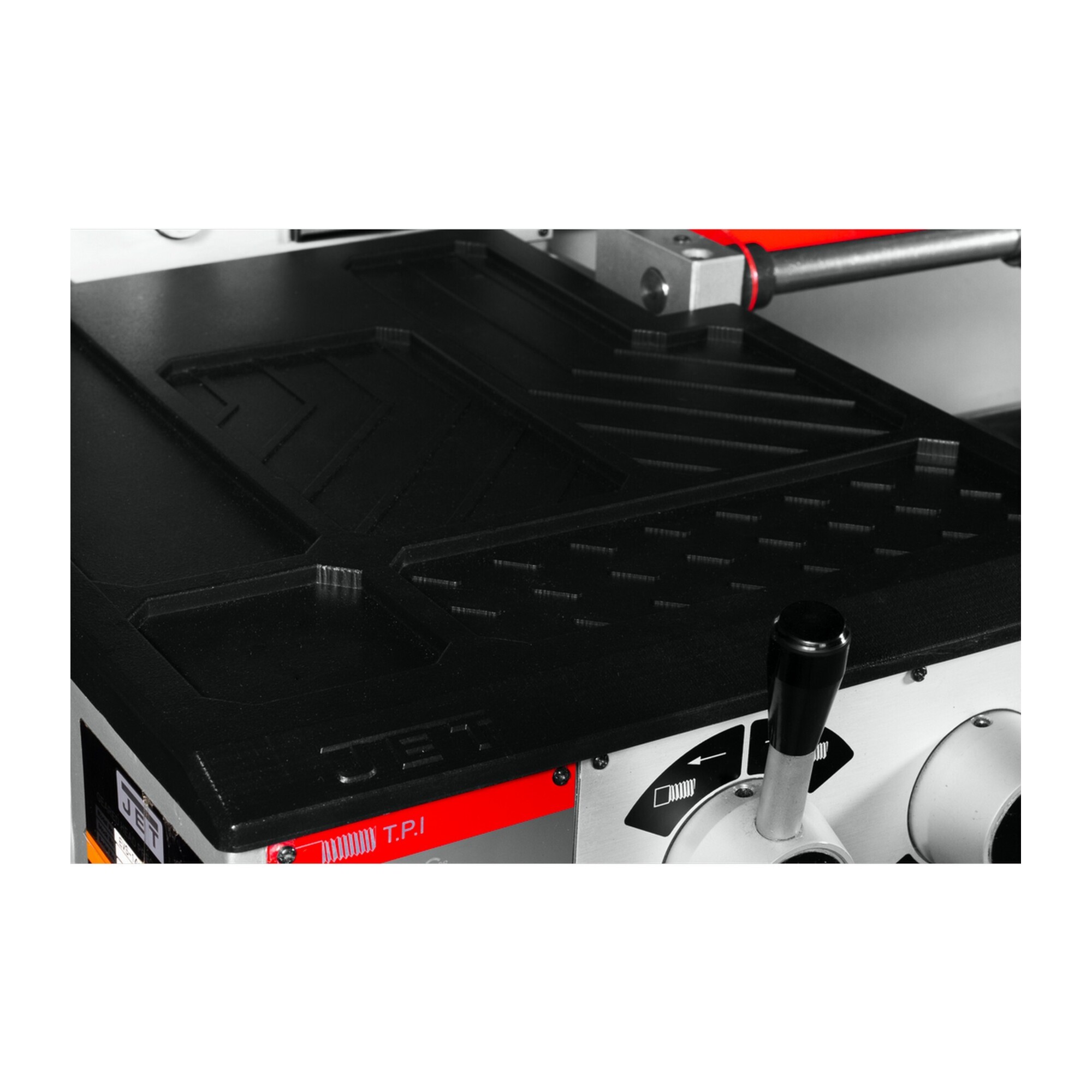

  • Front Removable Chip Tray

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.

What's Included

    (1) Lathe

Features + Benefits

  • Compound and cross slide have backlash elimination
  • Electronic Chuck Key Docking Station
  • Front Removable Chip Tray

Key Specs

AttributeSpecification

item#

5718290

Brand

JET

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1584.0 LB

Horsepower

5 HP

Volts

220

Distance Between Centers

40 in

Swing Over Bed

14 in
AttributeSpecification

Product Type

Bench Lathe

Carriage Travel

0 in

Phase

Three-phase

Variable Speed

Yes

Max. Speed

3,500 rpm

Spindle Mount

Yes

Product Weight

1584.0000 lb

Dimensions L x W x H (in.)

68.5 x 28.3 x 50.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
