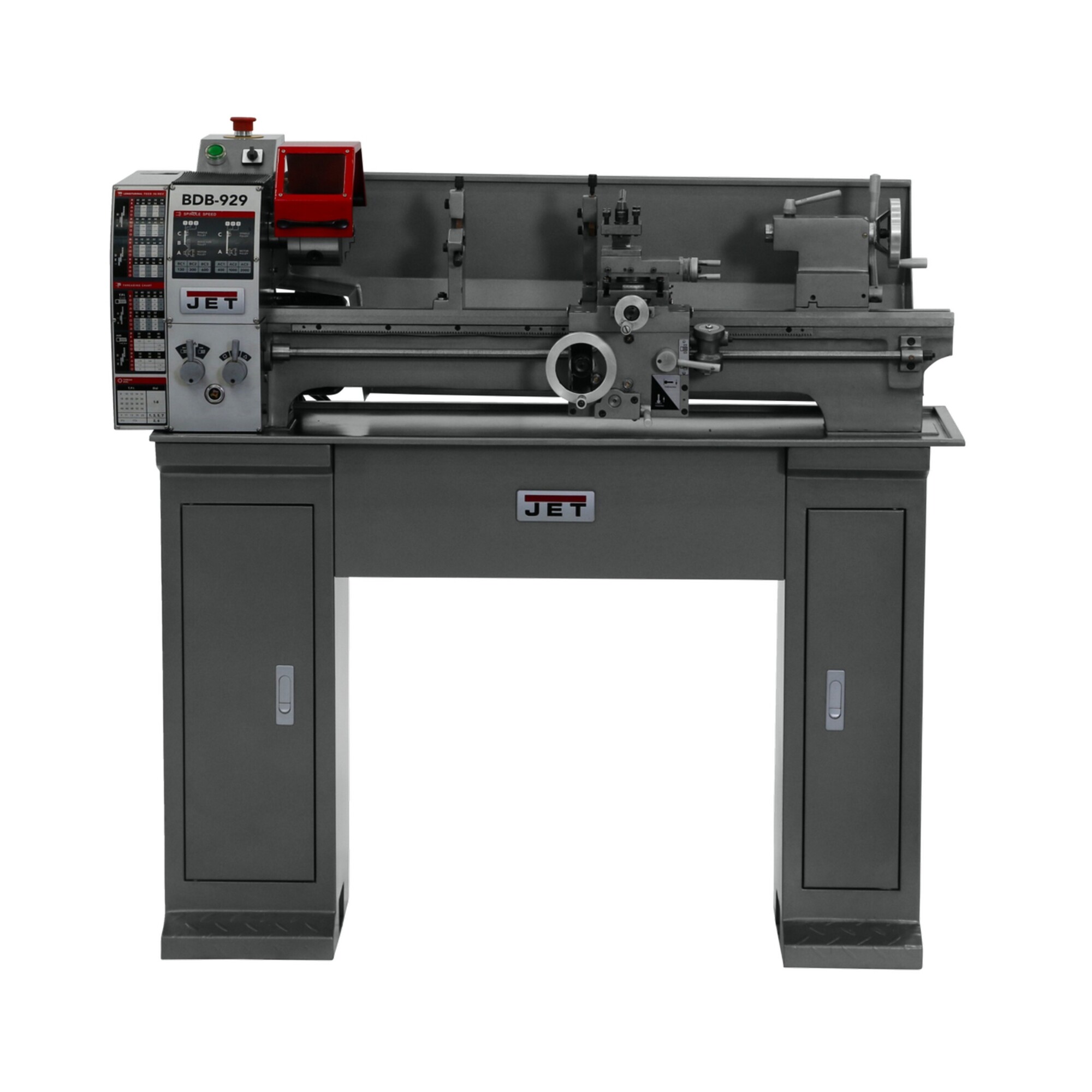

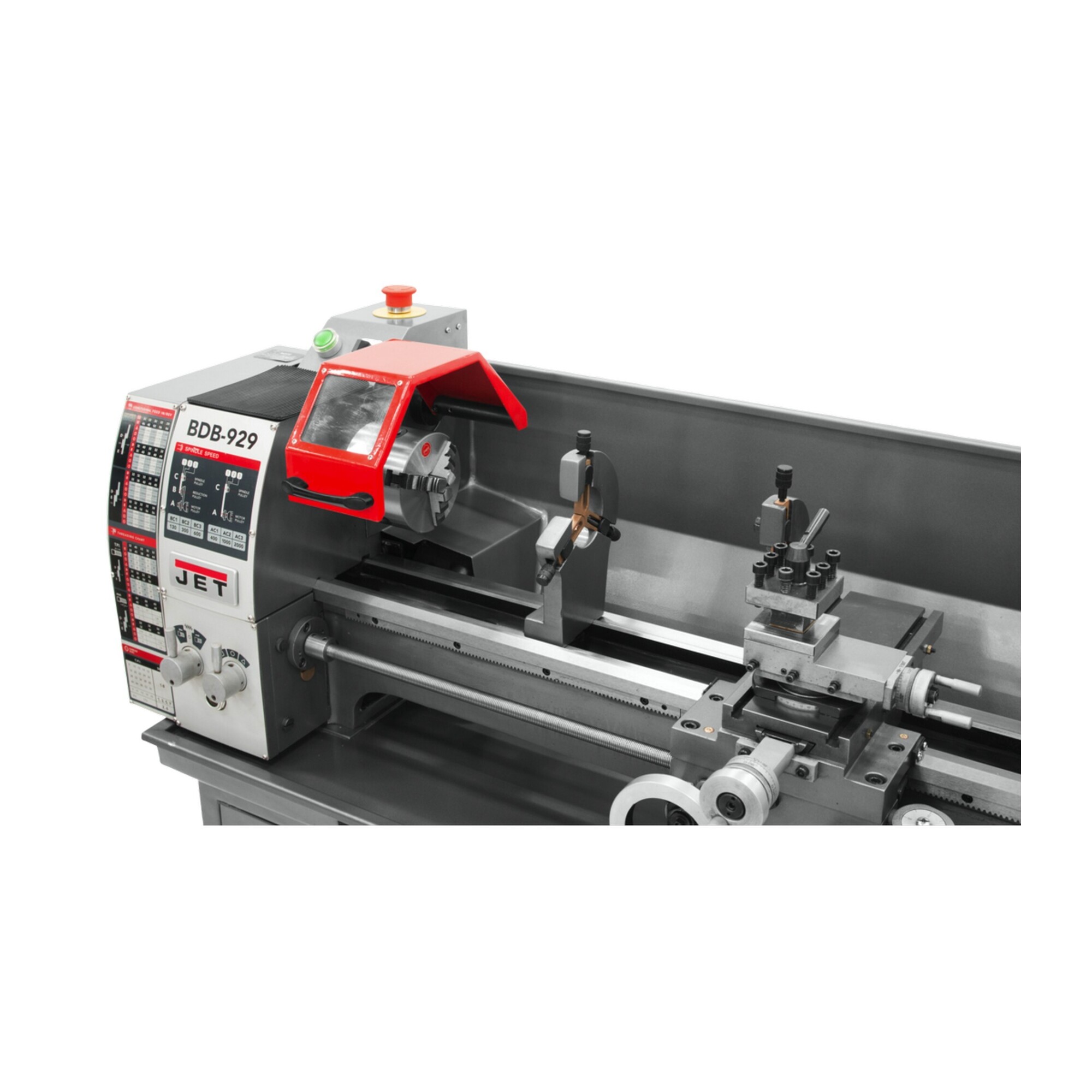

JET, Metalworking Lathe, Model# BDB-929

Item# 5718687
JET, Metalworking Lathe, Model# BDB-929

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET, Metalworking Lathe, Model# BDB-929

Click or Tap image to Zoom

$5169.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

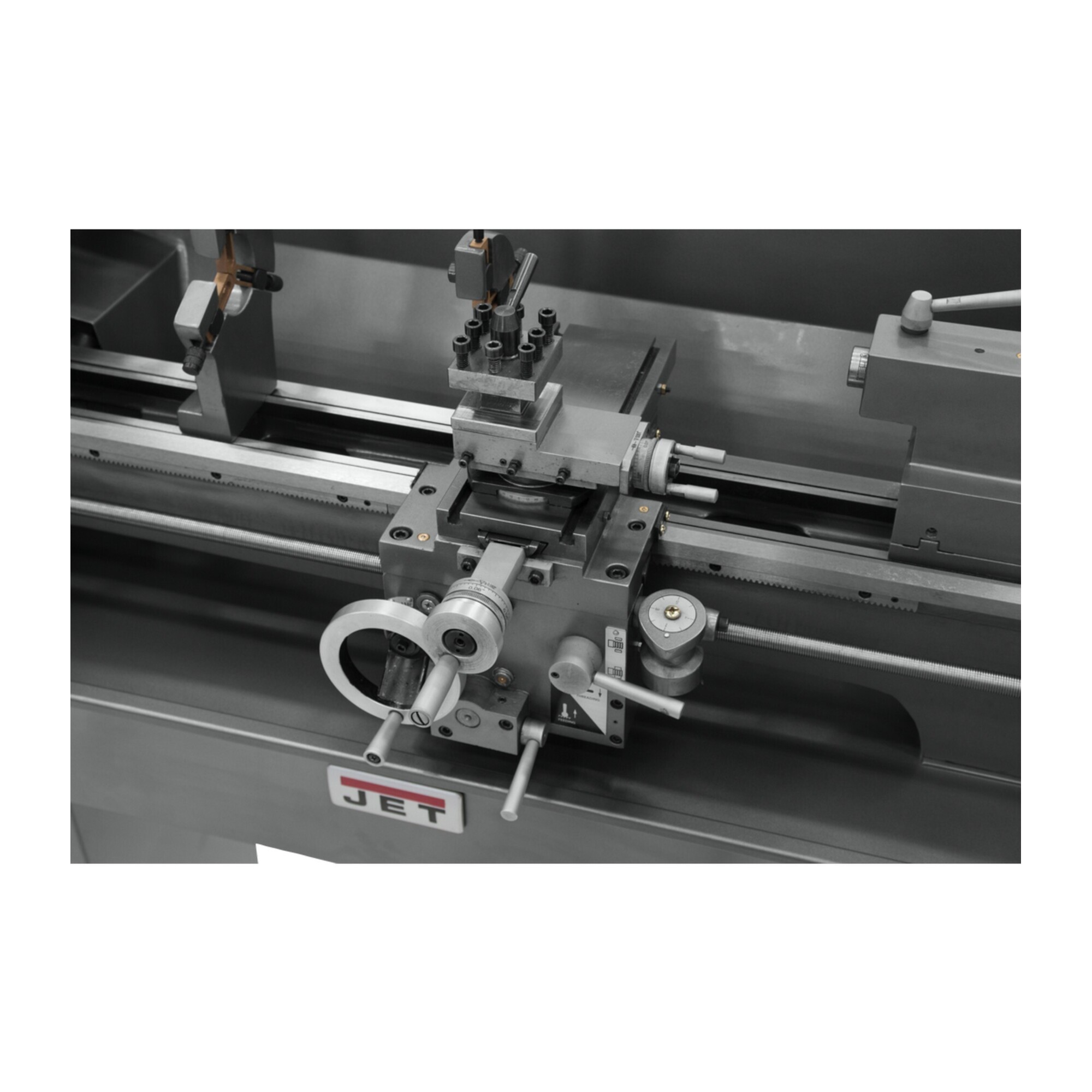

  • Backlash adjustments provided throughout the carriage

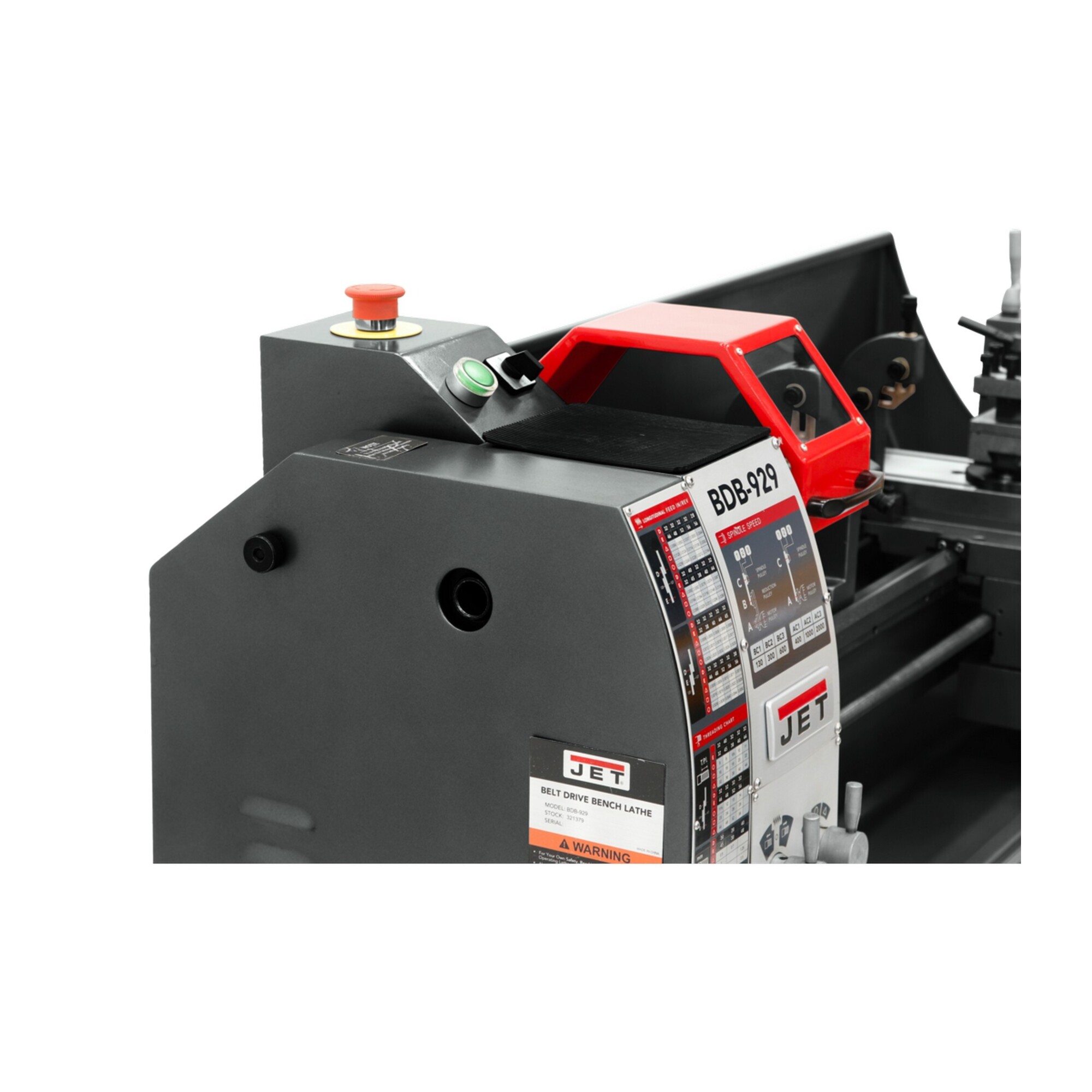

  • Emergency stop within easy reach of the Operator
  • Full Length Splash Guard

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The BDB-929 benchtop lathe is the essential step to improving your shop’s capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces.

What's Included

    (1) Lathe

Features + Benefits

  • Backlash adjustments provided throughout the carriage
  • Emergency stop within easy reach of the Operator
  • Full Length Splash Guard

Key Specs

AttributeSpecification

item#

5718687

Brand

JET

Manufacturer's Warranty

2 year limited warranty

Ship Weight

402.0 LB

Horsepower

0.75 HP

Volts

115

Distance Between Centers

29 in

Swing Over Bed

9 in
AttributeSpecification

Product Type

Bench Lathe

Carriage Travel

0 in

Phase

Single-phase

Variable Speed

Yes

Max. Speed

3,500 rpm

Spindle Mount

Yes

Product Weight

402.0000 lb

Dimensions L x W x H (in.)

71.0 x 32.0 x 45.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What is the chuck size

    1 answer

    1. The JET BDB-929 lathe includes a 4-jaw chuck that opens to 4 inches. This chuck attaches to the spindle with a 1 1/2″-8 TPI thread through a 3/4″ bore. You can also use any standard 1 1/2″-8 TPI 3- or 4-jaw chuck if you need a different size.

      Helpful?

  2. What is the spindle bore size

    1 answer

    1. The spindle bore size is 3/4" on this Lathe.

      Helpful?

  3. Why do the Specs say three phase? Please confirm that it's single phase. The answer to "spindle mount" should not be yes or no, but rather the diameter and threads of the spindle. Does the lathe come with a 4-jaw chuck?

    1 answer

    1. The lathe is single phase and 115 volt. It would have a spindle of 1 1/2 inches x 8 TPI (threads per inch). It would come with a 4-jaw chuck.

      Helpful?

  4. How big is the bore?

    1 answer

    1. This lathe has a 3/4" spindle bore.

      Helpful?

  5. Does it cut metric threads?

    1 answer

    1. The lathe can cut inch and metric threads.

      Helpful?

  6. Is the stand shown included?

    1 answer

    1. The model number BDB-929 does come with the stand.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
