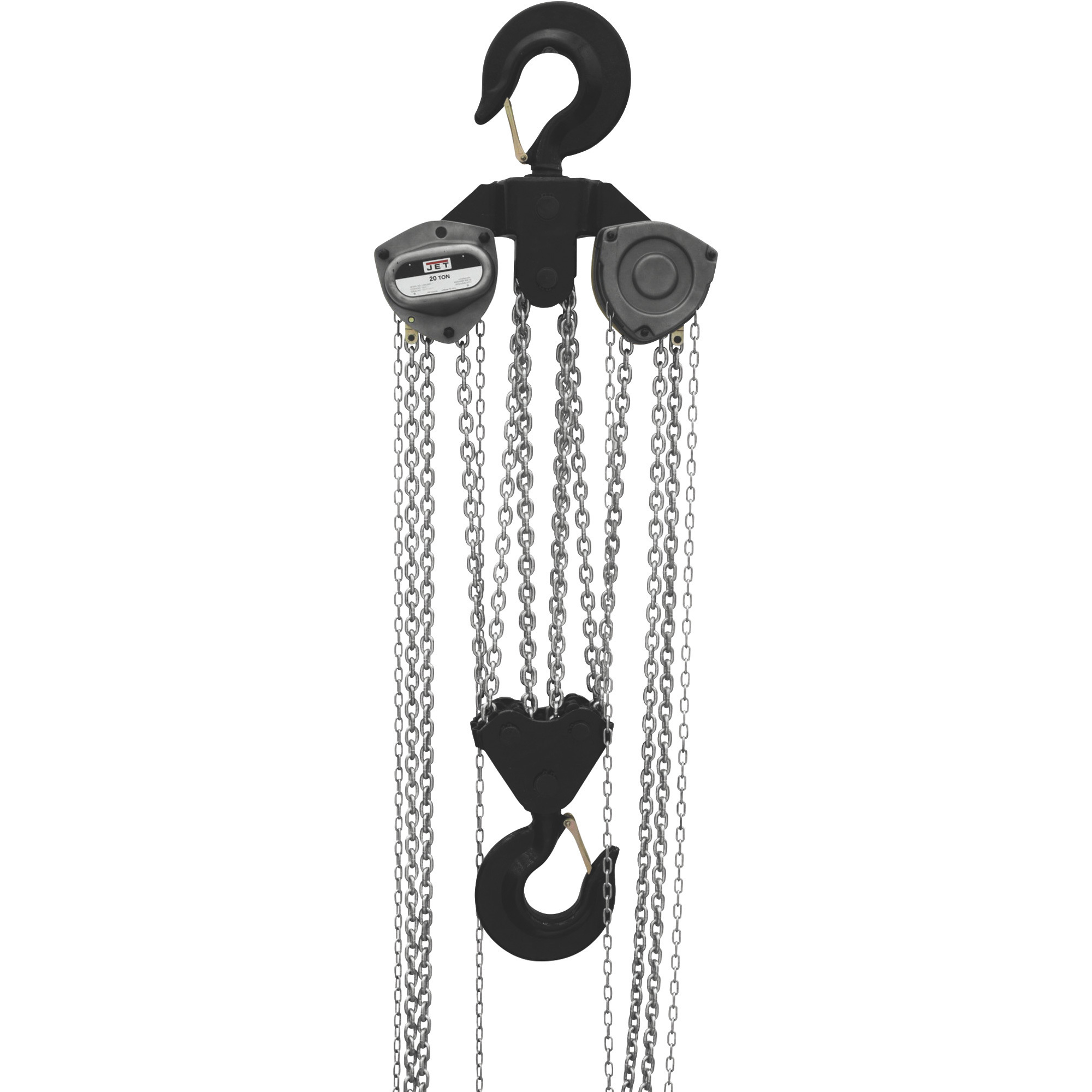

JET L100 Series Manual Chain Hoist, 20-Ton Lift Capacity, 15ft. Lift, Model# L100-2000-15

Item# 58839
JET L100 Series Manual Chain Hoist, 20-Ton Lift Capacity, 15ft. Lift, Model# L100-2000-15

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET L100 Series Manual Chain Hoist, 20-Ton Lift Capacity, 15ft. Lift, Model# L100-2000-15

Click or Tap image to Zoom

  • Delivers safety, durability and innovation for use in demanding industrial environments
  • Patented brake system with fused components for safety
  • Weston-style double-ratchet pawl brake design to split loads for safety
  • Industrial-rated steel hooks with 360° rotation for easy rigging
  • Hooks that slowly stretch to indicate overload

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET L100 Series Manual Chain Hoist combines safety, durability and innovation to operate in demanding industrial environments. The patented brake system features fused components for safety. The Weston-style double-ratchet pawl brake design splits a load to opposite sides of the ratchet gear for load security. Industrial-rated steel hooks rotate 360° for easy rigging and slowly stretch to indicate an overload. Grade 100 load chain is plated for corrosion resistance and durability, and is 20% stronger than a Grade 80 chain. Cast steel safety latches are secured with Allen screws and lock nuts for more durability than stamped steel latches. Heat-treated load plates and case-hardened, corrosion-resistant internal parts lengthen the life of the hoist. Double-sealed ball bearings support the load sheave for maximum efficiency and smooth operation. Impact-resistant all-steel construction delivers durability and protection. Lightweight design and compact body work well in confined areas and low headroom applications. This hoist complies with ANSI/ASME B30.16 and HST-2 standards and has been tested to 125% of capacity. Limited lifetime warranty.

What's Included

    (1) Chain hoist

Features + Benefits

  • Delivers safety, durability and innovation for use in demanding industrial environments
  • Patented brake system with fused components for safety
  • Weston-style double-ratchet pawl brake design to split loads for safety
  • Industrial-rated steel hooks with 360° rotation for easy rigging
  • Hooks that slowly stretch to indicate overload
  • Grade 100 load chain with plate finish for corrosion resistance, durability and 20% more strength than a Grade 80 chain
  • Cast steel safety latches secured with Allen screws and lock nuts for maximum durability
  • Heat-treated load plates and case-hardened corrosion-resistant internal parts for hoist durability
  • Double-sealed ball bearings to support the load sheave for maximum efficiency and smooth operation
  • Impact-resistant all-steel construction for durability and protection
  • Lightweight design and compact body for use in confined areas and low-headroom applications
  • Compliant with ANSI/ASME B30.16 and HST-2 standards and tested to 125% of capacity

Key Specs

AttributeSpecification

item#

58839

Brand

JET

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

468.0 LB
AttributeSpecification

Capacity

40,000 lb

Lift Height

15 ft

Required Head Room

34.3 in

Reviews

Questions & Answers

Questions

  1. How many feet of hand chain does it take to move the load one foot?

    1 answer

    1. There are many variables to be taken into consideration. It would depend on where the hoist is being hung or connected. The chain hoist would have a straight 1:1 ratio and therefore, 1 foot of chain will move the load 1 foot, but you need to add in the distance from the load to the mounting point.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
