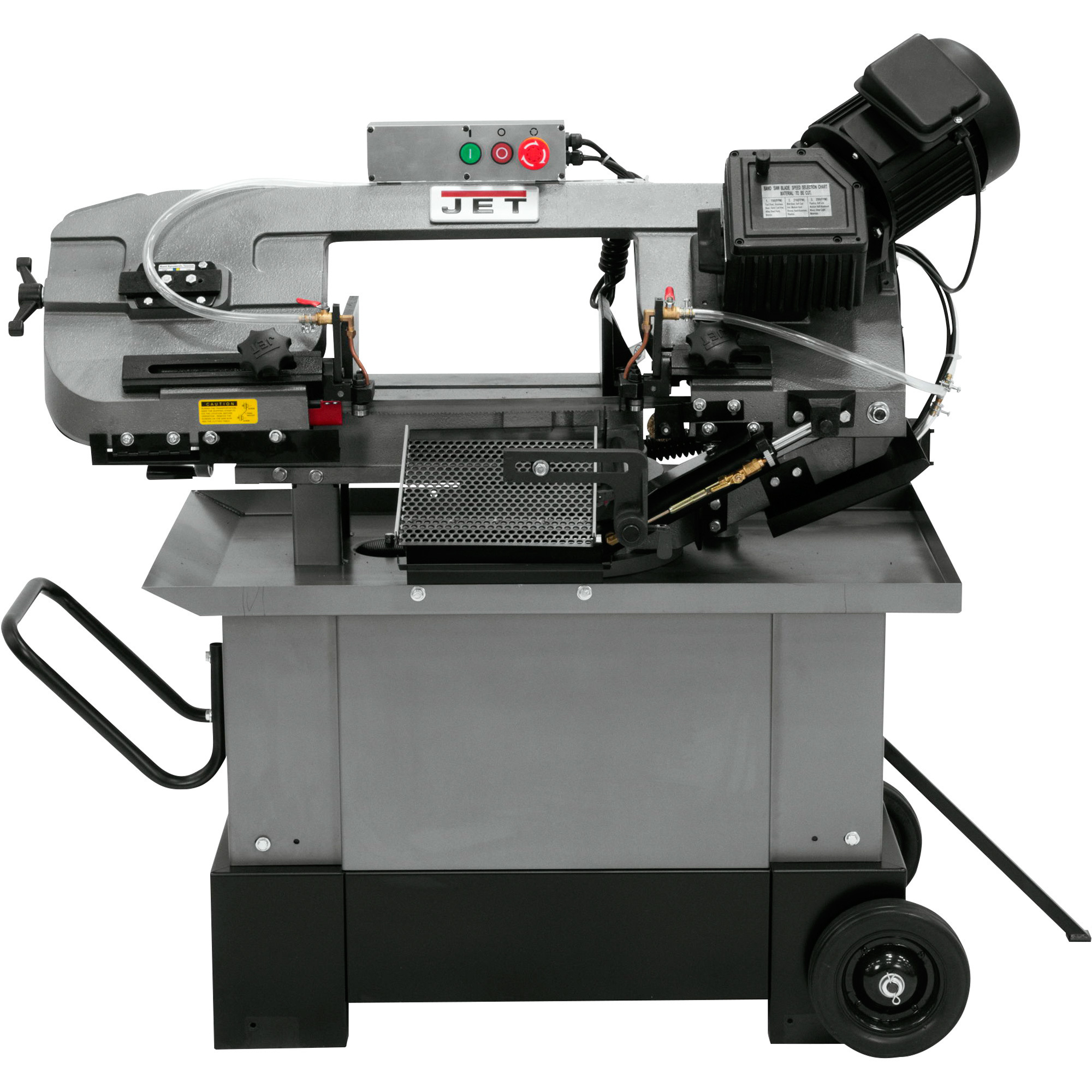

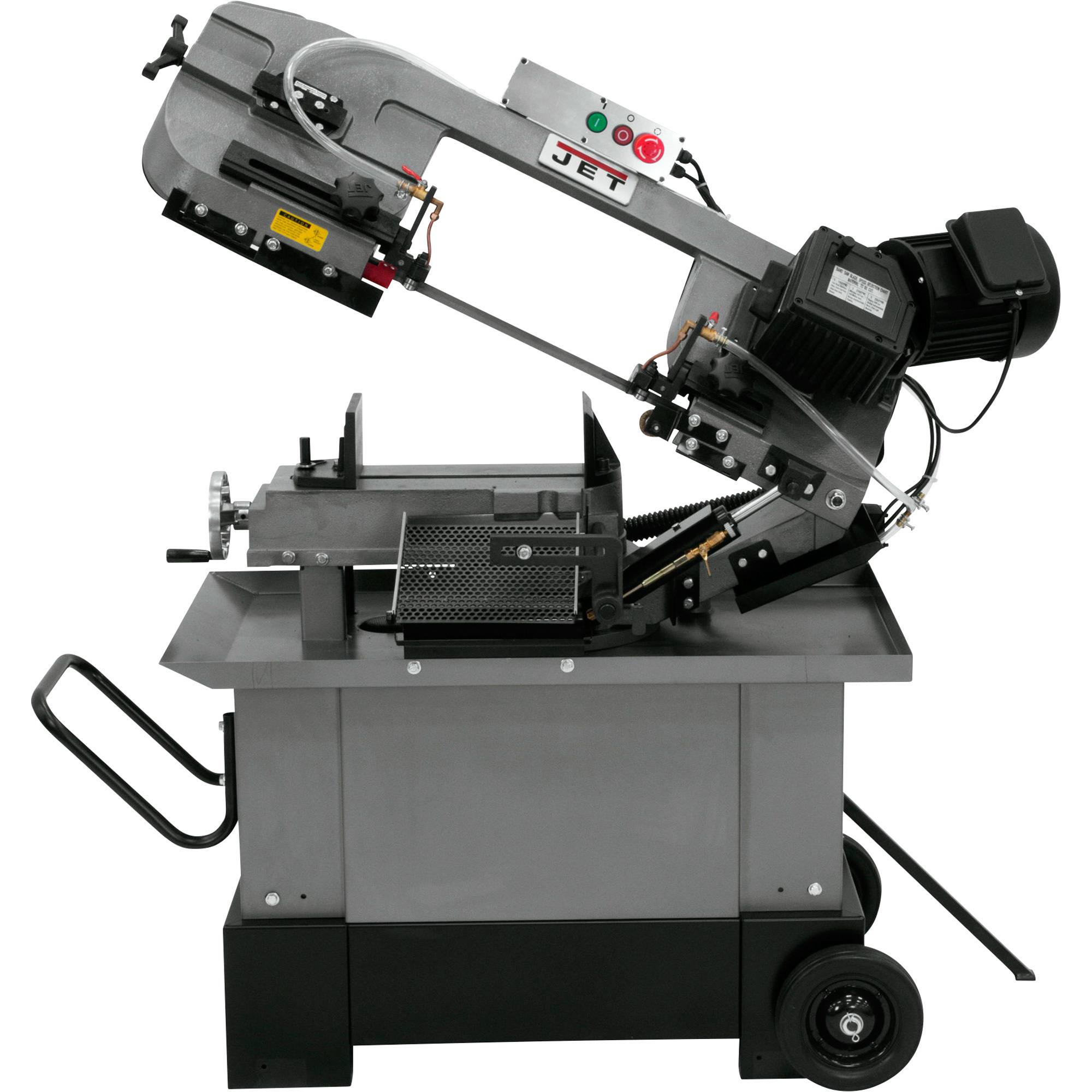

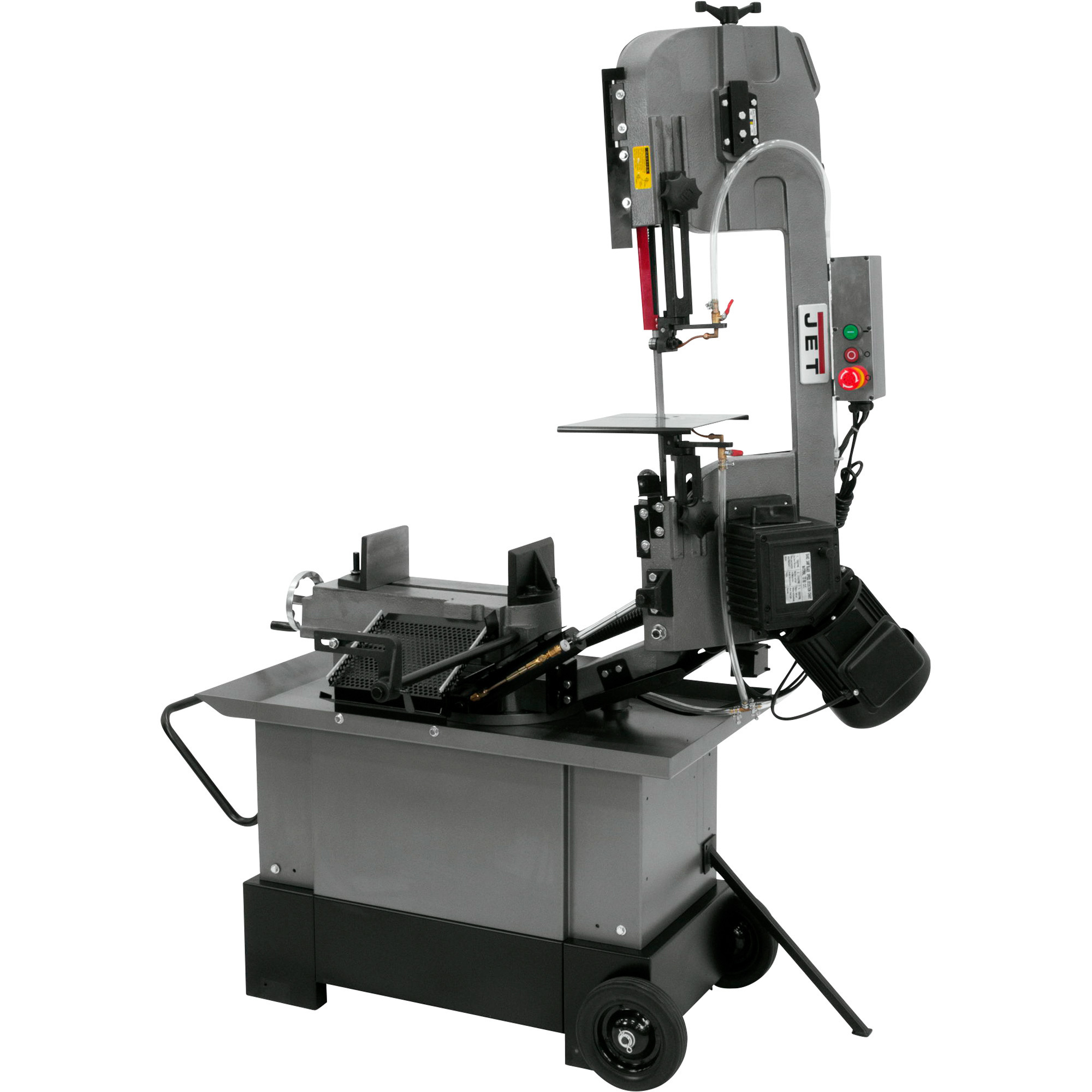

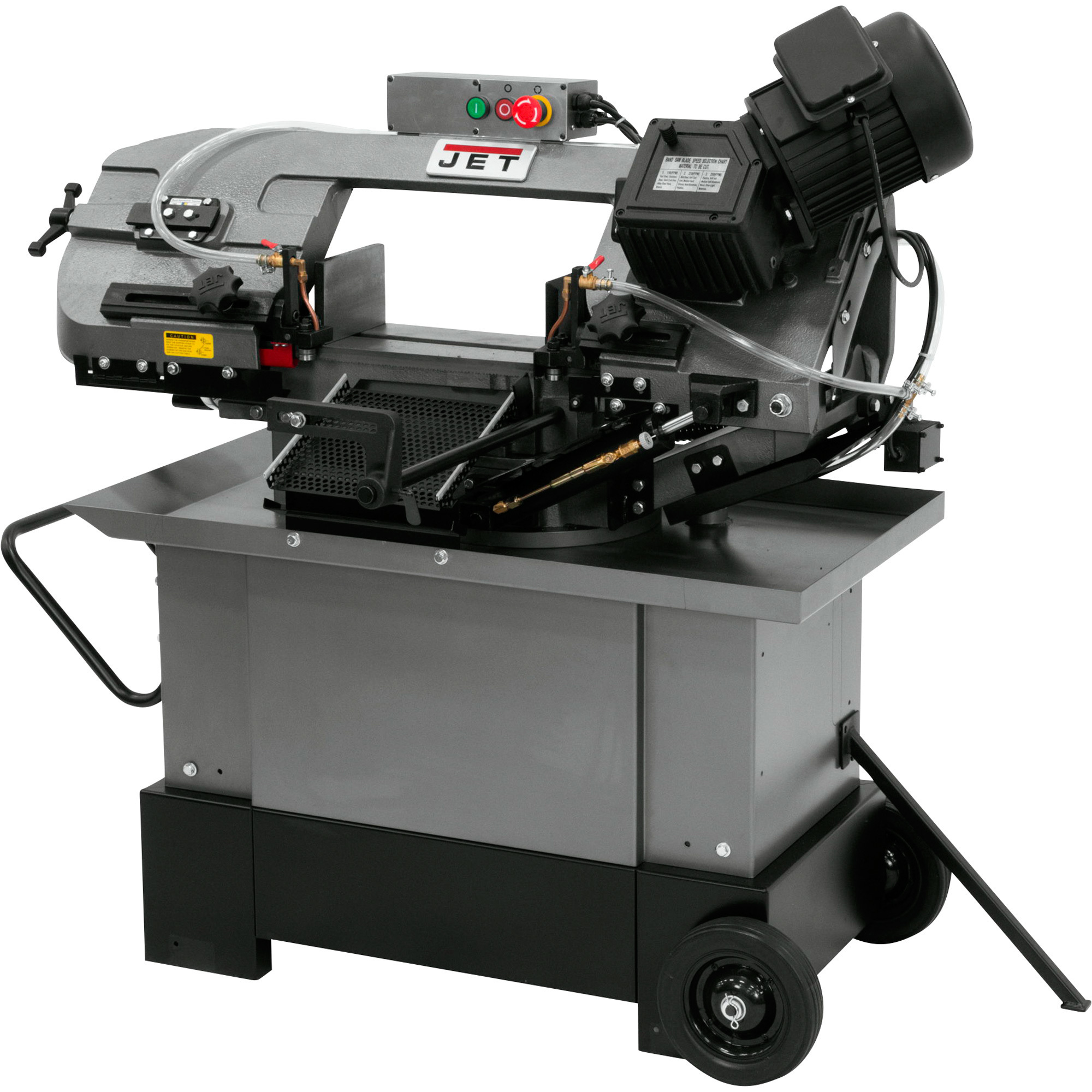

JET Horizontal/Vertical Mitering Geared Head Bandsaw, 7in. x 10 1/2in., 1HP, 115/230 Volt, Single Phase, Model# HVBS-710SG

Item# 66135
JET Horizontal/Vertical Mitering Geared Head Bandsaw, 7in. x 10 1/2in., 1HP, 115/230 Volt, Single Phase, Model# HVBS-710SG

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Horizontal/Vertical Mitering Geared Head Bandsaw, 7in. x 10 1/2in., 1HP, 115/230 Volt, Single Phase, Model# HVBS-710SG

Click or Tap image to Zoom

  • Mitering head swivels to cut any angle 0 degrees to 45 degrees while the work piece remains secured
  • Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
  • Fully-adjustable hydraulic downfeed system
  • Heavy-duty cast iron saw bow and bed
  • Large 8in. wheels and handle for easy movement

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Horizontal/Vertical Mitering Geared Head Bandsaw, 7in. x 10 1/2in., 1HP, 115/230 Volt, Single Phase, Model# HVBS-710SG
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$3675.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 7in. x 10 1/2in. JET Horizontal/Vertical Mitering Geared Head Bandsaw has a unique design that features a swiveling head while the base remains stationary. This allows the stock to remain in the same position while making accurate crosscuts and miters, delivering precision results. 1HP, single phase, 115/230V motor.

What's Included

    (1) Horizontal/vertical mitering geared head bandsaw

Downloads

Product Manual

Features + Benefits

  • Mitering head swivels to cut any angle 0 degrees to 45 degrees while the work piece remains secured
  • Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
  • Fully-adjustable hydraulic downfeed system
  • Heavy-duty cast iron saw bow and bed
  • Large 8in. wheels and handle for easy movement
  • Quick-positioning vise with fully adjustable jaws
  • Built-in, self propelled blade brush extends blade life
  • Vertical work table
  • Coolant system
  • Adjustable material stop
  • 3/4in. bi-metal blade

Key Specs

AttributeSpecification

item#

66135

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

462.0 LB

Volts

115/230

Variable Speed

Yes
AttributeSpecification

Max. Cutting Capacity

245 SFPM

Case Included

No

Horsepower

1 HP

Product Weight

462.0000 lb

Dimensions L x W x H (in.)

51.0 x 22.5 x 43.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Does this have auto shut-off?

    1 answer

    1. The saw will automatically stop at the end of a cut. To stop the saw before it reaches the end of the cut, push the off button.

      Helpful?

  2. what size are the saw blades for it and where can I get replacements?

    1 answer

    1. The blade is 93 inches long x 3/4 inches wide and 0.032 inch TPI (tooth per inch). The item #145731 would be the same size as the included blade. We also offer item #155848 in a 8/12 TPI.

      Helpful?

  3. what size breaker should i have for this saw

    1 answer

    1. When operated at 115 volts, it needs to be connected to a dedicated 20 amp circuit with a 20 amp circuit breaker. When operated on 230 volts, it needs to be connected to a 15 amp dedicated circuit with a 15 amp circuit breaker.

      Helpful?
