JET Horizontal/Vertical Deluxe Metal Cutting Band Saw, 7in. x 12in., 3/4 HP, 115/230V, Model# HVBS-712D

Item# 54378
"JET Horizontal/Vertical Deluxe Metal Cutting Band Saw, 7in. x 12in., 3/4 HP, 115/230V, Model# HVBS-712D"
JET Horizontal/Vertical Deluxe Metal Cutting Band Saw, 7in. x 12in., 3/4 HP, 115/230V, Model# HVBS-712D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Horizontal/Vertical Deluxe Metal Cutting Band Saw, 7in. x 12in., 3/4 HP, 115/230V, Model# HVBS-712D

Click or Tap image to Zoom

$2299.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 3/4 HP, 115/230V dual-phase motor
  • 4 blade speeds: 86/132/178/260 RPM
  • 93in. x 3/4in. x 0.032in. variable bimetal blade
  • Multi-position blade guides
  • 7in. x 12in. flat stock capacity

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Horizontal/Vertical Deluxe Metal Cutting Band Saw, 7in. x 12in., 3/4 HP, 115/230V, Model# HVBS-712D
  • SuperCut Bi-Metal Replacement Band Saw Blade, 93in.L x 3/4in.W, 10/14 TPI
  • SuperCut Bi-Metal Replacement Band Saw Blade, 93in.L x 3/4in.W, 6/10 TPI
  • SuperCut Bi-Metal Replacement Band Saw Blade, 93in.L x 3/4in.W, 8/12 TPI
Price for all four:

$2463.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET Horizontal/Vertical Deluxe Metal Cutting Band Saw features multi-position adjustable ball bearing blade guides that increase the throat capacity from 4in. to 8in. to enhance use in the vertical position and create a safer working position. Sturdy stand has a very stable base and features a built-in storage cabinet and chip tray. 115V/230V. 7in. x 12in. flat stock cutting capacity. CSA/CUS certified.

What's Included

    (1) Band saw (1) Pulley cover (1) Table plate (1) Handle with washer and nut (4) Wheels (2) Axles (1) Long support (1) Short support (1) Filter assembly (1) Work stop assembly (1) Hardware package

Downloads

Product Manual

Features + Benefits

  • 3/4 HP, 115/230V dual-phase motor
  • 4 blade speeds: 86/132/178/260 RPM
  • 93in. x 3/4in. x 0.032in. variable bimetal blade
  • Multi-position blade guides
  • 7in. x 12in. flat stock capacity
  • Large 10in. x 12in. infeed table assembly extends the support area
  • 25 1/2in. horizontal worktable height and 38 1/2in. to 41in. adjustable vertical worktable height (all measurements with wheels)
  • 48in.L x 17in.W x 44in.H overall size
  • Micro adjustable tool-less material stop offers easy setup and repeatability of cuts

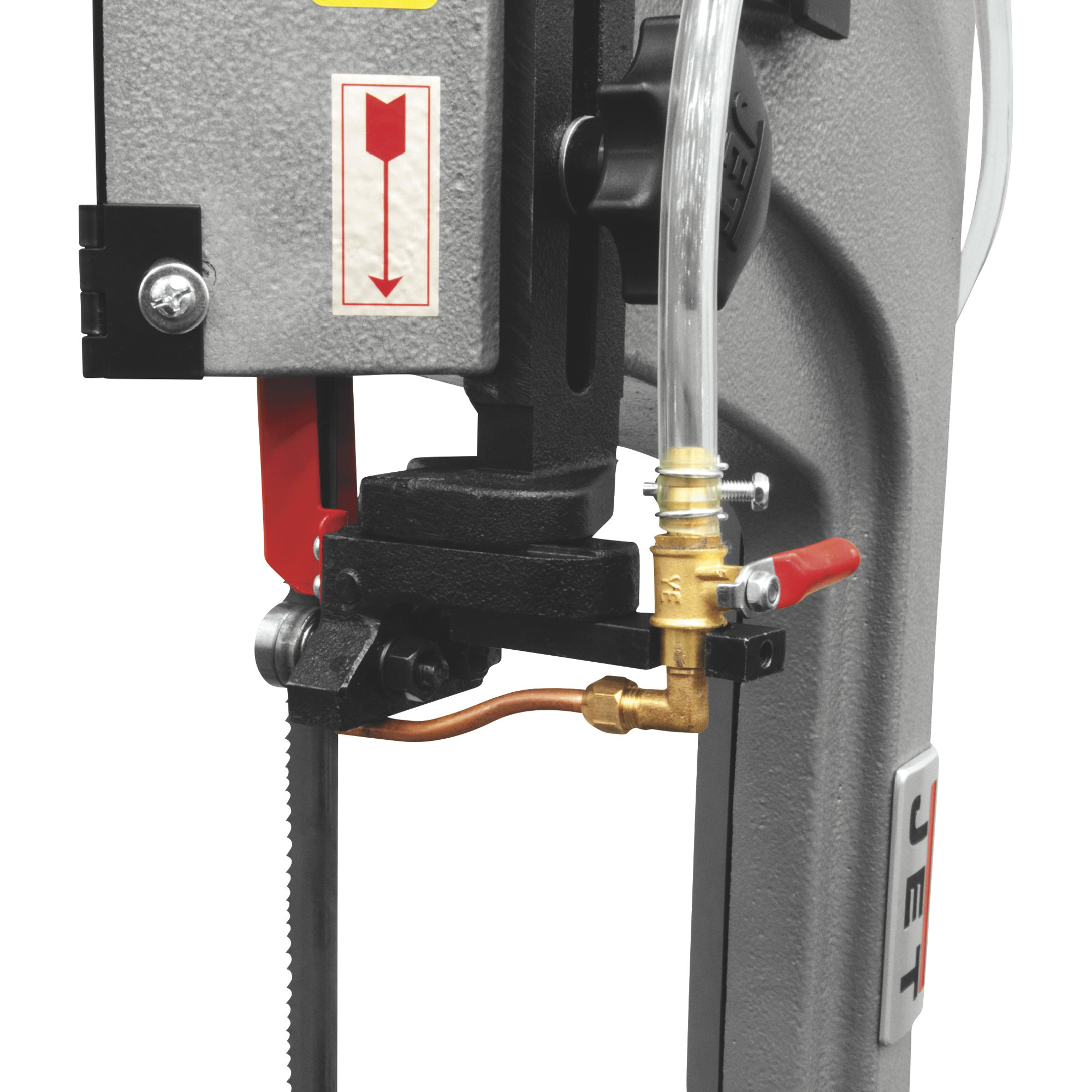

  • Complete coolant system and automatic shutoff after cut keep this saw running cool and smooth

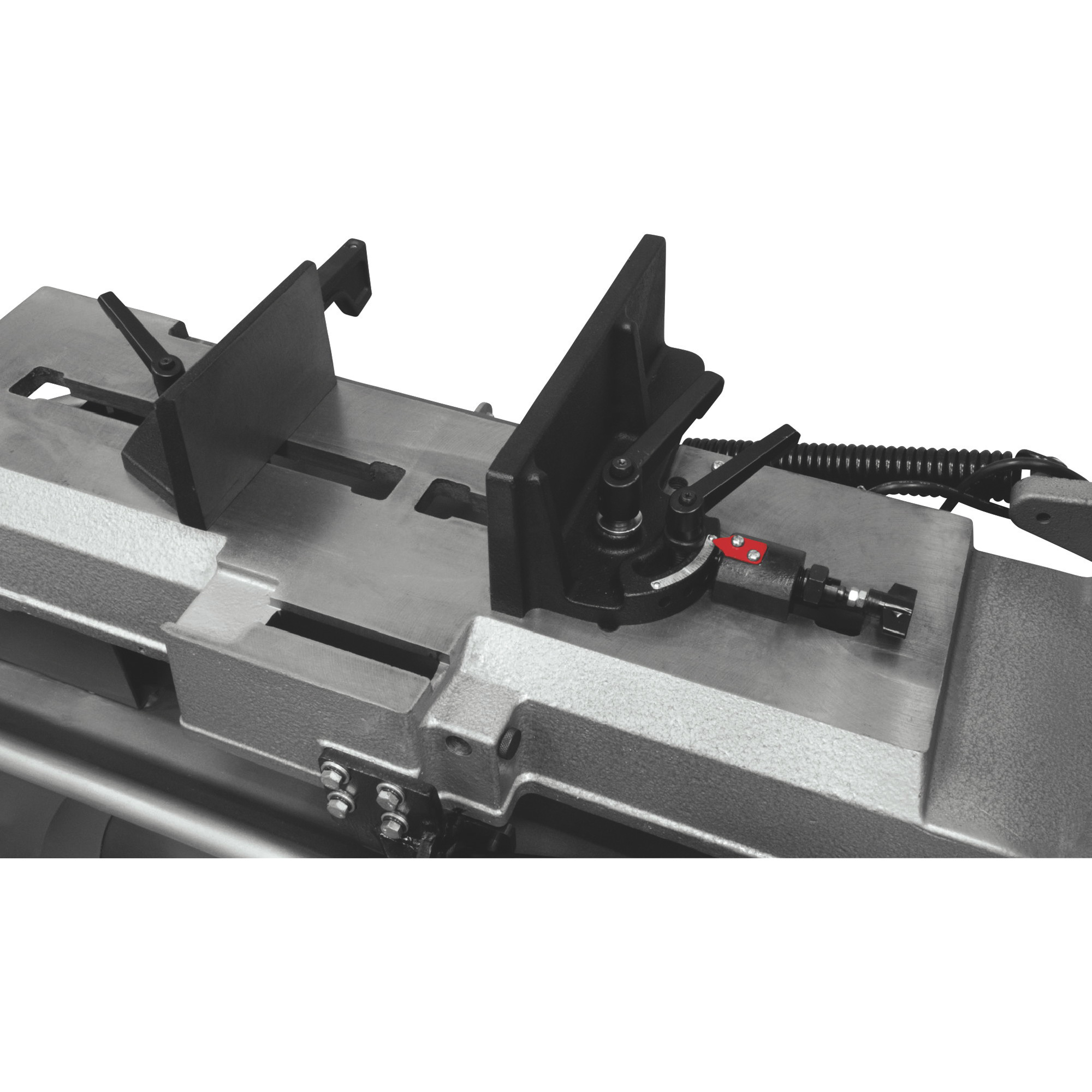

  • Tool-less quick-lock vise with preset mitering positions at 15°, 30° and 45°
  • Rugged construction with a flanged, cast iron blade wheel for durability
  • Four 11 3/4in. dia. wheels provide maneuverability

Key Specs

AttributeSpecification

item#

54378

Brand

JET

Manufacturer's Warranty

2 year limited warranty

Ship Weight

330.0 LB

Volts

115/230

Variable Speed

No
AttributeSpecification

Max. Cutting Capacity

260 SFPM

Case Included

No

Horsepower

0.75 HP

Product Weight

lb

Dimensions L x W x H (in.)

48.0 x 17.0 x 44.0 in

Reviews

Questions & Answers

15 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What is the length of cut @ 45 deg.? I get the depth is 5", so 5" x ?"

    1 answer

    1. For a round tube or pipe it has a cutting length of 4.5". For rectangular tube at 45 degrees it is 6.5" x 4.5".

      Helpful?

  2. How large of pipe can you cut?

    1 answer

    1. At 90 degrees, this band saw can cut a 7" diameter pipe. At a 45 degree angle, it can cut a 5" diameter pipe.

      Helpful?

  3. What is the difference between the Deluxe and standard model?

    What is the difference between the Deluxe and standard model?
    There are no differences I can see listed. The Jet website does not have much more info.

    1 answer

    1. The advantages of this JET Deluxe band saw are that it has a larger vertical cut plate and extension, the multi-position blade guide offers a larger throat depth and it has a toolless vise along with preset mitering at 15, 30, and 45 degrees.

      Helpful?
