On this JET Heavy-Duty Adjustable Trolley the diameter is 3 1/16" for the wheel that rides on the beam. It is manufactured in Asia.

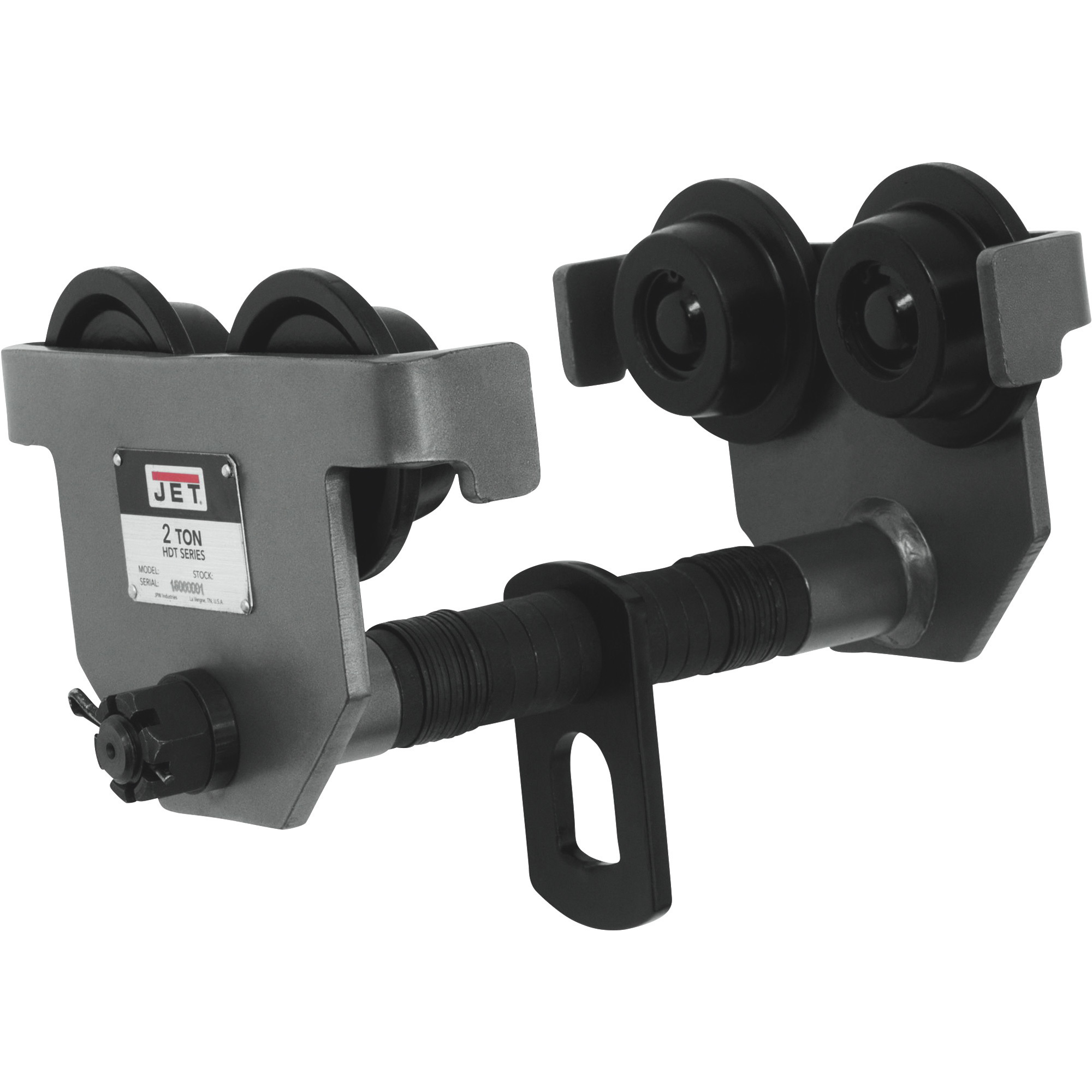

JET Heavy-Duty Adjustable Trolley, 2-Ton Capacity, Model# 2-HDT
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$213.18
- Multiple spacer washers make beam flange wide adjustment quick and easy
- Hardened wheels with lubricated for life, double sealed ball bearings
- For use with wide-flange H-beams, standard I beams or curved track
- Proof tested with test certificate
Prop 65 Warning: See Details
See full description
Price for all four:
$246.15
-
Tread Size of Cast Wheels
What is the diameter of the cast wheel tread (the part that rides on the Beam)? Also are these manufactured in America?
-
Helpful?
-
The diameter of the wheel that rides on the beam is 3-1/16".The item is designed & engineered in the US but manufactured in Asia. I hope this answers your questions.
Helpful?
-
-
What is the dimension of the hook eye ?
-
The dimension of the hook eye is 1 1/2".
Helpful?
-
Thank you for your inquiry.
The dimension of the hook eye is 1 1/2".
Helpful?
-
-
What is the safety factor of this trolley?
1 answer-
The safety factor or the capacity of the system beyond the expected loads is 400 pounds. This trolley has a maximum breaking strength of 4,400 pounds.
Helpful?
-
-
can i place the trolley in a concrete H bean?
I have overhead a big concrete bean can attach this trolley a this bean? Thanks
Horacio
1 answer-
The trolley should not be set up on a concrete beam. Concrete over time as the trolley would go over it would wear away and would compromise the stability of the set up. This would be an unsafe method of use. The trolley needs to be set up on a steel beam.
Helpful?
-
-
how wide of a beam will trolly fit on
1 answer-
The trolley will fit beam flange widths of 3 1/4" - 8" and beam heights of 6" - 24 1/2".
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Item # 547021
$1.99
Reg $4.99Save 60%
Order today to get this price.
Ironton Hearing Protection Earmuffs with AM/FM Radio and MP3, 25dB NRR
Item # 5070577
$19.99
Reg $24.99Save $5.00
Order today to get this price.
See All Trolleys
See All JET Trolleys
Currently Viewing This Product
Specifications
Specifications
JET Heavy-Duty Adjustable Trolley, 2-Ton Capacity, Model# 2-HDT
JET PT Series Adjustable Push Trolley, 3300-Lb. Capacity, Model# 1-1/2-PT
JET PT Series Adjustable Push Trolley, 1-Ton Capacity, Model# 1-PT
JET Heavy-Duty Manual Trolley, 3-Ton Capacity, Model# 3-PT
Style
Same
Manual Trolley
Manual Trolley
Manual Trolley
Manual Trolley
Capacity
Same
4,400 lb
3,300 lb
2,000 lb
6,600 lb
Adjustable
Same
Yes
Yes
Yes
Yes
Max. Beam Height
Same
6 in
19 in
19 in
19 in
Min. Flange Width
Same
3.25 in
3.25 in
3 in
4 in
Max. Flange Width
Same
8 in
8 in
8 in
8 in
Min. Radius Curve
Same
43 in
43 in
39 in
51 in
OSHA Approved
Same
Yes
Yes
Yes
Yes
ANSI Certified
Same
-
-
-
Yes
