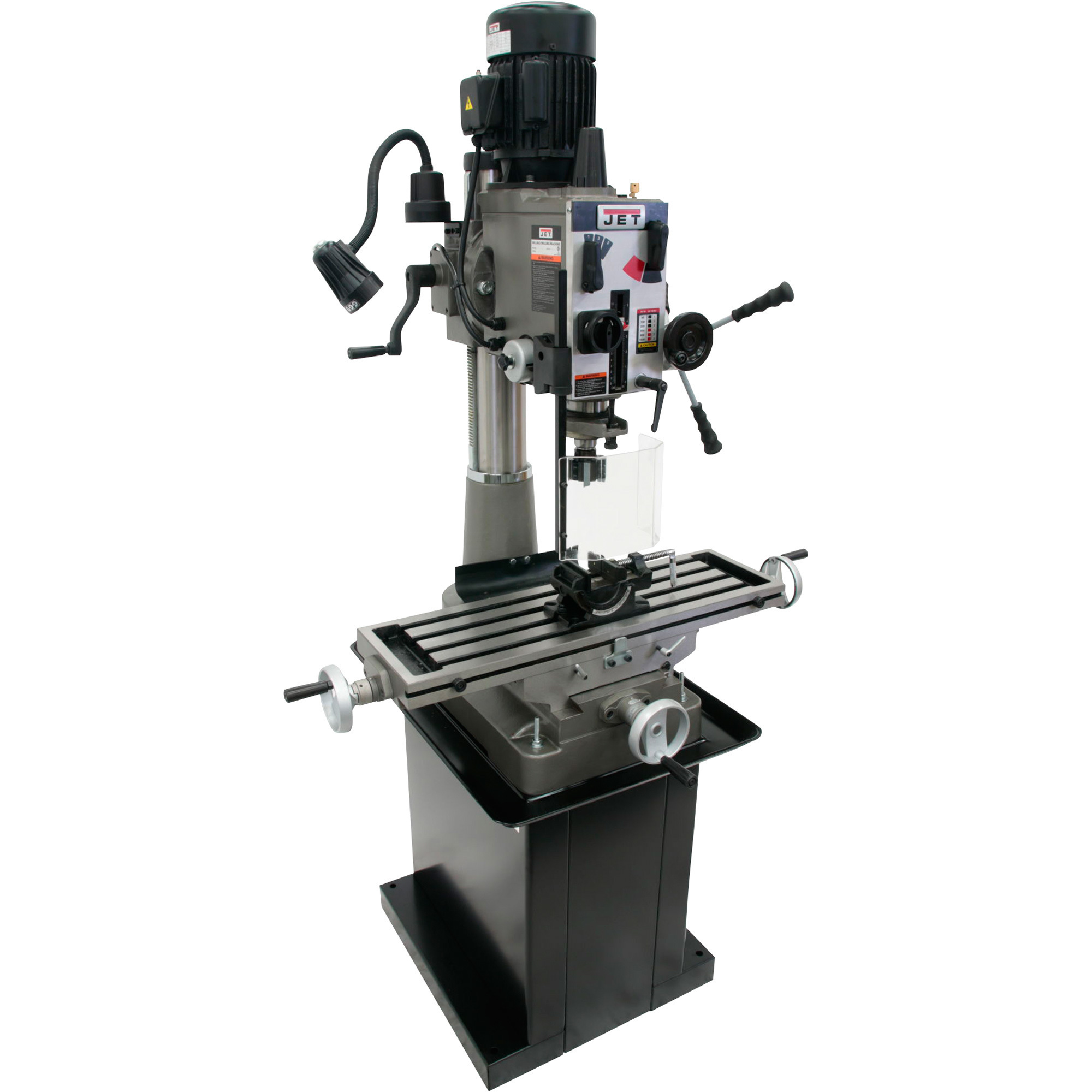

JET Geared Head Mill/Drill with Newall DP 500 2-Axis DRO, 1 1/2 HP, 115/230V, Model# JMD-40GH

Item# 66126
JET Geared Head Mill/Drill with Newall DP 500 2-Axis DRO, 1 1/2 HP, 115/230V, Model# JMD-40GH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Geared Head Mill/Drill with Newall DP 500 2-Axis DRO, 1 1/2 HP, 115/230V, Model# JMD-40GH

Click or Tap image to Zoom

$7738.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

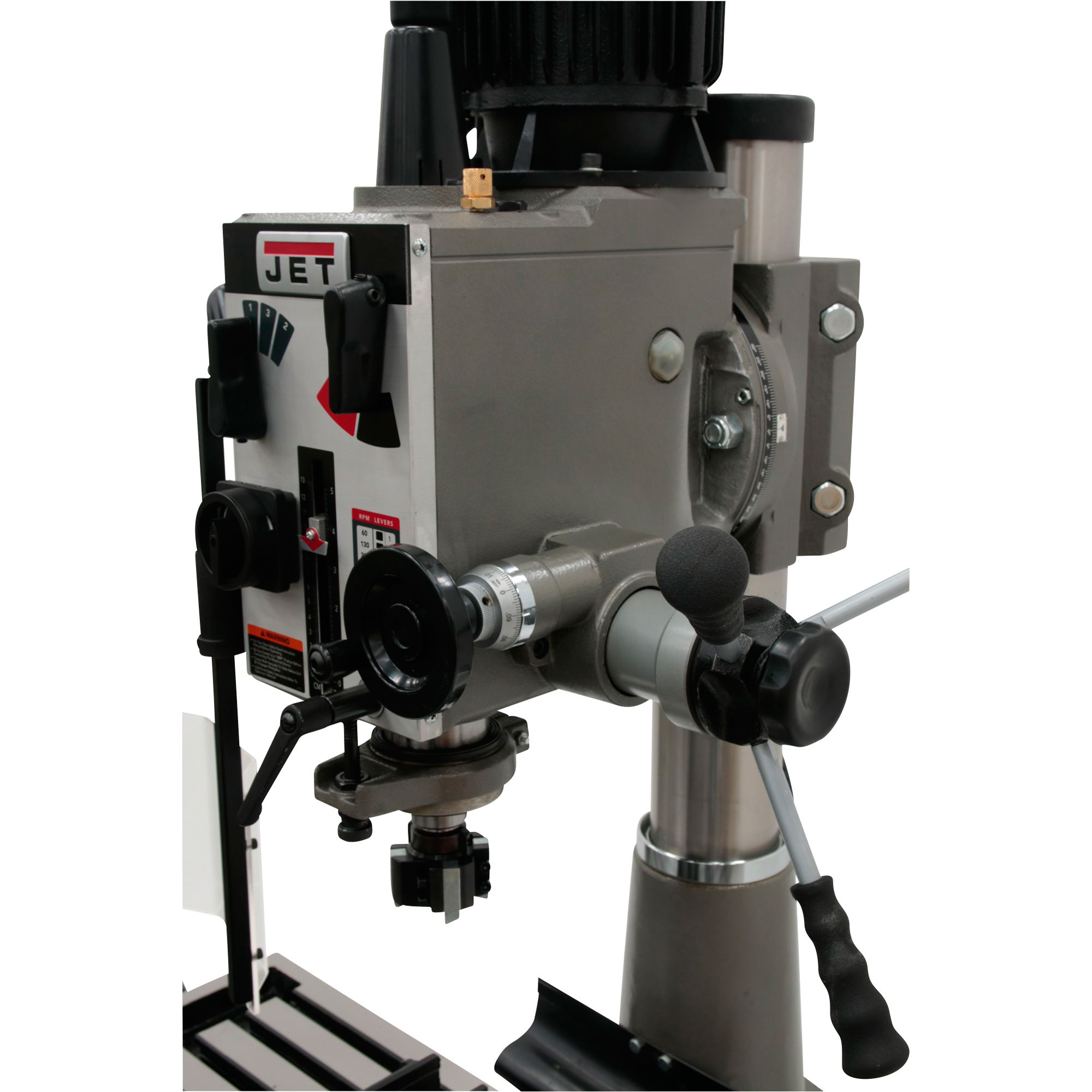

  • Full power to the cutting tools through a 6 speed geared head
  • Head tilts left and right 90º for added versatility
  • Rapid spindle speed changes through quick-select gear shift levers
  • Calibrated fine down feed is built in
  • Easy-to-read internal depth gauge

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Geared Head Mill/Drill with Newall DP 500 2-Axis DRO, 1 1/2 HP, 115/230V, Model# JMD-40GH
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$7762.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET Geared Head Mill/Drill with Newall DP 500 2-Axis Digital Readout system and 1 1/2 HP motor is engineered for precision drilling. The heavy-duty round column geared head drill is loaded with intuitive features for maximum accuracy in a variety of precision drilling applications. CSA/CUS certified. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Geared head mill/drill with Newall DP 500 2-axis DRO

Features + Benefits

  • Full power to the cutting tools through a 6 speed geared head
  • Head tilts left and right 90º for added versatility
  • Rapid spindle speed changes through quick-select gear shift levers
  • Calibrated fine down feed is built in
  • Easy-to-read internal depth gauge
  • Forward/reverse switch
  • Spindle guard
  • Work lamp for better visibility during operation

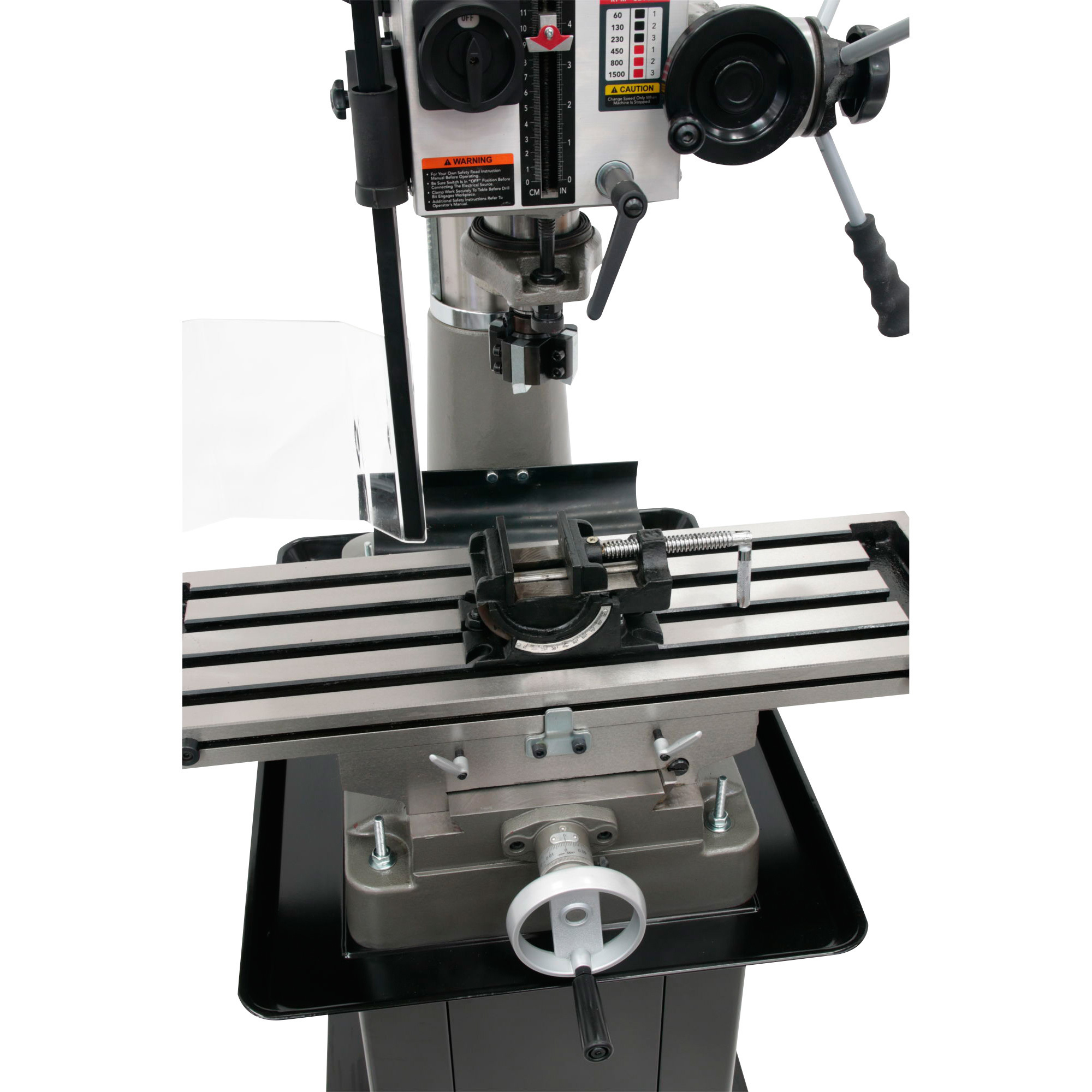

  • Milling table allows for movement
  • R8 spindle design allows for the use of all mill tooling
  • 115/230 dual voltage operation

Key Specs

AttributeSpecification

item#

66126

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

694.0 LB

Horsepower

1.5 HP

Volts

115/230

Max. Speed

1,550 rpm

360 Degree Head Swivel

No

Speeds (qty.)

6

Product Type

Milling Machine/Drill Press
AttributeSpecification

Vertical Stroke

5 in

Drilling Capacity

1-1/4 in

Light Included

Yes

Stand Included

No

Variable Speed

No

Max. Spindle Distance

15.75 in

Swing

20.5 in

Product Weight

694.0000 lb

Dimensions L x W x H (in.)

28.0 x 39.25 x 42.5 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. does the machine dro come ready to use out of the box?

    1 answer

    1. This unit will require some assembly prior to use.

      Helpful?

  2. is there a spindle brake when tightening draw bar?

    1 answer

    1. This unit features a spindle lock. It does not have a spindle brake.

      Helpful?

  3. come wired for 110 or 220?

    1 answer

    1. This comes prewired 115V from the manufacturer.

      Helpful?
