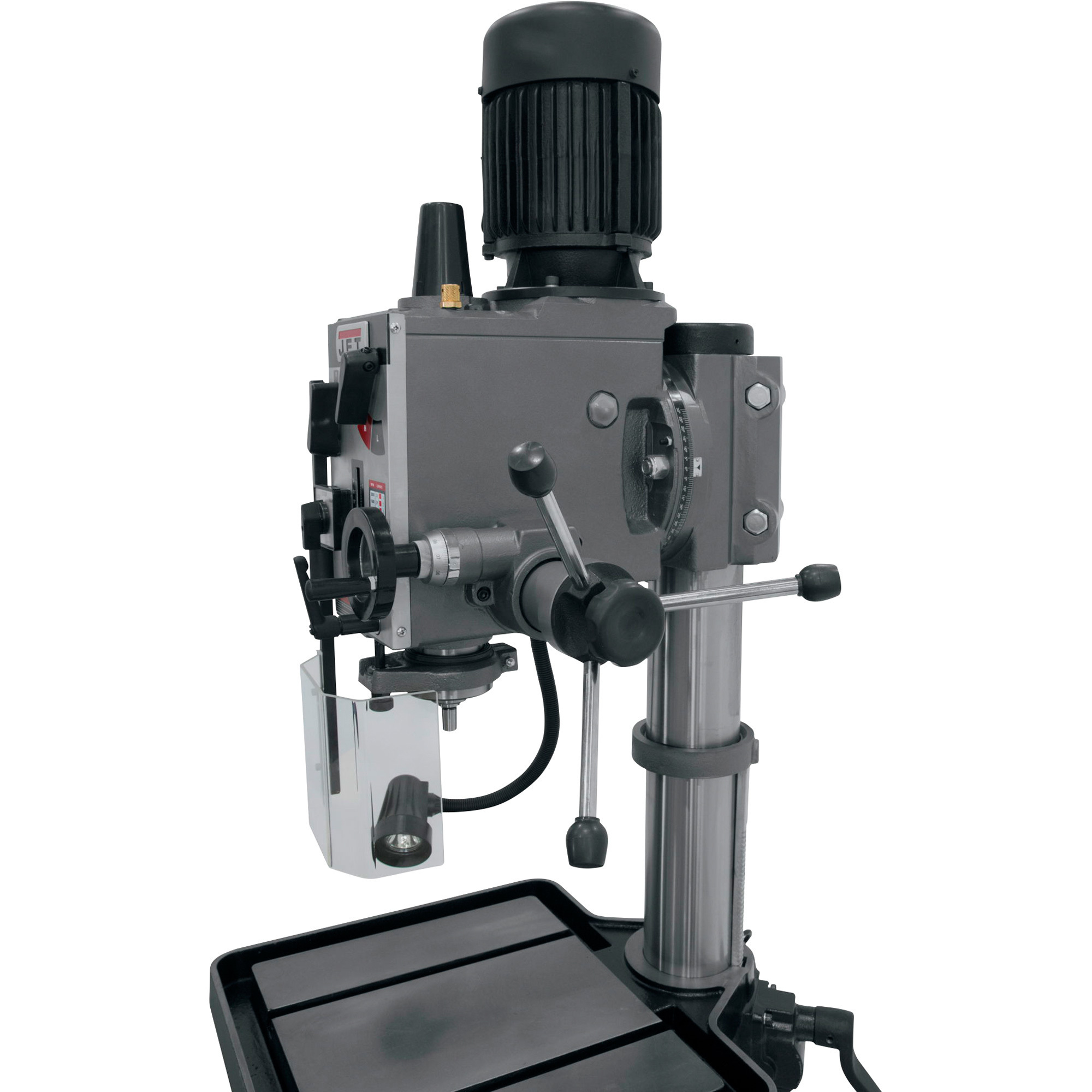

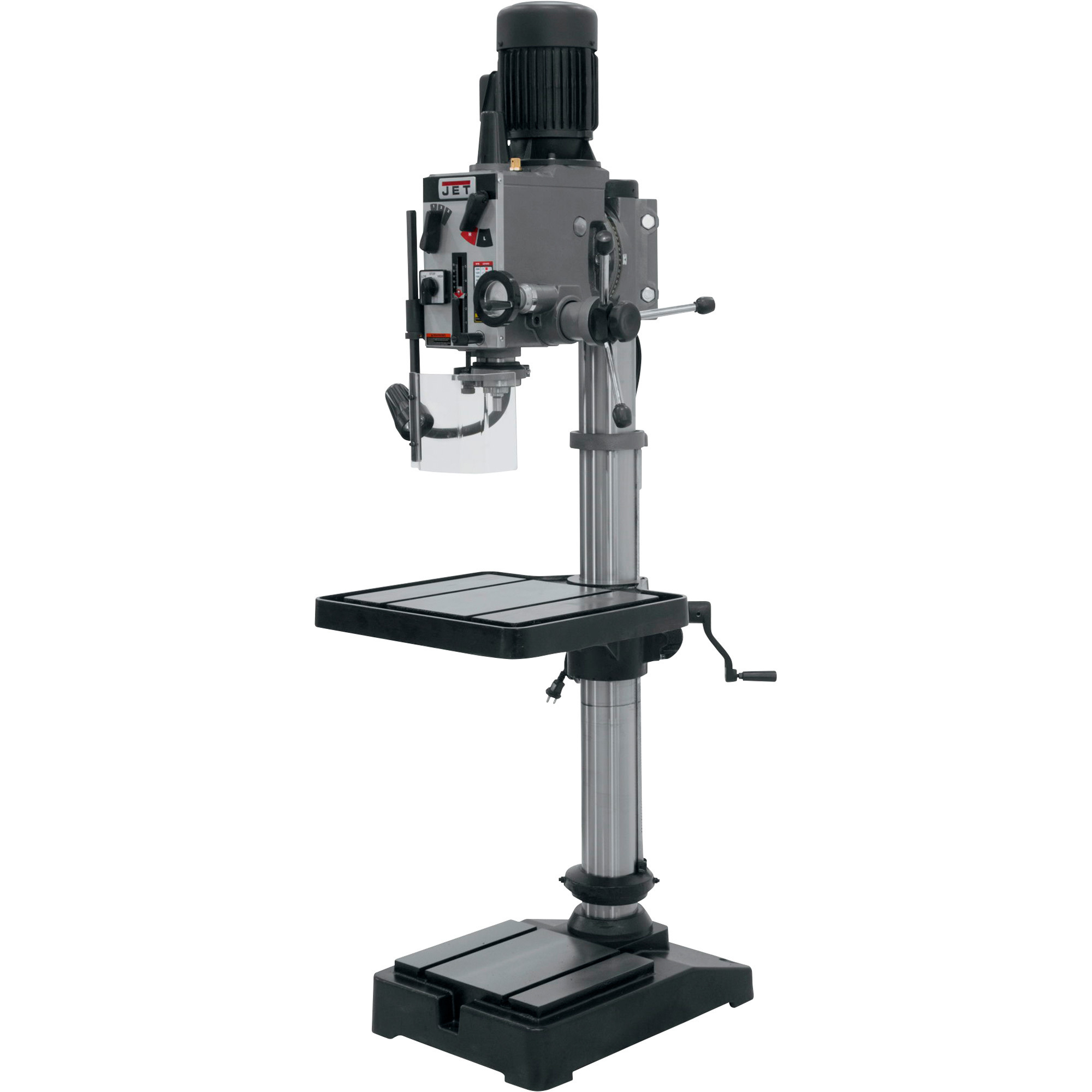

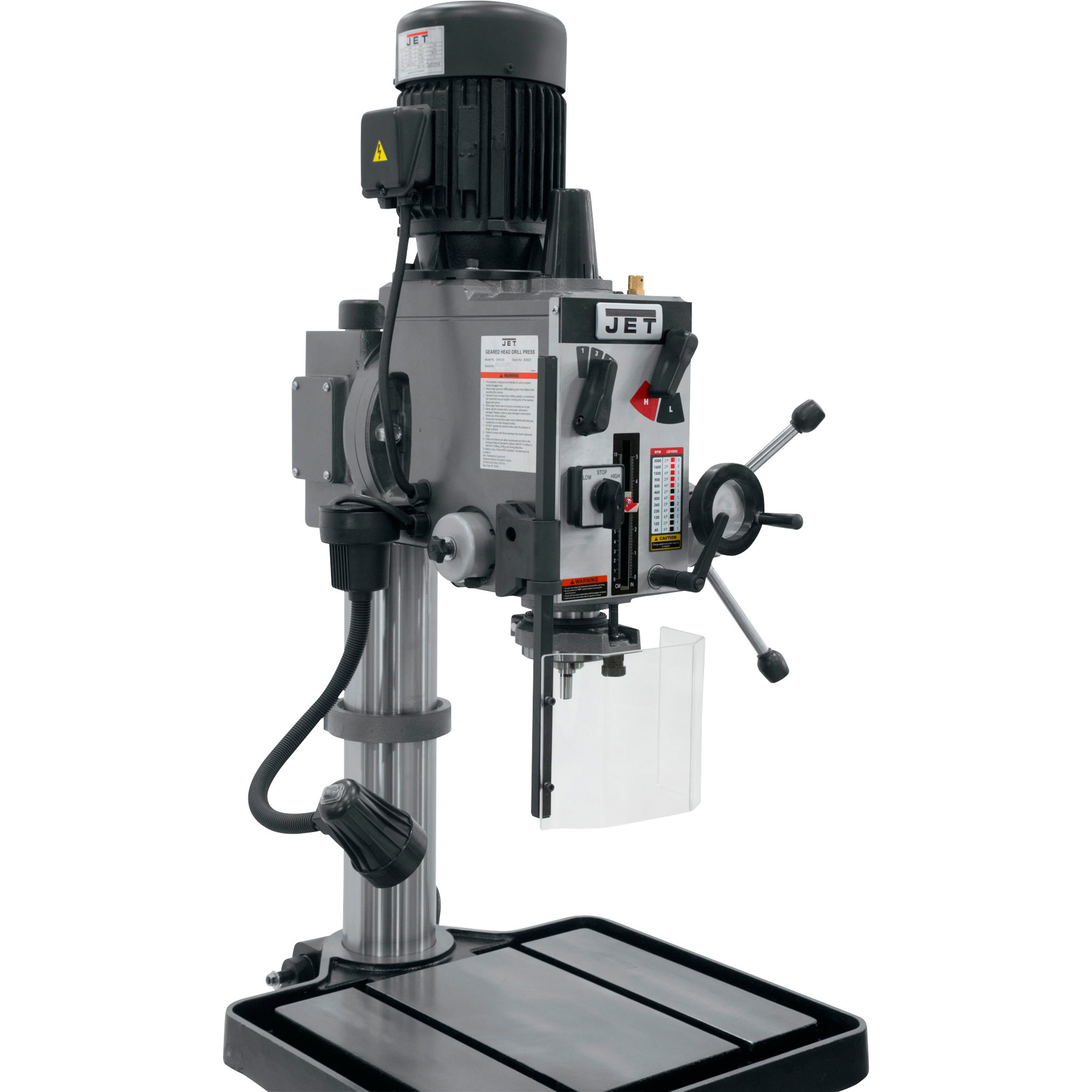

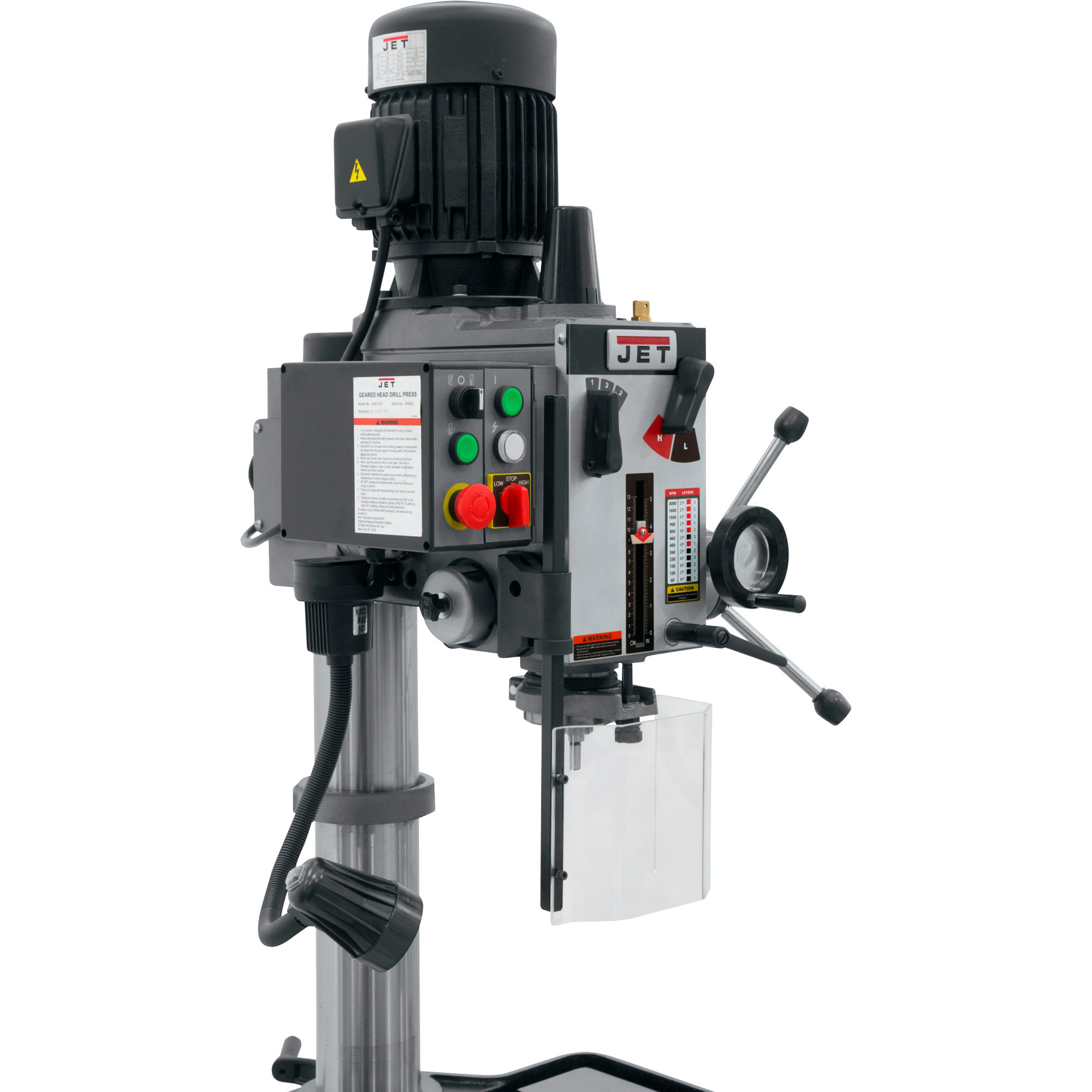

JET Gear Head Drill Press, 20in., 2 HP, 230V, 3-Phase, Model# GHD-20

Item# 66130
JET Gear Head Drill Press, 20in., 2 HP, 230V, 3-Phase, Model# GHD-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Gear Head Drill Press, 20in., 2 HP, 230V, 3-Phase, Model# GHD-20

Click or Tap image to Zoom

$5994.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Large production table and T-slotted base
  • Easy-to-read internal depth gauge
  • 3 power downfeed rates
  • Calibrated fine downfeed is built in
  • Dependable TEFC motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 20in. JET Gear Head Drill Press is ideal for repetitive drilling in a wide variety of materials. The tool comes equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results. A heavy-duty design allows for use in a variety of precision drilling applications.

What's Included

    (1) Gear head drill press

Downloads

Product Manual

Features + Benefits

  • Large production table and T-slotted base
  • Easy-to-read internal depth gauge
  • 3 power downfeed rates
  • Calibrated fine downfeed is built in
  • Dependable TEFC motor
  • Built-in spindle lock
  • Head tilts left or right to add versatility
  • Easily accessible table raiser
  • Drill chuck arbor
  • Draw bar

Key Specs

AttributeSpecification

item#

66130

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

698.0 LB

Horsepower

2 HP

Volts

230

Max. Speed

3,000 rpm

360 Degree Head Swivel

No

Speeds (qty.)

10

Product Type

Drill Press
AttributeSpecification

Vertical Stroke

5 in

Drilling Capacity

1-1/2 in

Light Included

No

Stand Included

Yes

Variable Speed

No

Max. Spindle Distance

30.5 in

Swing

20 in

Product Weight

698.0000 lb

Dimensions L x W x H (in.)

33.0 x 29.0 x 76.0 in

Reviews

Questions & Answers

Questions

  1. Is there a single phase version of this JET Gear Head Drill Press?

    1 answer

    1. Jet does not offer a single phase version in the Gear Head drill press line.

      Helpful?

Warranty

Manufacturer's Warranty

24 months parts/24months labor
