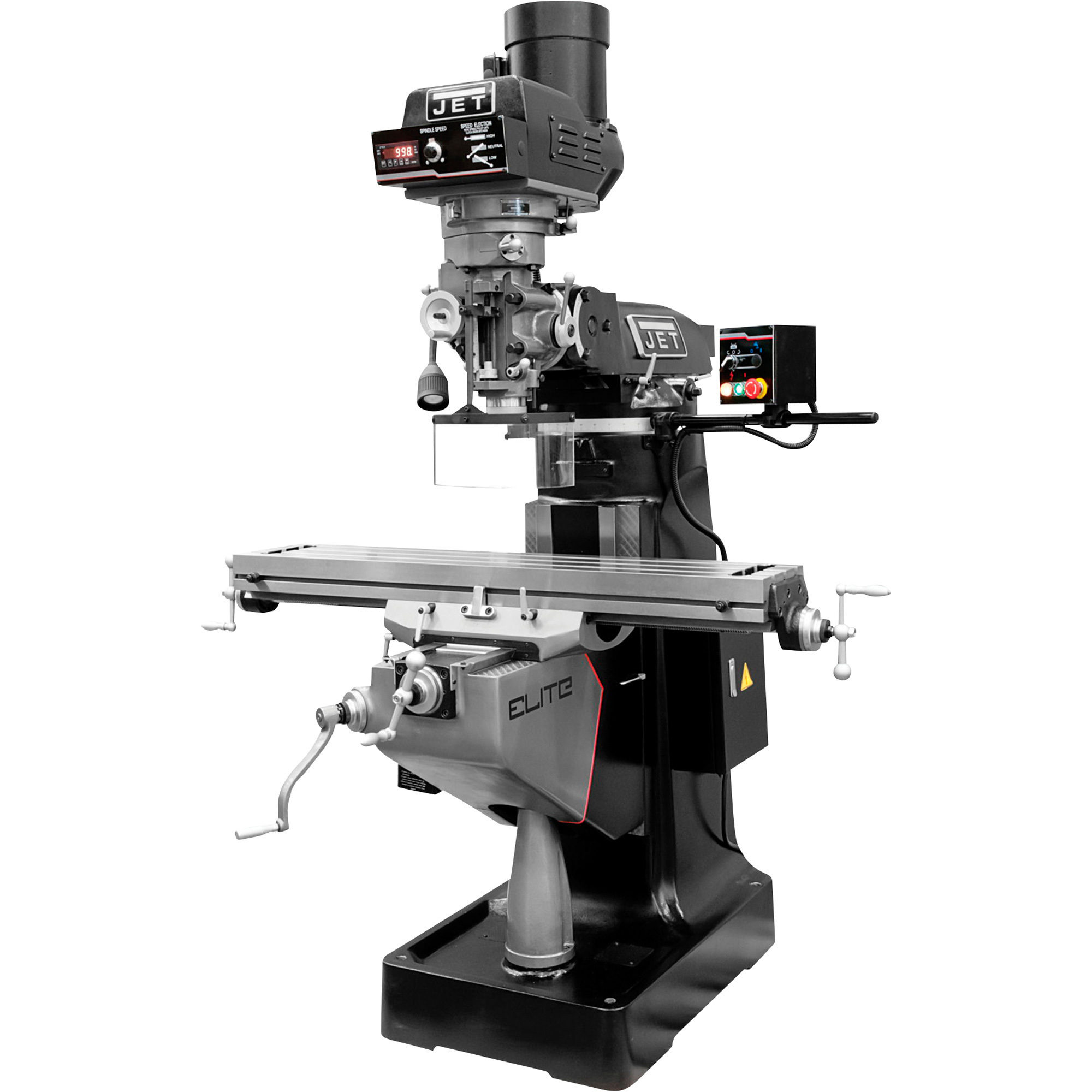

JET Elite Variable Speed Mill With 3-Axis ACU-RITE MILLPWR G2 CNC, 9in. x 49in. Table, 3 HP, Model# ETM-949EVS

Item# 79690
JET Elite Variable Speed Mill With 3-Axis ACU-RITE MILLPWR G2 CNC, 9in. x 49in. Table, 3 HP, Model# ETM-949EVS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Elite Variable Speed Mill With 3-Axis ACU-RITE MILLPWR G2 CNC, 9in. x 49in. Table, 3 HP, Model# ETM-949EVS

Click or Tap image to Zoom

$63,284.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 3 HP, 230V, 3-phase motor
  • Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012in.
  • Spacious 9in. x 49in. work table
  • Inverter drive system with LED RPM readout provides infinitely variable spindle speeds
  • Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances

See full description

Complete Your Solution

  • JET Elite Variable Speed Mill With 3-Axis ACU-RITE MILLPWR G2 CNC, 9in. x 49in. Table, 3 HP, Model# ETM-949EVS
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$63,308.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This variable speed JET Elite Mill With 3-Axis ACU-RITE MILLPWR G2 CNC is loaded with features including an extremely accurate spindle assembly to meet strict tolerance requirements. The durable design delivers reliable performance. 21 2/5in. swing. Includes spindle safety guard. CSA/CUS certified. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Variable speed Mill with 3-axis ACU-RITE MILLPWR G2 CNC

Downloads

Product Manual

Features + Benefits

  • 3 HP, 230V, 3-phase motor
  • Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012in.
  • Spacious 9in. x 49in. work table
  • Inverter drive system with LED RPM readout provides infinitely variable spindle speeds
  • Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
  • Seamless, 1-piece, 3 3/8in. dia. steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
  • Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
  • Table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
  • Patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys
  • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
  • Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed
  • Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials

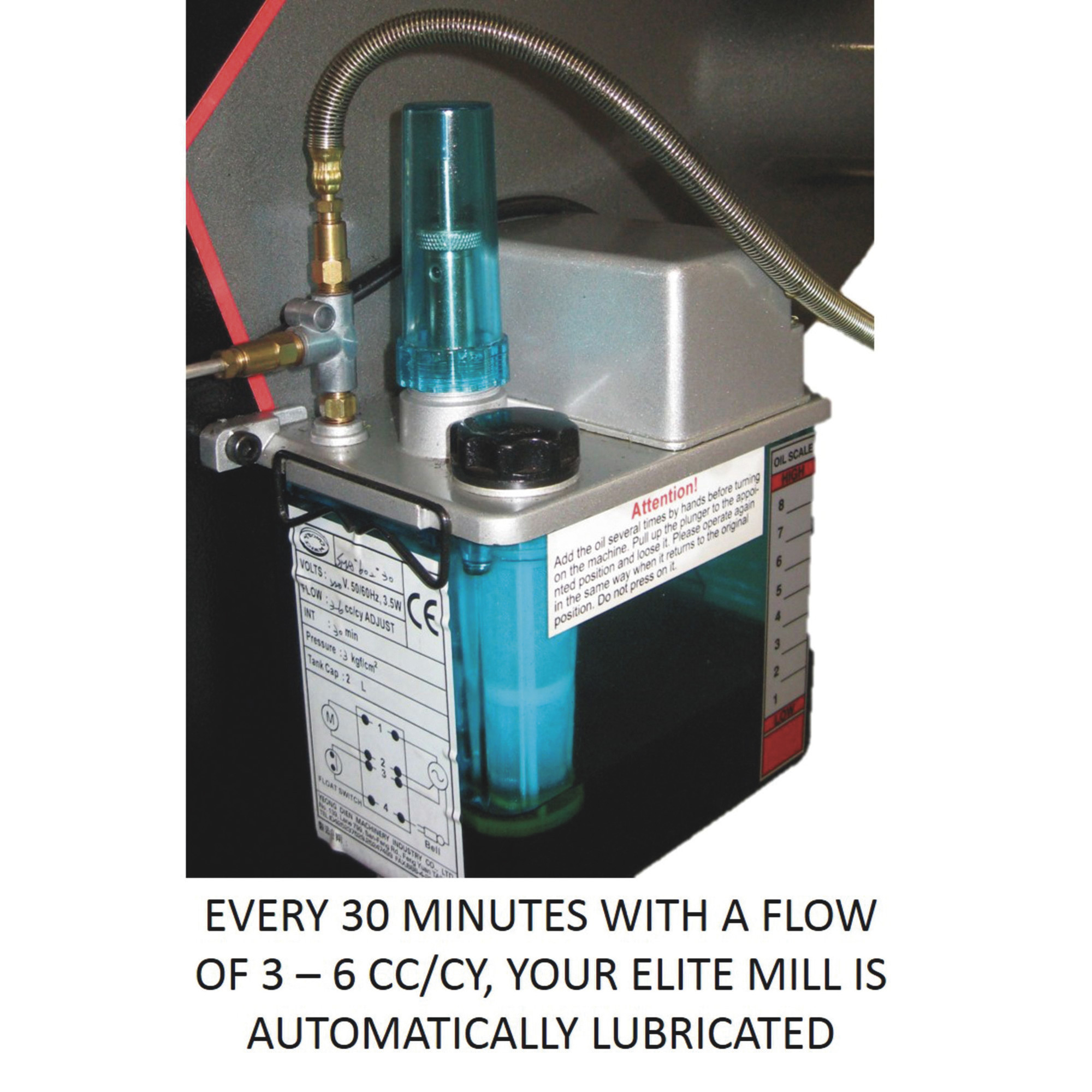

  • Mill is automatically lubricated every 30 minutes, with a flow of 3 to 6 cc/cy
  • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
  • Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
  • When activated the electronic spindle brake interrupts power to the spindle to prevent accidental startups
  • Mounted control box houses major mill functions as well as an emergency stop button

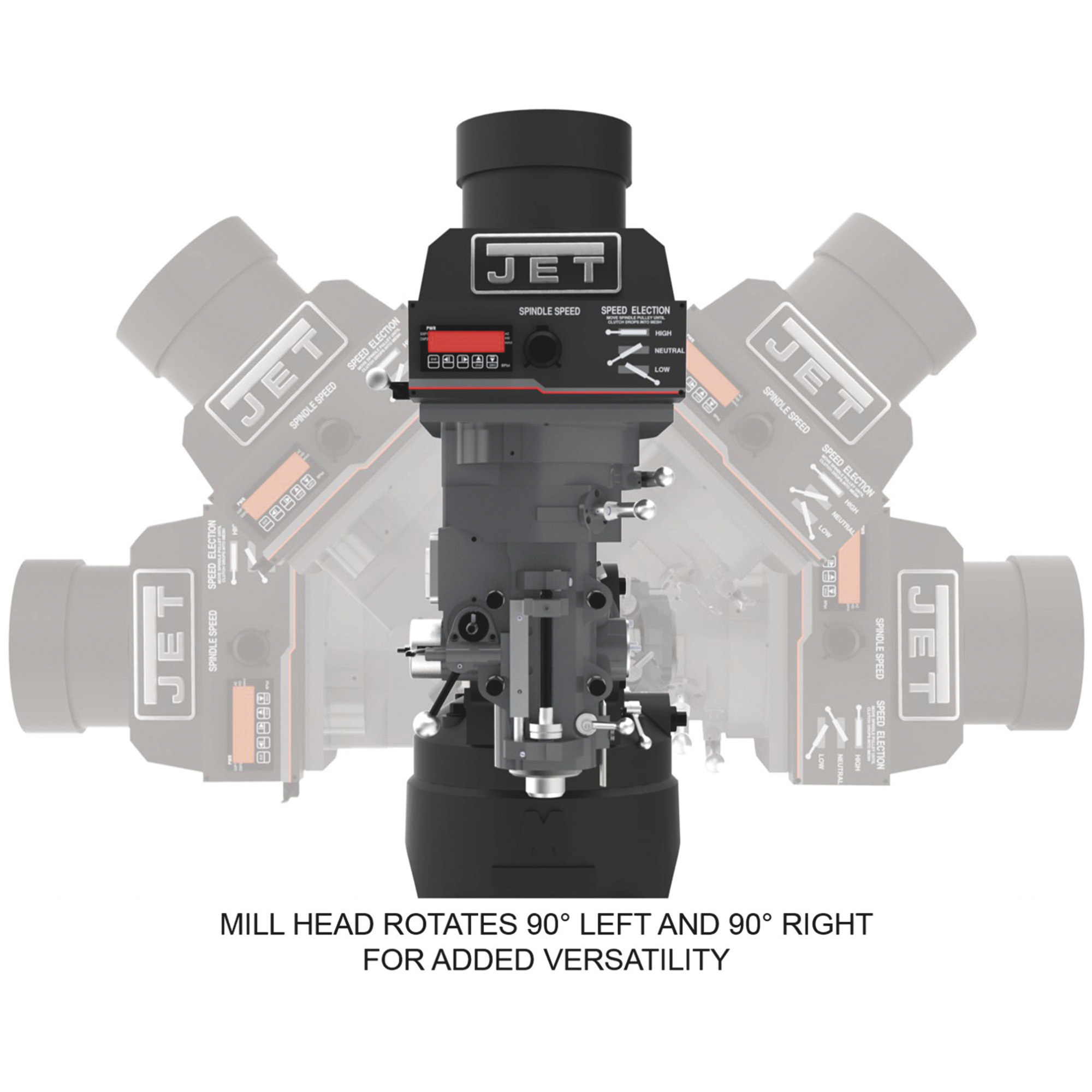

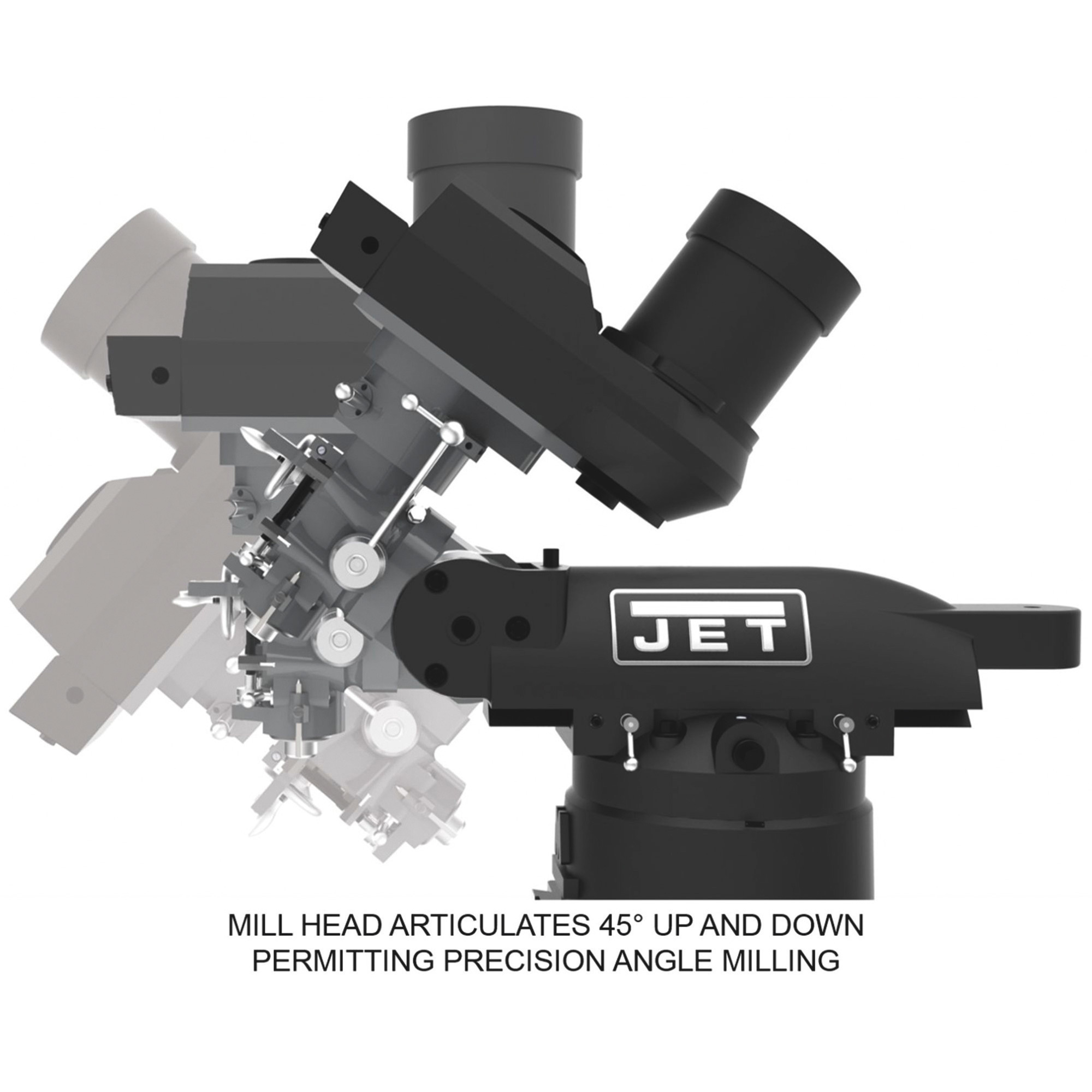

  • Head swivels 90 degrees right and left; 45 degrees front and back
  • Standard equipment includes: spindle safety guard, halogen machine lamp, dual locks on all surfaces

Key Specs

AttributeSpecification

item#

79690

Brand

JET

Manufacturer's Warranty

3 year limited warranty

Ship Weight

2300.0 LB

Horsepower

3 HP

Volts

230

Max. Speed

5,000 rpm

360 Degree Head Swivel

No

Product Type

Milling Machine

Vertical Stroke

5 in
AttributeSpecification

Drilling Capacity

3-3/8 in

Light Included

Yes

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

18.75 in

Draw Bar

No

Swing

21.406 in

Product Weight

lb

Dimensions L x W x H (in.)

68.0 x 63.0 x 84.0 in
