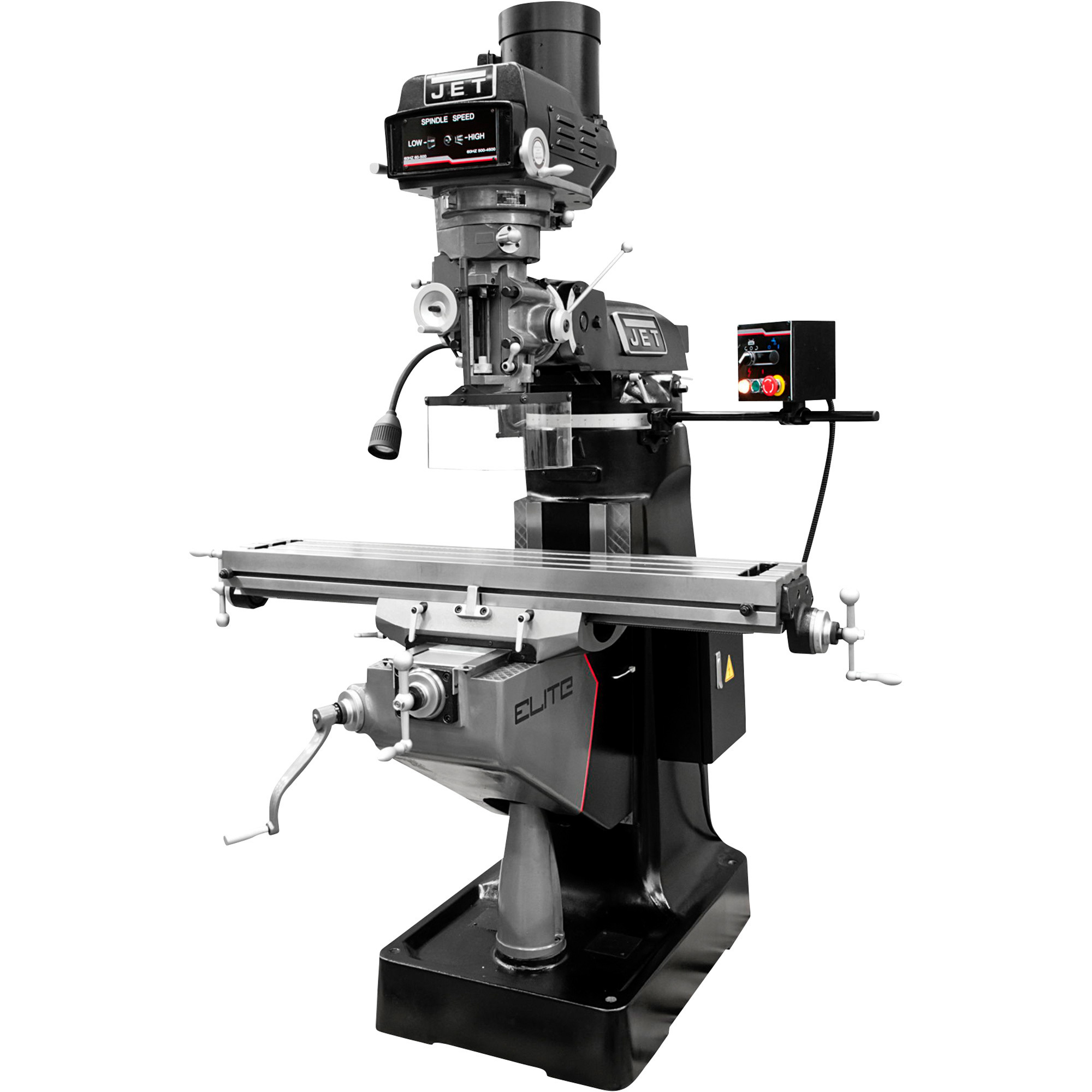

JET Elite Mill with 2-Axis ACU-RITE 203 DRO, X, Y, Z-Axis Powerfeeds and Power Air Draw Bar, 9in. x 49in. Table, 3 HP, Model# ETM-949

Item# 79692
JET Elite Mill with 2-Axis ACU-RITE 203 DRO, X, Y, Z-Axis Powerfeeds and Power Air Draw Bar, 9in. x 49in. Table, 3 HP, Model# ETM-949

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Elite Mill with 2-Axis ACU-RITE 203 DRO, X, Y, Z-Axis Powerfeeds and Power Air Draw Bar, 9in. x 49in. Table, 3 HP, Model# ETM-949

Click or Tap image to Zoom

$31,991.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 3 HP, 230/460V, 3-phase motor
  • 2-Axis ACU-RITE 203 DRO digital readout for accurate settings
  • X, Y, Z-axis powerfeed
  • Power draw bar is made in the U.S.A.
  • Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012in.

See full description

Complete Your Solution

  • JET Elite Mill with 2-Axis ACU-RITE 203 DRO, X, Y, Z-Axis Powerfeeds and Power Air Draw Bar, 9in. x 49in. Table, 3 HP, Model# ETM-949
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$32,015.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This variable-speed JET Elite Mill with 2-Axis ACU-RITE 203 DRO, X, Y, Z-Axis Powerfeeds and Power Air Draw Bar is loaded with features including an extremely accurate spindle assembly to meet strict tolerance requirements. The durable design delivers reliable performance. Includes spindle safety guard. CSA/CUS certified. Item too large for lift gate; forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Mill withACU-RITE 203 DRO, X, Y, Z-Axis Powerfeeds and Power Air Draw Bar

Features + Benefits

  • 3 HP, 230/460V, 3-phase motor
  • 2-Axis ACU-RITE 203 DRO digital readout for accurate settings
  • X, Y, Z-axis powerfeed
  • Power draw bar is made in the U.S.A.
  • Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012in.
  • Spacious 9in. x 49in. work table
  • Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
  • Seamless, 1-piece, 3 3/8in. dia. steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
  • Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
  • Table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
  • Patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys
  • Variable-speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
  • Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed
  • Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials

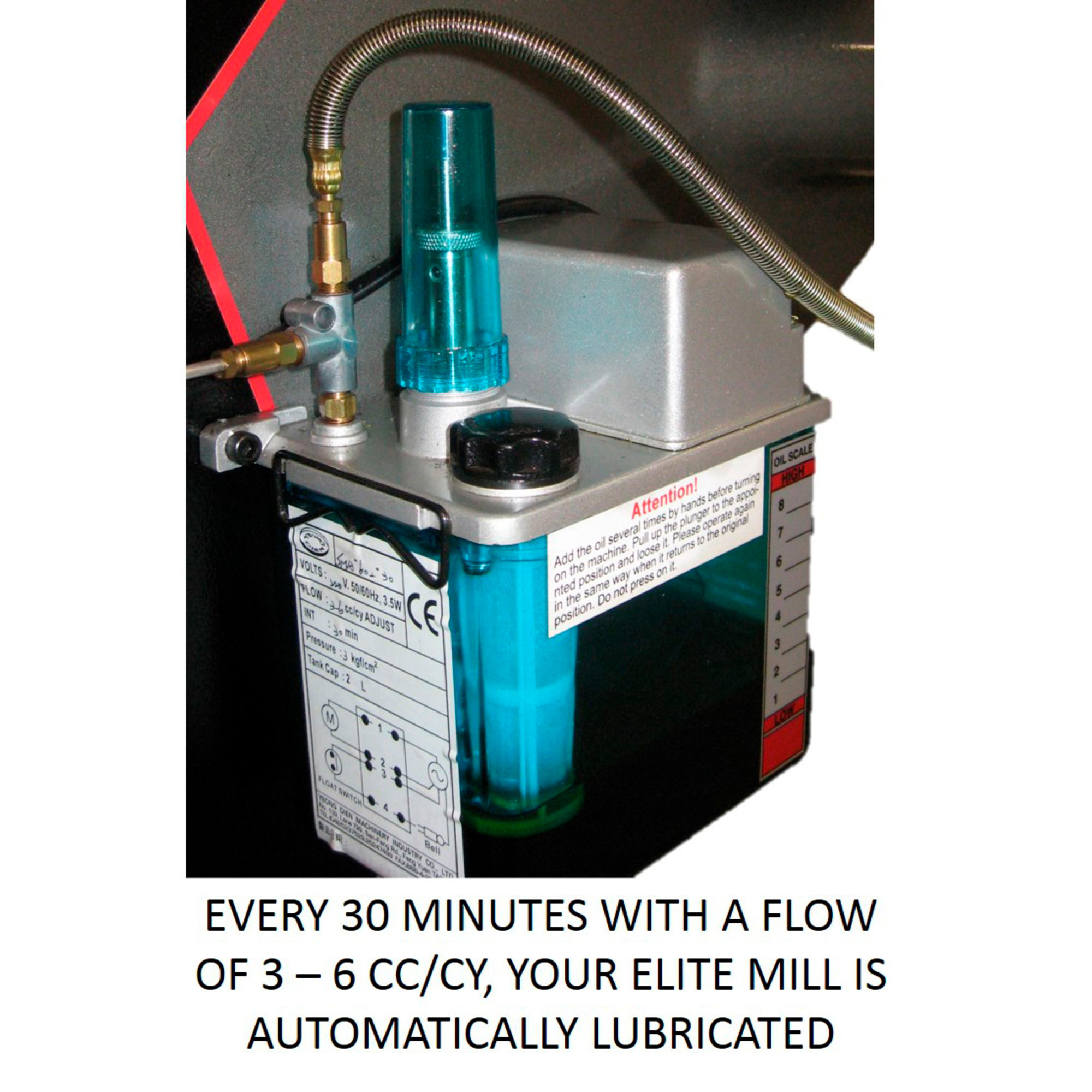

  • Mill is automatically lubricated every 30 minutes, with a flow of 3 to 6 cc/cy
  • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
  • Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining

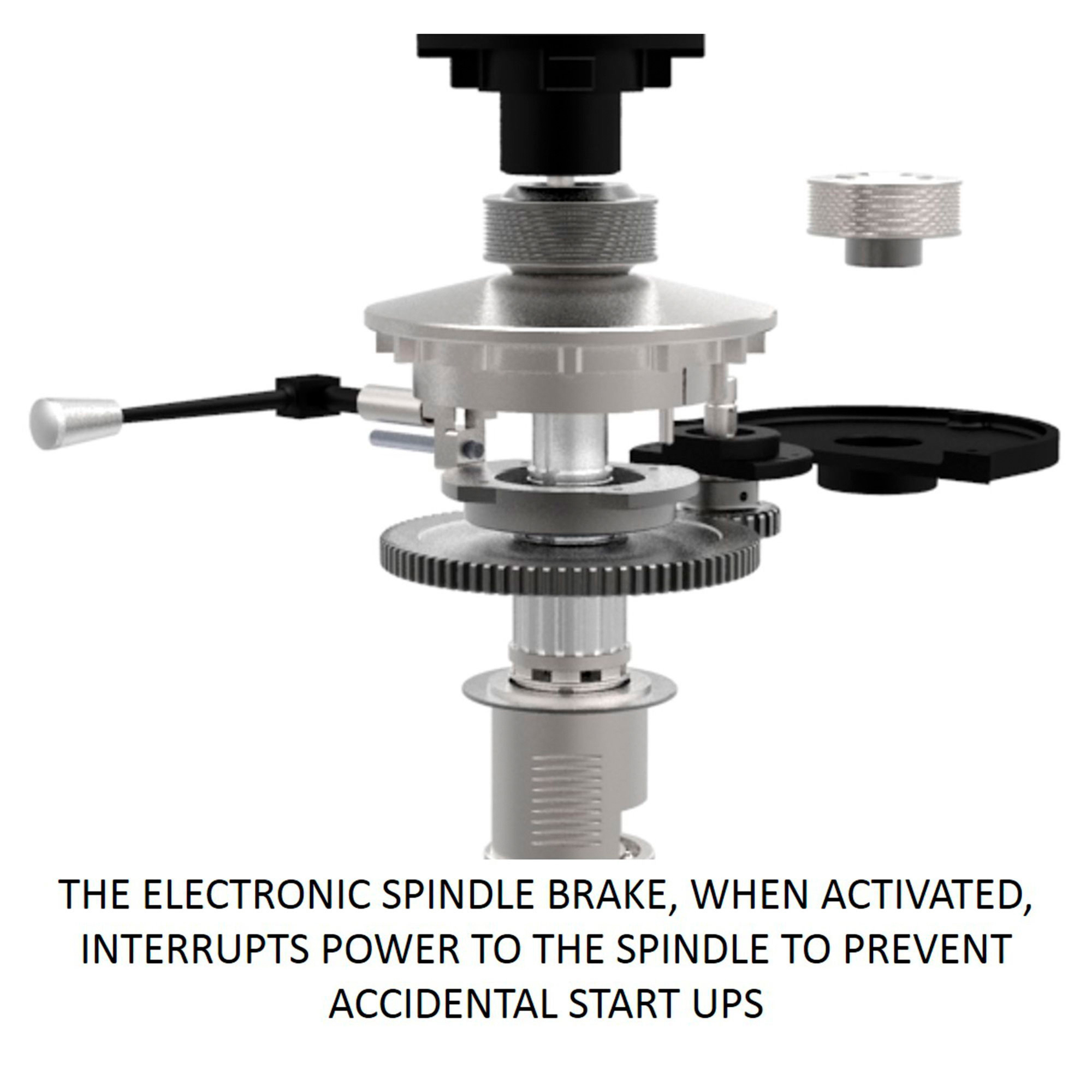

  • When activated the electronic spindle brake interrupts power to the spindle to prevent accidental startups

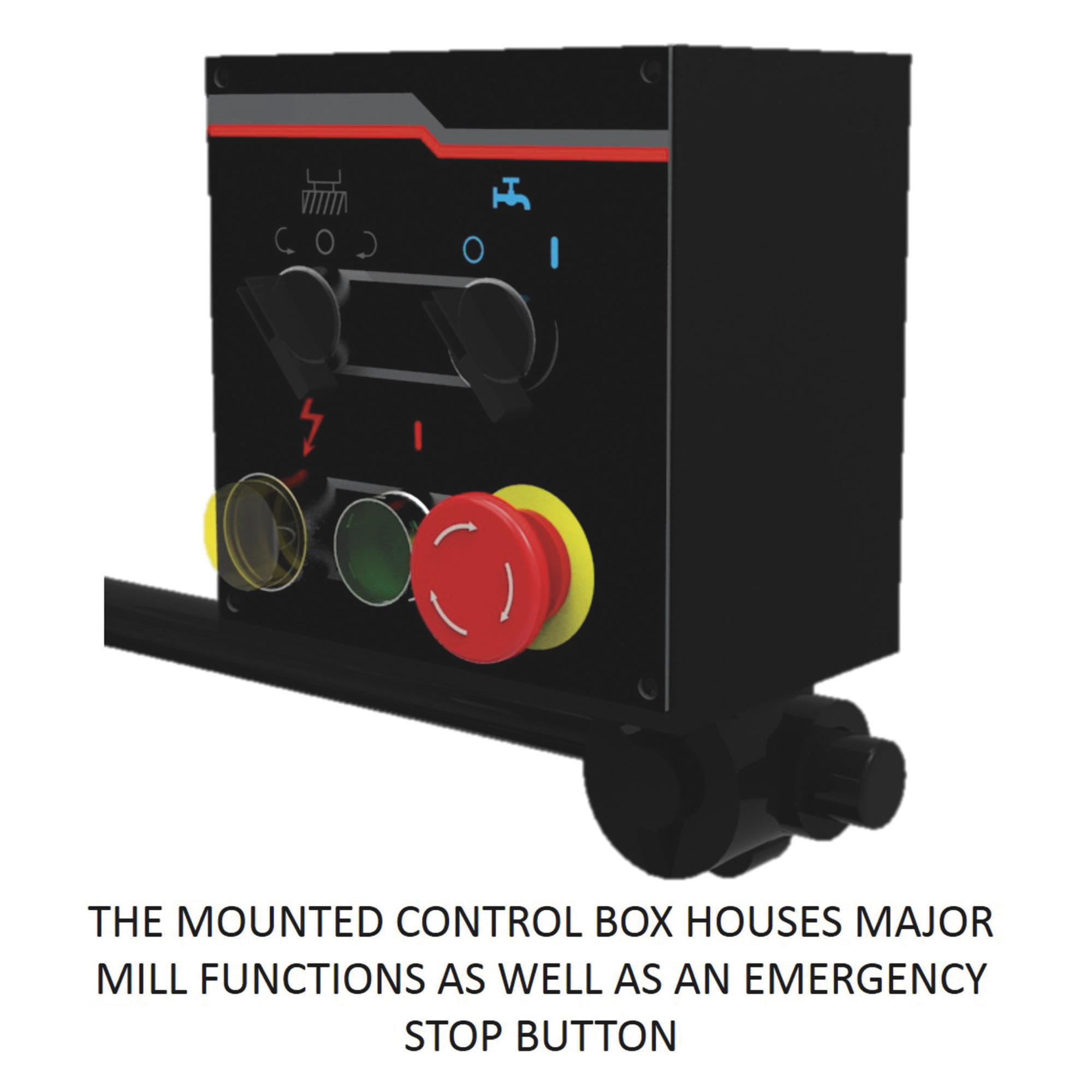

  • Mounted control box houses major mill functions as well as an emergency stop button

Key Specs

AttributeSpecification

item#

79692

Brand

JET

Manufacturer's Warranty

3 year limited warranty

Ship Weight

2420.0 LB

Horsepower

3 HP

Volts

230/460

Max. Speed

4,500 rpm

360 Degree Head Swivel

No

Product Type

Milling Machine

Vertical Stroke

5 in
AttributeSpecification

Drilling Capacity

3-3/8 in

Light Included

Yes

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

18.75 in

Draw Bar

Yes

Swing

21.406 in

Product Weight

lb

Dimensions L x W x H (in.)

68.0 x 63.0 x 84.0 in
