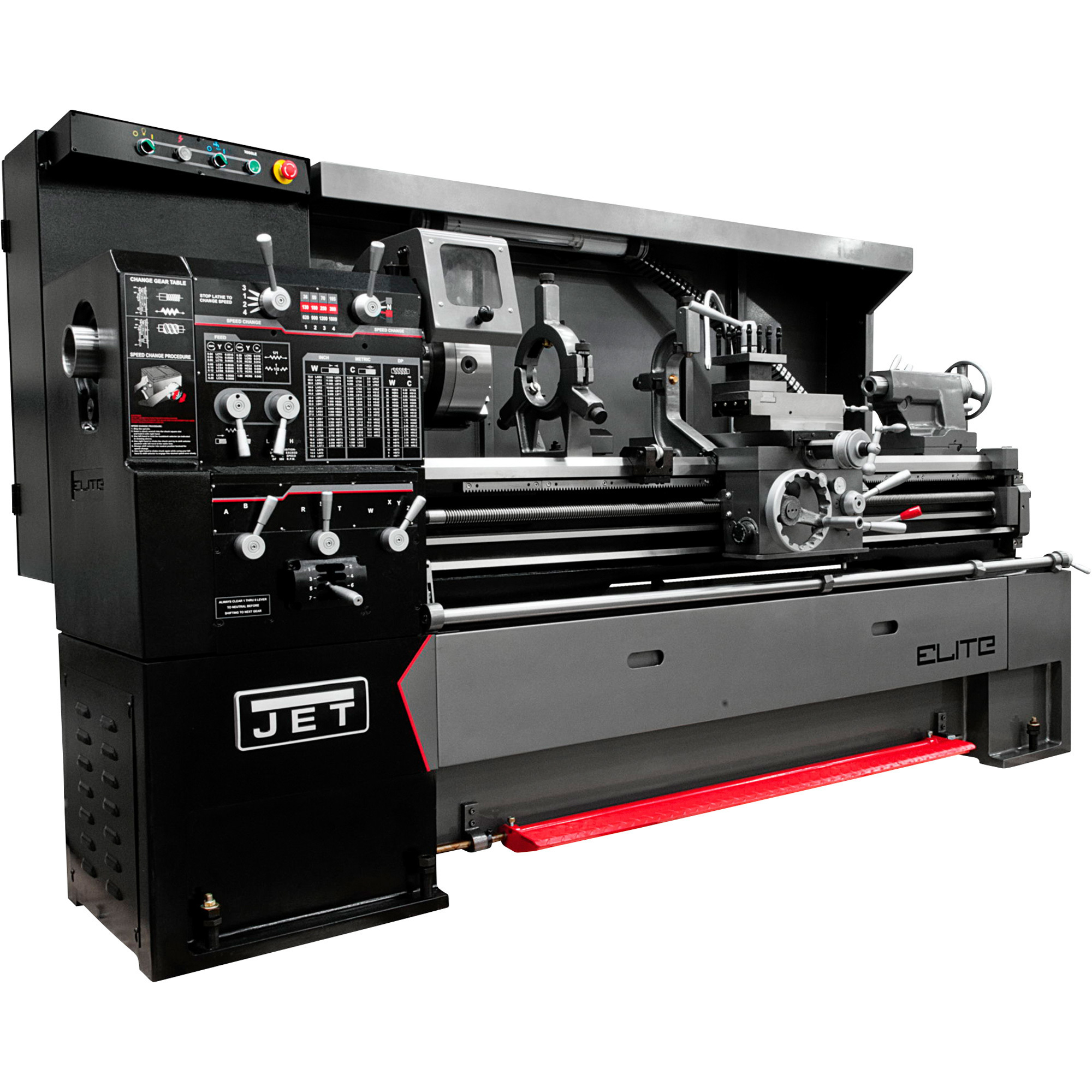

JET Elite Geared Head Metal Lathe with Newall DP700 DRO, Taper Attachment and Collet Closer, 17in. x 40in., EGH-1740 W/DP700, TAK&CC

Item# 79675
JET Elite Geared Head Metal Lathe with Newall DP700 DRO, Taper Attachment and Collet Closer, 17in. x 40in., EGH-1740 W/DP700, TAK&CC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Elite Geared Head Metal Lathe with Newall DP700 DRO, Taper Attachment and Collet Closer, 17in. x 40in., EGH-1740 W/DP700, TAK&CC

Click or Tap image to Zoom

$56,415.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

  • 7 1/2 HP, 230/460V 3 phase motor
  • Large 3 1/8in. spindle bore
  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
  • Nylon safety gears in the end train prevent overloading, increasing safety
  • Enclosed coolant system contains excess coolant for increased safety

See full description

Complete Your Solution

  • JET Elite Geared Head Metal Lathe with Newall DP700 DRO, Taper Attachment and Collet Closer, 17in. x 40in., EGH-1740 W/DP700, TAK&CC
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$56,439.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 17in. x 40in. JET Elite Geared Head Metal Lathe with Newall DP700 DRO, Taper Attachment and Collet Closer is a dependable, powerful tool that combines the durability and strength of Meehanite® castings with precision engineering. This Elite geared head lathe consistently turns out high quality components. Has a 17in. swing-over bed. A universal gearbox allows for a wide range of threading without gear changes, while Turcite-B coatings between the bed and carriage provide smooth and accurate movement. Newall DP700 DRO digital readout offers precise control. Taper attachment and collet closer allow you to turn accurate tapers. CSA/CUS certified. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Lathe

Features + Benefits

  • 7 1/2 HP, 230/460V 3 phase motor
  • Large 3 1/8in. spindle bore

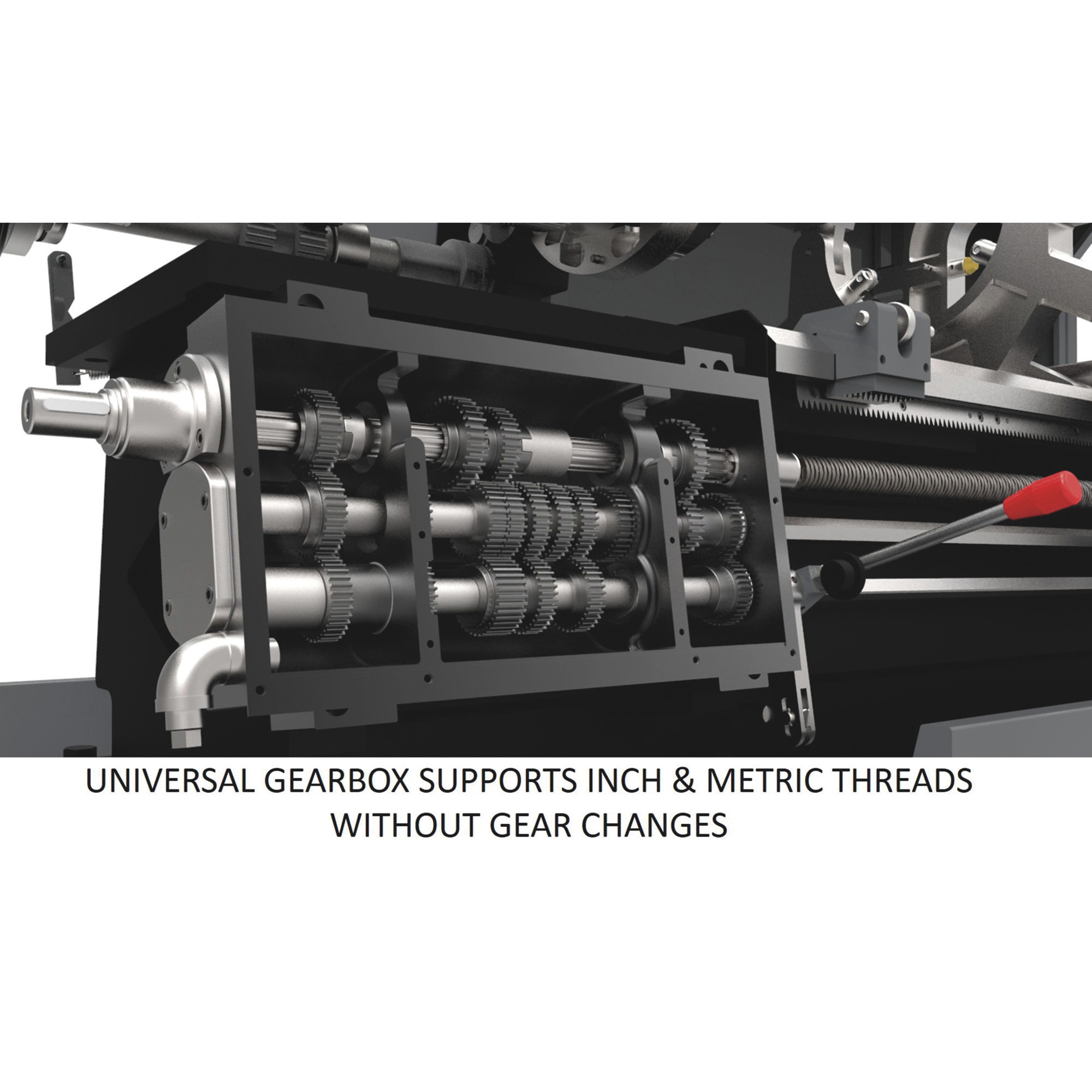

  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
  • Nylon safety gears in the end train prevent overloading, increasing safety
  • Enclosed coolant system contains excess coolant for increased safety
  • Newall DP700 DRO digital readout offers precise settings for superior control
  • Taper attachment and collet closer allow you to turn accurate tapers
  • Steady rests feature ball bearing guides for smooth material movements
  • Front facing chip pan allows easy chip removal from the front of the machine

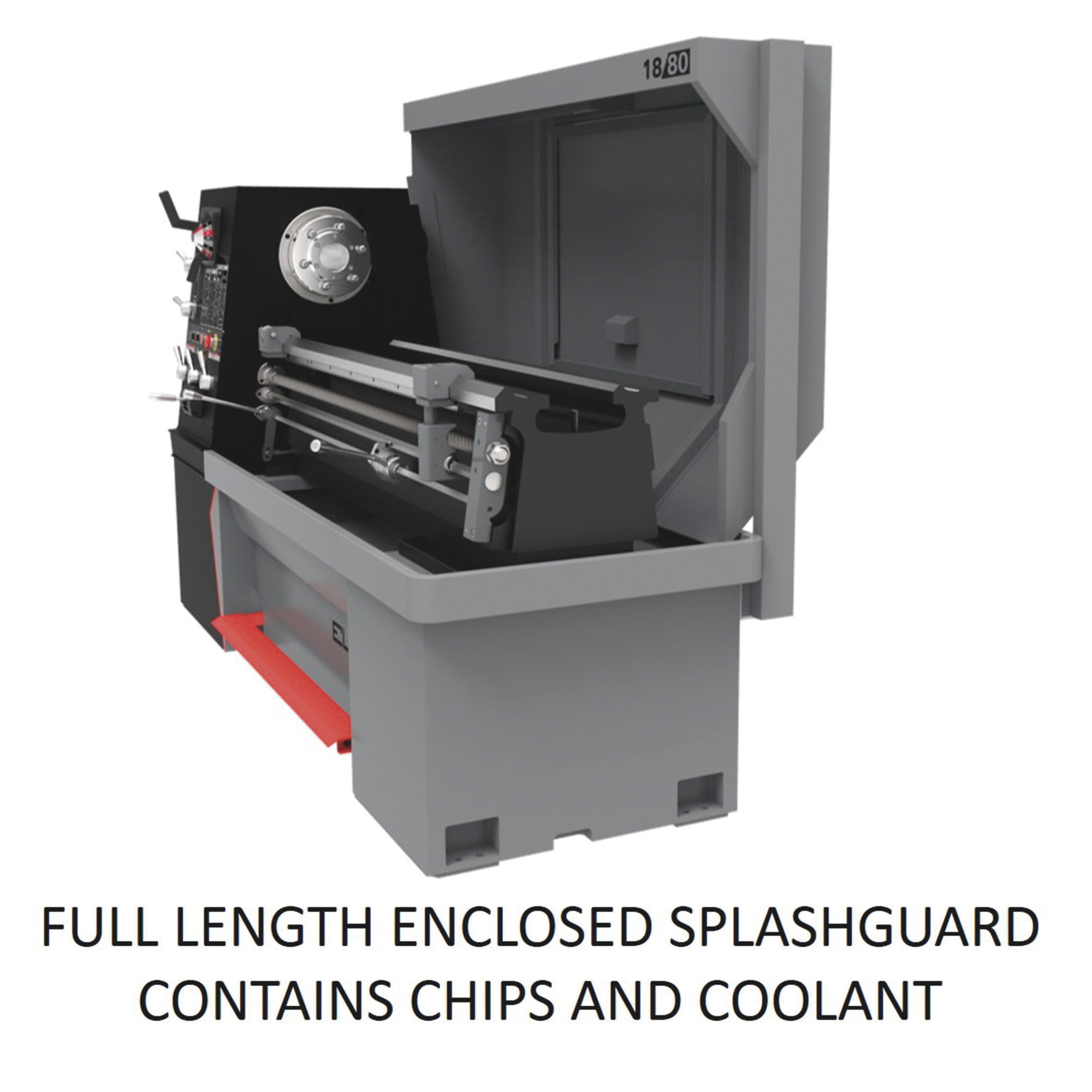

  • Enclosed full length splash guard is expertly designed to contain all chips and coolant and is fully lit with CNC style lighting
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Wider bedways absorb vibration
  • Turcite-B coating between bed and carriage provides friction free motion in all linear directions
  • Anti-float design eliminates backlash in the cross slide
  • One-shot lubrication in the carriage reduces maintenance
  • Overload clutch at feed shaft prevents the carriage from crashing into the chuck
  • Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
  • Hardened and ground bedways provide accurate longitudinal movements
  • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock

Key Specs

AttributeSpecification

item#

79675

Brand

JET

Manufacturer's Warranty

3 year limited warranty

Ship Weight

3747.0 LB

Horsepower

7.5 HP

Volts

230/460

Distance Between Centers

40 in

Swing Over Bed

17 in

Product Type

Other

Carriage Travel

17 in
AttributeSpecification

Thread Cutting Max. (SAE)

72 in

Thread Cutting Max.

14 mm

Phase

Single-phase

Variable Speed

No

Max. Speed

1,800 rpm

Spindle Mount

Yes

Spindle Bore Size

3.125 in

Stand Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

94.0 x 44.0 x 68.0 in
