JET Deluxe XACTASAW Table Saw, 10in., Model# JTAS-10XL-DX

Item# 123564
"JET Deluxe XACTASAW Table Saw, 10in., Model# JTAS-10XL-DX"
JET Deluxe XACTASAW Table Saw, 10in., Model# JTAS-10XL-DX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Deluxe XACTASAW Table Saw, 10in., Model# JTAS-10XL-DX

Click or Tap image to Zoom

$4123.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

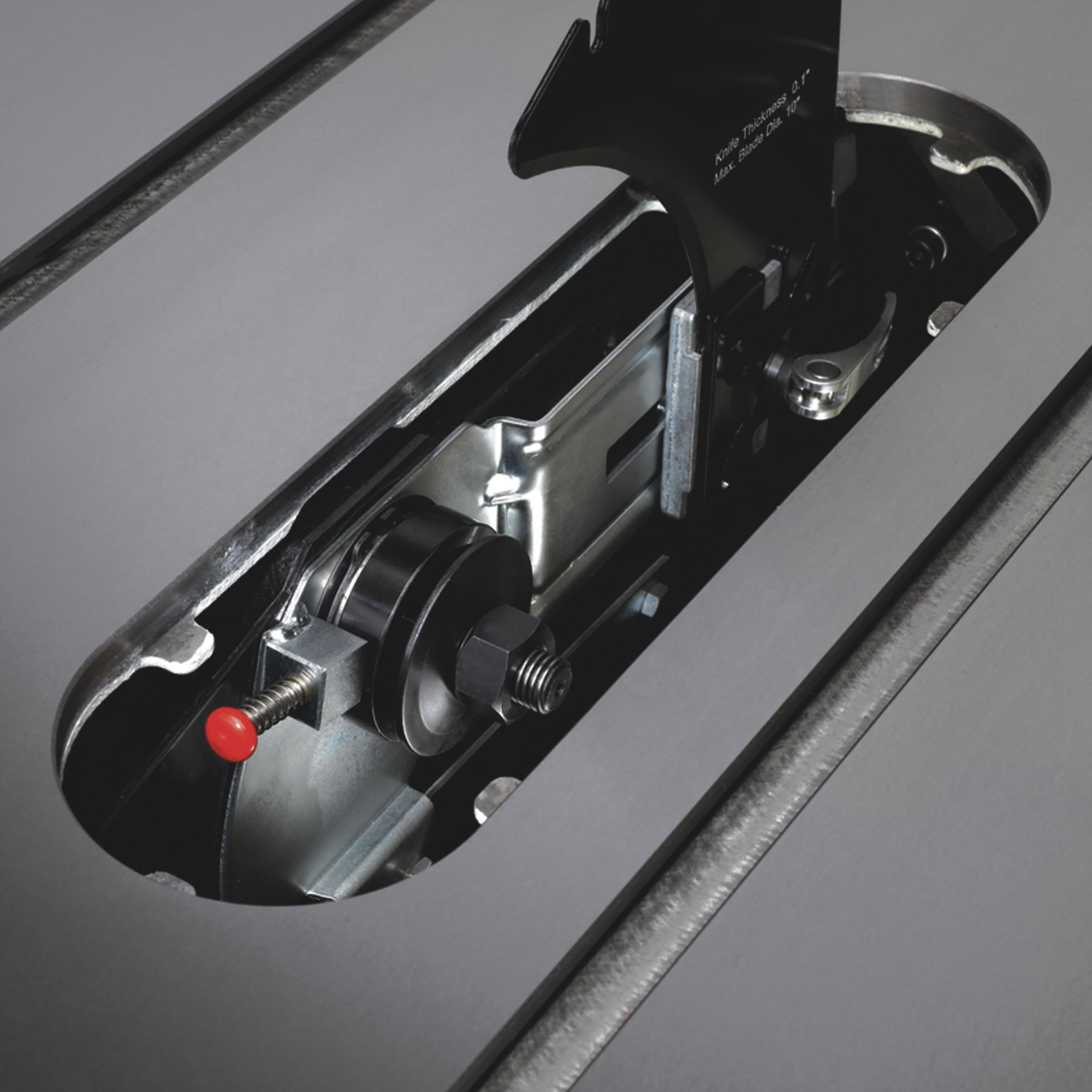

  • Push-button arbor lock (patent pending) for rapid blade change
  • Standard 11in. left and right cast iron extension wings provide the largest table surface in its class
  • Three matched V-belts deliver full power to the blade
  • Rail-mounted magnetic switch is easy to reach and provides overload protection
  • Hinged motor cover on cabinet gives quick access to the motor and belts

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Deluxe XACTASAW Table Saw, 10in., Model# JTAS-10XL-DX
  • Diablo Combination Circular Saw Blade, 10in., 50 Tooth, For Crosscuts & Rip Cuts in Wood, Plywood, Melamine, Model# D1050X
  • Diablo Ripping Circular Saw Blade, 10in., 24 Tooth, For Rip Cuts in Wood, Plywood, OSB, Model# D1024X
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all four:

$4206.92

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

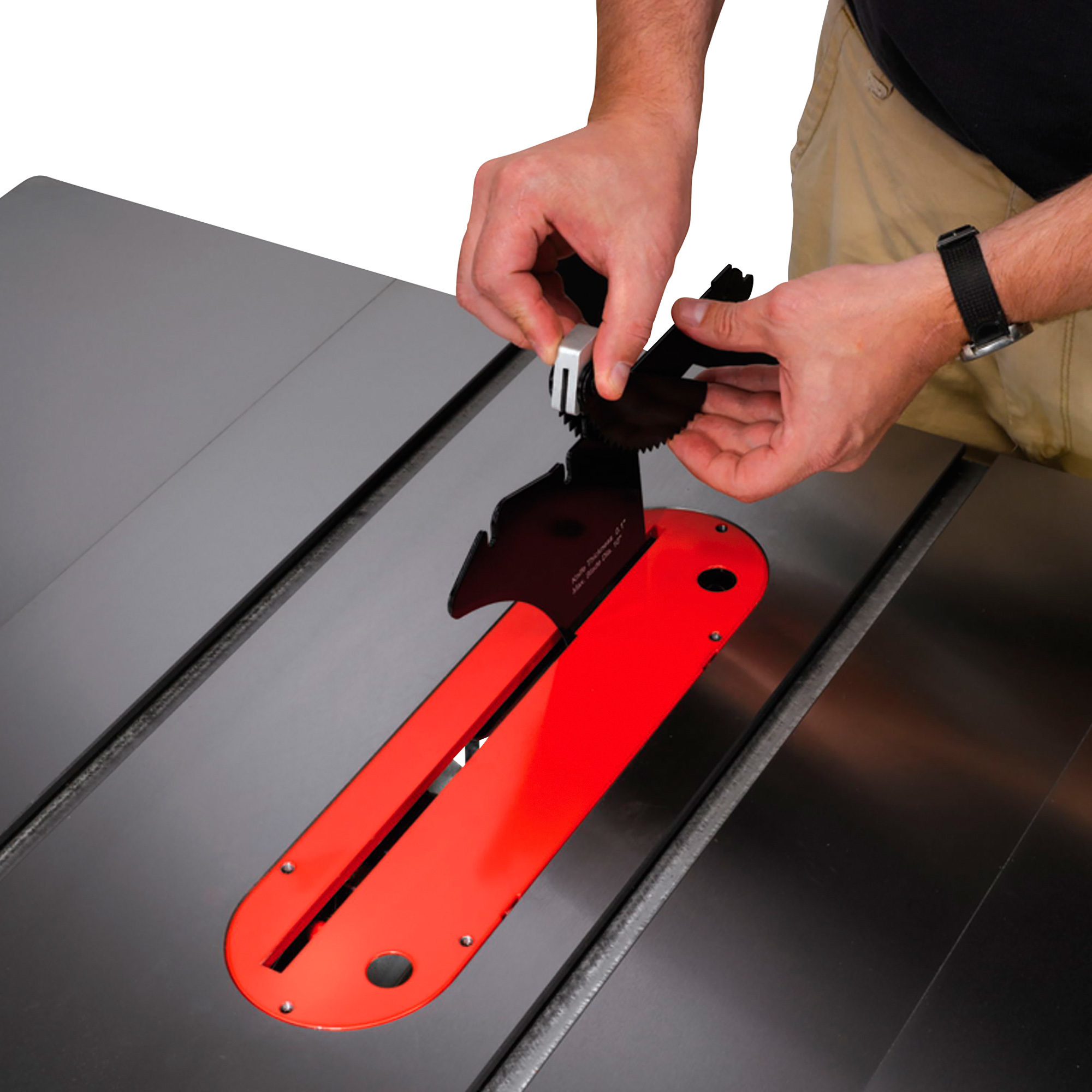

The JET Deluxe XACTASAW 10in. Table Saw boasts a powerful 3 HP motor and exclusive 50in. commercial XACTA® fence II with T-square design. This Deluxe XACTASAW has a quick-release riving knife and integrated arbor lock that's more efficient and keeps the operator safe. This Deluxe XACTASAW model offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, plus a fully shrouded blade for highly efficient dust collection. The 26in. x 30in. wings and deeper table provide even more cast iron to work on. You also get on-board fence and miter gauge storage.

What's Included

    (1) JET Deluxe XACTASAW Table Saw, 10in., Model# JTAS-10XL-DX

Downloads

Product Manual

Features + Benefits

  • Push-button arbor lock (patent pending) for rapid blade change
  • Standard 11in. left and right cast iron extension wings provide the largest table surface in its class
  • Three matched V-belts deliver full power to the blade
  • Rail-mounted magnetic switch is easy to reach and provides overload protection
  • Hinged motor cover on cabinet gives quick access to the motor and belts
  • Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
  • Heavy-duty chrome-plated handwheels contribute to smooth trunnion/arbor movement
  • Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
  • Left tilt, wide-stance, heavy-duty trunnion for stability and smooth blade positioning
  • Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
  • Arbor wrench
  • Max Depth of Cut at 45 Degrees: 2 1/8in.
  • Max Rip Left of Blade: 13in.
  • Rip Capacity: 50in.
  • Table in Front of Saw Blade at Max Depth: 10in.
  • Max Width of Dado: 13/16in.
  • Max Diameter of Dado: 8in.
  • Table Height: 34in.
  • Table Size with Standard Extension: 29in.L x 42in.W
  • Note: dado insert is not included

Key Specs

AttributeSpecification

item#

123564

Brand

JET

Manufacturer's Warranty

5 year limited warranty

Ship Weight

510.0 LB

Blade Diameter

10

Horsepower

3 HP

Volts

230

Motor Phase

Single-phase
AttributeSpecification

Amps

14.5

Product Type

Table Saws

Table Included

Yes

Max. Cut to Right

50 in

Max. Dado Width

13/16 in

Arbor Size

5/8 in

Product Weight

lb

Dimensions L x W x H (in.)

85.0 x 36.0 x 38.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What is the maximum cutting depth at 90 degrees

    1 answer

    1. The maximum cutting depth at 90 degrees is 3".

      Helpful?

  2. Your picture of this product is of a 708674pk with 30 inch rip capacity. Your written information suggests a 50 inch rip capacity which would be a 708675pk. Which is it? Most people are gong to want more clarity before they buy.

    1 answer

    1. The description of the product would be accurate. The picture is a representation of the saw and may not be the exact product. The manufacturer model for this is 708675PK with a 50 inch rip cut capacity.

      Helpful?

  3. Can i relocate the dust port to the right side?

    1 answer

    1. The dust port should not be moved as modifications of this kind could damage the product and would void the warranty.

      Helpful?

  4. what size hose connects for dust collection

    1 answer

    1. The unit will work with a 4" diameter dust collection hose.

      Helpful?

  5. Is jet an American made product.

    1 answer

    1. This Jet Table Saw is manufactured in Taiwan.

      Helpful?
