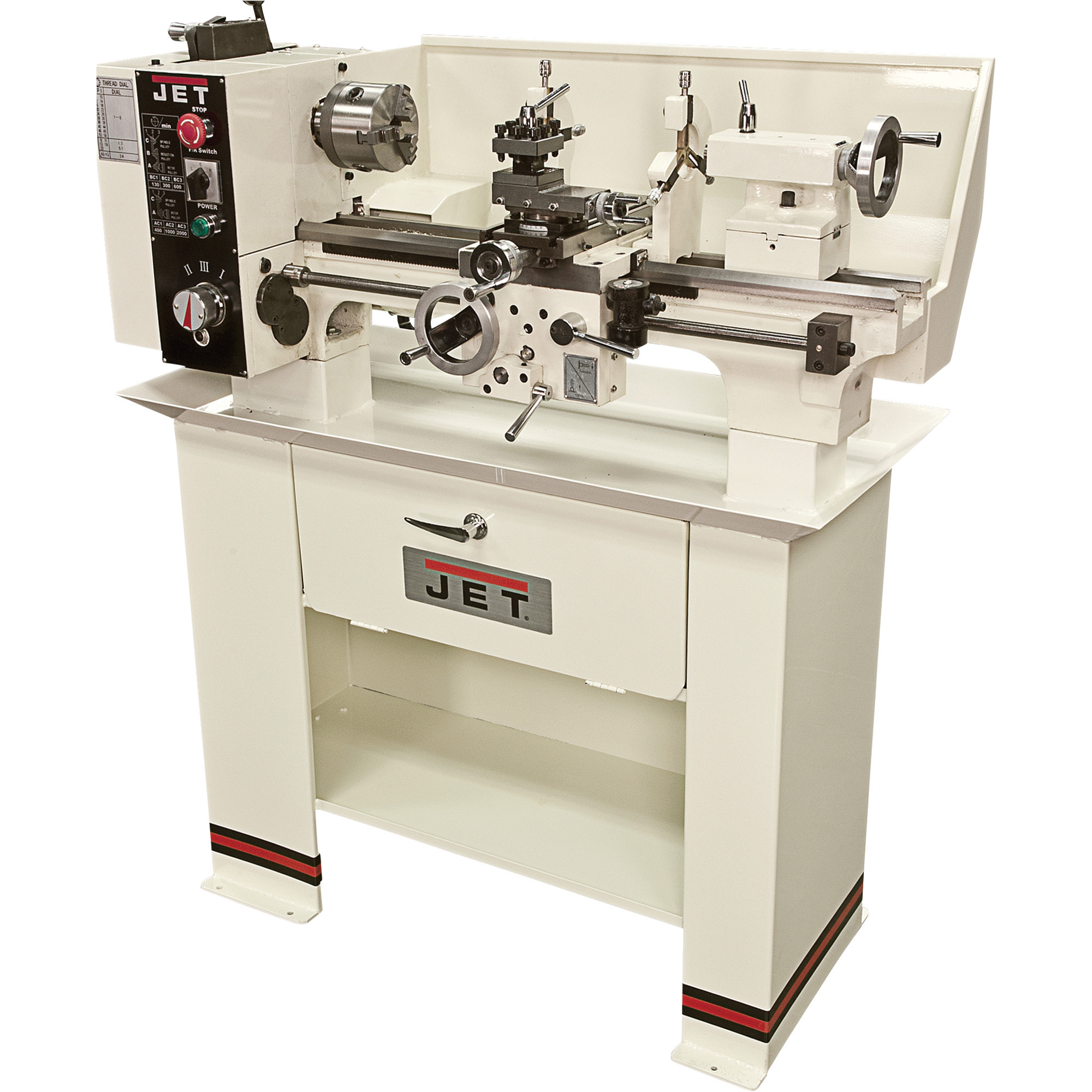

JET Belt Drive Bench Lathe with Stand, 9in. x 20in., Model# BD-920W

Item# 142275
JET Belt Drive Bench Lathe with Stand, 9in. x 20in., Model# BD-920W

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Belt Drive Bench Lathe with Stand, 9in. x 20in., Model# BD-920W

Click or Tap image to Zoom

  • Spindle supported by precision-tapered roller bearings
  • Hardened and ground bedways
  • Power longitudinal feed allows threading
  • Backlash adjustments provided throughout the carriage
  • Tailstock is adjustable for taper cuts

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The JET® BD-920W bench lathe is built with same innovation, quality and dependability JET puts into all its metalworking products. The BD-920W comes with a standard 1/2in. x 8 TPI spindle mount that allows for many aftermarket accessories, a reversing switch for added versatility, plus the S-920N stand so you can set up and get to work on metal lathe projects right away.

What's Included

    (1) Lathe

Features + Benefits

  • Spindle supported by precision-tapered roller bearings
  • Hardened and ground bedways
  • Power longitudinal feed allows threading
  • Backlash adjustments provided throughout the carriage
  • Tailstock is adjustable for taper cuts
  • Quick-change gear box provides wide range of inch and metric threads
  • 4in. 3-jaw scroll chuck with threaded back plate
  • 7in. 4-jaw independent with threaded back plate
  • Face plate
  • Four-way tool post
  • Steady and follow rest
  • Metric change gears
  • Centers
  • Threading dial
  • Tool box and tools

Key Specs

AttributeSpecification

item#

142275

Brand

JET

Manufacturer's Warranty

24 months parts/12months labor

Ship Weight

325.0 LB

Horsepower

0.75 HP

Volts

115

Carriage Travel

16 in
AttributeSpecification

Thread Cutting Max. (SAE)

56 in

Thread Cutting Max.

3 mm

Max. Speed

2,000 rpm

Stand Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

38.0 x 20.0 x 48.0 in

Reviews

Questions & Answers

Questions

1–6 of 6 Questions
Sort by:

  1. What is the country of origin?

    1. The lathe is manufactured in China.

      Helpful?

    2. This lathe is engineered in the USA and manufactured in China. The lathe comes with a 2 year warranty

      Helpful?

  2. does this lathe have a thru hole?

    1. This JET Belt Drive Bench Lathe with Stand does have a thru hole to accommodate feeding of the stock. The spindle bore is 7/8.

      Helpful?

    2. Yes the spindle bore is 7/8 and has a thru hole to accommodate feeding of the stock

      Helpful?

  3. Will the tooling kit (#660200) work with the BD-920W Bench lathe? Thank you.

    1. The # 660200 tooling kit will not work with that lathe. You will need JET part# 660215. Northern does not currently offer this kit.

      Helpful?

    2. No this tooling kit will not work with that lathe. You will need to order the JET part# 660215 for that lathe.

      Helpful?

  4. What is the spindle bore

    1. The spindle bore is 7/8".

      Helpful?

    2. Thank you for your inquiry.

      The spindle bore on the JET Belt Drive Bench Lathe with Stand - 9in. x 20in., Model# BD-920W is 7/8".

      Thank you!

      Helpful?

  5. is this lathe UL listed

    1 answer

    1. The Jet Bench Lathe is not UL listed.

      Helpful?

  6. What is the largest diameter of lets say, tubing, that the chuck will hold?

    1 answer

    1. The largest diameter that the chuck will hold is 1 1/2".

      Helpful?

Warranty

Manufacturer's Warranty

24 months parts/12months labor
