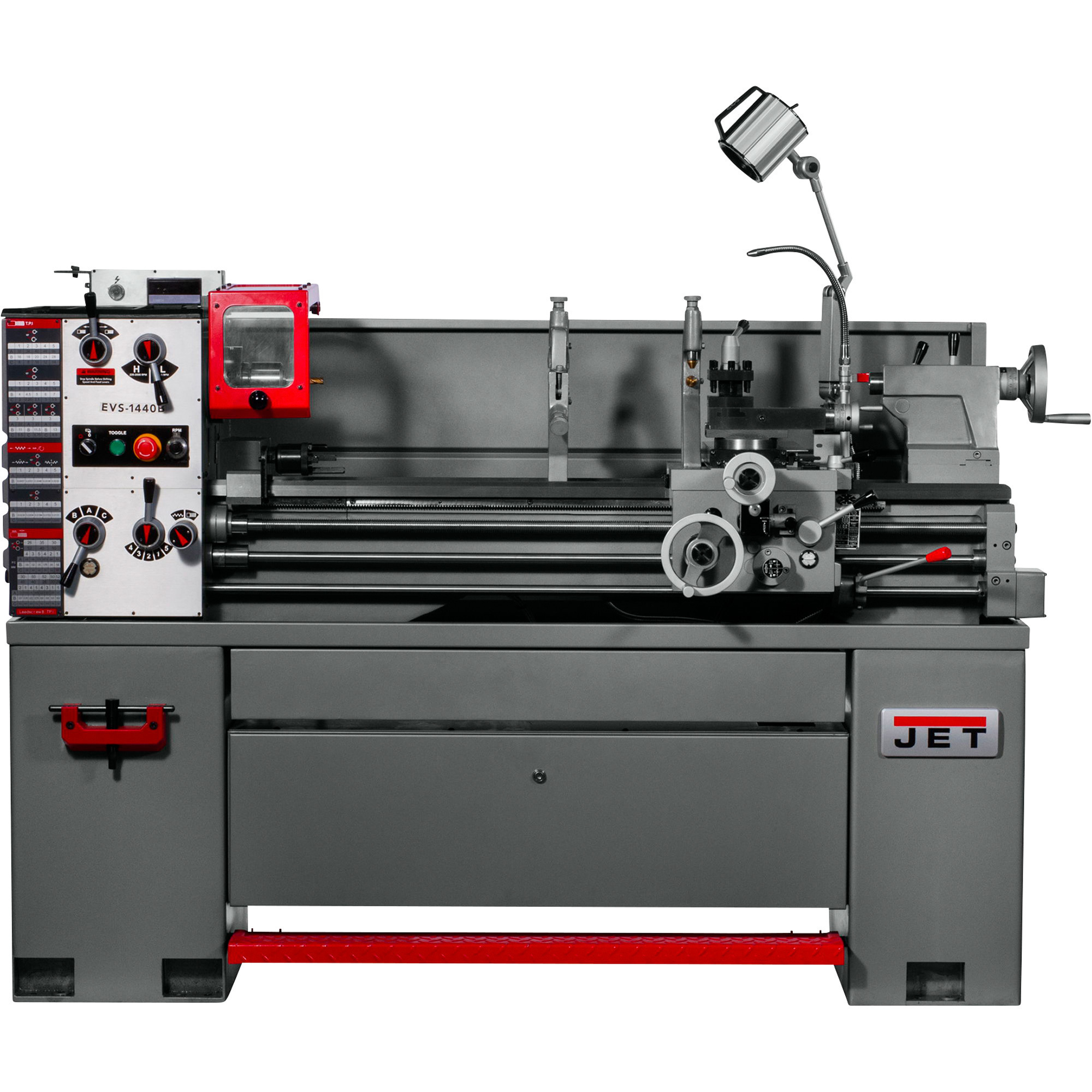

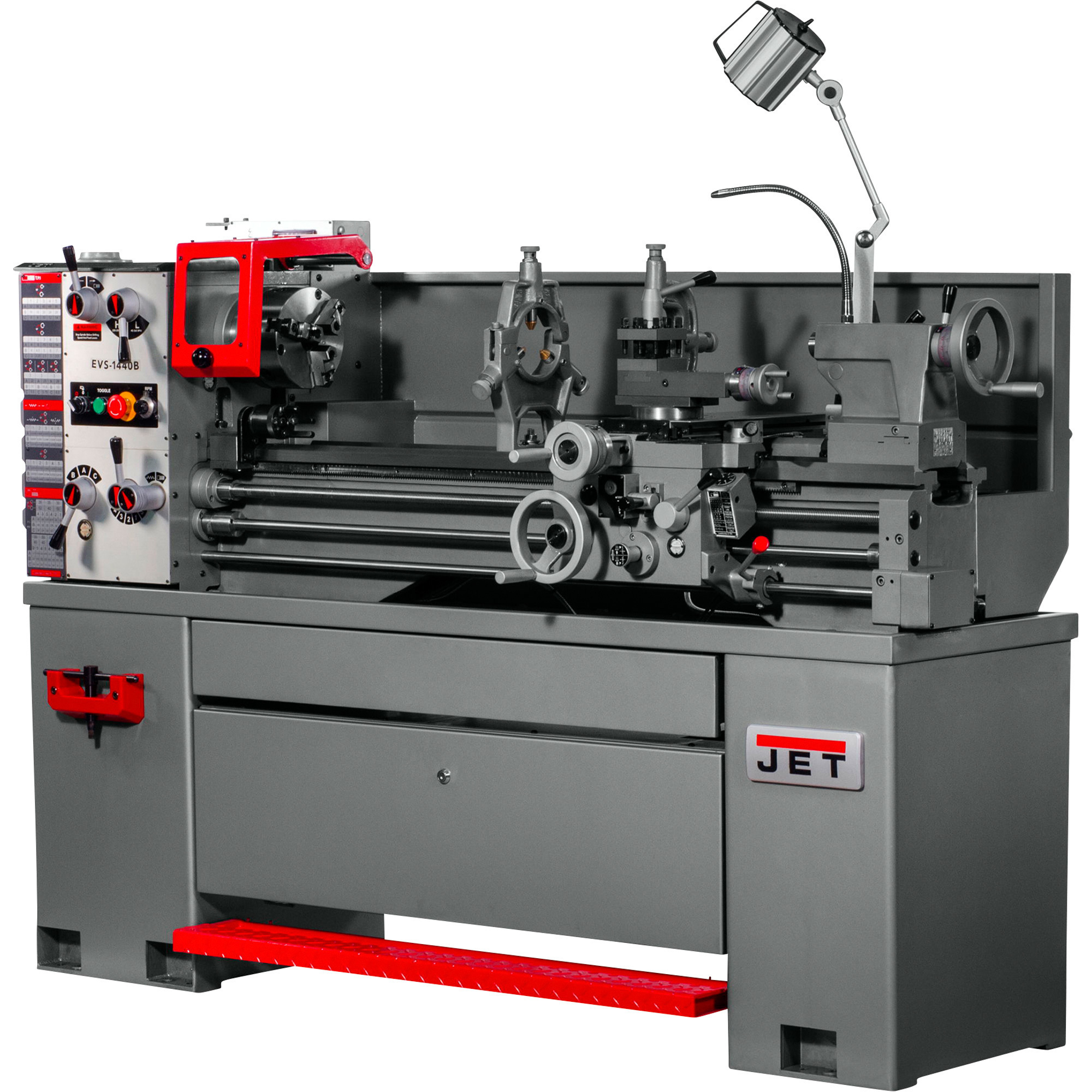

JET 14in. x 40in. Electronic Variable-Speed Lathe with Acu-Rite 203 DRO, 3 HP, 230/460V, Model# EVS-1440B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- Acu-Rite 230 DRO digital readout vastly reduces positioning time while providing greater accuracy and repeatability
- 2-speed gearbox: Low speeds from 40 to 365 RPM; high speeds from 220 to 2000 RPM
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004in.
- 40in. distance between centers with 14in. swing over bed
- Powerful 3 HP, 3-phase motor with dual 230/460 Volt operation
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) JET 14in. x 40in. lathe with digital readout, Model# EVS-1440B
Downloads
Features + Benefits
- Acu-Rite 230 DRO digital readout vastly reduces positioning time while providing greater accuracy and repeatability
- 2-speed gearbox: Low speeds from 40 to 365 RPM; high speeds from 220 to 2000 RPM
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004in.
- 40in. distance between centers with 14in. swing over bed
- Powerful 3 HP, 3-phase motor with dual 230/460 Volt operation
- Meehanite castings retain their tolerance and remain rigid through many years of machining
- Safety on/off switch
- Emergency Stop is located within easy reach of the operator for added safety
- Electronic chuck key docking station
- V-way bed design is induction hardened and ground
- Splined, not keyed, shafts
- D1-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings
- Independent leadscrew and feed rod
- Adjustable gibs are incorporated in the carriage and slideways
Key Specs
| Attribute | Specification |
|---|---|
item# | 108549 |
Brand | JET |
Manufacturer's Warranty | 24 months parts/24months labor |
Ship Weight | 1584.0 LB |
Horsepower | 5 HP |
Volts | 230/460 |
Distance Between Centers | 40 in |
Swing Over Bed | 14 in |
Product Type | Other |
Carriage Travel | 35.5 in |
| Attribute | Specification |
|---|---|
Thread Cutting Max. (SAE) | 56 in |
Thread Cutting Max. | 12 mm |
Phase | Single-phase |
Variable Speed | Yes |
Max. Speed | 1,800 rpm |
Spindle Mount | Yes |
Spindle Bore Size | 1.562 in |
Stand Included | Yes |
Product Weight | lb |
Dimensions L x W x H (in.) | 68.5 x 28.3 x 50.0 in |
Reviews
Questions & Answers
Questions
Warranty
Manufacturer's Warranty
24 months parts/24months labor
Compare with Most Popular in Lathes
See All Lathes
See All JET Lathes
Currently Viewing This Product
Item # 108549
$23,194.99Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- $22,214.99
Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- $28,042.99
Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- $33,761.99
Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
Specifications
5 HP
2 HP
2 HP
3 HP
230/460
230
230
230
40 in
36 in
36 in
40 in
14 in
12 in
12 in
13 in
Other
Bench Lathe
Bench Lathe
Bench Lathe
35.5 in
12 in
12 in
13 in
56 in
56 in
56 in
112 in
12 mm
12 mm
12 mm
7.5 mm
Single-phase
Single-phase
Single-phase
Single-phase
Yes
Yes
Yes
Yes
1,800 rpm
2,000 rpm
2,000 rpm
2,200 rpm
Yes
Yes
Yes
Yes
1.562 in
1.562 in
1.562 in
1.5 in
Yes
Yes
Yes
Yes
lb
lb
lb
lb
68.5 x 28.3 x 50.0 in
70.0 x 29.5 x 60.0 in
70.0 x 29.5 x 60.0 in
60.0 x 30.0 x 57.0 in
