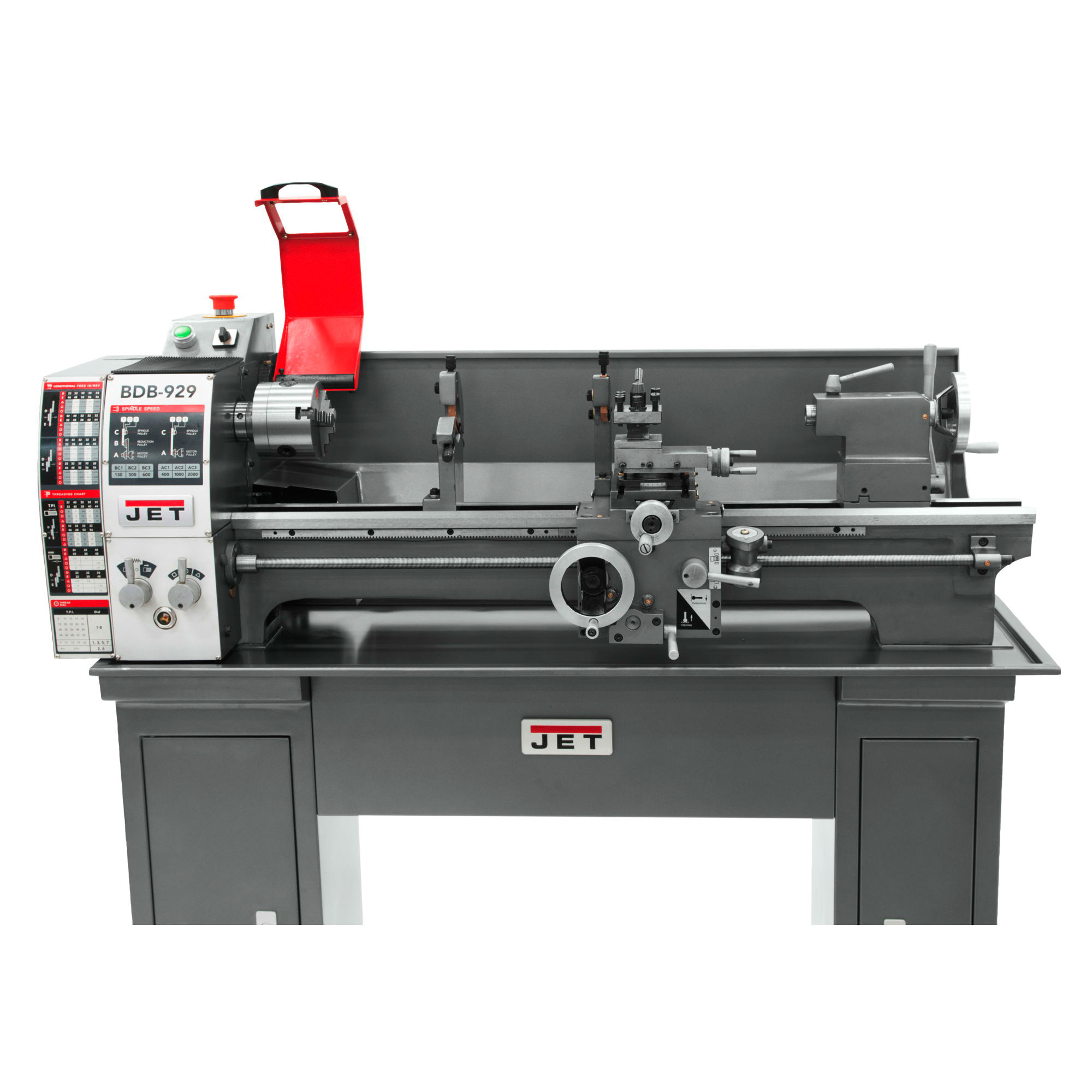

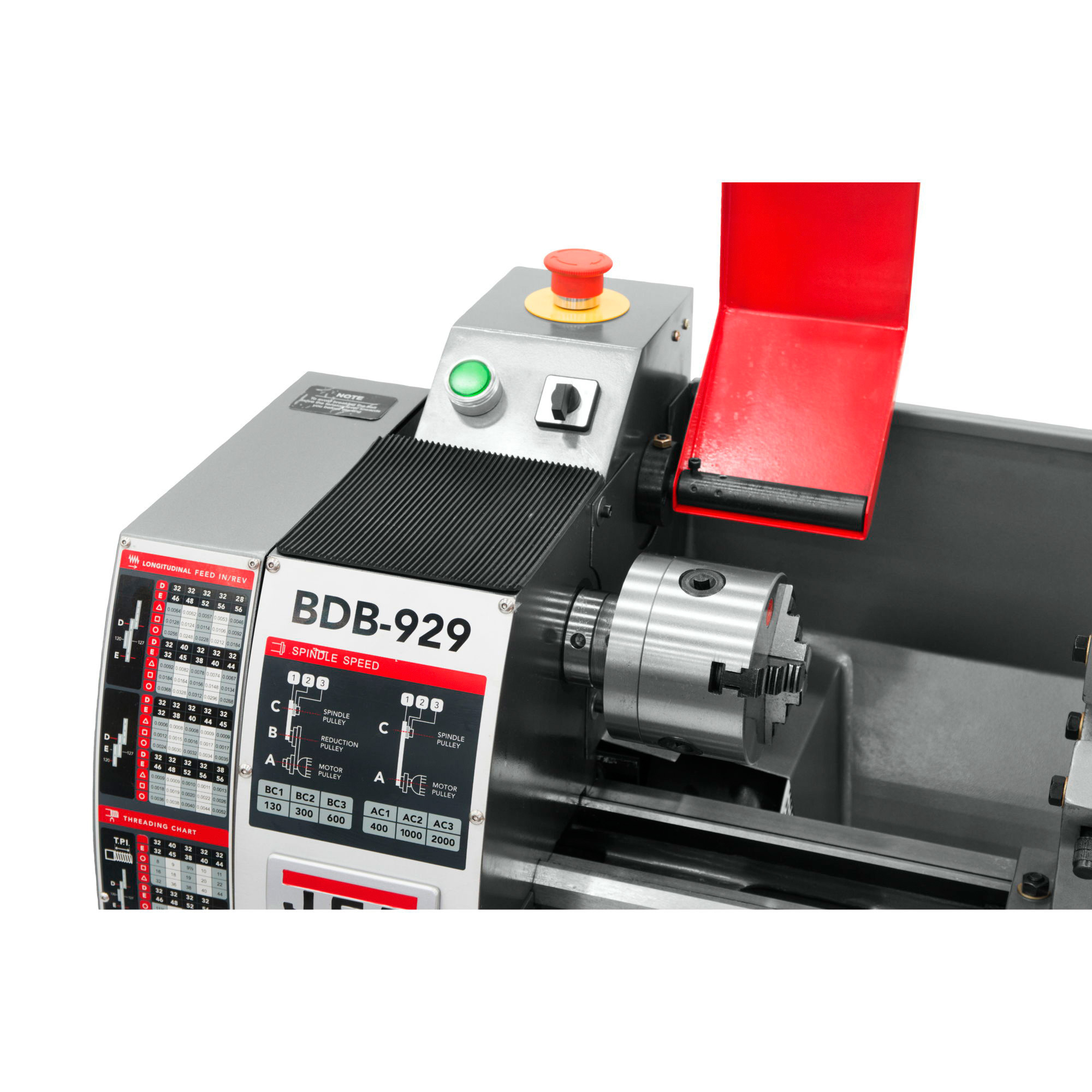

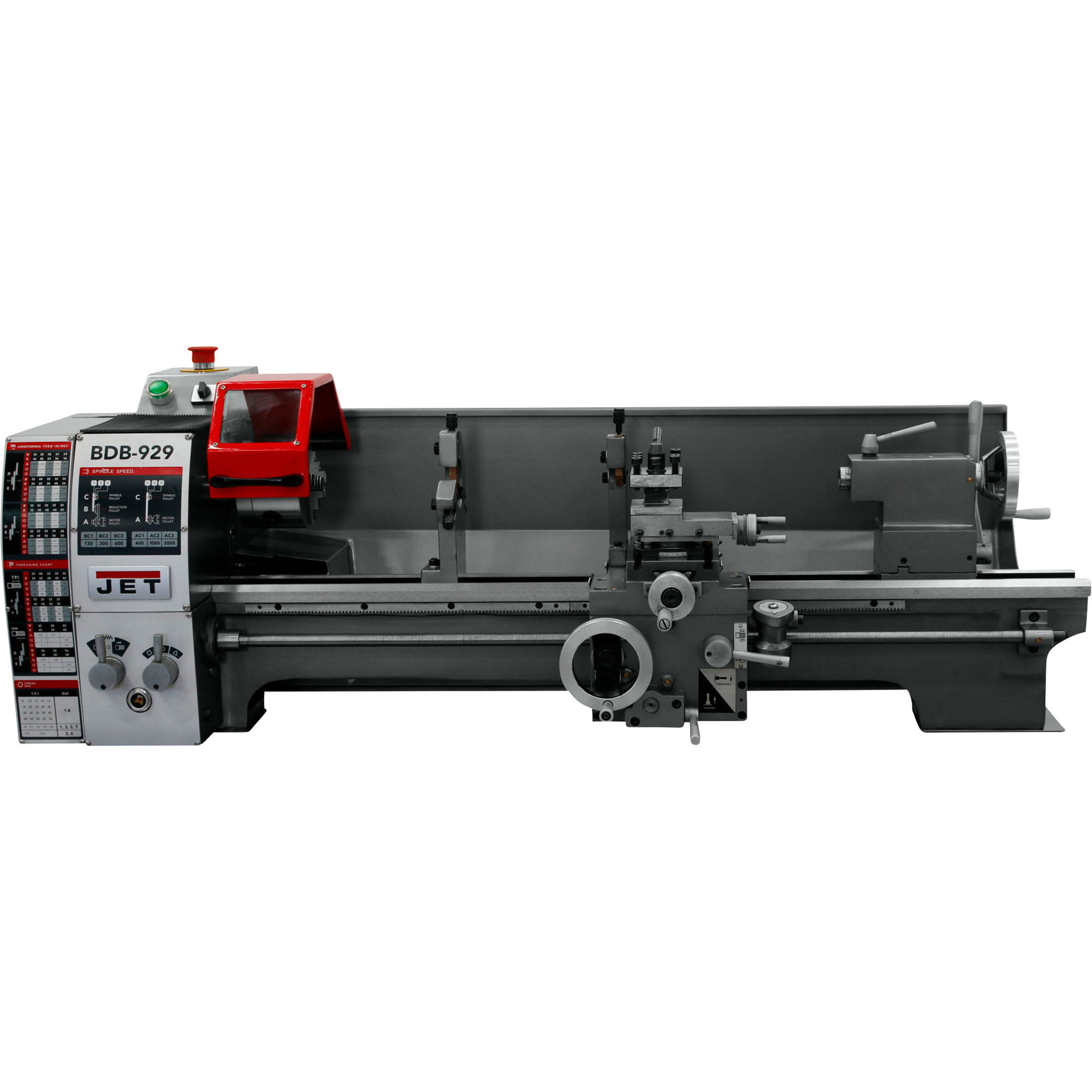

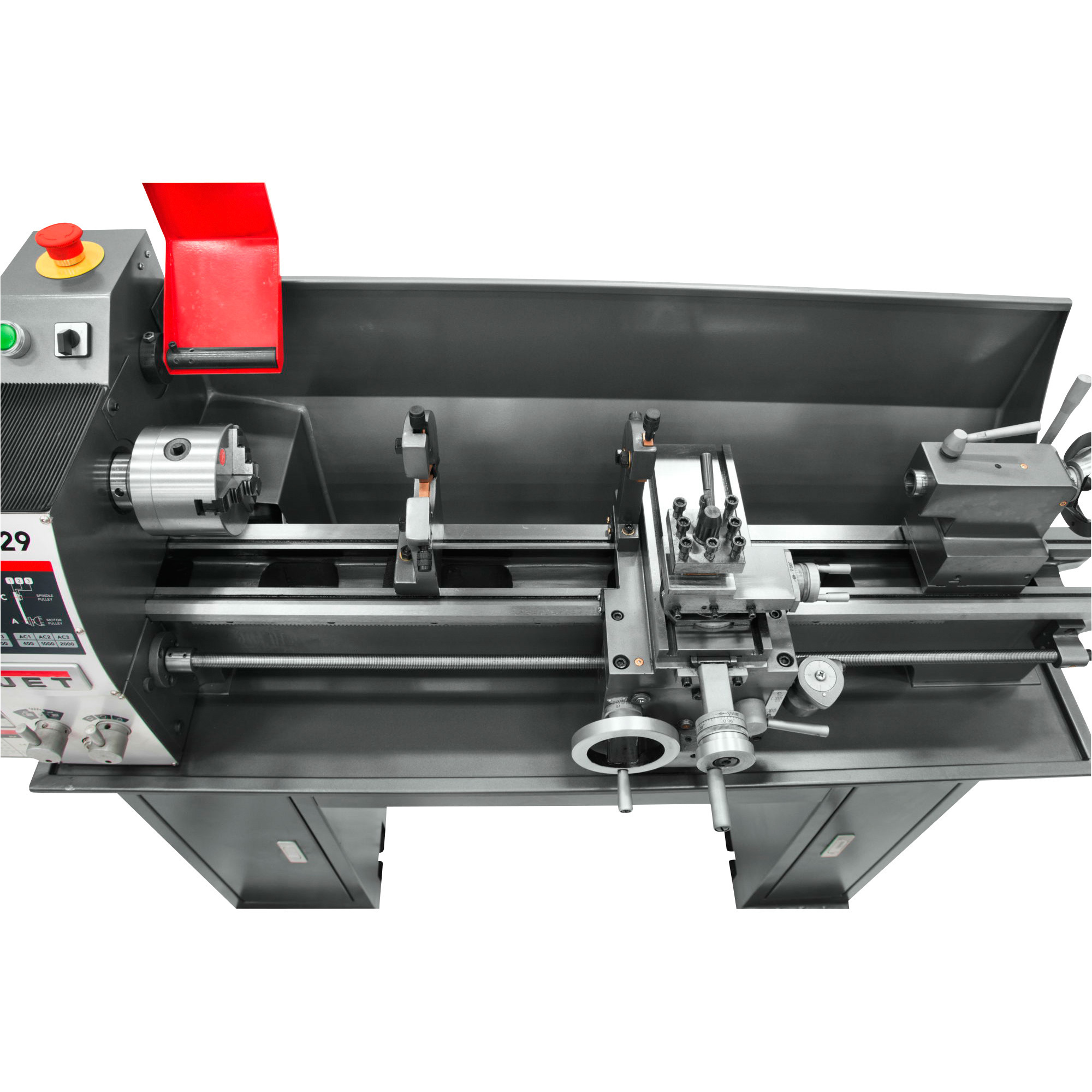

JET Belt Drive Bench Lathe, 8 3/4in. x 27 1/2in., Model# BDB-929

Item# 66098
JET Belt Drive Bench Lathe, 8 3/4in. x 27 1/2in., Model# BDB-929

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Belt Drive Bench Lathe, 8 3/4in. x 27 1/2in., Model# BDB-929

Click or Tap image to Zoom

$4651.99

Choose Options for complete product description, reviews and purchasing.

Size

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Induction hardened and ground bedway
  • Spindle supported by precision tapered roller bearings
  • Safety on/off switch
  • Emergency stop within easy reach of the operator chuck guard
  • Quick change gearbox provides a wide range of inch and metric threads

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Belt Drive Bench Lathe, 8 3/4in. x 27 1/2in., Model# BDB-929
  • JET Bench Lathe Stand, 23.5in.W x 14.25in.H x 10.25in.D, Model# BDB-929 Stand
Price for all two:

$5333.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET Belt Drive Bench Lathe expands in-shop capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, the lathe delivers the smooth operation and rigidity needed to craft professional pieces. Features an 8 3/4in. swing over bed and 27 1/2in. distance between centers. 27in. threads/ 12 metric threads.

What's Included

    (1) Belt drive bench lathe

Key Specs

AttributeSpecification

item#

66098

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

337.0 LB

Horsepower

0.75 HP

Volts

115

Distance Between Centers

27.5 in

Swing Over Bed

8.75 in

Product Type

Bench Lathe

Carriage Travel

26.5 in
AttributeSpecification

Thread Cutting Max. (SAE)

56 in

Thread Cutting Max.

3.5 mm

Phase

Single-phase

Variable Speed

No

Max. Speed

2,000 rpm

Spindle Mount

Yes

Spindle Bore Size

0.75 in

Stand Included

No

Product Weight

287.0000 lb

Dimensions L x W x H (in.)

51.0 x 22.0 x 20.0 in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. what SAE threads will this cut and what is the throughbore diameter?

    1 answer

    1. The range of SAE threads (TPI) will be 8-56. The Morse taper is a number 3 with a 3/4" bore.

      Helpful?

  2. Can this run 220VAC

    1 answer

    1. The late can only be run on 115/120 volts.

      Helpful?

  3. Dose it have power cross feed?

    1 answer

    1. This lathe does not have a power cross feed.

      Helpful?

  4. Will this cut left hand threads

    1 answer

    1. This JET Belt Drive Bench Lathe can cut left hand threads.

      Helpful?

  5. Do the handwheel increments read in inches (i.e., .001") or in mm?

    1 answer

    1. The hand wheel increments read in standard fractional inches and not in metric millimeters.
