JET, Electric Trolley, Capacity 4000 lb, Style Motorized Trolley, Max. Beam Height 4.92 in, Model# 140187

Item# 5032319
JET, Electric Trolley, Capacity 4000 lb, Style Motorized Trolley, Max. Beam Height 4.92 in, Model# 140187

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET, Electric Trolley, Capacity 4000 lb, Style Motorized Trolley, Max. Beam Height 4.92 in, Model# 140187

Click or Tap image to Zoom

$2427.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy-Duty motor puts out up to 0.8HP making it the strongest in it's class
  • Two speeds reduces bump firing to while still allowing high speed movement of materials
  • Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant
  • Expanded flange capacity kits are available
  • TAA approved

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

JET MT Series Electric Trolley is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. All of this with safe travel speeds up to 79ft. per minute and as low as 20ft. per minute to give you the ability to be more efficient with every load. The MT series is available from 1/2 Ton to 5 Ton capacities. Let’s Get to Work.

What's Included

    (1) Electric Trolley, Owner's Manual & Test Report

Downloads

Product Manual

Features + Benefits

  • Heavy-Duty motor puts out up to 0.8HP making it the strongest in it's class
  • Two speeds reduces bump firing to while still allowing high speed movement of materials

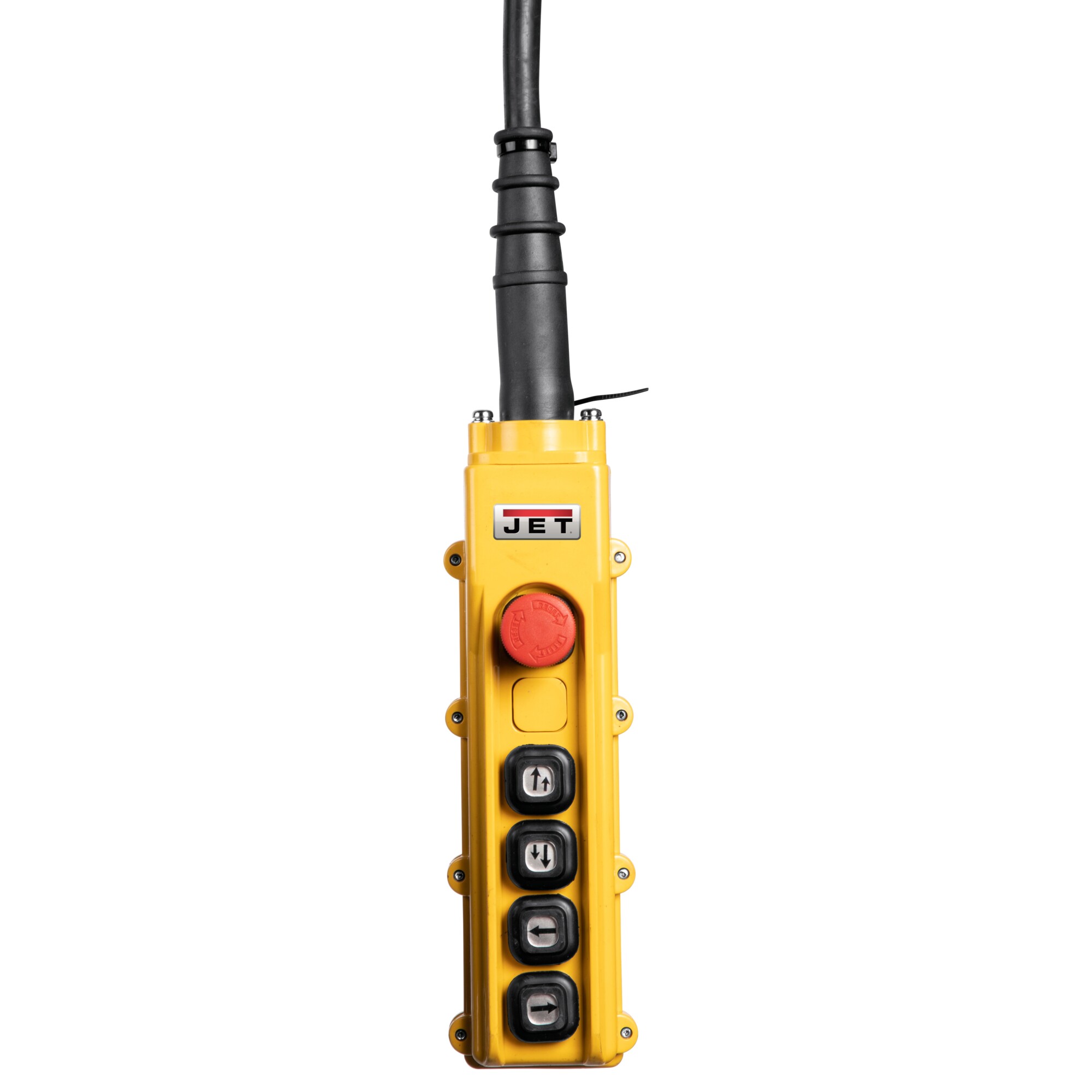

  • Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant
  • Expanded flange capacity kits are available
  • TAA approved

Key Specs

AttributeSpecification

item#

5032319

Brand

JET

Manufacturer's Warranty

2 year limited warranty

Ship Weight

170.0 LB

Style

Motorized Trolley

Capacity

4,000 lb

Adjustable

Yes

Geared

Yes

Max. Beam Height

4.92 in

Volts

230
AttributeSpecification

Phase

Single-phase

Min. Flange Width

4 in

Max. Flange Width

7.2 in

Min. Radius Curve

66.9 in

Wheel Diameter

1.25 in

OSHA Approved

No

ANSI Certified

No

Product Weight

170.0000 lb

Dimensions L x W x H (in.)

27.55 x 19.69 x 17.71 in

Reviews

Questions & Answers

Questions

  1. Will fit 4x6 beam

    1 answer

    1. The trolley would have a maximum beam height of 4.92" and a maximum flange width of 7.2". The minimum flange width would be 4".

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
