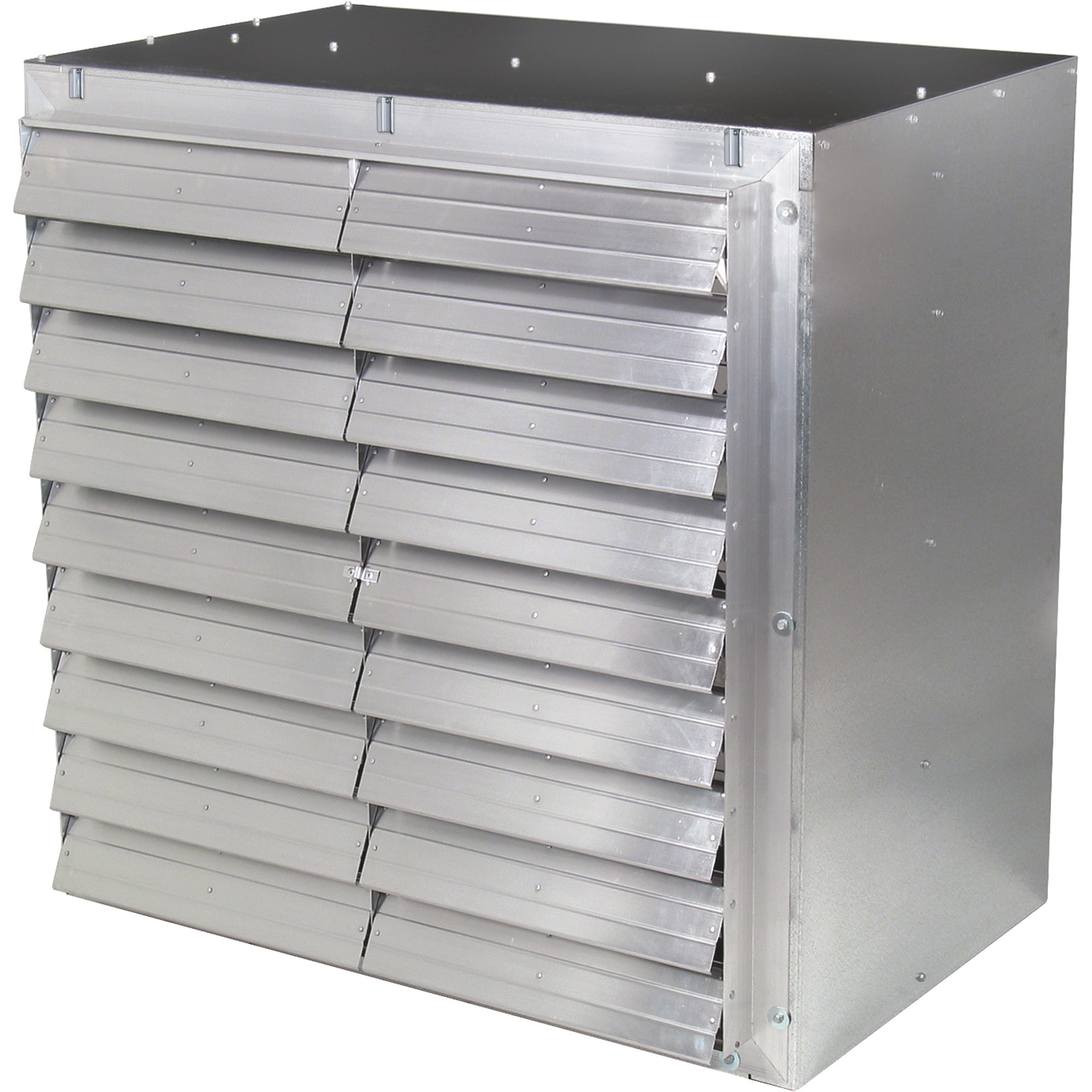

J & D Wallmaster Exhaust Fan, 50in. Dia., 1 HP, 23,200 CFM, Model# VF50GG6

Item# 517525
J & D Wallmaster Exhaust Fan, 50in. Dia., 1 HP, 23,200 CFM, Model# VF50GG6

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

J & D Wallmaster Exhaust Fan, 50in. Dia., 1 HP, 23,200 CFM, Model# VF50GG6

Click or Tap image to Zoom

$1499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 6-wing blade
  • 1-phase motor
  • Guard is hot dip galvanized after welding and attached with noise-reducing clips
  • Aluminum shutter has two tie bars to reduce flapping in high wind
  • Maintenance-free

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

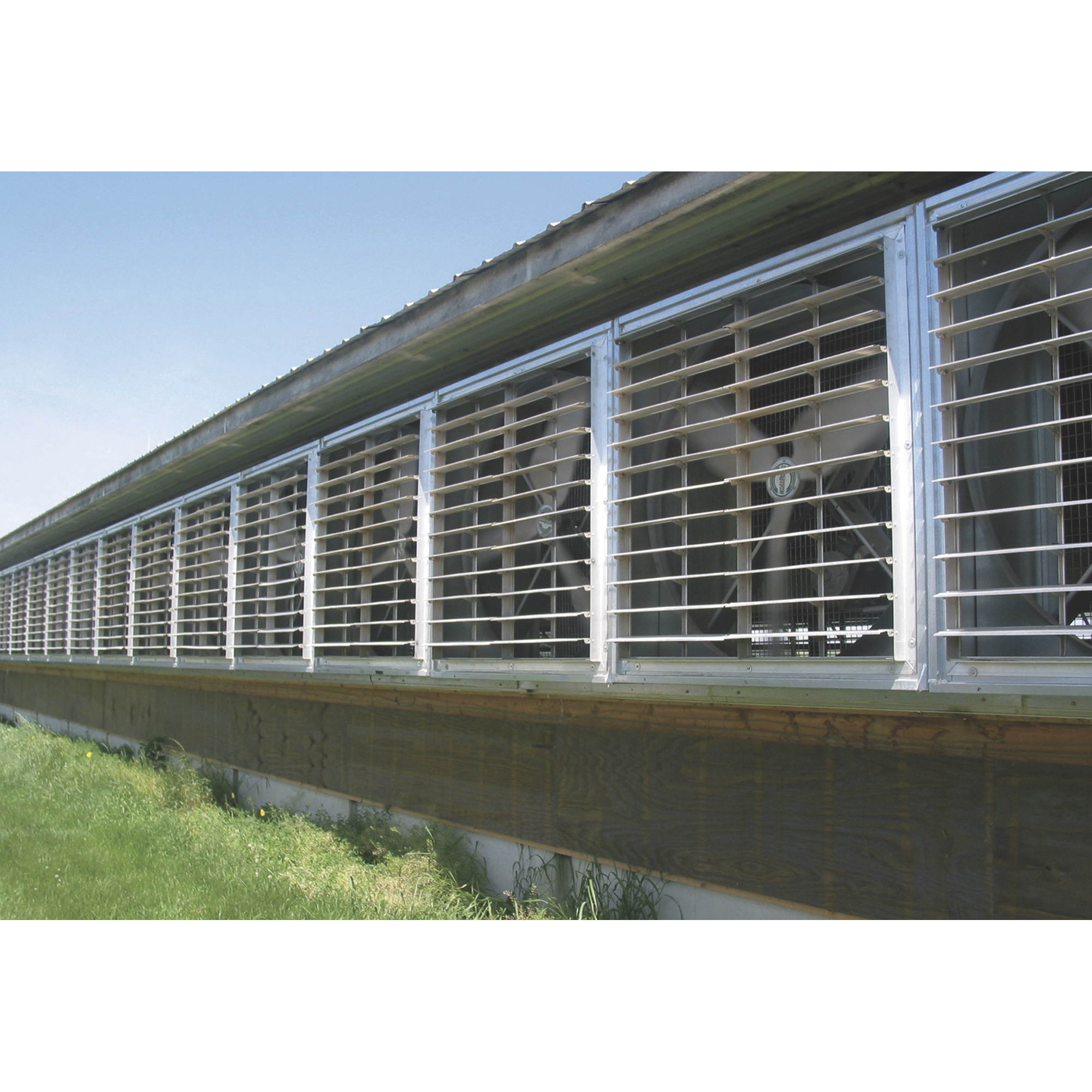

The Wallmaster exhaust fan eliminates heat buildup in barns, greenhouses and industrial buildings. Constructed with a sturdy 18-g. galvanized steel housing, a 1in. x 2in. mesh intake guard and an exhaust shutter.

What's Included

    (1) Fan

Features + Benefits

  • 6-wing blade
  • 1-phase motor
  • Guard is hot dip galvanized after welding and attached with noise-reducing clips
  • Aluminum shutter has two tie bars to reduce flapping in high wind
  • Maintenance-free

Key Specs

AttributeSpecification

item#

517525

Brand

J&D Mfg.

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

287.0 LB

Drive Type

Belt

Fan Diameter

50 in
AttributeSpecification

Air Delivery

23,200 cfm

Volts

115/230

Speeds (qty.)

1

Horsepower

1 HP

Product Weight

lb

Dimensions L x W x H (in.)

55.0 x 25.5 x 55.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. can this fan be slowed down?

    Is there any way possible to slow this fan down for the winter months?

    1. No. It’s either on or off

      Helpful?

    2. The J & D Wallmaster Exhaust Fan does not feature a way to slow down the fan speed.

      Helpful?

  2. What is the shaft diameter on the driven pulley on the fan assembly and also the shaft diameter of the electric motor? Thank you

    1 answer

    1. The unit will use a 10" pulley. The motor shaft is 5/8" in diameter.

      Helpful?

  3. Will this install in block construction?

    Can I get a look at the motor side?

    1 answer

    1. This Exhaust fan can be installed in block construction. Contact a qualified professional to determine the requirements for installation prior to purchase of the fan. i.e.: framing and wiring. Currently there are not any other photos available for this product.

      Helpful?

  4. Can these be wall mounted in a metal building?

    and are they available with a 3 phase 460 volt motor as well?
    What is the guarantee on these?

    1 answer

    1. This exhaust fan can be mounted in a metal building. It is only available in single phase. There are some three phase fans that are smaller available. The fan has a 1 year parts and labor warranty through the manufacturer.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
