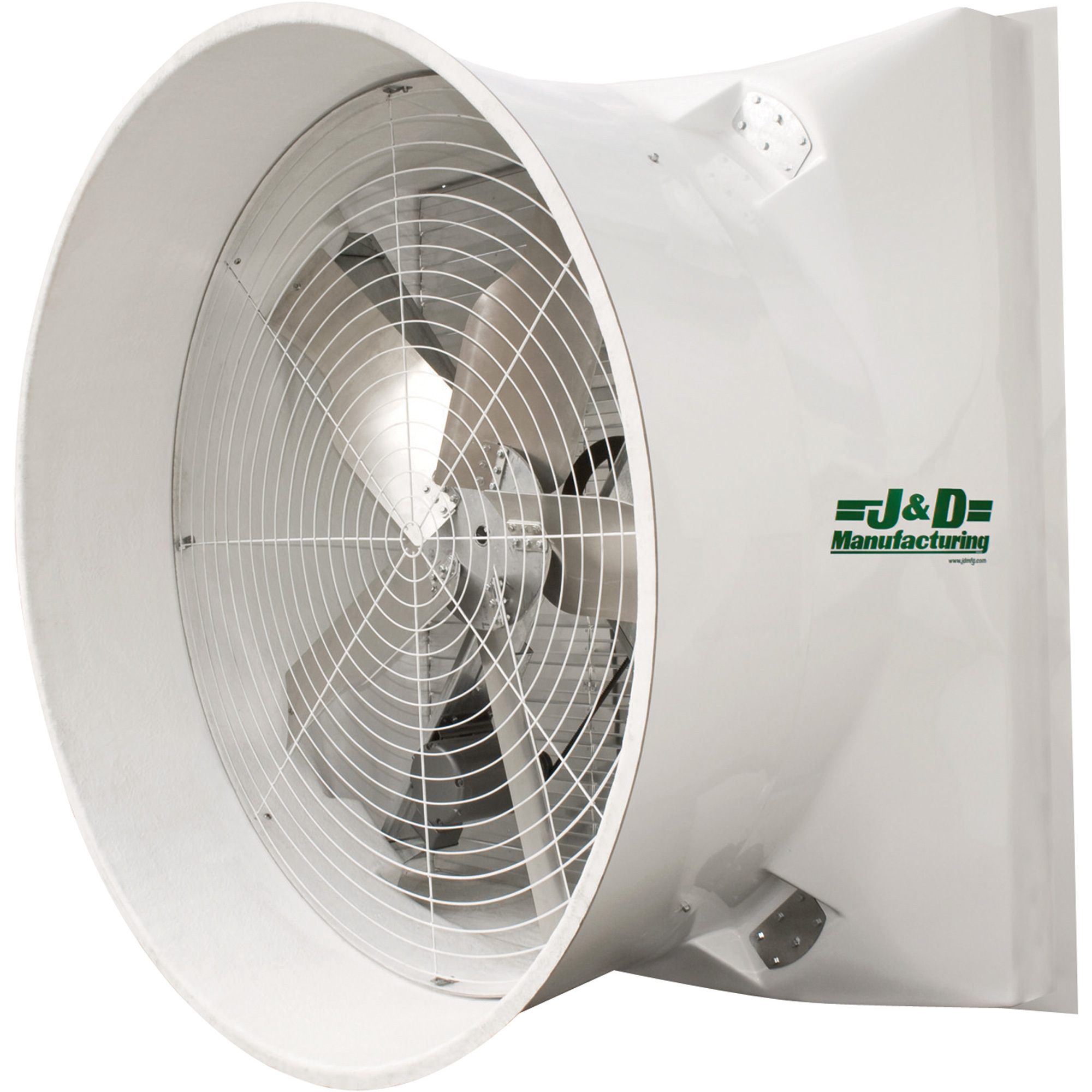

J&D Sales Exhaust Fan with Cone-- 72in., 46,448 CFM, 3 HP, 115/230V, Model# VMSA72A5C31

Item# 15784
J&D Sales Exhaust Fan with Cone-- 72in., 46,448 CFM, 3 HP, 115/230V, Model# VMSA72A5C31

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

J&D Sales Exhaust Fan with Cone-- 72in., 46,448 CFM, 3 HP, 115/230V, Model# VMSA72A5C31

Click or Tap image to Zoom

$3999.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Exhaust cone improves CFM output by 7%
  • Delivers 46,448 CFM @ .05in. SP (static pressure)
  • One-piece fiberglass housing won't rust or corrode
  • Operates at lower decibel rating
  • Operates at a lower decibel rating

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This JD Sales Exhaust Fan with Cone is one of the largest, highest-performing exhaust fans with low pressure requirements made in the United States. U.S.A.

NOTE: For specific installation requirements for this item, please see attached product manual.

What's Included

    (1) Fan

Downloads

Product Manual

Features + Benefits

  • Exhaust cone improves CFM output by 7%
  • Delivers 46,448 CFM @ .05in. SP (static pressure)
  • One-piece fiberglass housing won't rust or corrode
  • Operates at lower decibel rating
  • Operates at a lower decibel rating
  • 3 HP dual voltage motor operates at 335 RPM
  • Aluminum propeller is electronically balanced for smooth, quiet operation
  • Strong X-frame design
  • Heavy-duty guard is hot-dip galvanized after welding to protect against corrosion
  • Stainless steel shutter clips swivel by hand for easy shutter removal for cleaning or maintaining fan
  • Belts are easily accessible and offer tool-free replacement in seconds
  • Requires 77in. x 77in. rough opening

Key Specs

AttributeSpecification

item#

15784

Brand

J&D Mfg.

Manufacturer's Warranty

3 year limited warranty

Ship Weight

2.0 LB

Drive Type

Belt

Fan Diameter

72 in

Air Delivery

46,448 cfm
AttributeSpecification

Volts

115/230

Hardwired

Yes

Speeds (qty.)

1

Max. Fan Speed

350 rpm

Horsepower

3 HP

Dimensions L x W x H (in.)

80 x 52 x 81 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
