J & D Mfg. Wallmaster Exhaust Fan, 36in. Dia., 1 HP, 11,500 CFM, 4 Wing Blade, Model# VF36GG1

Item# 517504
"J & D Mfg. Wallmaster Exhaust Fan, 36in. Dia., 1 HP, 11,500 CFM, 4 Wing Blade, Model# VF36GG1"
J & D Mfg. Wallmaster Exhaust Fan, 36in. Dia., 1 HP, 11,500 CFM, 4 Wing Blade, Model# VF36GG1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

J & D Mfg. Wallmaster Exhaust Fan, 36in. Dia., 1 HP, 11,500 CFM, 4 Wing Blade, Model# VF36GG1

Click or Tap image to Zoom

$1229.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 4 wing galvanized steel blade
  • Single-phase motor
  • Guard is hot dip galvanized after welding and attached with noise-reducing clip
  • Aluminum shutter has two tie bars to reduce flapping in high wind
  • Maintenance-free motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

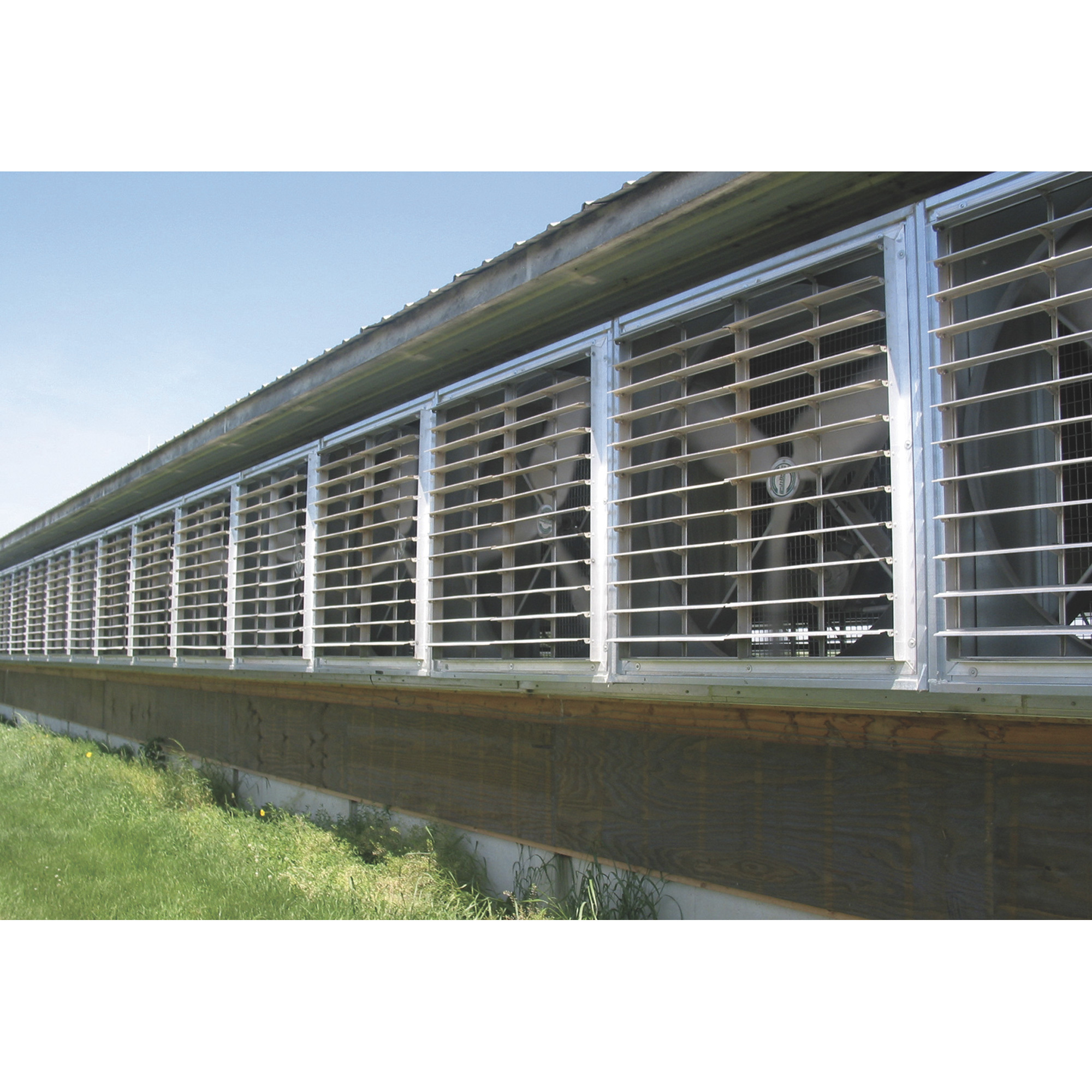

The Wallmaster exhaust fan eliminates heat build up in barns, greenhouses and industrial buildings. Constructed with a sturdy 18-g. galvanized steel housing, a 1in. x 2in. mesh intake guard and an exhaust shutter.

What's Included

    (1) Fan

Features + Benefits

  • 4 wing galvanized steel blade
  • Single-phase motor
  • Guard is hot dip galvanized after welding and attached with noise-reducing clip
  • Aluminum shutter has two tie bars to reduce flapping in high wind
  • Maintenance-free motor

Key Specs

AttributeSpecification

item#

517504

Brand

J&D Mfg.

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

180.0 LB

Drive Type

Belt

Fan Diameter

36 in
AttributeSpecification

Air Delivery

11,500 cfm

Volts

115/230

Speeds (qty.)

1

Horsepower

1 HP

Product Weight

lb

Dimensions L x W x H (in.)

41.0 x 23.0 x 40.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. How many amps does this 36" fan draw?

    1 answer

    1. This will draw 4.8 amps at 230 volts, and 9.6 amps at 115 volts.

      Helpful?

  2. How thick is the product?

    I want to place this in a concrete block wall. How thick is the product? I want to make sure it stays within the wall itself and does not stick out very far.

    1 answer

    1. This exhaust fan has a thickness of 23 inches.

      Helpful?

  3. can this fan be installed in a metal building?

    If so what else is needed to install/

    1 answer

    1. This unit can be installed in a metal building provided there is sufficient structural support for the box frame on all sides in the rough in. Using support anchors and steel bracing with vibration absorbing materials will also be needed.

      Helpful?

  4. How loud is it? DB rating or sones? What does it require to install in R Panel wall? Is there a kit?

    1 answer

    1. This J & D wallmaster exhaust fan has not been tested for a decibels or sones. An installation is not available. You will want to make sure you reinforce your rough opening with enough support on the bottom and sides to support the weight of the fan. You will also need to use anchors.

      Helpful?

  5. Cutout for block wall

    I want to slide this into a Block wall. what is the cutout opening

    1 answer

    1. The cut-out opening of this J & D Mfg. Wallmaster Exhaust Fan is a rough opening of 41” x 41.”

      Helpful?

  6. Variable control

    Can this fan be hooked up to a variable control to vary the speed of the fan?

    1 answer

    1. This item cannot be used with variable controller.

      Helpful?

  7. What power runs the motor? 110V, 208, 240 ETC

    How are these units rated for power usage and can you run them continuosly ?

    1 answer

    1. The fan uses 115/230 volt, 1 HP, single phase motor and the fan is rated for continuous use.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
