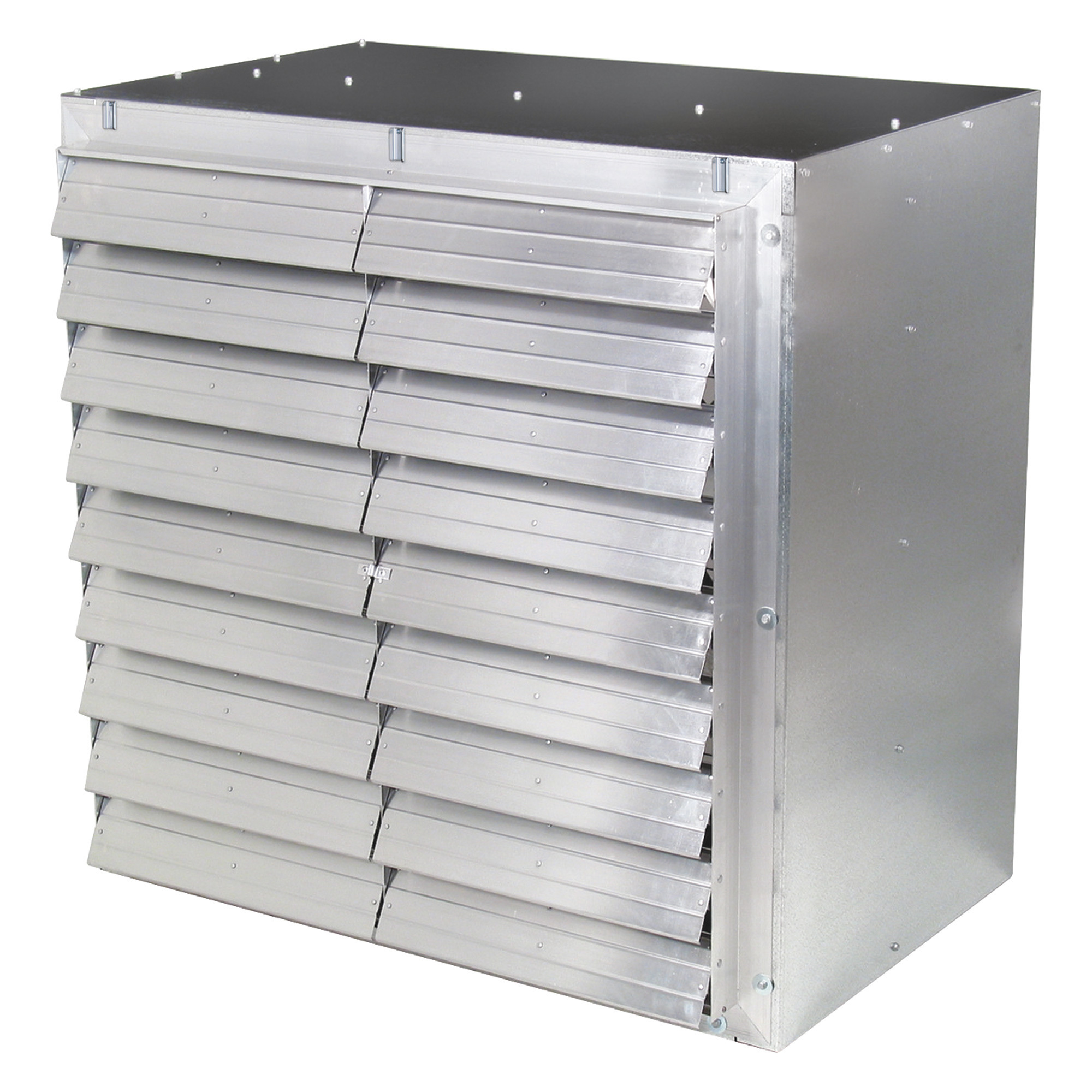

J & D Mfg. Wallmaster Exhaust Fan, 36in. Dia., 1/2 HP, 10,000 CFM, Three-Phase Motor, 3 Wing Blade, Model# VF36DM3CF

Item# 517501
J & D Mfg. Wallmaster Exhaust Fan, 36in. Dia., 1/2 HP, 10,000 CFM, Three-Phase Motor, 3 Wing Blade, Model# VF36DM3CF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

J & D Mfg. Wallmaster Exhaust Fan, 36in. Dia., 1/2 HP, 10,000 CFM, Three-Phase Motor, 3 Wing Blade, Model# VF36DM3CF

Click or Tap image to Zoom

$619.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 3 wing blade
  • 3-phase motor
  • Guard is hot dip galvanized after welding and attached with noise-reducing clip
  • Aluminum shutter has two tie bars to reduce flapping in high wind
  • Maintenance-free motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

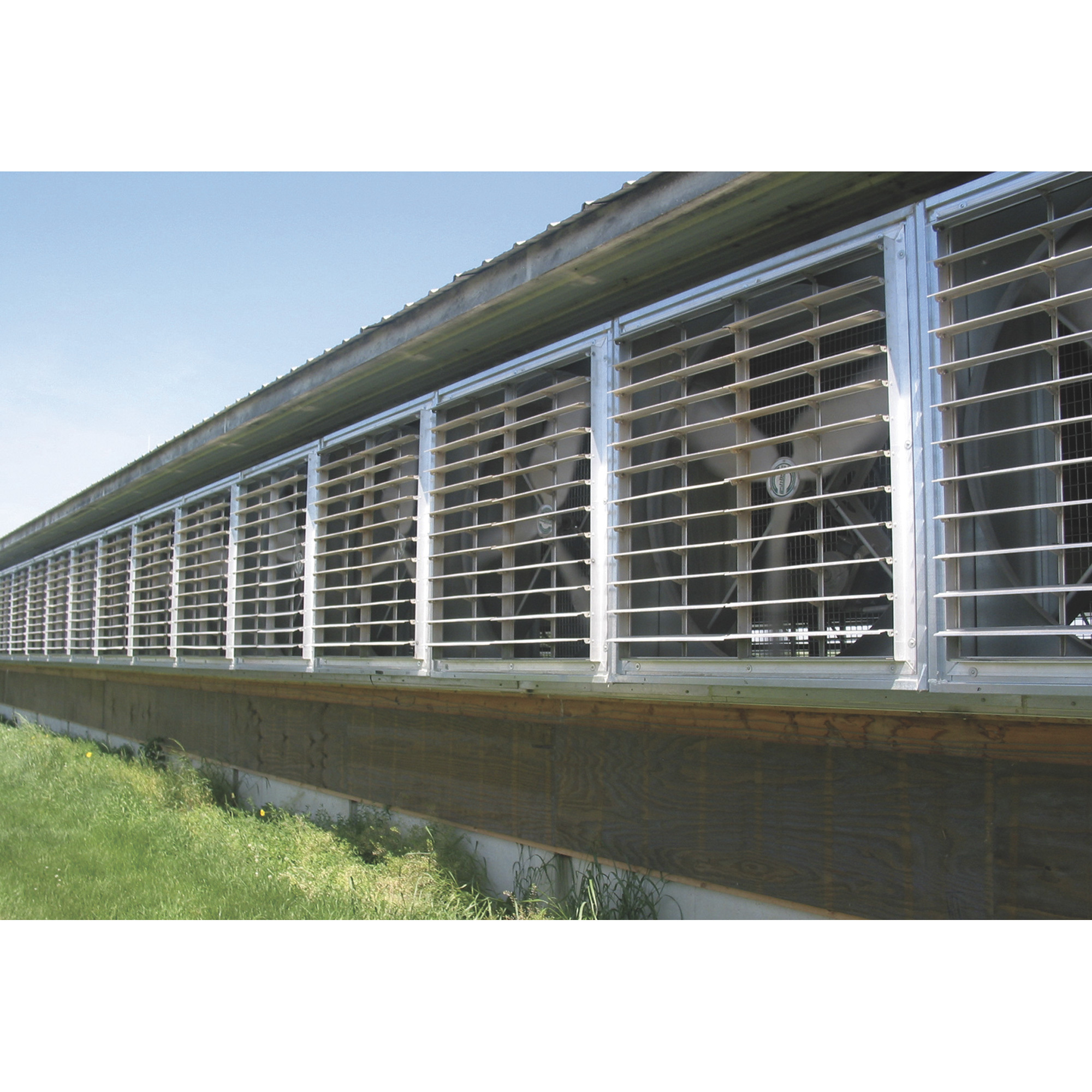

The Wallmaster exhaust fan eliminates heat build up in barns, greenhouses and industrial buildings. Constructed with a sturdy 18-g. galvanized steel housing, a 1in. x 2in. mesh intake guard and an exhaust shutter.

What's Included

    (1) Fan

Downloads

Product Manual Product Manual2

Features + Benefits

  • 3 wing blade
  • 3-phase motor
  • Guard is hot dip galvanized after welding and attached with noise-reducing clip
  • Aluminum shutter has two tie bars to reduce flapping in high wind
  • Maintenance-free motor

Key Specs

AttributeSpecification

item#

517501

Brand

J&D Mfg.

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

115.0 LB

Drive Type

Direct

Fan Diameter

36 in
AttributeSpecification

Air Delivery

7,788 cfm

Volts

230/460

Speeds (qty.)

1

Horsepower

0.5 HP

Product Weight

lb

Dimensions L x W x H (in.)

41.0 x 23.0 x 40.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Its belt driver ?

    1 answer

    1. This exhaust fan is not belt driven.

      Helpful?

  2. Can this be mounted into the ceiling

    Need to remove air from an alcove, but has to be a ceiling mount type unit. The price and air flow is right on this one is why I'm asking.

    1 answer

    1. The J & D Mfg. Wallmaster Exhaust Fan can be wall mounted only.

      Helpful?

  3. Can the speed be controlled with a phase converter or other device?

    1 answer

    1. This is a single speed exhaust fan only.

      Helpful?

  4. Would this product mount in the side wall of a metal building? If so what are the rough opening dimesions and the depth of the unit? Thanks, TOM

    1 answer

    1. The fan could be mounted in the side wall of a metal building. The rough opening would need to be 40 1/2" and the depth is 22 1/4".

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
