J&D Mfg., Blower Motor, PSC, Round, 60 CFM, 115V, 50/60Hz w/louver, Fan Diameter 4 in, Air Delivery 60 cfm, Model# VBM60A-P

Item# 4299476
"J&D Mfg., Blower Motor, PSC, Round, 60 CFM, 115V, 50/60Hz w/louver, Fan Diameter 4 in, Air Delivery 60 cfm, Model# VBM60A-P"
J&D Mfg., Blower Motor, PSC, Round, 60 CFM, 115V, 50/60Hz w/louver, Fan Diameter 4 in, Air Delivery 60 cfm, Model# VBM60A-P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

J&D Mfg., Blower Motor, PSC, Round, 60 CFM, 115V, 50/60Hz w/louver, Fan Diameter 4 in, Air Delivery 60 cfm, Model# VBM60A-P

Click or Tap image to Zoom

$97.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • PCS motor draws 50% less power and 70% less amps than similar shaded-pole blowers
  • CorkRubber seal between motor and blower for smooth operation

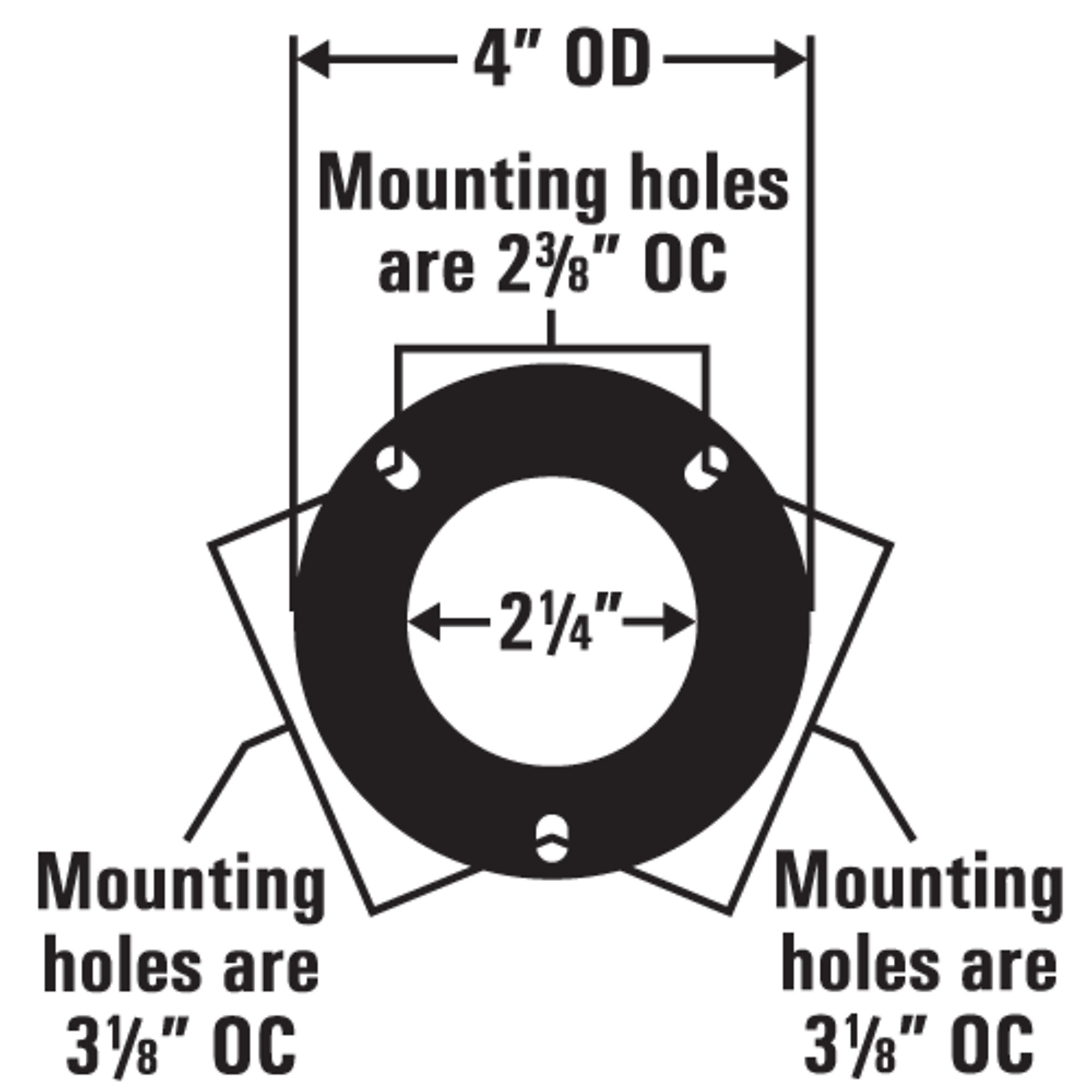

  • Fits most industry standard mounts
  • Ships fully assembled and individually packaged

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Round mounting flange blower -Energy efficient PSC Inflation Blowers from JD Manufacturing are designed to inflate double poly greenhouses for greater insulation capabilities. All models have adjustable damper doors to regulate air flow as the poly expands. JD Inflation Blowers have a heavy gauge steel housing and forward curve metal wheel that is balanced for smooth operation. Oversized mounting holes on the discharge flange fit most industry standard brackets.

What's Included

    (1) Blower Motor

Features + Benefits

  • PCS motor draws 50% less power and 70% less amps than similar shaded-pole blowers
  • CorkRubber seal between motor and blower for smooth operation
  • Fits most industry standard mounts
  • Ships fully assembled and individually packaged

Key Specs

AttributeSpecification

item#

4299476

Brand

J&D Mfg.

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.45 LB

Fan Diameter

4 in

Air Delivery

60 cfm

Outdoor Rated

No

Volts

115

Speeds (qty.)

1
AttributeSpecification

Max. Fan Speed

3,080 rpm

Assembly Required

No

Primary Color

Black

Housing Material

Steel

Phase

Single-phase

Power Cord Length

0 ft

Stackable

No

Product Weight

4.4500 lb

Dimensions L x W x H (in.)

10.0 x 9.0 x 9.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Is this a brushless motor?

    1 answer

    1. The blower motor would be brushless.

      Helpful?

  2. Can this fan be used to transfer heat via ducting from one room to another?

    1 answer

    1. This blower is not intended to be used for the purpose of transferring heat. This is designed for use with inflatables. Air movers like items 49946, 49945 and 57941 would be better suited for the application described.

      Helpful?

  3. What is maximum operating temperature?

    1 answer

    1. The maximum operating temperature is 104 degrees Fahrenheit.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
