Ultra-Tow A-Frame Topwind Jack, 23.5in. Extended Length, 3000-Lb. Lift Capacity

Item# 113362
"Ultra-Tow A-Frame Topwind Jack, 23.5in. Extended Length, 3000-Lb. Lift Capacity"
Top SellerOn Sale
Ultra-Tow A-Frame Topwind Jack, 23.5in. Extended Length, 3000-Lb. Lift Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow A-Frame Topwind Jack, 23.5in. Extended Length, 3000-Lb. Lift Capacity

Click or Tap image to Zoom

$40.79
Reg $47.99Save $7.20

Order today to get this price.

  • Shipping:

    Available now
    $19.99 Same Day

  • Store Pickup:

    5 in stock at Fredericksburg VA - Pickup in under 1 hr

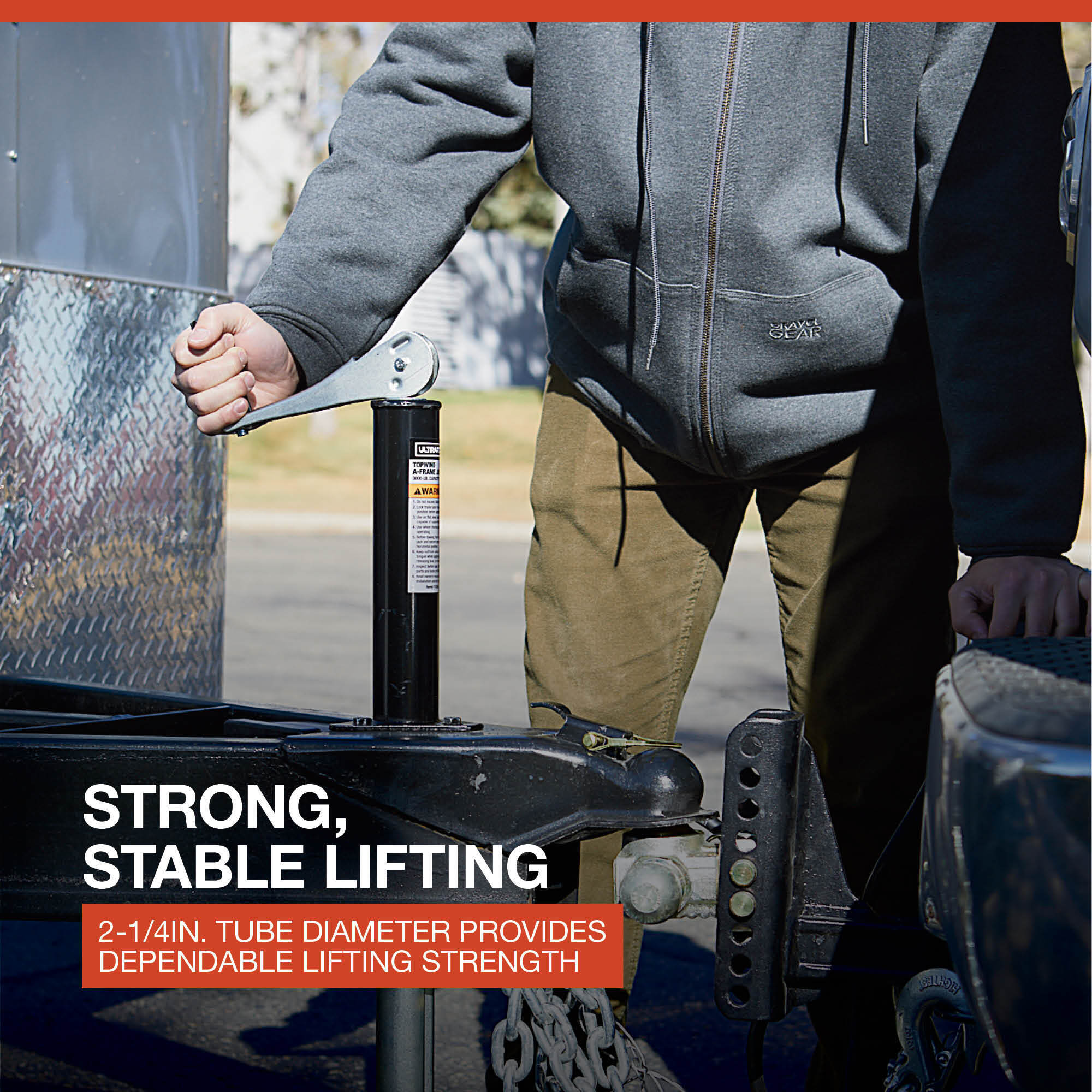

  • Sturdy 2-1/4in. tube dia. delivers essential lifting performance

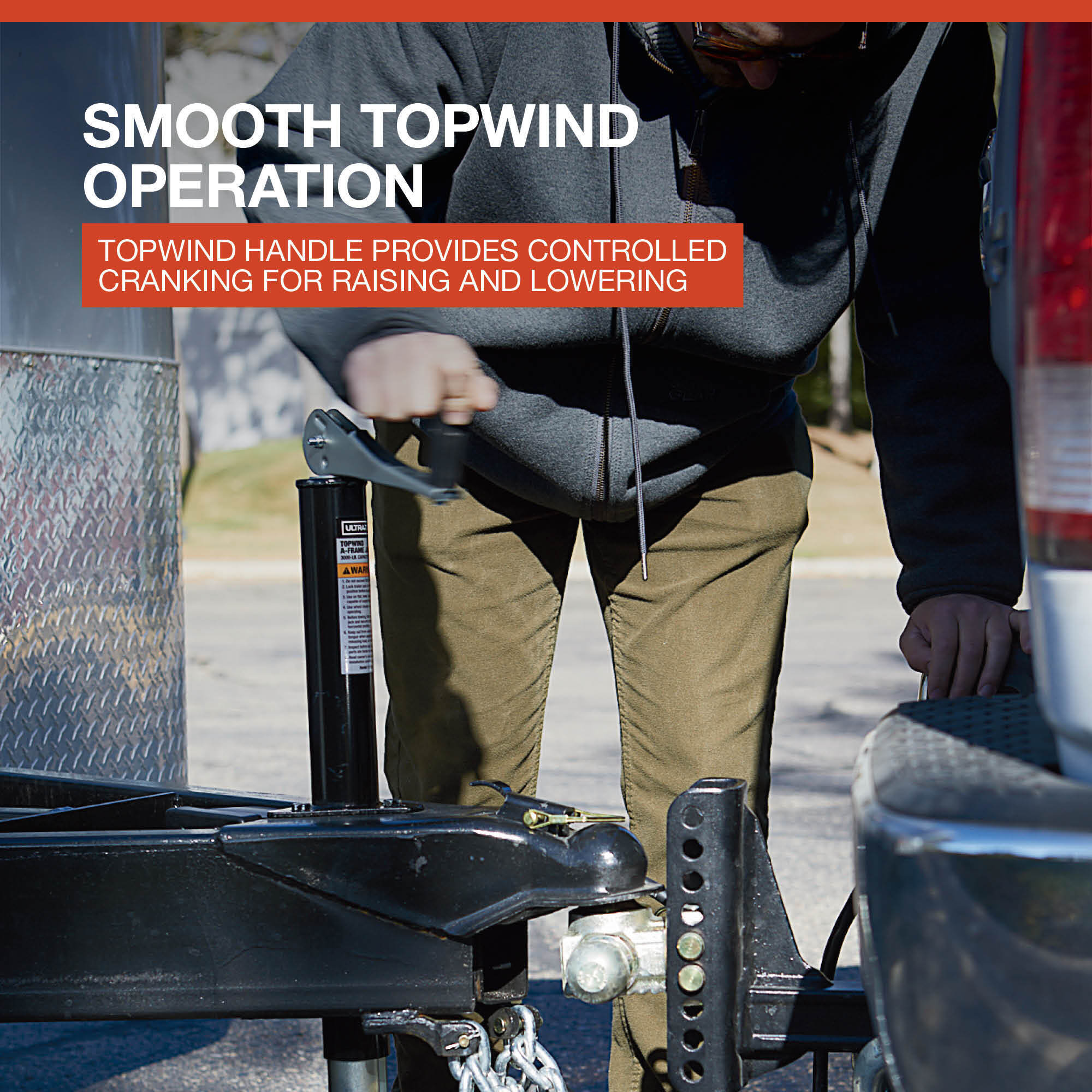

  • Premium topwind design

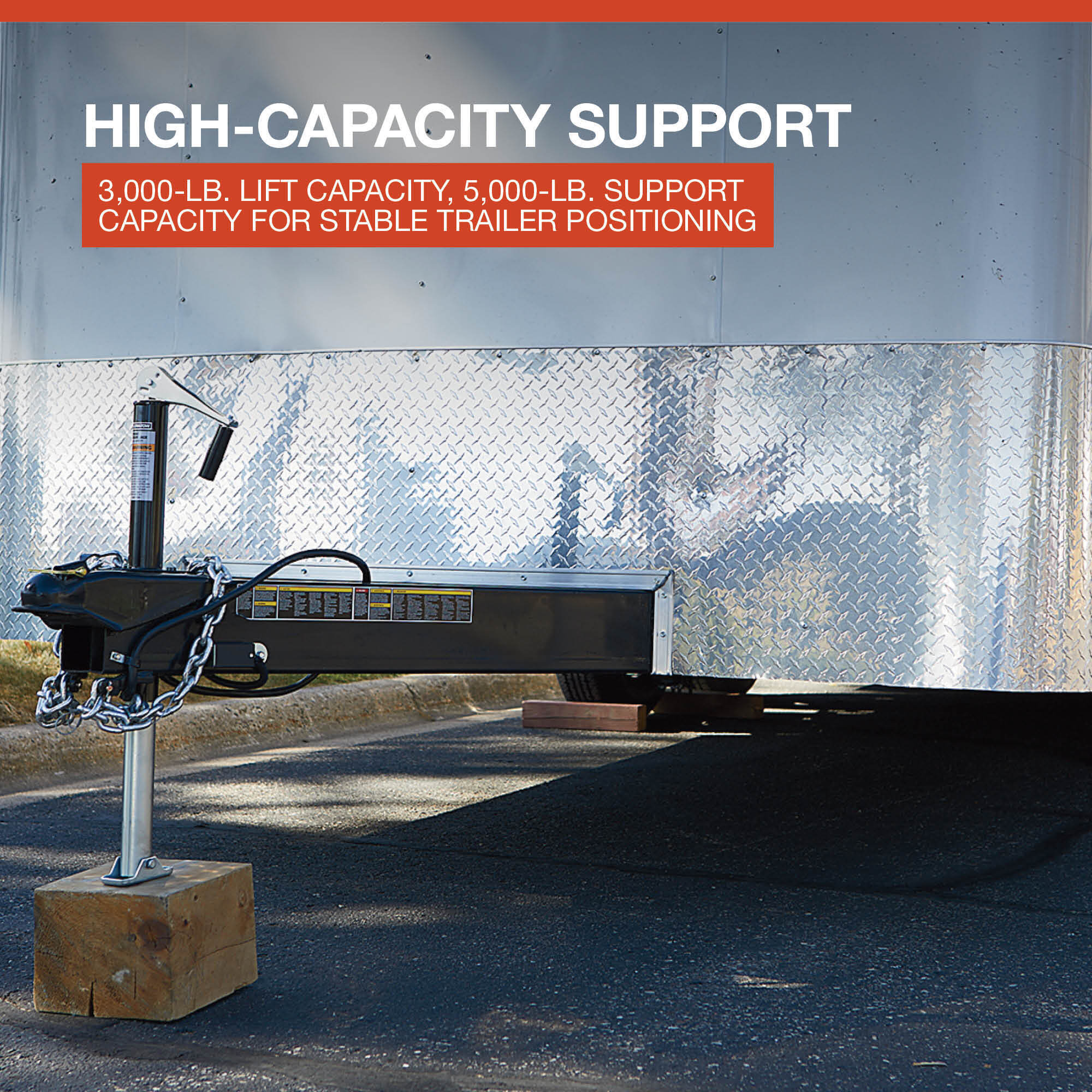

  • 3,000-lb. lift capacity; 5,000-lb. support capacity

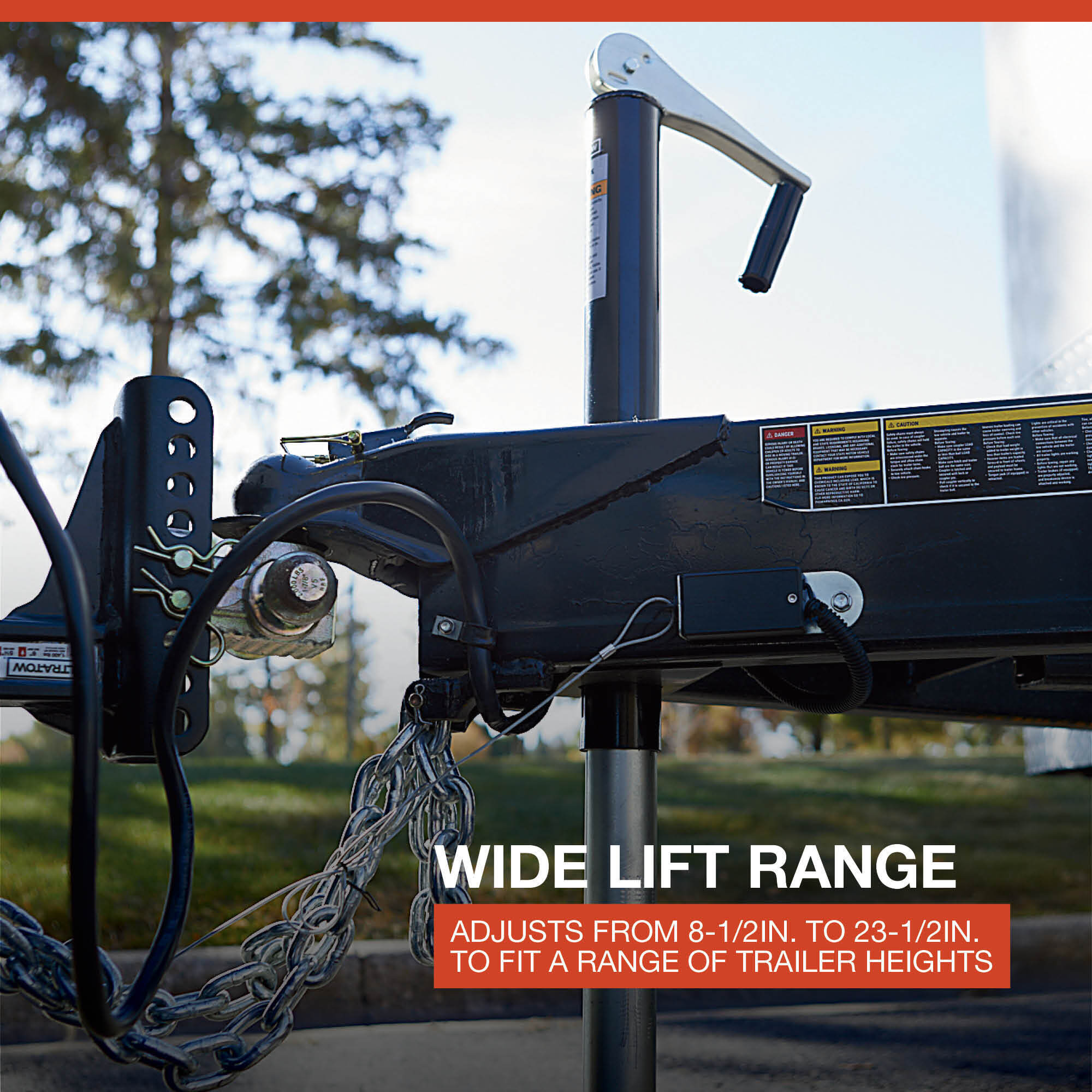

  • 8-1/2in. retracted length; 23-1/2in. extended length
  • Durable corrosion-resistant exterior-grade black powder-coat finish on outside tube with zinc finish handle arm for long life

See full description

Complete Your Solution

  • Ultra-Tow A-Frame Topwind Jack, 23.5in. Extended Length, 3000-Lb. Lift Capacity
  • Ultra-Tow Jack Foot Base, 6in. x 4in., 2000-Lb. Capacity
  • SmartStraps RatchetX Aluminum Tie-Downs, 14ft.L, 3,000-Lb. Breaking Strength, 4-Pack, Orange, Model# 349
  • Ultra-Tow Hollow Steel Ball Mount, Class IV, 2in. Drop, 6000-Lb. Tow Weight, 8in. Shank
Price for all four:

$129.76

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This premium Ultra-Tow A-Frame Topwind Jack delivers the lifting performance essential for safety and dependability. The jack has a sturdy 2-1/4in. outer tube diameter that delivers 3,000-lb. lift capacity, 5,000-lb. support capacity. 8-1/2in. retracted length; 23-1/2in. extended length. Manufactured to exact specifications and tolerances using the toughest materials, precision crafting, exterior-grade finishes and more. Top engineering and strenuous testing go above and beyond industry requirements, ensuring long-term durability that withstands the most extreme conditions.

What's Included

    (1) Topwind A-frame jack

Features + Benefits

  • Sturdy 2-1/4in. tube dia. delivers essential lifting performance
  • Premium topwind design
  • 3,000-lb. lift capacity; 5,000-lb. support capacity
  • 8-1/2in. retracted length; 23-1/2in. extended length
  • Durable corrosion-resistant exterior-grade black powder-coat finish on outside tube with zinc finish handle arm for long life
  • Jack foot sold separately

Key Specs

AttributeSpecification

item#

113362

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.0 LB

Lift Capacity

3,000 lb

Jack Type

A-Frame

Mount Type

Bolt-On

Length Extended

23.5 in
AttributeSpecification

Length Retracted

8.5 in

Clearance: Bracket to Jack Top

8.5 in

Support Capacity

5,000 lb

Mount Height

10.5 in

Length of Travel

15 in

Product Weight

10.5000 lb

Dimensions L x W x H (in.)

21.0 x 6.88 x 4.38 in

Reviews

Questions & Answers

69 Reviews This action will navigate to reviews.

Questions

  1. What is the mounting bolt spacing?

    1 answer

    1. The bolt holes are set up like an equilateral triangle where the spacing from each bolt hole center is 5.5 inches.

      Helpful?
