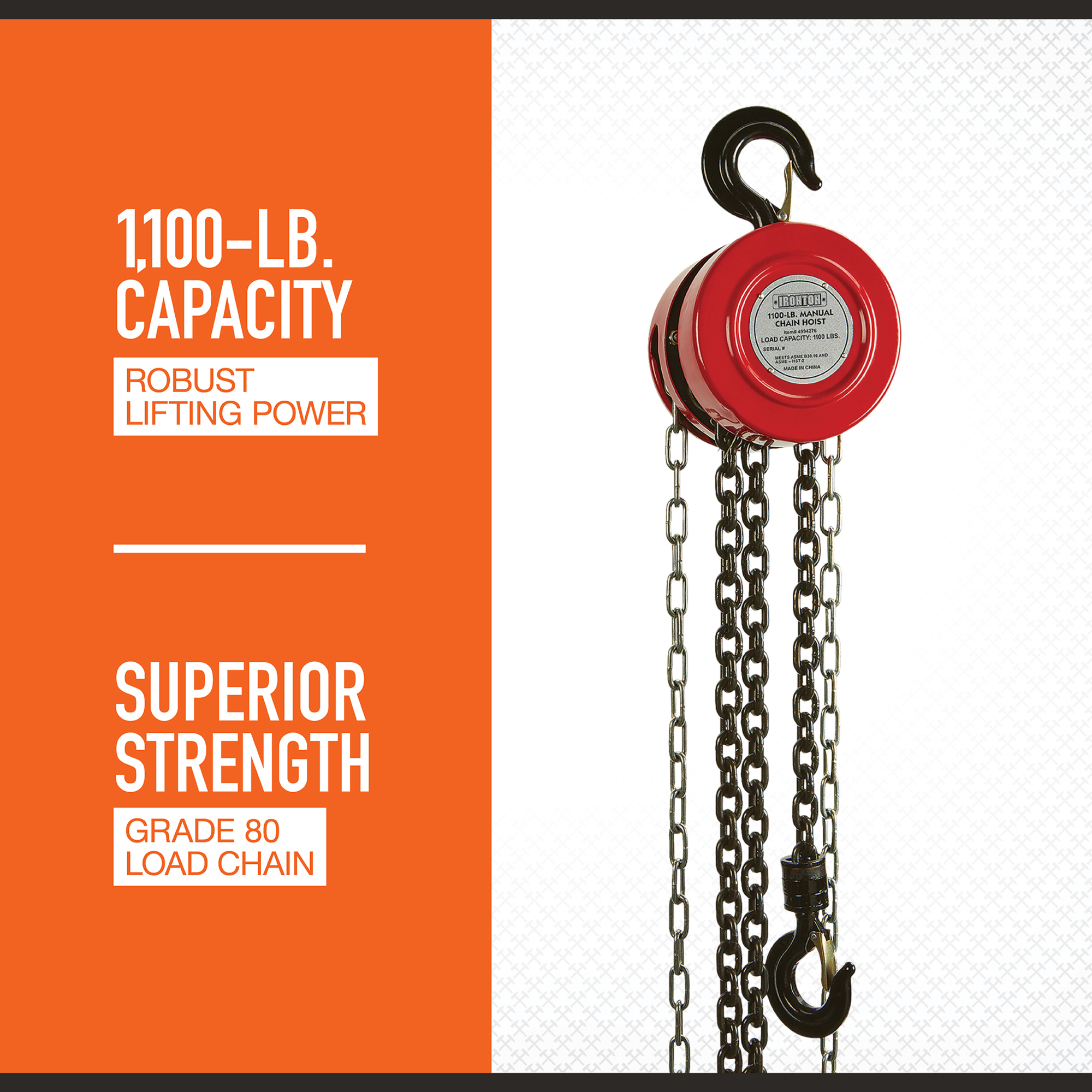

Ironton Manual Chain Hoist, 1100-Lb. Capacity, 10ft. Lift

Item# 4994276
Ironton Manual Chain Hoist, 1100-Lb. Capacity, 10ft. Lift, Model# HSZ0.5T3M
Ironton Manual Chain Hoist, 1100-Lb. Capacity, 10ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Manual Chain Hoist, 1100-Lb. Capacity, 10ft. Lift

Click or Tap image to Zoom

$69.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Designed for long-term high-performance service
  • Meets ASME B30.16/ASME HST-2:2014 safety standards
  • Grade 80 load chain for high-level strength
  • Tough ductile drop-forged hooks for noticeable opening during excessive overload
  • Roller bearing design, black-finished side plate and asbestos-free friction disc for smooth operation

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ironton Manual Chain Hoist is an industrial-quality unit with a classic round style and heat-treated double pawls to ensure brake reliability. This unit meets ASME B30.16/ASME HST-2:2,014 safety standards and features a Grade 80 load chain for high-level strength. Tough, ductile drop-forged hooks ensure noticeable opening when subject to excessive overload. 360° swivel hook includes a stamping safety latch.

What's Included

    (1) Ironton Manual Chain Hoist

Downloads

Product Manual

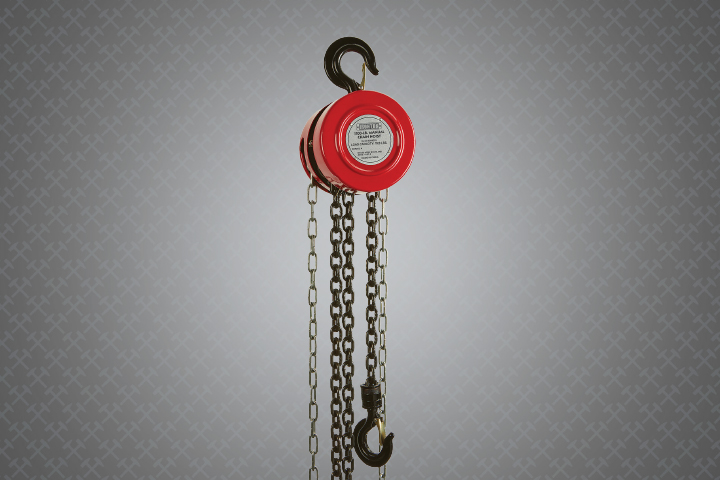

DEPENDABLE PERFORMANCE

The Ironton MANUAL CHAIN HOIST is crafted for HIGH-PERFORMANCE SERVICE, designed to handle 1,100 LBS. with ease. Its robust mechanism and heat-treated components make it suitable for a wide range of industrial applications

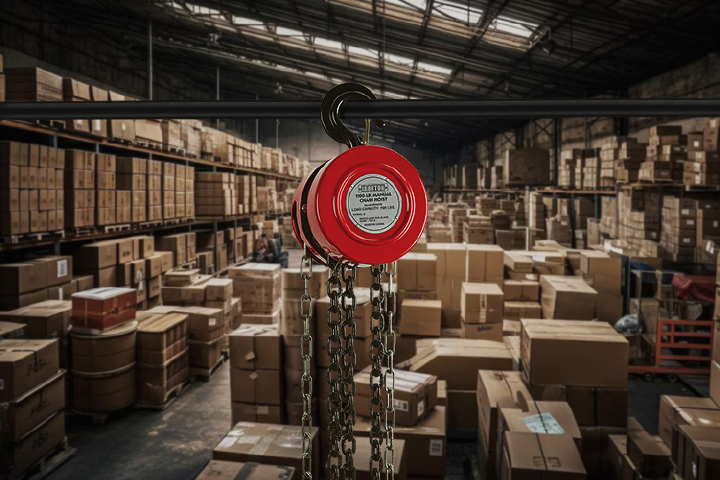

ADVANCED HOOK FEATURES

The specially designed hooks on this HOIST SHOW NOTICEABLE DEFORMATION under overload conditions, serving as an effective preventative measure against unexpected failures

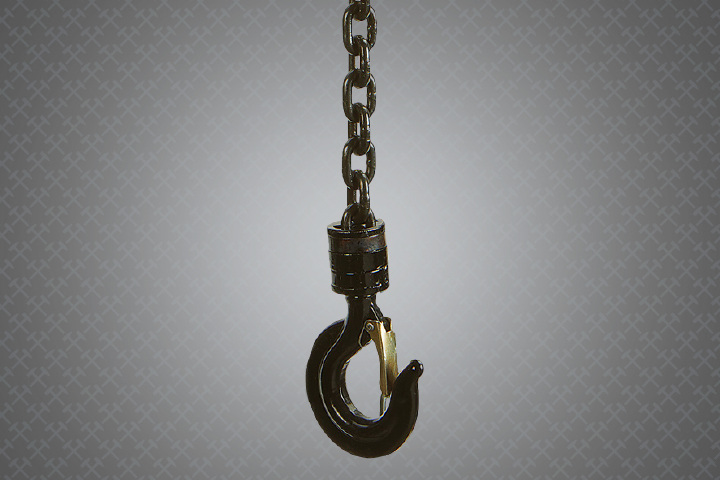

HIGH-STRENGTH CHAIN

Utilizing a GRADE 80 CHAIN, the hoist offers a high level of STRENGTH AND DURABILITY, capable of performing under intense loads and conditions without compromising integrity

Features + Benefits

  • Designed for long-term high-performance service
  • Meets ASME B30.16/ASME HST-2:2014 safety standards
  • Grade 80 load chain for high-level strength
  • Tough ductile drop-forged hooks for noticeable opening during excessive overload
  • Roller bearing design, black-finished side plate and asbestos-free friction disc for smooth operation

Key Specs

AttributeSpecification

item#

4994276

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.4 LB
AttributeSpecification

Capacity

1,100 lb

Lift Height

10 ft

Product Weight

17.6000 lb

Dimensions L x W x H (in.)

5.46 x 5.07 x 129.87 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Haow big is the hoist

    1 answer

    1. The assembled dimensions of this hoist are 5.46" long x 5.07" wide x 129.87" high.

      Helpful?

  2. What is headroom?

    1 answer

    1. The headroom of this hoist is 9.5".

      Helpful?

  3. Where is this Ironton Manual Chain Hoist made ?

    1 answer

    1. This manual chain hoist is manufactured to Northern Tool specifications in China.

      Helpful?

  4. Minimum diameter loop for the hook on the top? Hoping put it on a big eye bolt.

    1 answer

    1. The hook opening measures 51/64" wide. It has a max inside width of 1-19/64". The hook itself measures 2-15/16" long and 1/2" wide.

      Helpful?

  5. I have painted door panel to lift, weight less than 50kg,to avoid scratching the painted surface, can I replace the metal chain with rope?

    1 answer

    1. This hoist is not designed to be used with rope. Making modifications to this hoist would void the warranty. Please see our item #55267 for a rope pulley hoist that could work.

      Helpful?

  6. What is "221N" with regard to lifting 1100 pounds?

    1 answer

    1. The N is the International symbol for Newtons, this is another way to measure force. 221 Newtons equates to 163 foot pounds of force.

      Helpful?

  7. How much pulling power to lift 1100 lbs?

    1 answer

    1. This unit will need 221N pulling power to lift a maximum capacity load of 1,100 pounds.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
