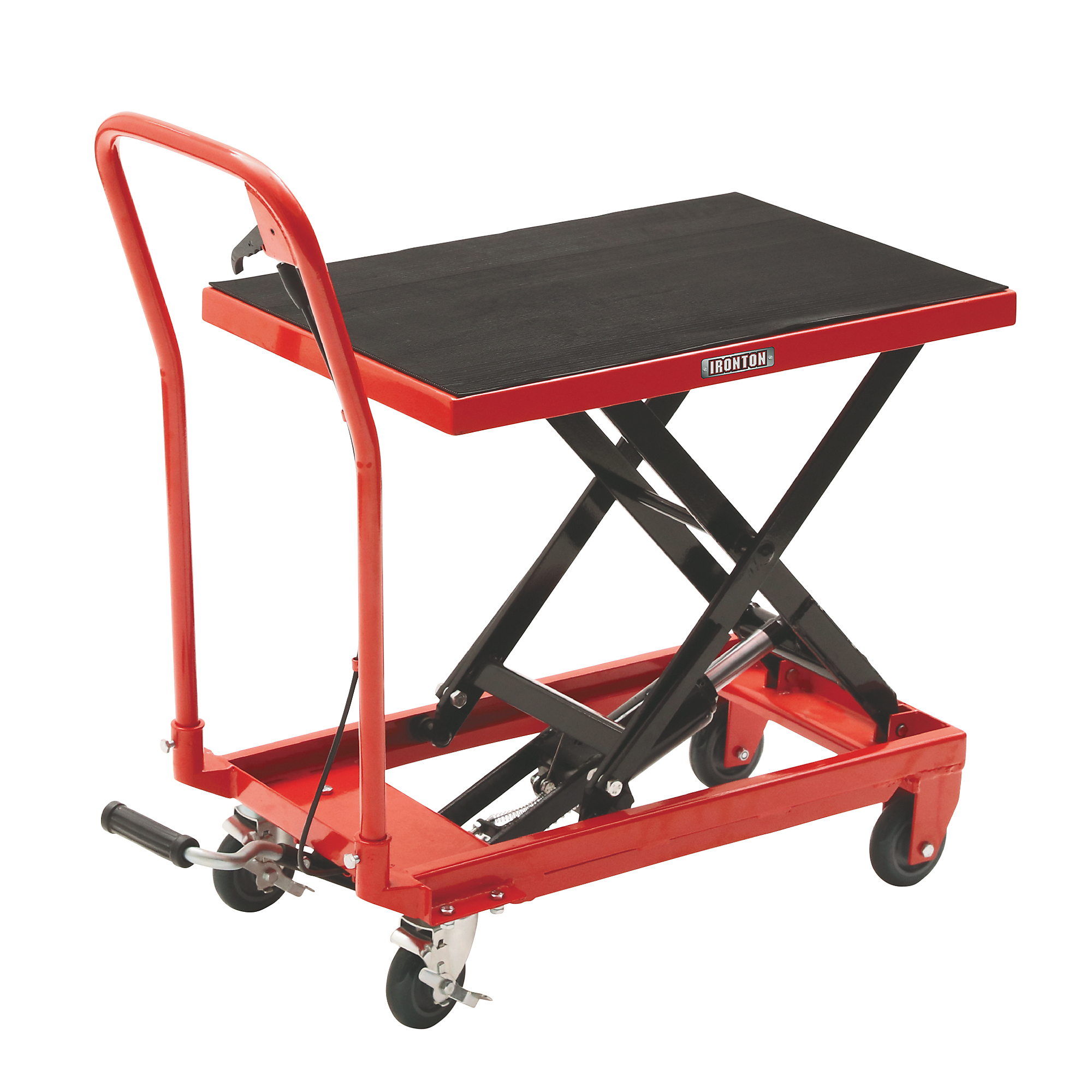

Ironton Hydraulic Table Cart, 500-Lb. Capacity, 28-5/8in. Lift

Item# 57753
Ironton Hydraulic Table Cart, 500-Lb. Capacity, 28-5/8in. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Hydraulic Table Cart, 500-Lb. Capacity, 28-5/8in. Lift

Click or Tap image to Zoom

$239.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Ideal for lifting, positioning, transporting heavy materials around a worksite
  • Hydraulic scissor design is easy to operate by foot pedal
  • Rugged all-steel table with durable powder-coat finish for ease in cleaning and maintenance
  • 2 swivel casters with brake, two 4in. fixed casters for smooth transport
  • 27-3/4in.L x 17-3/4in.W platform

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ironton Hydraulic Table Cart, 500-Lb. Capacity, 28-5/8in. Lift
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
Price for all three:

$254.17

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ironton Hydraulic Table Cart is ideal for lifting, positioning and transporting heavy materials around a shop, warehouse, office, garage or other worksite. The hydraulic scissor design is easy to operate by foot pedal. The rugged all-steel table with durable powder-coat finish is also easy to clean and maintain. This unit rolls on 2 swivel casters with brake and two 4in. fixed casters. 9 1/4in. to 28 5/8in. lift range.

What's Included

    (1) Hydraulic table cart

Downloads

Product Manual

Features + Benefits

  • Ideal for lifting, positioning, transporting heavy materials around a worksite
  • Hydraulic scissor design is easy to operate by foot pedal
  • Rugged all-steel table with durable powder-coat finish for ease in cleaning and maintenance
  • 2 swivel casters with brake, two 4in. fixed casters for smooth transport
  • 27-3/4in.L x 17-3/4in.W platform
  • 500-lb. capacity
  • 35in.L x 17-3/4in.W x 35-1/2in.H

Key Specs

AttributeSpecification

item#

57753

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

105.6 LB

Capacity

500 lb

Lowered Height

9.25 in
AttributeSpecification

Raised Height

28.625 in

Platform Length

27.75 in

Platform Width

17.75 in

Material

Steel

Product Weight

88.0000 lb

Dimensions L x W x H (in.)

35.125 x 19.0 x 36.0 in

Reviews

Questions & Answers

122 Reviews This action will navigate to reviews.

Questions

1–10 of 19 Questions
Sort by:

  1. The the Raised Height (in.) 28 5/8" is from the floor or for the Table Cart base?

    1. The bed starts at 9" form the floor then extends to 28 5/8" from the floor and not the base.

      Helpful?

    2. From the floor.

      Helpful?

    3. This table cart's raised height of 28-5/8" is measured from the floor.

      Helpful?

  2. I have the above described table the release button on the cylinder that lowers the table is frozen I need to replace the release button do you have replacement parts or can you referr me to the place to order the part Thanks Larry

    1. Parts are available for this table cart. Please contact our Parts Department at 1.800.657.0516 for part numbers and info on how to order.

      Helpful?

    2. Please contact our Parts Department at 1.800.657.0516 for parts pricing and availability.

      Helpful?

  3. Where is this made

    1 answer

    1. This table cart is manufactured to our specifications in Vietnam.

      Helpful?

  4. Where can I find the cable for this item at online?

    1 answer

    1. The pull rod cable assembly, part #IRN57753.32, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  5. What is the weight of this table?

    1 answer

    1. The assembled weight of this lift table cart is 88 lbs.

      Helpful?

  6. How much does it weigh?

    1 answer

    1. This table cart weighs 96 pounds.

      Helpful?

  7. Can the handle be lowered, if the object on the table is bigger than the table

    1 answer

    1. The handle height is not adjustable. The handle can be removed by loosening each bolt on the left and right handle support.

      Helpful?

  8. Can I use this to get my dog into my SUV? Stairs and ramps are too hard for her to climb.

    1 answer

    1. This should not be used to transport people or animals.

      Helpful?

  9. Wondering if I can buy the replacement lift cylinder for this table? I have a good table but the cylinder quit working and needs replacing

    1 answer

    1. The complete hydraulic pump assembly, part #IRN57753-15, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  10. Does the hydraulic fluid need to be refilled over time? What size are the casters? Thanks!

    1 answer

    1. Per the manufacturer, this table cart uses No. 13 refrigeration oil and it is recommended to change the whole cylinder rather than add or change oil to avoid risks. This will have 4" diameter casters.

      Helpful?
