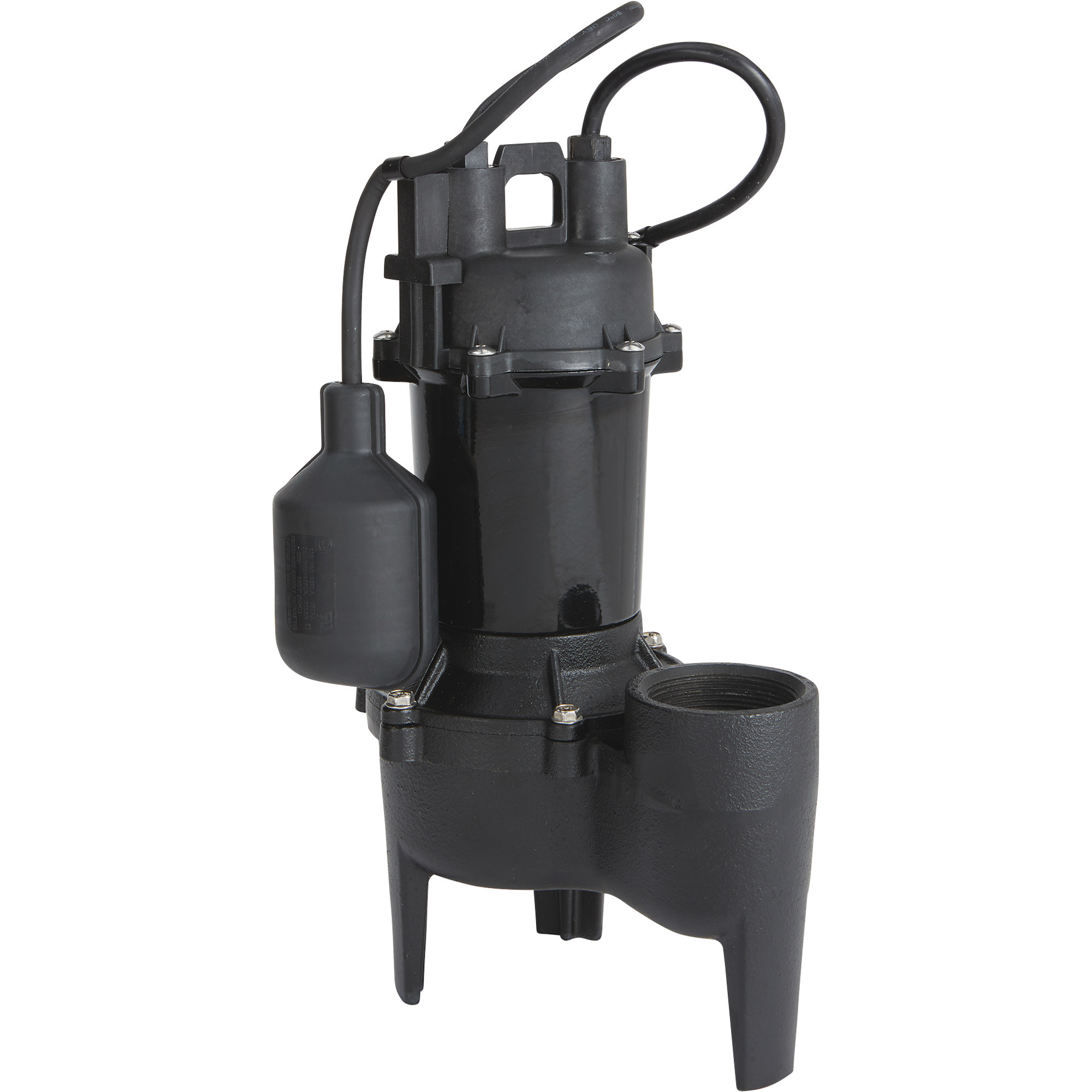

Ironton Cast Iron Sewage Pump, 4600 GPH, 1/2 HP, 2in. Port

Item# 107792
"Ironton Cast Iron Sewage Pump, 4600 GPH, 1/2 HP, 2in. Port"
Top Seller
Ironton Cast Iron Sewage Pump, 4600 GPH, 1/2 HP, 2in. Port

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Cast Iron Sewage Pump, 4600 GPH, 1/2 HP, 2in. Port

Click or Tap image to Zoom

$154.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Powerful 1/2 HP single-phase motor and 2in. discharge port handle solids up to 2in. without clogging
  • 4,600 GPH flow rate
  • 16ft. maximum head
  • 370 Watts; 7.5 Amps
  • Cast iron pump casing for exceptional durability

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 1/2 HP Ironton Cast Iron Sewage Pump is designed to handle dirty water and solids up to 2in. The pump features a compact design with cast iron pump casing for exceptional durability and aluminum motor housing for lighter weight. A tethered float switch provides automatic operation.

What's Included

    (1) Sewage pump

Downloads

Product Manual

Features + Benefits

  • Powerful 1/2 HP single-phase motor and 2in. discharge port handle solids up to 2in. without clogging
  • 4,600 GPH flow rate
  • 16ft. maximum head
  • 370 Watts; 7.5 Amps
  • Cast iron pump casing for exceptional durability
  • Aluminum motor housing keeps the unit light in weight
  • Tethered float switch for automatic operation
  • 10ft. power cord for added reach

Key Specs

AttributeSpecification

item#

107792

Brand

Ironton

Manufacturer's Warranty

No limited warranty

Ship Weight

20.0 LB

Max. Flow

4,600 GPH

Port Size

2 in

Volts

115
AttributeSpecification

Phase

Single-phase

Watts

370

Amps

7.5

Solids Capacity

2 in

Power Cord Length

120 in

Horsepower

0.5

Product Weight

20 lb

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. How high will it lift water

    1 answer

    1. This sewage pump has no suction lift. The maximum total head of this pump is 16 feet.

      Helpful?

  2. Separate Power Cord for Float Switch?

    1 answer

    1. This pump has a single power cable, the float switch is tethered.

      Helpful?

  3. is the impellor metal or plastic

    1 answer

    1. This pump has a thermo-plastic impeller.

      Helpful?

  4. Is this pump suitable for septic tank applications/. What is the warranty on this pump?

    1 answer

    1. Two pumps have to be installed in the sewage pit (septic tank), the first pump as a primary pump and the second pump as the backup unit. Manufacturing defects are covered up to 12 months from the date of purchase.

      Helpful?

  5. Can I reduce from 2" discharge down to 3/4" pvc pipe

    1 answer

    1. The discharge should not be reduced. Doing so will effect the flow rate and could cause damage to the pump.

      Helpful?

  6. Does it come with discharge hose

    1 answer

    1. This is the pump only, a discharge hose is not included. At this time, we do not offer one for this pump.

      Helpful?

  7. How tall is the pump and how tall and wide of a basin is needed ?

    1 answer

    1. The overall height of the pump is 14.17". The minimum size of the sump pit must be 18” (45.7 cm) in diameter and no less than 25” (63.5cm) deep.

      Helpful?

  8. The pump manual (Pg 4, vs 9) states that the pump starts to pumping at 2 to 10 inch water level , in our case, it starts to pump at 16 inch and stops at 10 inch . Is there a way to adjust the mechanical float ?

    1 answer

    1. There is not an adjustment on the mechanical float.

      Helpful?

  9. How does your submersible trash pump handle solids up to 2 inches?  does it grind the debris down or what?  Thanks

    1 answer

    1. This sewage pump has an impeller for the debris.

      Helpful?

Warranty

Manufacturer's Warranty

No limited warranty
