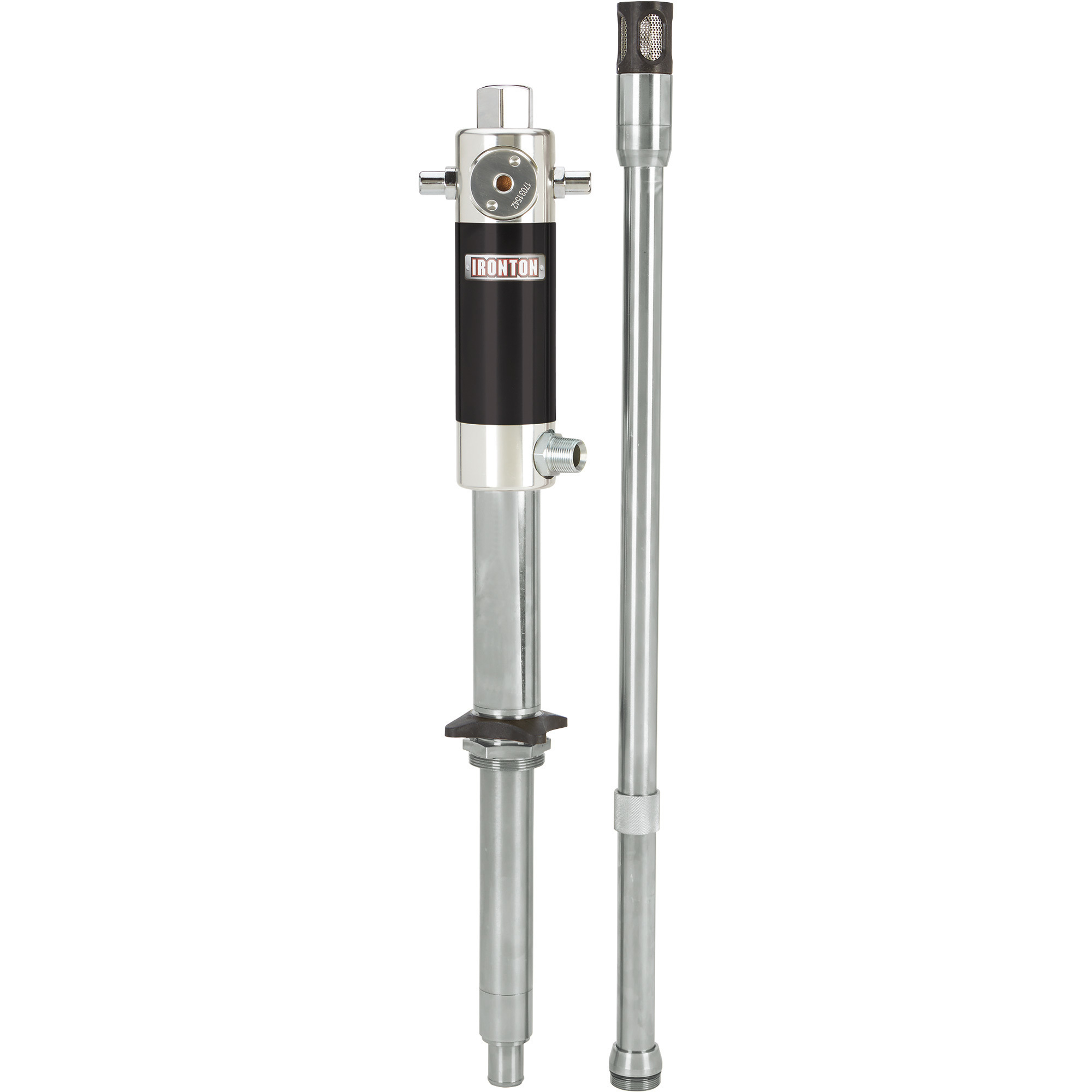

Ironton Air-Operated Oil Pump with Extension Kit, 7.4 GPM, 3:1 Oil Pump, Up to 130 SAE Oil

Item# 58256
Ironton Air-Operated Oil Pump with Extension Kit, 7.4 GPM, 3:1 Oil Pump, Up to 130 SAE Oil

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Air-Operated Oil Pump with Extension Kit, 7.4 GPM, 3:1 Oil Pump, Up to 130 SAE Oil

Click or Tap image to Zoom

  • Provides up to 7.4 GPM flow with a 3:1 double-action oil pump designed for easy operation and low maintenance
  • Suitable for oils up to 130 SAE viscosity including motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid (ATF)
  • Smart design with fewer parts reduces wear and ensures long service life
  • Includes 8in. and 20in. extension tubes for a maximum reach of 38in.
  • Precision-machined construction delivers stability and durability

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton Air-Operated Oil Pump with Extension Kit is ideal for transferring low- and medium-viscosity oils over short and medium distances. Double-action oil pump is easy to operate and maintain. Handles motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid (ATF). Includes extension tubes and 2in. bung adapter.

What's Included

    (1) 3:1 oil pump (1) Extension kit

Downloads

Product Manual

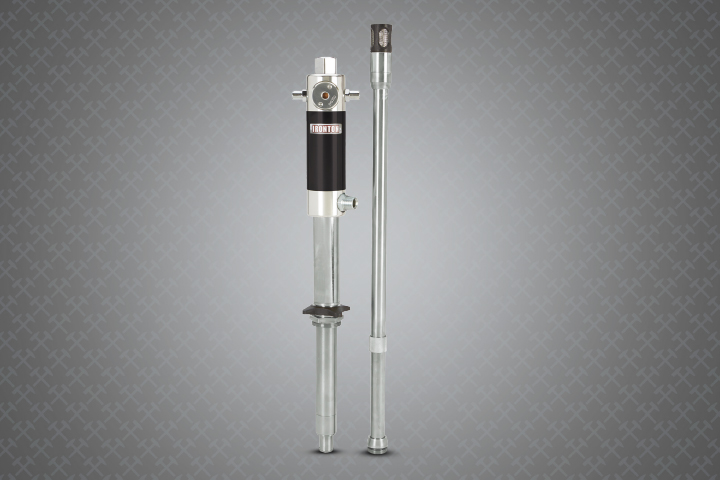

ROBUST PERFORMANCE

Engineered for demanding applications, this SPEED and VERSATILITY FOR EFFICIENT FLUID HANDLING

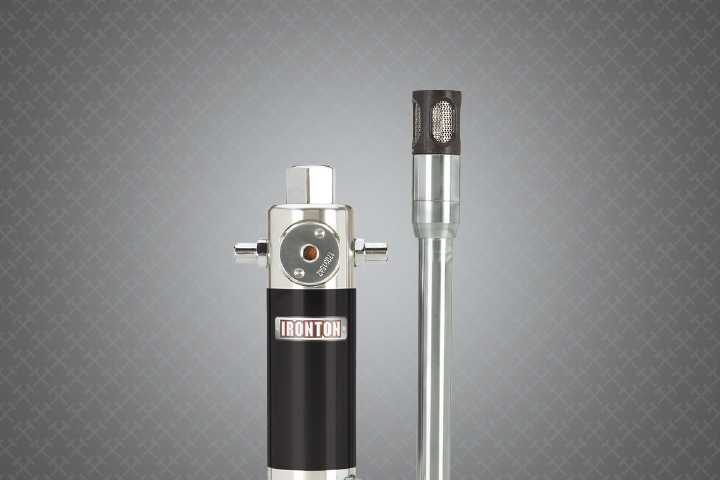

SAFETY AND COMPATIBILITY

While ideal for a variety of oil types, it is important to note that this pump should not be used with gasoline, diesel or waste oil, ENSURING SAFE OPERATION ACROSS RECOMMENDED FLUIDS

Features + Benefits

  • Provides up to 7.4 GPM flow with a 3:1 double-action oil pump designed for easy operation and low maintenance
  • Suitable for oils up to 130 SAE viscosity including motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid (ATF)
  • Smart design with fewer parts reduces wear and ensures long service life
  • Includes 8in. and 20in. extension tubes for a maximum reach of 38in.
  • Precision-machined construction delivers stability and durability
  • 1/4in. NPT-F inlet and 3/4in. NPT-M outlet with 350 PSI maximum fluid pressure
  • Includes 2in. bung adapter
  • Not for use with gasoline, diesel or waste oil

Key Specs

AttributeSpecification

item#

58256

Brand

Ironton

Manufacturer's Warranty

3 month limited warranty

Ship Weight

17.4 LB

Flow Rate

7.4 GPM
AttributeSpecification

Max. Total Head

25 ft

Max. Suction Lift

6 ft

Inlet Port

0.75 in

Outlet Port

0.75 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. will this pump work with antifreeze

    1 answer

    1. This pump can be used to transfer antifreeze.

      Helpful?

  2. Does this pump have to make a seal on the tank in order to extract fluid?

    1 answer

    1. There is no need to make a seal on the tank. You can just put it into the tank.

      Helpful?

  3. Height From The Barrel Bung To The top Of The Pump?

    1 answer

    1. The height from the barrel bung to the top of the pump is 512mm (20.2").

      Helpful?

  4. Does this pump pressurize the barrel that I would be extracting the oil from?

    1 answer

    1. This oil pump will not pressurize the drum that oil is being extracted from.

      Helpful?

  5. Are there npt pipe threads on intake side, if wanting to use flexible hydraulic hose instead of metal extension pipes?

    1 answer

    1. This pump only has a 1" BSP thread at the bottom. Currently, a version with NPT threads is not available.

      Helpful?

  6. Will this seal on a standard 5 gal pale of engine oil?

    1 answer

    1. This pump could fit on a 5 gallon pale as long as it is equipped with a 2" bung. Keep in mind, this pump is rated up to 7.4 GPM, so the pale may empty quite quickly.

      Helpful?

  7. Will this work in a 275 gl tote

    1 answer

    1. The pump would have a maximum 38" suction tube. It would be able to work in a 275 gallon tote.

      Helpful?

  8. How far will the 3:1 pump push oil? The 1:1 says 16ft.

    1 answer

    1. Per the manufacturer, this can pump can be used with a maximum 50' discharge hose. However, doing so would cause the flow rate to decrease.

      Helpful?

  9. Will this pump 80W-90 gear oil?

    1 answer

    1. This Ironton pump is not recommended for 80W-90 gear oil.

      Helpful?
