Ironton Air Hose Reel, Holds 3/8in. x 100ft. Hose, 300 Max. PSI, Manual Rewind

Item# 49587
"Ironton Air Hose Reel, Holds 3/8in. x 100ft. Hose, 300 PSI Max."
Ironton Air Hose Reel, Holds 3/8in. x 100ft. Hose, 300 Max. PSI, Manual Rewind

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Air Hose Reel, Holds 3/8in. x 100ft. Hose, 300 Max. PSI, Manual Rewind

Click or Tap image to Zoom

$59.99

  • Shipping:

    Available now

  • Store Pickup:

    Call Store for Availability
  • 100ft. Hose Capacity: Holds up to 3/8in. air hose for extended compressed air reach
  • 300 Max. PSI Rating: Supports demanding compressed air applications in shop and garage environments
  • 18-Ga. Steel Construction: Heavy-duty steel reel with powder-coat finish resists wear and corrosion
  • Manual Rewind System: Smooth hand-crank operation provides controlled hose storage and retrieval
  • Spring Tension Brake: Helps control reeling speed for safer hose management during rewind

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ironton Air Hose Reel, Holds 3/8in. x 100ft. Hose, 300 Max. PSI, Manual Rewind
  • Ironton Universal Hose Reel Swivel Bracket for Most Klutch and Ironton Hose Reels
  • Klutch Rubber Air Hose, 3/8in. x 100ft., 300 PSI, Ozone-Resistant Cover
Price for all three:

$139.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton Air Hose Reel provides organized air hose storage for shop and garage applications. Built with heavy-duty 18-ga. steel construction and a corrosion-resistant powder-coat finish, it delivers durability for demanding environments. The manual-rewind system includes a spring tension brake to control reeling speed for smoother, safer hose handling. Designed to hold up to 3/8in. x 100ft. air hose (hose not included), the reel mounts to walls or floors for flexible installation and improved workspace organization. Rated up to 300 PSI, the Ironton Air Hose Reel delivers dependable compressed air hose management for everyday shop use.

What's Included

    (1) Ironton 3/8in. x 100ft. Air Hose Reel

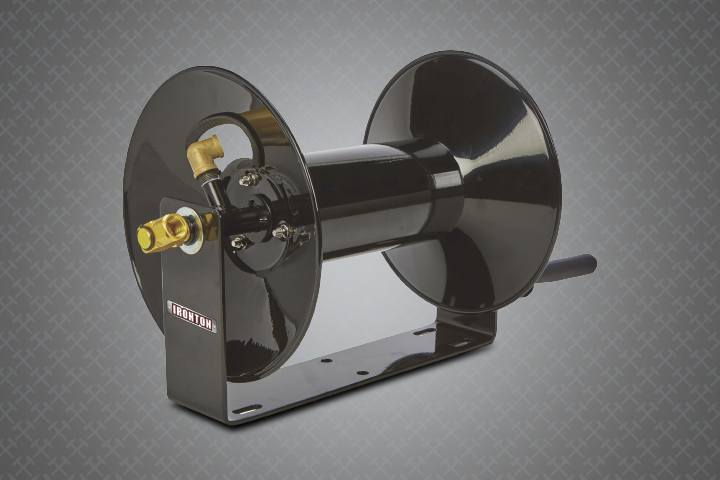

BUILT TO LAST

The IRT 100 Air Hose Reel’s heavy-duty steel body WITHSTANDS RIGOROUS USE and the harshest environments, thanks to its corrosion-resistant finish

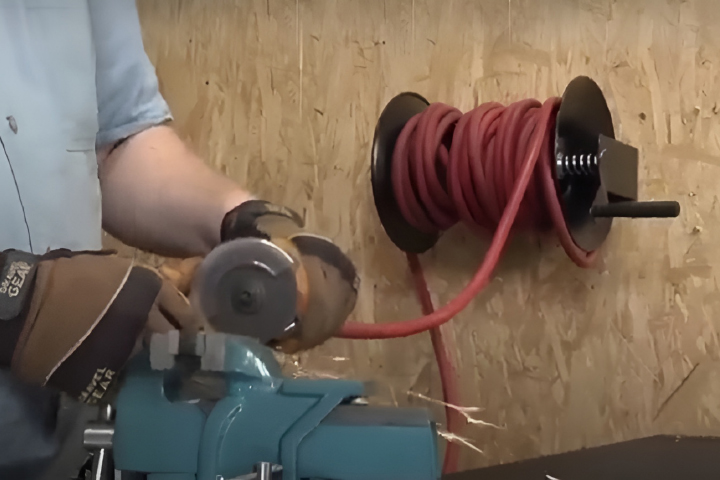

INSTALLATION FLEXIBILITY

Whether you’re SETTING UP YOUR WORKSPACE IN A GARAGE or ON A JOB SITE, the reel’s dual mounting options offer unparalleled adaptability

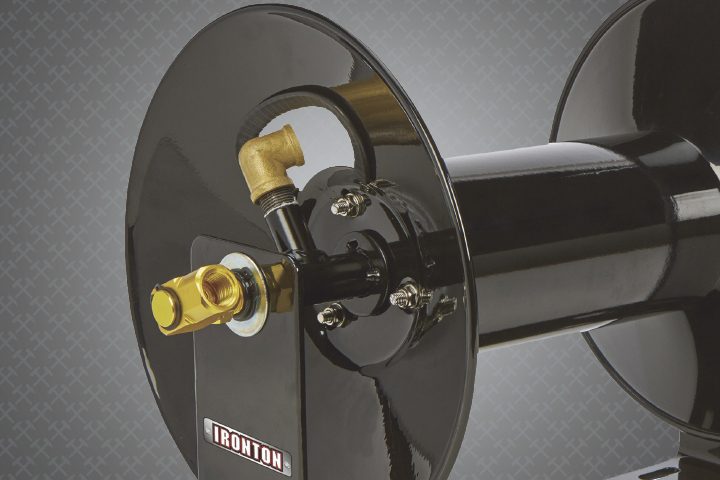

EFFORTLESS ORGANIZATION

Keep your air hose neatly stored and avoid tangling with a reel capable of SECURING UP TO 100 FEET OF HOSE, ready for action whenever you are tangling with a reel capable of

Features + Benefits

  • 100ft. Hose Capacity: Holds up to 3/8in. air hose for extended compressed air reach
  • 300 Max. PSI Rating: Supports demanding compressed air applications in shop and garage environments
  • 18-Ga. Steel Construction: Heavy-duty steel reel with powder-coat finish resists wear and corrosion
  • Manual Rewind System: Smooth hand-crank operation provides controlled hose storage and retrieval
  • Spring Tension Brake: Helps control reeling speed for safer hose management during rewind
  • Wall or Floor Mounting: Versatile bracket design supports flexible installation options
  • Compact Reel Design: 21-3/8in.L x 11-3/4in.W x 11-3/4in.H assembled size fits efficiently in workspaces

Key Specs

AttributeSpecification

item#

49587

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.6 LB

Hose Diameter

3/8 in

Hose Length

100 ft

Max. PSI

300
AttributeSpecification

Hose Material

Steel

Hose Outlet Size

3/8 in. NPT

Reel Inlet Size

3/8 in. NPT

Auto Rewind

No

Whip Hose Included

No

Product Weight

lb

Dimensions L x W x H (in.)

21.375 x 11.75 x 11.75 in

Reviews

Questions & Answers

213 Reviews This action will navigate to reviews.

Questions

1–10 of 21 Questions
Sort by:

  1. Is the handle interchangeble, left or right?

    1. It can be mounted either way

      Helpful?

    2. To change from left to right handle, just mount the reel the other way, like upside down.

      Helpful?

    3. Yes and No, once mounted to a wall its not interchangeable but if you know what side you wanted handle on you can just flip the reel over so the handle is on the side you want before mounting.

      Helpful?

    4. No, the handle is not interchangeable left of right. The only way to 'interchange' is to turn the entire reel end for end.

      Helpful?

    5. The handle assembly cannot be switched to the other side. However, you can mount the reel so the handle is facing the direction you want it to.

      Helpful?

  2. can this hose reel be used with a water hose

    1. No, the reel's fittings are not compatible for a water hose.

      Helpful?

    2. NO

      Helpful?

    3. It does not have a connector for a water hose. The brass fitting is for an air compressor hose.

      It is smaller in scale than a water hose reel....You might use it for storage for a short hose.

      Helpful?

    4. This air hose reel cannot be used for water hoses. Click the links below to view water/garden hose reels.

      Helpful?

  3. What is the spacing between the mounting holes?

    1. There are six attach holes for the reel assembly to the wall or to a separate board which in turn is attached to the wall.
      The holes are three along the top and three along the lower edge of the mounting plate spaced 2" apart. The holes for both the top and lower row of holes are located in the center and the two toward the outer edges of the reel unit are 5 1/2" to the right and left of those in the center.

      Helpful?

    2. 2 sets of slotted 11" center to center, with a single hole centered between them.

      Helpful?

    3. The mounting plate is 14" long x 3 1/4" wide. Each corner has a slotted hole 2 1/8" long x 7/16" wide 5-1/2” on center length wise and 2’ on center side on the width. There are two round holes in the middle that are 7/16" in diameter and 2"on center on the width.

      Helpful?

  4. Are there provisions to preventing free spooling if using only a portion of thje hose?

    1. Yes. The reel has a spring loaded dampener. You have to pull out whatever length you need. The reel does not free spin

      Helpful?

    2. This Ironton Reel is equipped with a spring tension brake that limits reeling speed and prevents free spooling.

      Helpful?

  5. How do I put the air hose on

    1 answer

    1. Attach the fitting of the air hose to the coupler on the hose reel and tighten it securely. Once connected, use the reel handle to slowly wind the hose onto the drum, making sure it wraps evenly and neatly as you turn the handle.

      Helpful?

  6. Where is this product manufactured (country of origin)?

    1 answer

    1. This hose reel is manufactured to our specifications in China.

      Helpful?

  7. Which lead in hose do I use with this reel

    1 answer

    1. A whip hose like item 113471 could be used with this hose reel.

      Helpful?

  8. Would this be able to hold 100’ of 12 ga electrical cord?

    1 answer

    1. Although the length and diameter of a 12 gauge electrical cord would fit, this hose reel is not rated for electric applications.

      Helpful?

  9. Can liquids like herbicides be used through this hose reel? Thanks

    1 answer

    1. This air hose reel would not be recommended for use with herbicides and other water based applications.

      Helpful?

  10. Will this mount horizontally (handle to one side) using the Ironton swivel bracket (49605) and swivel left to right? The ad says they are commonly bought/used together but the bolt holes do not appear to line up in the pictures.

    1 answer

    1. This hose reel will not fit our Ironton hose reel swivel bracket. Please see our item #62249 for a hose reel that will fit.

      Helpful?
