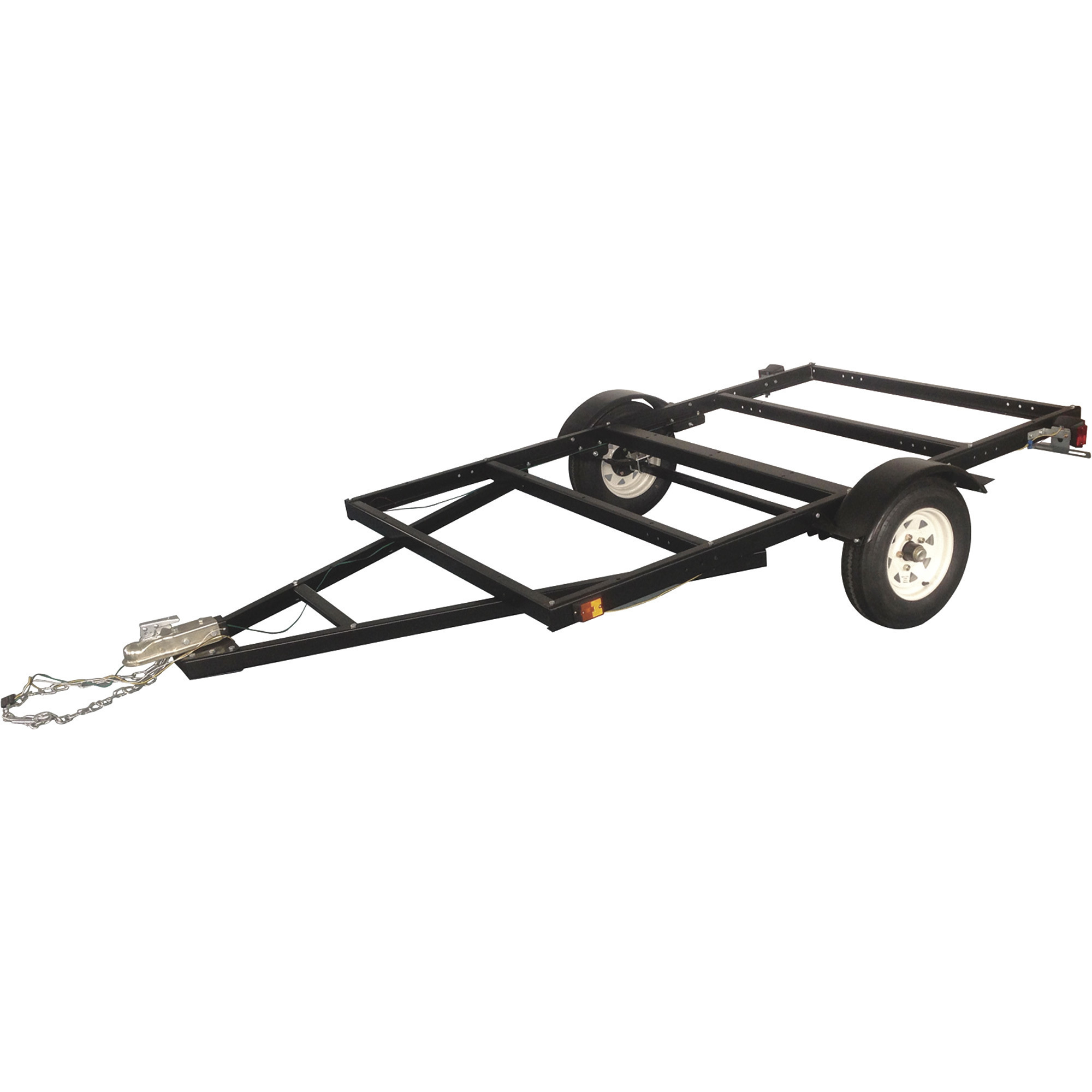

Ironton 5ft. x 8ft. Steel Utility Trailer Kit, 1715-Lb. Load Capacity

Item# 37552
Ironton 5ft. x 8ft. Steel Utility Trailer Kit, 1715-Lb. Load Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton 5ft. x 8ft. Steel Utility Trailer Kit, 1715-Lb. Load Capacity

Click or Tap image to Zoom

  • 136in.L x 76in.W overall size with 1715-lb. payload capacity
  • Rolls smoothly on two 5.30-12in. tires with protective fenders to prevent rocks and debris from damaging your cargo
  • Includes safety chains and light kit so you can hit the road immediately
  • 2in. coupler assembly and wiring harness connect to your vehicle to ensure trailer safety on the road, even in dark or rainy conditions
  • Customizable steel deck area to handle large loads

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton® 5ft. x 8ft. heavy-duty trailer kit has a large, customizable 96in. x 60in. steel deck area (decking not included) to handle big loads. 1980-lb. max. GVWR. Meets or exceeds road-ready specifications and DOT requirements. Assembly required.

What's Included

    (1) 5ft. x 8ft. Steel Utility Trailer Frame + Axle, (1) Towbar, (1) Light set (1) Hardware kit (2) Leaf springs (2) Hubs (1) Coupler (2) Tires (1) Fender kit

Downloads

Product Manual
Play Item Video

Strength, Quality and Performance In One!

Large Capacity that Hauls More

With a maximum payload of 1715 lbs. and a maximum gross vehicle weight of 1980 lbs., this 5ft. x 8ft. trailer more than pulls its weight! The trailer is designed to carry heavier cargo and is wider than standard trailers. Add your own decking (not included) to create a customized, real heavy-duty hauler.

Built With Quality Components

Take a rugged steel frame, add a tough yet silky smooth axle kit, and then top it off with a pair of 5.30–12in. tires with protective fenders to prevent rocks and debris from damaging your cargo, and you're ready to roll.

Comes Fully Equipped

This trailer comes complete with everything you need to get hauling. From the 2in. coupler and the full light set with wiring, to the frame and axle kit, pair of fenders, towbar, hubs and safety chains, you're completely covered. All the parts are included for easy assembly (some assembly is required).

Certified Performance

This handy trailer meets or exceeds all road-ready specifications and DOT requirements and is ready to hit the road at up to 45 MPH.

A Brand You Can Trust

Expert Answers Are Available

Northern Tool + Equipment is here to help you succeed. Our field-trained, dedicated team of experts is ready to help — call or email and you'll get a prompt response.

The Ironton Advantage

This Ironton Trailer is built to last and perform. But to give you extra peace of mind, Ironton stands behind this product with a 1-year limited warranty.

Guaranteed Satisfaction

Shop in complete confidence, knowing that Northern Tool + Equipment protects your investment and is ready to provide you with the assistance and helpful resources you need.

Features + Benefits

  • 136in.L x 76in.W overall size with 1715-lb. payload capacity
  • Rolls smoothly on two 5.30-12in. tires with protective fenders to prevent rocks and debris from damaging your cargo
  • Includes safety chains and light kit so you can hit the road immediately
  • 2in. coupler assembly and wiring harness connect to your vehicle to ensure trailer safety on the road, even in dark or rainy conditions
  • Customizable steel deck area to handle large loads
  • Meets or exceeds road-ready specifications and DOT requirements
  • Speed limit is 43.5-55 MPH
  • 136in.L x 76in.W overall size with 1715-lb. payload capacity and 1980-lb. max. GVWR to haul what you need
  • Deck height is 20.24in. above the ground
  • Certificate of origin will be mailed separately. Please allow time for processing

Key Specs

AttributeSpecification

item#

37552

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

261.0 LB

Load Capacity

1,715 lb

Deck Length

5 ft

Deck Width

8 ft

Trailer Type

Trailer Kit

Load Capacity (lbs.)

1,715

Coupler Size

2 in

Frame Material

Steel
AttributeSpecification

Deck Size L x W (ft.)

5 x 8

Deck Material

Steel

Assembly Required

Yes

Gross Vehicle Weight Rated

1,980 lb

Wheel Size

12 in

Coupler Size (in.)

2

Lights Included

Yes

Wheel Size (in.)

5.3 - 12

Ramps Included

No

Bed Tilt

No

Overall Dimensions L x W x H (in.)

136 x 76 x 16 1/4

Reviews

Questions & Answers

Questions

1–10 of 87 Questions
Sort by:

  1. Plywood deck

    How should the plywood be installed? As two 5 X 4 foot pieces or two 8 X 2.5 foot pieces... Which way is stronger? Is there a way to bolt down the center?.

    1. Two pieces cut 60" x 48" and attached cross ways so the seam is along the "doubled beam" in the middle of the chassis. Also drill 1" holes with a paddle bit halfway through the plywood, at each of the bolts to allow for a flush fit to the frame.

      Helpful?

    2. Bought two 15/32 four by eight plywood
      Had one cut 1 ft. wide strip to fill in missing strip after laying 4 x 8 front to back. Use 3/8 1.5 inch bolt with flat washer, lock washer and nut. use two for 4x8 and one for one foot strip.

      You can bolt the center through your middle holes. Use a nail to find center before drilling hole in plywood.

      Helpful?

    3. How the plywood is installed is to be determined by the end user. The bed frame and the cross-braces have pre-drilled holes to bolt down the plywood.

      Helpful?

  2. is the axle u shaped and hollow on the bottom or

    square stock

    1. U-shaped and hollow

      Helpful?

    2. U shaped, hollow

      Helpful?

    3. This trailer kit includes an axle that is a C or U shaped channel. It's not a square tube.

      Helpful?

  3. Does the trailer come with a title?

    Does the trailer come with a title so it can be licensed?

    1. It comes with a Certificate of Origin so you can get a title in your state.

      Helpful?

    2. This trailer kit includes a Certificate of Origin so it can be licensed. The Certificate of Origin arrives in the mail separate from the trailer kit.

      Helpful?

  4. is this a folding trailer?

    1. No

      Helpful?

    2. This trailer is not designed to fold.

      Helpful?

  5. What is a recommended method for attaching a plywood deck to the frame? Is that what all the extra bolts are for?

    1. I don't recall any extra bolts, unless you mean bolt holes.

      I attached mine by cutting two sheets of 4'x5' plywood and bolting them with each of the open bolt holes on the top of the frame using hex bolts and washers on both ends. I included a 2x4 on each side (4" side vertical) as well and through-bolted all the way through those, which provides extra rigidity in that direction. The deck is quite stable.

      Helpful?

    2. The plywood deck would be bolted to the trailer with the pre-drilled holes in the top of the frame. Bolts for mounting the plywood are not included.

      Helpful?

  6. Does the bed tilt or do you need ramps?

    1. No. The bed does not tilt.

      Helpful?

    2. The bed does not tilt. It would require ramps for loading.

      Helpful?

  7. Where is it made?

    1. China

      Helpful?

    2. The Ironton Heavy-Duty Trailer is manufactured in China.

      Helpful?

  8. what is the axle tube diameter of the 5x8 utility trailer

    Item# 37552

    1. The axle is composed of a piece of approx. 3/16" thick steel stamped into a c-channel shape with the spindles welded inside the C.

      Helpful?

    2. The diameter of the axle on this utility trailer is 25 mm.

      Helpful?

  9. what are the inside dimensions of the trailer?

    What is the distance between the inner support bars? are they spaced evenly? What is the clearance between the underside of the support bars and the ground?

    1. The inside dimensions on our Ironton trailer are 60-3/64 inches wide by 96-1/16 inches long. The distance between the inner support bars (which are evenly spaced) is 21-21/32 inches. The clearance between the underside of the support bars and the ground is 17-1/4 inches.

      Helpful?

    2. the dimensions are exactly as listed. 5 ft by 8 ft.

      Helpful?

  10. I need the exact dimension between the fenders

    Have existing trailer top and decking that would fit right between fenders

    THanks,Gary

    1. Deck width is 60"; deck length is 96".

      Helpful?

    2. The exact width between (inside to inside) the fenders on this trailer is 61 9/64 inches.

      Helpful?
