Ironton 5-Gallon Tire Bead Seater, 90 to 120 PSI

Item# 54411
Ironton 5-Gallon Tire Bead Seater, 90 to 120 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton 5-Gallon Tire Bead Seater, 90 to 120 PSI

Click or Tap image to Zoom

  • 90 to 120 PSI operating pressure

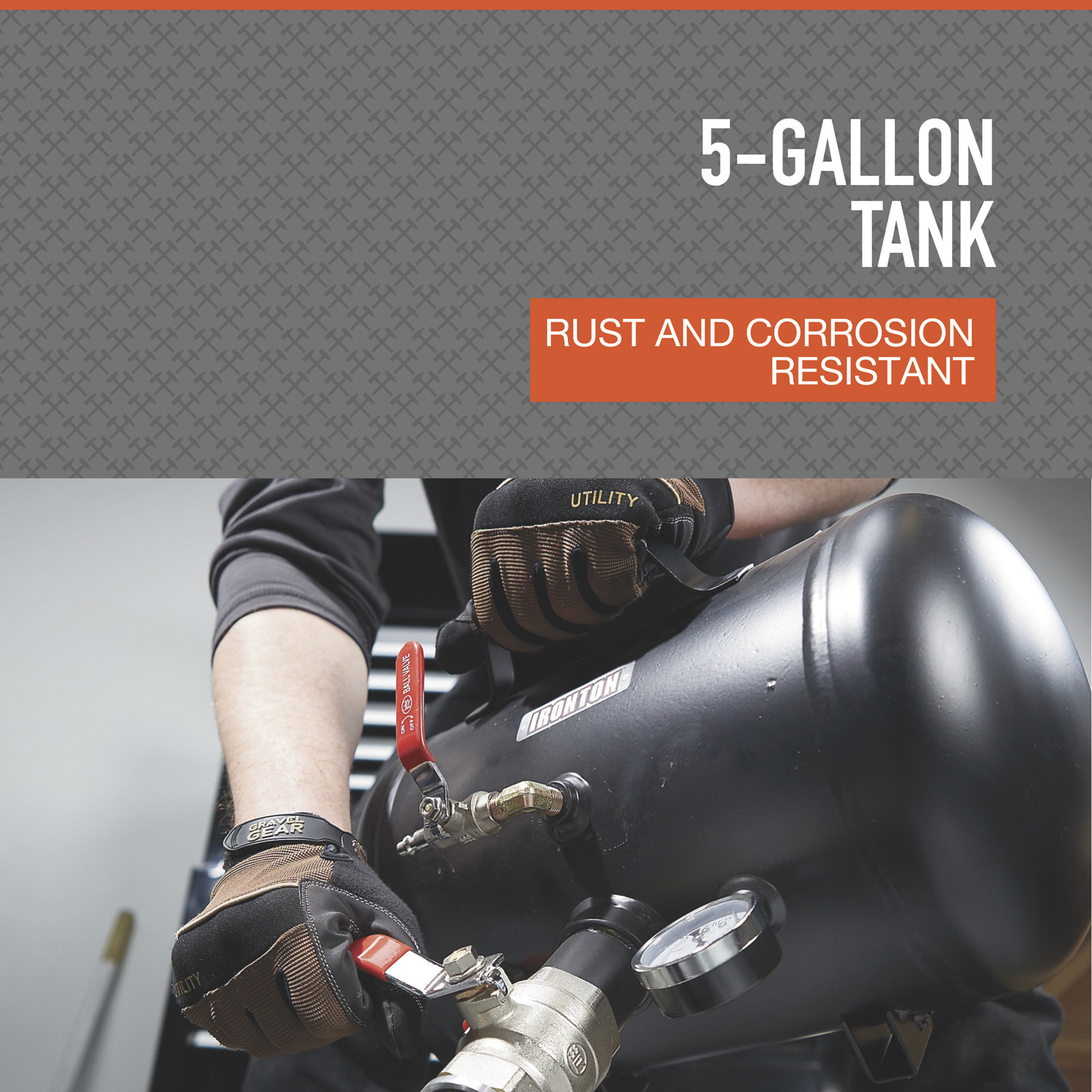

  • 5-gallon tank features a rust- and corrosion-resistant powder-coat finish for long life
  • High-quality safety valve safely removes air under 0.85 MP air pressure
  • Designed for use on tires from 17.5in. to 24.5in. dia.
  • Built-in carry handle for easy portability

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton® 5-Gallon Bead Seater is the simple, fast, safe and economical way to seat even the most difficult tire beads. Designed for use on tires from 17.5in. to 24.5in. dia. The unit supplies high volumes of air into the tire, expanding the sidewalls to quickly set the bead onto the wheel rim. Doubles as a standard air tank. ASME certified.

What's Included

    (1) 5-gallon bead seater (1) Air gauge

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 90 to 120 PSI operating pressure
  • 5-gallon tank features a rust- and corrosion-resistant powder-coat finish for long life
  • High-quality safety valve safely removes air under 0.85 MP air pressure
  • Designed for use on tires from 17.5in. to 24.5in. dia.
  • Built-in carry handle for easy portability
  • Bottom feet prevent rolling during use for increased ball valve protection
  • Pressure gauge allows you to easily monitor working pressure and correctly fill tires
  • Threaded barrel with lip helps to deliver the optimum angle for inflation during bead seating
  • High-quality brass valve adds longevity
  • Air release valve and multiple air exhaust increase air release speed
  • Multiple manufacturer pressure tests offer the confidence of operating safety and long life
  • Includes air gauge

Key Specs

AttributeSpecification

item#

54411

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

30.6 LB

Max. PSI

120

Tank Size

5 Gal
AttributeSpecification

Product Type

Bead Seater

Hose Included

No

Gauge Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

17.75 x 15.75 x 13.0 in

Reviews

Questions & Answers

114 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. With the ironton 5-gal bead seater, is the barrel/nozzle included?

    1. Yes, the seating barrel was included.

      Helpful?

    2. Yes the barrel comes with.

      Helpful?

    3. Yes, it is!

      Helpful?

    4. This bead seater comes with the threaded barrel for proper air insertion.

      Helpful?

  2. will this work on 20 to 24 inch tires?

    1. I was able to seat the bead on my 22 inch truck tire. Worked very well.

      Helpful?

    2. Yes, it sure will.

      Helpful?

    3. This bead seater works on tires from 17.5" to 24.5" in diameter.

      Helpful?

  3. Can I order replacement tube?.Black PVC end that goes onto edge of tire?

    1 answer

    1. The replacement threaded barrel is our part #IRN54411-4 and the tank flange is our part #IRN54411-5. These parts are available through our sister company, Jack's Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  4. What is the dimension of the air release valve

    1 answer

    1. The diameter of the valve is .309".

      Helpful?

  5. Why can't you use this on smaller tires such as lawn mower, golf cart, etc.?

    1 answer

    1. This bead seater is designed for use with tires 17.5" to 24.5" diameter. Please see our item #1459959 for a bead seater that can be used with tires 4" up to 24.5" diameter.

      Helpful?

  6. Can you get a replacement nozzle for this product?

    1 answer

    1. The replacement tank flange (nozzle), our part #IRN54411-5, is available through our sister company, Jack's Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  7. what is the smallest tire this will work with?

    1 answer

    1. The minimal size of tire that is recommended for this item is 17.5" diameter.

      Helpful?
