The overall dimensions of this pump are 6.11" long x 6.11" wide x 9.45" high.
Free Gift Card Details
- The promotion will be automatically applied on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $100 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax and shipping.
- Free gift cards will be issued in the form of e-gift cards only, not physical gift cards.
- E-gift cards will be sent to the email address used in your billing address when your order ships or is picked up.
- Free e-gift cards expire 10/01/26.
- Promo code not valid on prior purchases or on Honda and STIHL products and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited-time offer. Subject to change without notice.

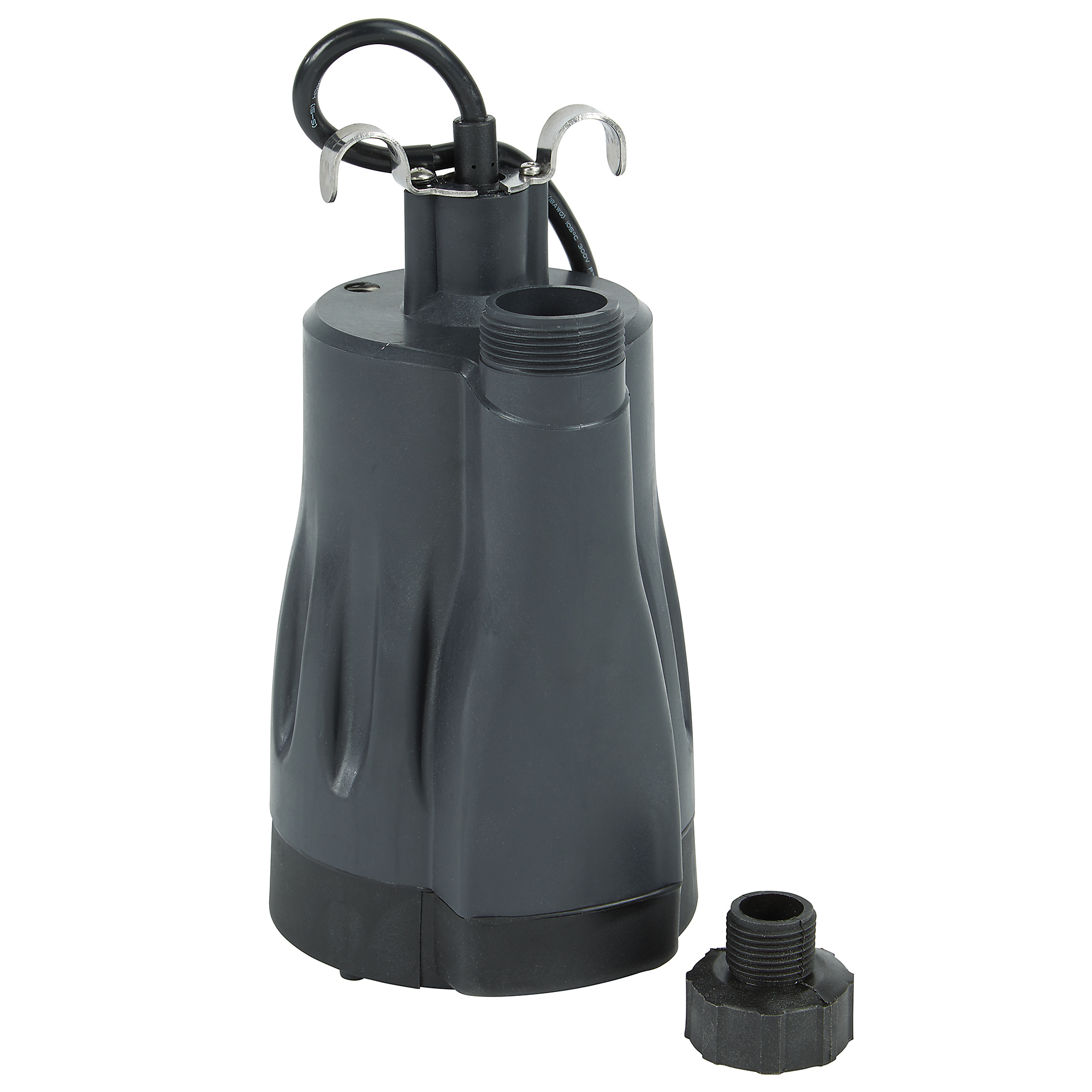

Ironton 1/3 HP Submersible Utility Pump, Max. Flow 2220 GPH, 1.25in. Port

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Available nowStore Pickup:
Not Available
- No-rust material
- Designed for 24-hour operation
- SUS316 shaft can endure erosion
- PIN cable prevents water leak-in
- Ultra-low residual water with 3mm low bottom screen
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) 1/3 HP submersible utility pump
Features + Benefits
- No-rust material
- Designed for 24-hour operation
- SUS316 shaft can endure erosion
- PIN cable prevents water leak-in
- Ultra-low residual water with 3mm low bottom screen
Key Specs
| Attribute | Specification |
|---|---|
item# | 5849265 |
Brand | Ironton |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 8.27 LB |
Max. Flow | 2,220 GPH |
Port Size | 1.25 in |
Volts | 115 |
Solar Powered | No |
Phase | Single-phase |
Max. Head Pressure | 25 ft |
Watts | 250 |
Amps | 3.3 |
Vertical Lift | 25 ft |
| Attribute | Specification |
|---|---|
Solids Capacity | 0.13 in |
Power Cord Length | 115 in |
Discharge Flow @ 0 Ft. | 2,250 GPH |
Discharge Flow @ 10 Ft. | 1,550 GPH |
Min. Working Temperature | 33 °F |
Max. Working Temperature | 104 °F |
Housing Material | Thermoplastic |
Min. Sump Basin Diameter | 6.5 in |
Max. PSI | 10 |
Horsepower | 0.33 |
Product Weight | 7.7200 lb |
Dimensions L x W x H (in.) | 6.11 x 6.11 x 9.45 in |
Reviews
Questions & Answers
Questions
-
· 9 months ago
What is the pump dimensions?
1 answer-
IrontonExpert12· 9 months ago
Helpful?
-
-
· 10 months ago
is the fitting to the right in the picture a reducer to garden hose size or not
1 answer-
IrontonExpert12· 10 months ago
The pictured fitting is a 3/4" garden hose adapter.
Helpful?
-
-
· a year ago
Does this model have auto on off
1 answer-
IrontonExpert12· a year ago
This pump must be plugged in and unplugged by the user to turn on and off.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
Warranty
Manufacturer's Warranty
1 year limited warranty
Compare with Most Popular in Submersible Utility Pumps
See All Submersible Utility Pumps
See All Ironton Submersible Utility Pumps
Currently Viewing This Product
$97.99Shipping:
Available nowStore Pickup:
Not Available
Item # 56708
$693.00Shipping:
Free shipping (lower 48 states) - Factory shippedStore Pickup:
Not available - online only
- $569.99
Shipping:
Factory shippedStore Pickup:
Not available - online only
- $229.99
Shipping:
Factory shippedStore Pickup:
Not available - online only
Specifications
2,220 GPH
3,660 GPH
3,180 GPH
6,120 GPH
1.25 in
-
-
-
115
110
-
120
No
-
-
No
Single-phase
-
-
Single-phase
25 ft
-
-
-
250
-
-
-
3.3
9.6
-
10
25 ft
-
-
30 ft
0.13 in
-
-
0.5 in
115 in
384 in
-
120 in
2,250 GPH
-
-
94 GPH
1,550 GPH
-
-
94 GPH
33 °F
-
-
33 °F
104 °F
-
-
110 °F
Thermoplastic
Diecast Aluminum
Stainless Steel
Multiple
6.5 in
-
-
12 in
10
26.83
-
-
0.33
1
-
0.5
7.7200 lb
49.0000 lb
-
25.2000 lb
6.11 x 6.11 x 9.45 in
18.0 x 14.0 x 18.0 in
-
9.5 x 10.5 x 13.7 in
-
-
-
2 in
