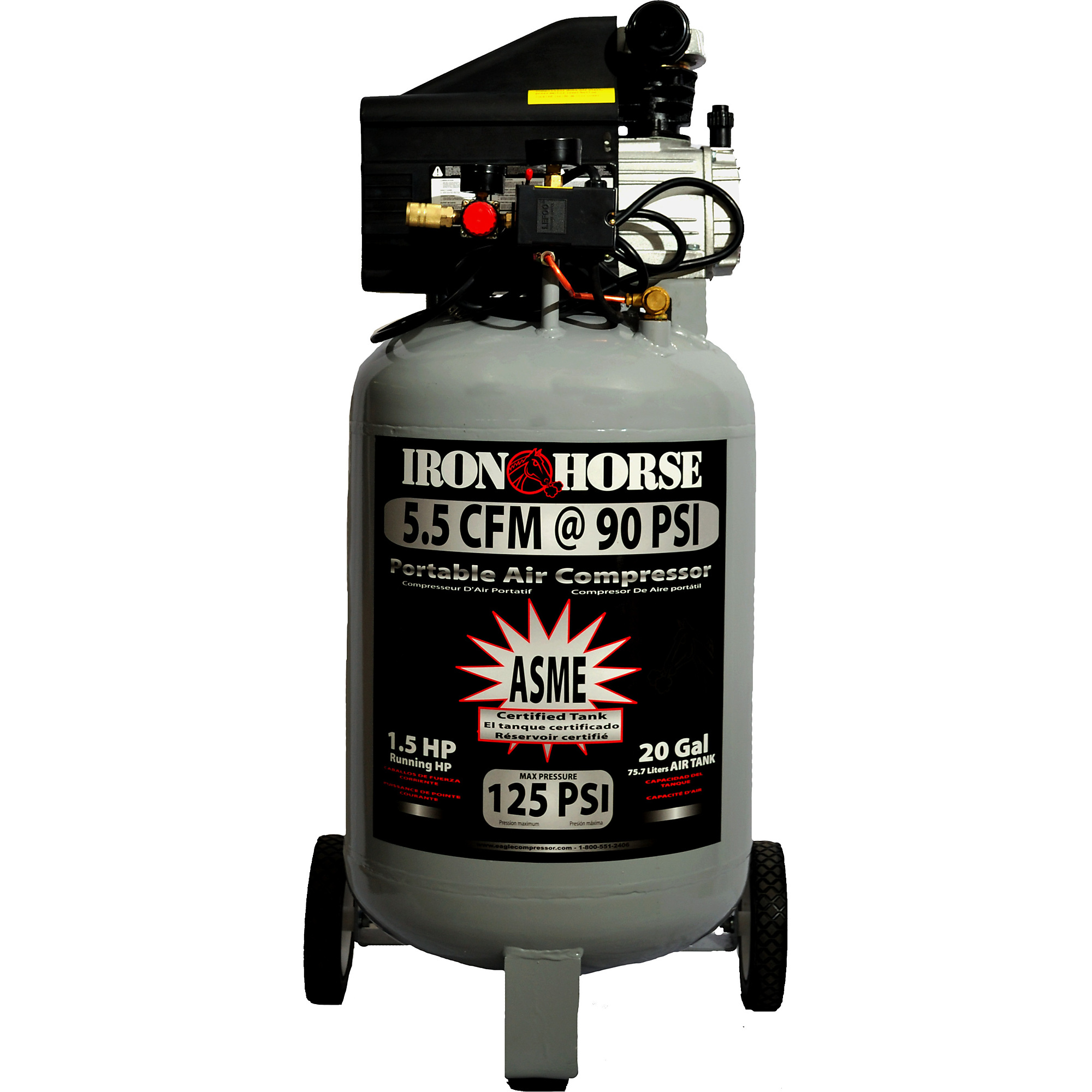

Iron Horse, Space Saving 20 Gallon Air Compressor, Horsepower 1.5 HP, Air Tank Size 20 Gal, Volts 110 Volt, Model# IHVP1520L

Item# 6040185
Iron Horse, Space Saving 20 Gallon Air Compressor, Horsepower 1.5 HP, Air Tank Size 20 Gal, Volts 110 Volt, Model# IHVP1520L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Iron Horse, Space Saving 20 Gallon Air Compressor, Horsepower 1.5 HP, Air Tank Size 20 Gal, Volts 110 Volt, Model# IHVP1520L

Click or Tap image to Zoom

$484.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 20 Gallon Portable Tank
  • 110 volt prewired plug & play!
  • Oil lube Design
  • Operates Impact & Mechanic Tools
  • Easy View Oil Site Guage

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Iron Horse 20 gallon oil lube compressor is ideal for home use with it's vertical tank orientation and space saving design. The large tank allows it to be flexible for mutlpile uses. The unit pumps enough air to use basic contractor and mechanic pnuematic tools and is ideal for task like airing up tires, balls and large floats.

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 20 Gallon Portable Tank
  • 110 volt prewired plug & play!
  • Oil lube Design
  • Operates Impact & Mechanic Tools
  • Easy View Oil Site Guage
  • Operates 2-3 Pneumatic Nail Guns
  • Vertical Space Saving Design
  • Inflates, Tires, Balls, & Large Floats

Key Specs

AttributeSpecification

item#

6040185

Brand

Iron Horse

Manufacturer's Warranty

1 year limited warranty

Ship Weight

99.0 LB

Horsepower

1.5 HP

Air Tank Size

20 Gal

Volts

110 Volt

CFM at 90 PSI

5.6

Max. PSI

125

Stage

1

Air Outlets (qty.)

1

Amps

15

Duty Cycle

0.5 %

Fuel Capacity

0 Gal

Motor RPM

3,450

Working Pressure

95-125 PSI
AttributeSpecification

Motor Phase

1

Pump Material

Cast Iron

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Tank Orientation

Vertical

Engine Model

Not Applicable

Product Weight

105.0000 lb

Dimensions L x W x H (in.)

21.0 x 21.0 x 41.0 in

Reviews

Questions & Answers

Questions

  1. How loud is it. (Db)

    1 answer

    1. The air compressor is rated at 65 decibels (DB).

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
