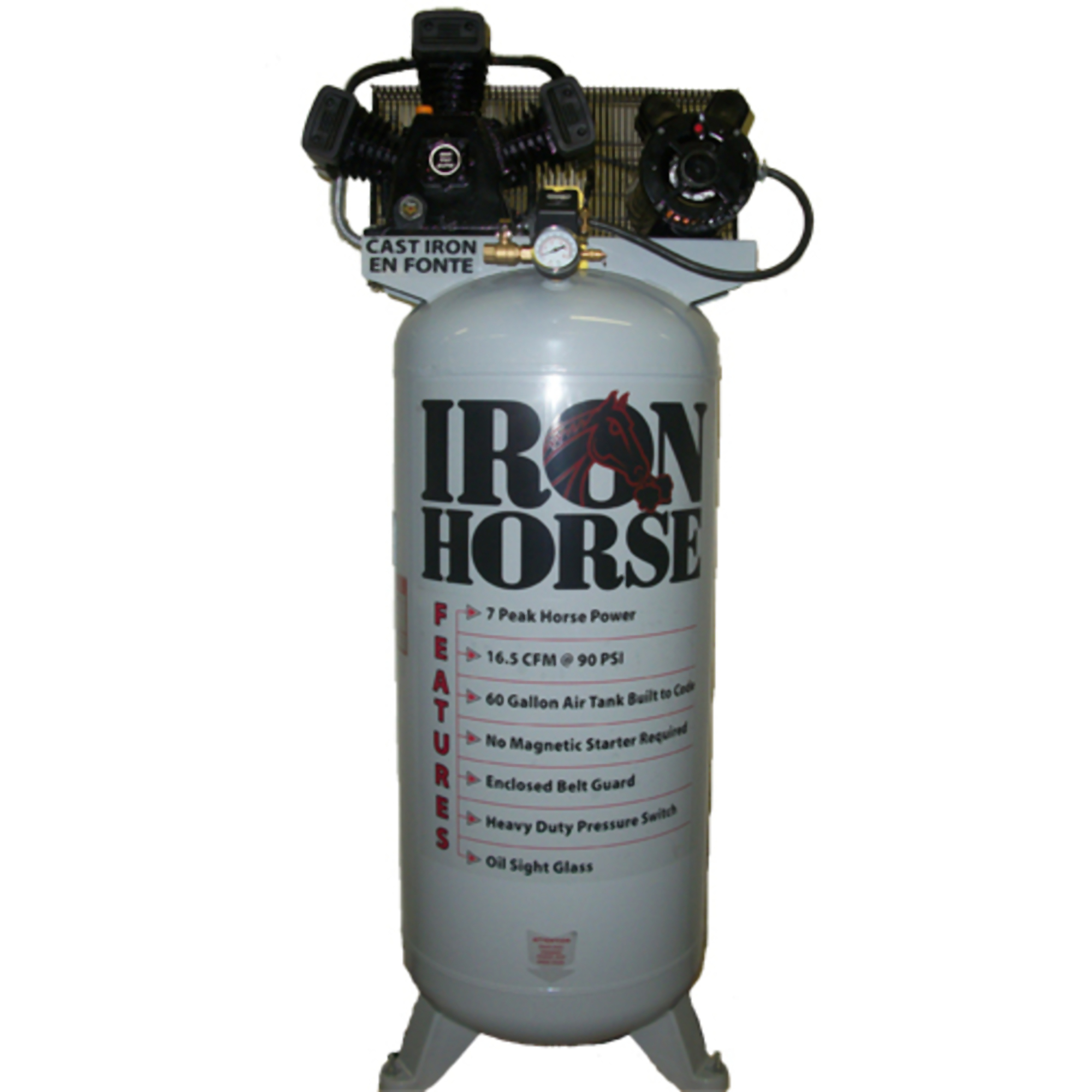

Iron Horse, 60 Gallon Stationary Air Compressor, Horsepower 7 HP, Air Tank Size 60 Gal, Volts 220 Volt, Model# IHD7160V1

Item# 6039942
Iron Horse, 60 Gallon Stationary Air Compressor, Horsepower 7 HP, Air Tank Size 60 Gal, Volts 220 Volt, Model# IHD7160V1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Iron Horse, 60 Gallon Stationary Air Compressor, Horsepower 7 HP, Air Tank Size 60 Gal, Volts 220 Volt, Model# IHD7160V1

Click or Tap image to Zoom

$1499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy Duty Three Cylinder Cast Iron Compressor Pump
  • 16.5 CFMs @ 90 PSI
  • Extra Large Easy Read Pressure Gauge
  • 1/2" Ball Valve Air Outlet Included
  • "V" Style Pump Improves Cooling & Minimizes Vibration

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Iron Horse 60 gallon shop compressor is paired with a heavy duty v-style cast iron compressor head that produces 16.5 CFMs of air with a max pressure of 135 PSI. The powerful 5hp belt driven unit is loaded with features that rise above the competitors. The convenient oil site glass allows you to keep a check on oil levels at a glance. The government certified ASME 60 gallon tank safety pressure release gives you the extra assurance for you to know you have the best quality avaialble and your safety is feature #1. The large mounting saddle makes room for the V style pump,which minimizes vibration and allows the unit to operate at lower RPMs generating less friction and less heat which adds up to extended life. The Iron Horse unit has a full metal belt guard (no plastic parts on this model!) that meets or exceeds UL OSHA requirements. Equipped with a heavy duty ON/OFF pressure switch, 1/2in. ball valve outlet, dual air filter system and manual tank drain, this unit is full of bonus features at a value price!

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual
Play Item Video

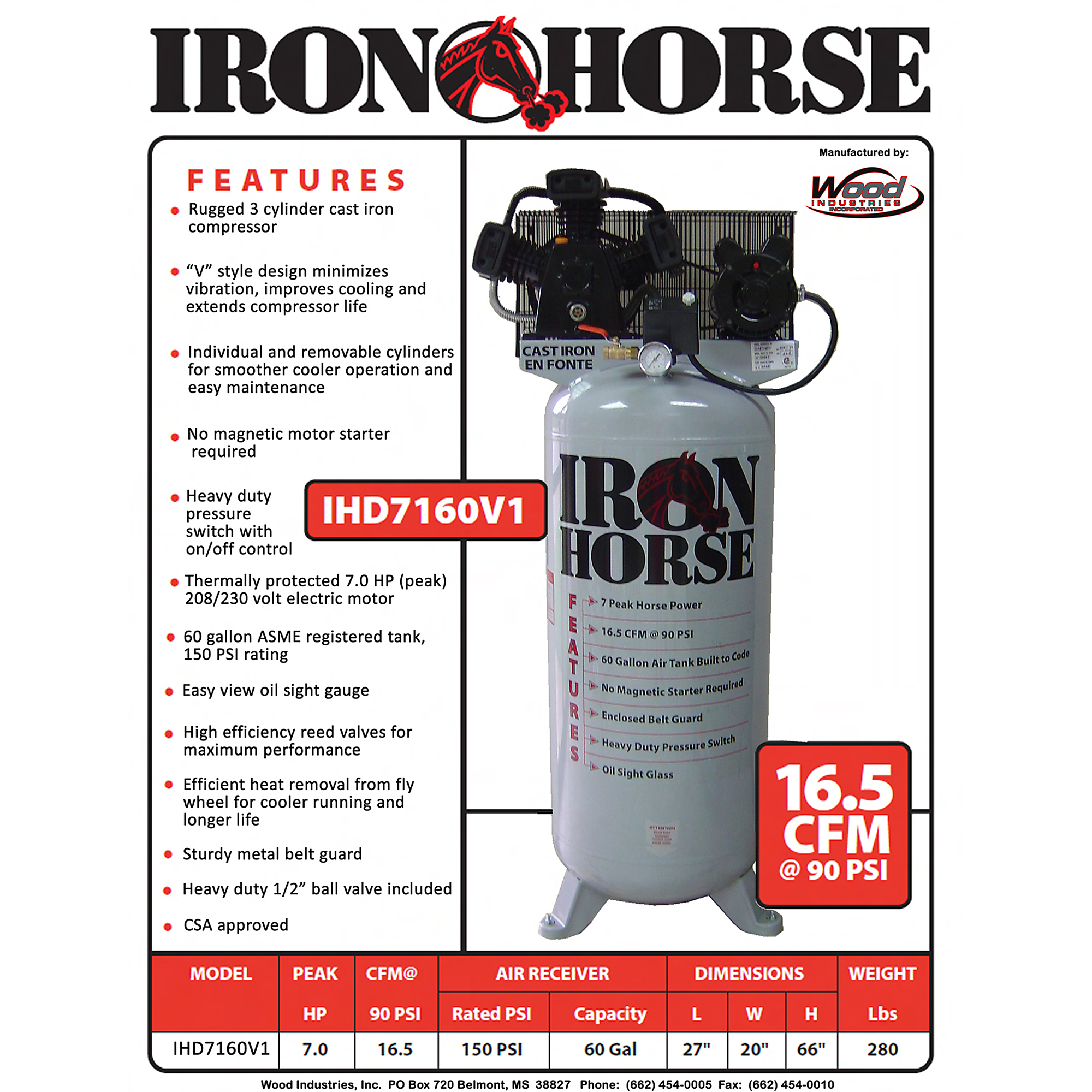

Features + Benefits

  • Heavy Duty Three Cylinder Cast Iron Compressor Pump
  • 16.5 CFMs @ 90 PSI
  • Extra Large Easy Read Pressure Gauge
  • 1/2" Ball Valve Air Outlet Included
  • "V" Style Pump Improves Cooling & Minimizes Vibration
  • Heavy Duty Metal Belt Guard
  • Use Multiple Tools at Once
  • 150 PSI MAX Pressure
  • Vertical Space Saving Design
  • Large 60 Gallon Tanks Allows for Longer Run Times Between Cycles
  • Assembled in the USA!

Key Specs

AttributeSpecification

item#

6039942

Brand

Iron Horse

Manufacturer's Warranty

1 year limited warranty

Ship Weight

310.0 LB

Air Tank Size

60 Gal

Volts

220 Volt

CFM at 90 PSI

16.5

Motor Phase

1

Stage

1

Tank Orientation

Vertical

Horsepower

7 HP

Max. PSI

135

Air Outlets (qty.)

1

Amps

22

Duty Cycle

0.5 %

Fuel Capacity

0 Gal
AttributeSpecification

Motor RPM

3,400

Working Pressure

95-125 PSI

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Engine Model

Not Applicable

Product Weight

280.0000 lb

Dimensions L x W x H (in.)

27.0 x 20.0 x 66.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
