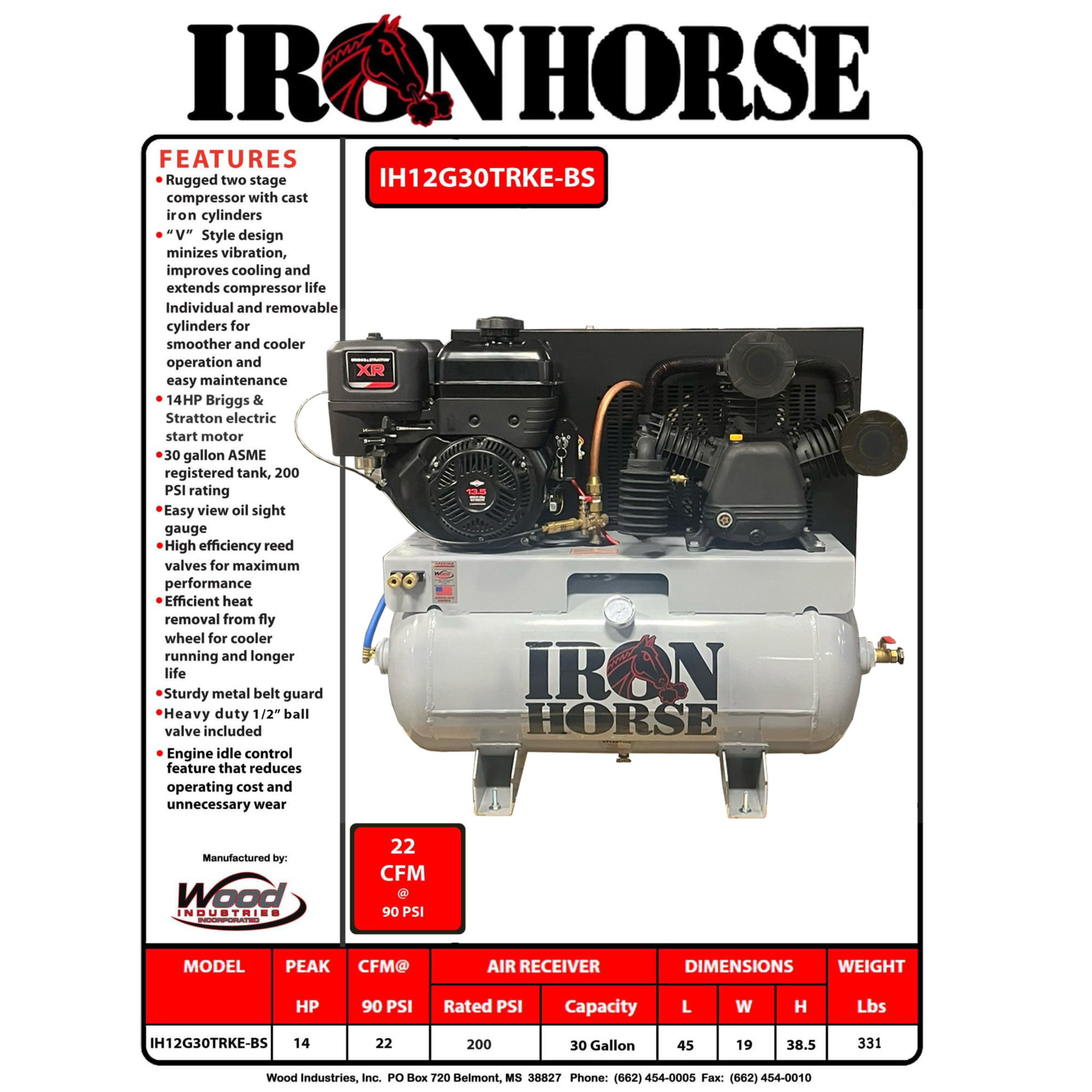

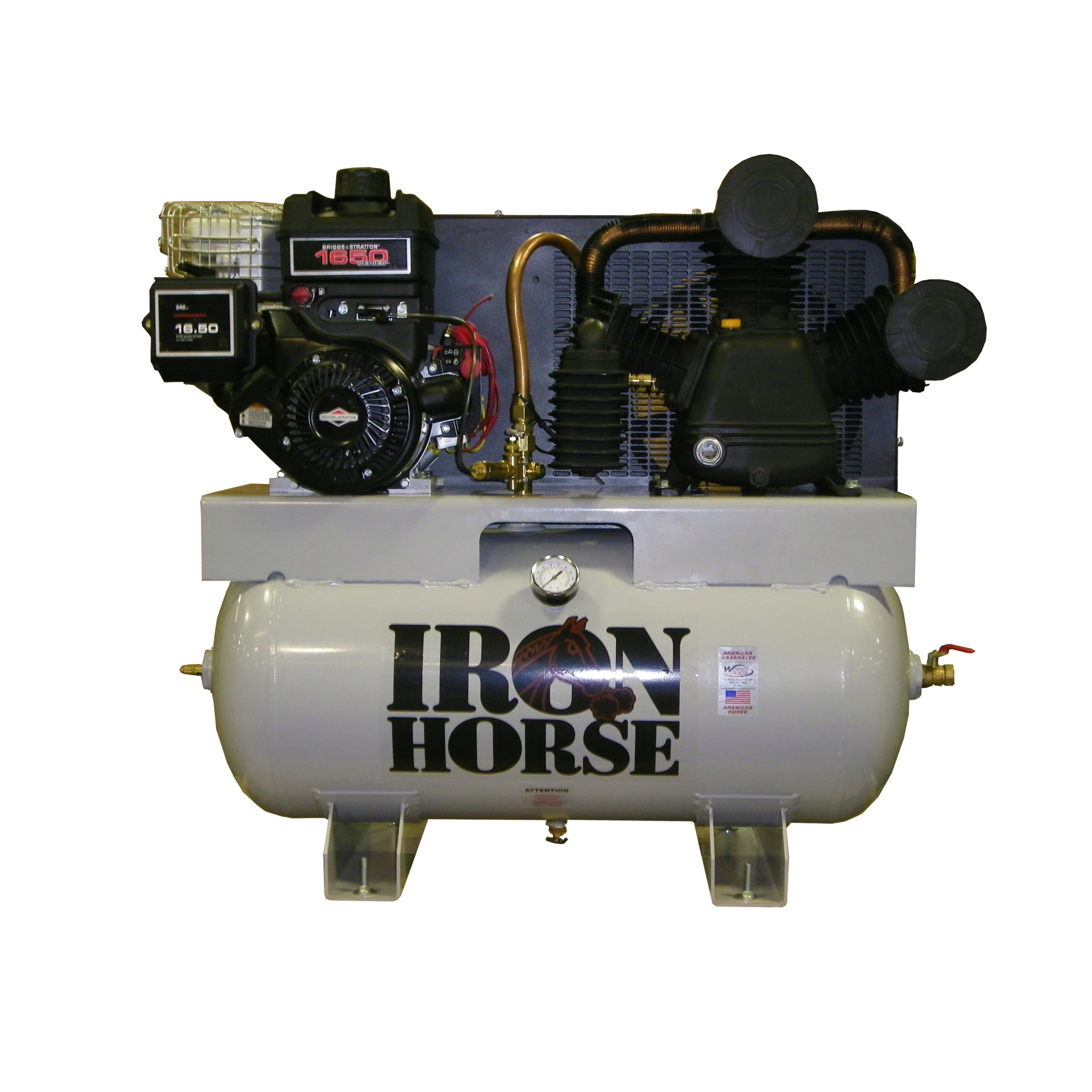

Iron Horse, 30 Gallon Truck Mount Compressor, Horsepower 14 HP, Air Tank Size 30 Gal, Model# IH12G30TRKE-BS

Item# 6098045
Iron Horse, 30 Gallon Truck Mount Compressor, Horsepower 14 HP, Air Tank Size 30 Gal, Model# IH12G30TRKE-BS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Iron Horse, 30 Gallon Truck Mount Compressor, Horsepower 14 HP, Air Tank Size 30 Gal, Model# IH12G30TRKE-BS

Click or Tap image to Zoom

$2699.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 14h hp Briggs & Stratton Electric Start Engine
  • "V" style pump improves cooling and extends pump life
  • Dual air filter system with pre cleaner filter
  • Two Stage
  • 175 PSI

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Iron Horse service truck air compressor is powered with the reliable 14hp electric start, OHV Briggs Stratton Engine. This unit is specifically designed with a 30 gallon ASME Govenrment certified tank that fits perfectly into the bed of a service truck. The belt drive 3 cylinder compressor is made up of 100% cast iron material, with a special "V" design that promotes better cooling and extends pump life. All while operating with two stage efficiency and a max pressure of 175 PSI. The IH12G30TRKE-BS model is desinged and assembled in the USA and is built for years of service and operation.

What's Included

    (1) AIR COMPRESSOR ONLY - DOES NOT INCLUDE BATTERY OR BATTERY CABLE KIT

Downloads

Product Manual

Features + Benefits

  • 14h hp Briggs & Stratton Electric Start Engine
  • "V" style pump improves cooling and extends pump life
  • Dual air filter system with pre cleaner filter
  • Two Stage
  • 175 PSI
  • 100% Cast Iron Pump
  • 22 CFMs
  • Dual quick Connects
  • 1/2" Ball Valve
  • Easy View Oil Gauge
  • Automatic Idle Control
  • Powers Multiple Tools at once
  • Individual and Removealbe cylinders for easy service

Key Specs

AttributeSpecification

item#

6098045

Brand

Iron Horse

Manufacturer's Warranty

1 year limited warranty

Ship Weight

440.0 LB

Horsepower

14 HP

Air Tank Size

30 Gal

Engine Brand

Briggs & Stratton

CFM at 90 PSI

22

Stage

2

Air Outlets (qty.)

3

Duty Cycle

100 %

Fuel Capacity

1.8 Gal

Motor RPM

3,600

Working Pressure

175 PSI

Engine Displacement

420 cc
AttributeSpecification

Engine Start Type

Electric and Pull

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

Multiple in. NPT

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

Yes

Air Dryer

None

Tank Orientation

Horizontal

Product Weight

331.0000 lb

Dimensions L x W x H (in.)

45.0 x 19.0 x 38.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
