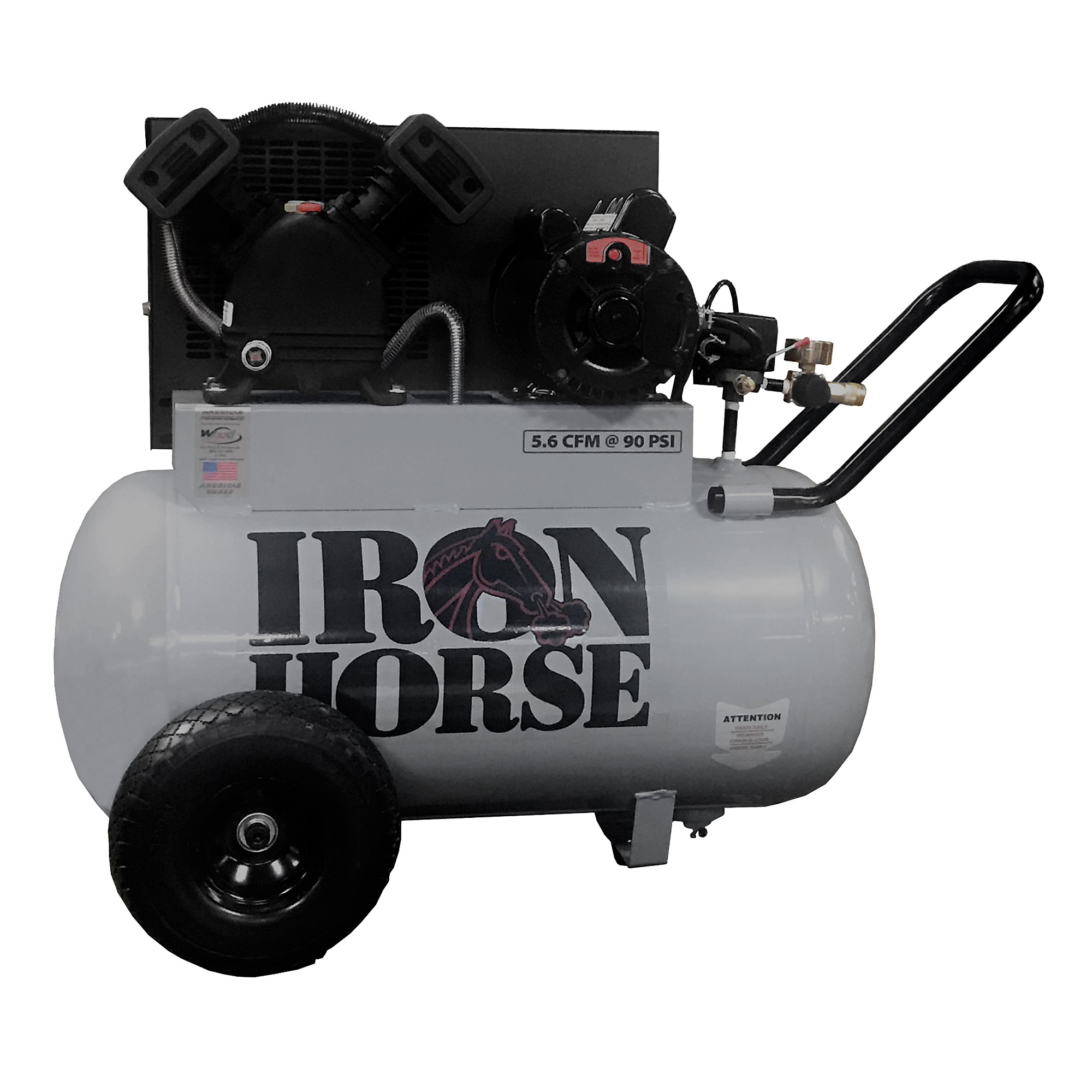

Iron Horse, 20 Gallon Horizontal Belt Drive Compressor, Horsepower 2 HP, Air Tank Size 20 Gal, Volts 110 or 220 Volt, Model# IHP5120H1-US

Item# 6039862
Iron Horse, 20 Gallon Horizontal Belt Drive Compressor, Horsepower 2 HP, Air Tank Size 20 Gal, Volts 110 or 220 Volt, Model# IHP5120H1-US

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Iron Horse, 20 Gallon Horizontal Belt Drive Compressor, Horsepower 2 HP, Air Tank Size 20 Gal, Volts 110 or 220 Volt, Model# IHP5120H1-US

Click or Tap image to Zoom

$979.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • V Style design improves cooling & extends compressor life
  • Portable Design with oversized flat free tires makes moving around the rough terrian of a job site an effortless task
  • 20 Gallon Portable Tank
  • Metal Belt Guard
  • Dual Volt, 110 or 220

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Multi voltage (110 220 volt) Iron Horse 20 gallon portable air compressor is equipped with a heavy duty V-twin, cast iron compressor head that pumps out 5.6 CFMs at 90 PSI. The flexible votage option allows the unit the unit transition from job site to home shop etc accomodating 110 or 220 volt power for whichever is availble. The 10in. all terrian flat free tires allows the unit to be moved seemlessly from place to place. An ideal compressor option for home use or on the job site for the contractor.

What's Included

    (1) AIR COMPRESSOR
Play Item Video

Features + Benefits

  • V Style design improves cooling & extends compressor life
  • Portable Design with oversized flat free tires makes moving around the rough terrian of a job site an effortless task
  • 20 Gallon Portable Tank
  • Metal Belt Guard
  • Dual Volt, 110 or 220
  • Operates Impact & Mechanic Tools
  • Easy View Oil Site Guage
  • Operates 2-3 Pneumatic Nail Guns
  • Dual Air Filter System
  • Assembled in the USA!
  • Easy View Oil Site Guage

Key Specs

AttributeSpecification

item#

6039862

Brand

Iron Horse

Manufacturer's Warranty

1 year limited warranty

Ship Weight

205.0 LB

Horsepower

2 HP

Air Tank Size

20 Gal

Volts

110 or 220 Volt

CFM at 90 PSI

5.6

Max. PSI

125

Stage

1

Air Outlets (qty.)

1

Amps

7.5

Duty Cycle

0.5 %

Fuel Capacity

0 Gal

Motor RPM

3,450

Working Pressure

95-125 PSI
AttributeSpecification

Motor Phase

1

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Tank Orientation

Horizontal

Engine Model

Not Applicable

Product Weight

120.0000 lb

Dimensions L x W x H (in.)

35.0 x 15.0 x 28.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
