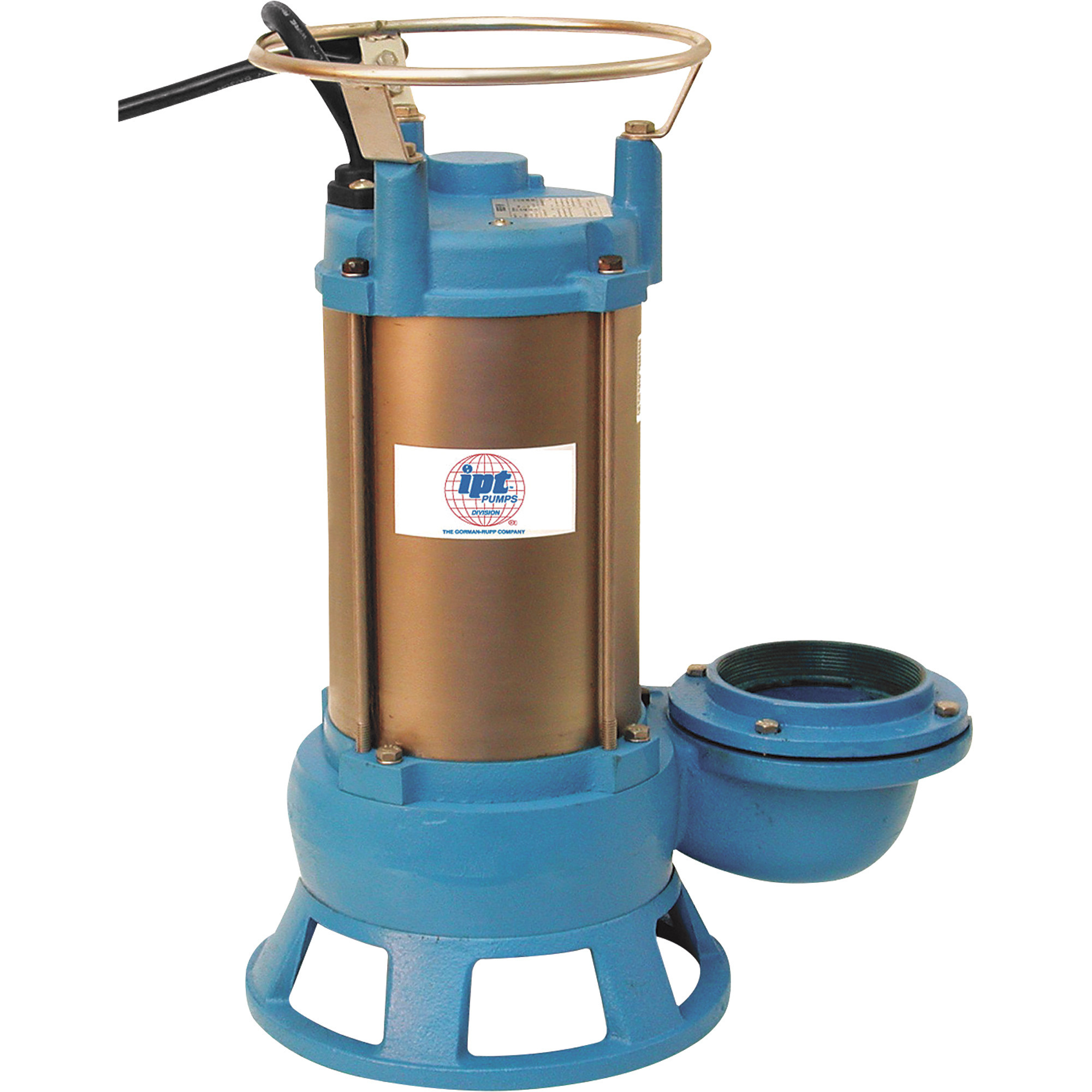

IPT Centrifugal Submersible Shredder Sewage Water Pump, 12,600 GPH, 2 HP, 3in. Ports, Model# 5763-IPT-95

Item# 105762
"IPT Centrifugal Submersible Shredder Sewage Water Pump, 12,600 GPH, 2 HP, 3in. Ports, Model# 5763-IPT-95"
IPT Centrifugal Submersible Shredder Sewage Water Pump, 12,600 GPH, 2 HP, 3in. Ports, Model# 5763-IPT-95

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IPT Centrifugal Submersible Shredder Sewage Water Pump, 12,600 GPH, 2 HP, 3in. Ports, Model# 5763-IPT-95

Click or Tap image to Zoom

$1579.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Motor is single phase, rated continuous duty
  • Thermal overload protection
  • Cast-iron construction
  • Includes double mechanical seal with carbide lower seal
  • Carry handle

See full description

Complete Your Solution

  • IPT Centrifugal Submersible Shredder Sewage Water Pump, 12,600 GPH, 2 HP, 3in. Ports, Model# 5763-IPT-95
  • JGB Enterprises Water Pump Suction Hose, 3in. x 15ft., Model# A007-0489-1615
  • JGB Enterprises Water Pump Discharge Hose, 3in. x 50ft., Model# A008-0486-1650
  • Female Short Shank Water Hose Gasket Pack, 3in.
Price for all four:

$1881.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

IPT Centrifugal Submersible Shredder Sewage Water Pump features an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through sludge type waste. Applications include sewage pumping stations, septic tanks, dirty water drainage, flood and emergency.

What's Included

    (1) Centrifugal submersible shredder sewage water pump

Downloads

Product Manual

Features + Benefits

  • Motor is single phase, rated continuous duty
  • Thermal overload protection
  • Cast-iron construction
  • Includes double mechanical seal with carbide lower seal
  • Carry handle
  • Suction screen

Key Specs

AttributeSpecification

item#

105762

Brand

IPT Pumps

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

85.0 LB

Max. Flow

12,600 GPH

Port Size

3 in

Volts

230
AttributeSpecification

Amps

12

Power Cord Length

384 in

Housing Material

Stainless Steel

Max. PSI

18

Horsepower

2

Product Weight

lb

Dimensions L x W x H (in.)

14.0 x 10.5 x 22.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Do you sell check valves for this pump?

    1. I haven't seen NT with check valves for this pump but you could certainly add one easy enough. Even if you were using the blue discharge line you could get a 2" check valve with a male/female end and attach it, or get a slip on check vavle and make it male/female

      Helpful?

    2. If you are referring to a foot valve we do sell a 3" leakproof brass foot valve #10840.

      Helpful?

  2. Can you add a float switch to this pump?

    1 answer

    1. You are able to add a float switch to this pump. We recommend consulting a licensed professional for installation.

      Helpful?

  3. What is the discharge head of this pump?

    1 answer

    1. The max discharge head is 42 feet vertically.

      Helpful?

  4. What is the amp rating of this pump/motor?

    How many amperes current does this draw???
    How many pounds of pressure does this output
    assuming clear water?

    1 answer

    1. The full load amp draw is 12 amps, and the maximum PSI is 18.

      Helpful?

  5. Is this pump single phase or two phase?

    1 answer

    1. This shredder pump is 230 volt single phase.

      Helpful?
