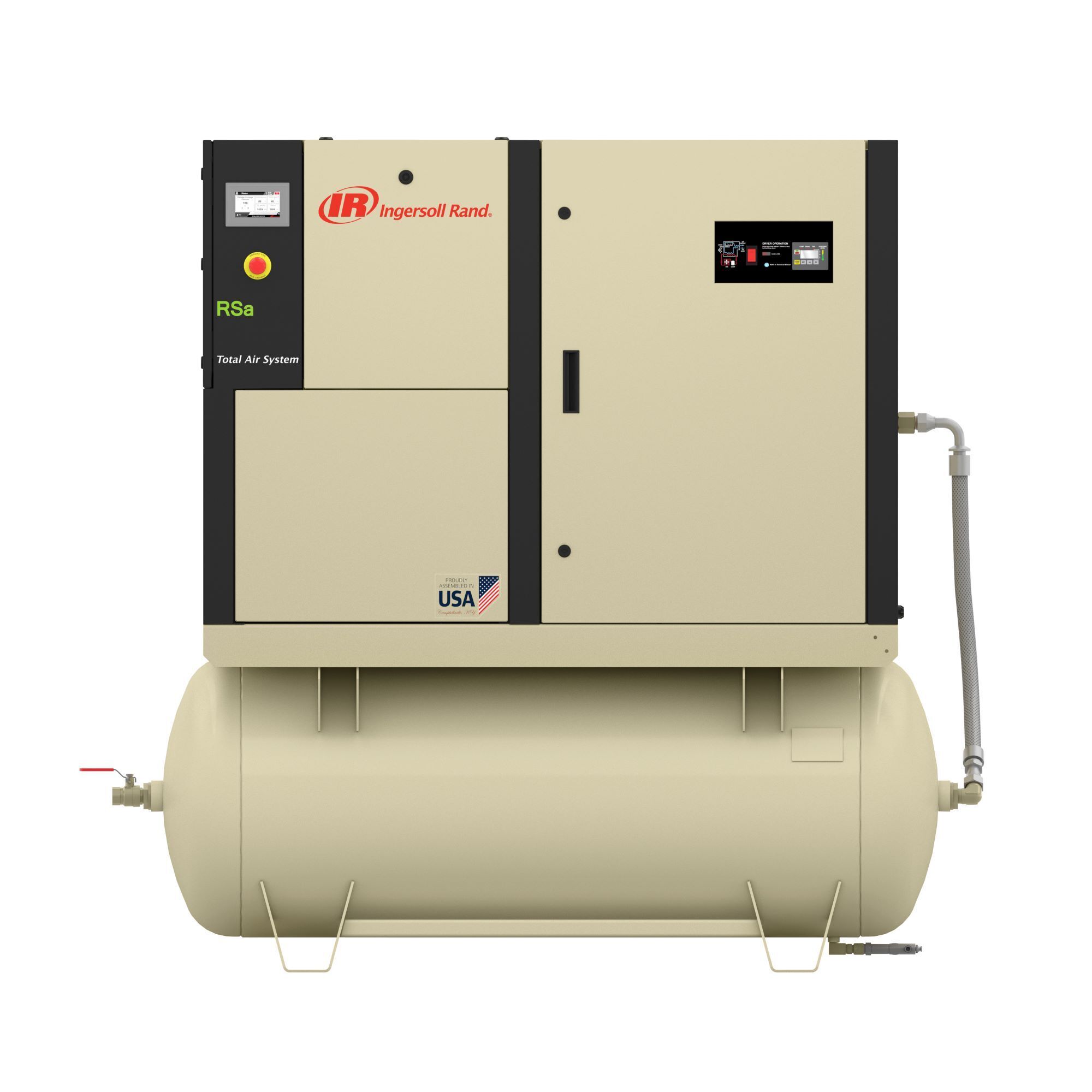

Ingersoll Rand, RSa18i-A138-TAS - 208/3/60 - 120 GAL., Horsepower 25 HP, Air Tank Size 120 Gal, Volts 208 Part# 47823582001

Item# 6349721
Ingersoll Rand, RSa18i-A138-TAS - 208/3/60 - 120 GAL., Horsepower 25 HP, Air Tank Size 120 Gal, Volts 208 Part# 47823582001

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand, RSa18i-A138-TAS - 208/3/60 - 120 GAL., Horsepower 25 HP, Air Tank Size 120 Gal, Volts 208 Part# 47823582001

Click or Tap image to Zoom

$25,979.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Product Specifications: Voltage - 200/208 V | Phase - 3 | Power Frequency - 60 Hz | Max Pressure (psig) - 138 | Nominal Power - 25 HP | Tank Size - 120 GAL.
  • Total Air System (TAS) with integrated dryer and 3-in-1 heat exchanger provides clean, dry air in a single package that minimizes installation costs, reduces footprint and improves ISO air quality
  • Rugged, dependable airend delivers the efficiency and airflow you need
  • Leak-free technology provides a totally integrated, leak-free design, featuring PTFE stainless steel hoses
  • IE3/NEMA Premium® TEFC motor decreases energy demand

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Ingersoll Rand works to keep you ahead of your competition with Next Generation R-Series air compressors that lower total cost of ownership through industry leading performance and energy efficiency, leveraging reliable components to keep you up and running longer.

What's Included

    (1) Ingersoll Rand Rotary Screw Air Compressor with Total Air System

Downloads

Product Manual

Features + Benefits

  • Product Specifications: Voltage - 200/208 V | Phase - 3 | Power Frequency - 60 Hz | Max Pressure (psig) - 138 | Nominal Power - 25 HP | Tank Size - 120 GAL.
  • Total Air System (TAS) with integrated dryer and 3-in-1 heat exchanger provides clean, dry air in a single package that minimizes installation costs, reduces footprint and improves ISO air quality
  • Rugged, dependable airend delivers the efficiency and airflow you need
  • Leak-free technology provides a totally integrated, leak-free design, featuring PTFE stainless steel hoses
  • IE3/NEMA Premium® TEFC motor decreases energy demand
  • Components that provide reliable air for life, including a free-floating cooling system, two-stage air filters and elastomeric O-rings
  • Enhanced serviceability ensures increased uptime with two-stage filtration, easy maintenance and Ingersoll Rand extended life, premium grade coolant
  • XS-Series controllers deliver increased control functionality through an intuitive user interface, as well as remote access with any common, current web browser
  • Removable service access provides quick, easy access to all user-maintainable components
  • Screw Compressor, Oil Flooded Rotary, 1 Stage, Fixed, 25 HP, 78 A at 200/208 V 60 HZ, 91.7% Main Motor, 135 PSI Discharge

Key Specs

AttributeSpecification

item#

6349721

Brand

Ingersoll Rand

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1647.0 LB

Horsepower

25 HP
AttributeSpecification

Air Tank Size

120 Gal

Volts

208

Product Weight

1647.0000 lb

Dimensions L x W x H (in.)

72.3 x 34.3 x 71.7 in
