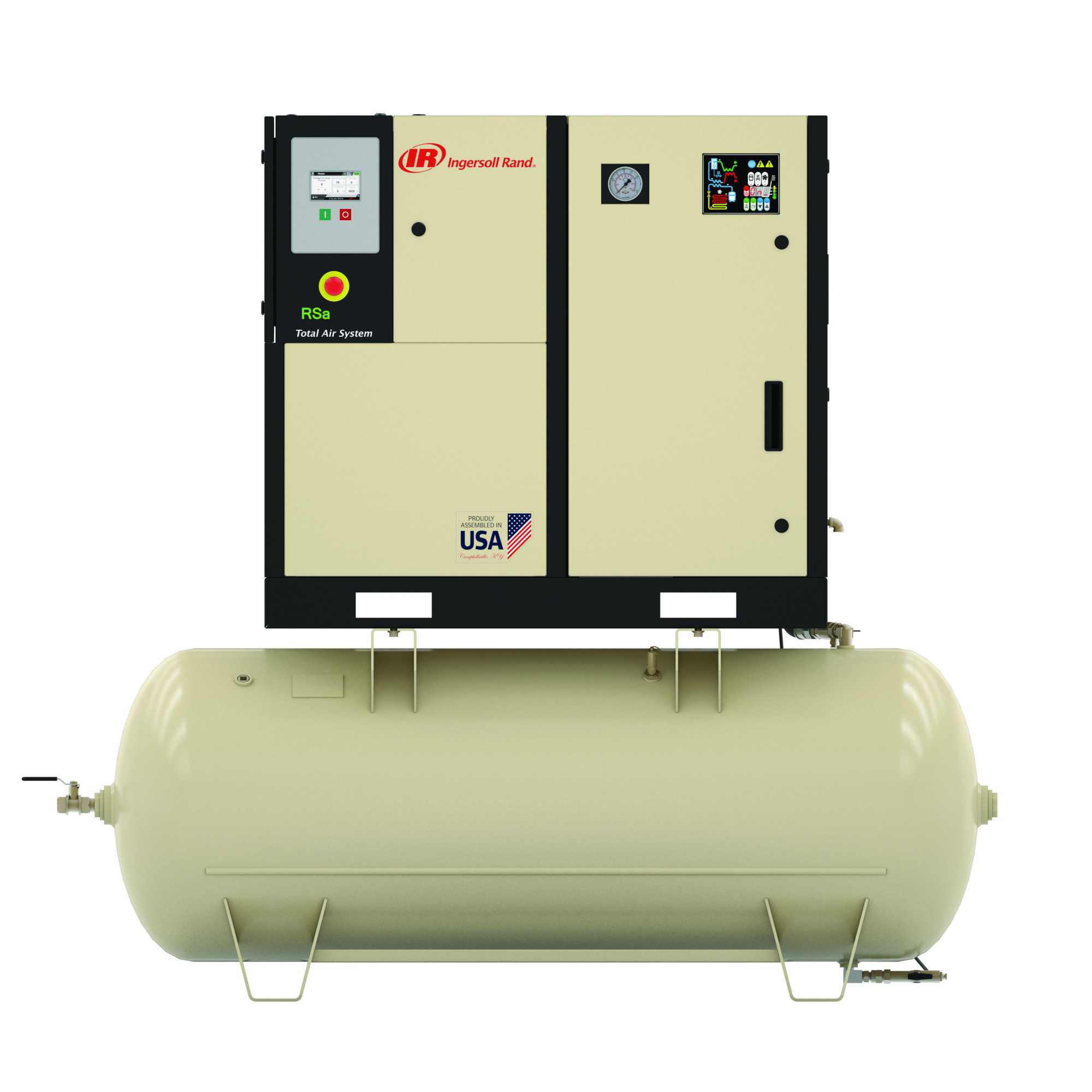

Ingersoll Rand Rotary Screw Compressor: PKG, RSA11IX-A118 TAS, 230-3-60, 120 GAL 15HP

Item# 7343874
New
Ingersoll Rand Rotary Screw Compressor: PKG, RSA11IX-A118 TAS, 230-3-60, 120 GAL 15HP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Rotary Screw Compressor: PKG, RSA11IX-A118 TAS, 230-3-60, 120 GAL 15HP

Click or Tap image to Zoom

$16,829.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 15 HP (11 kW) Rotary Screw Air Compressor with Integrated Dryer System
  • Increased Efficiency: Advanced airend design integrates key components to reduce leak paths and improve reliability
  • Leak-free Operation: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals
  • Improved Productivity: Ingersoll Rand’s touch screen controller includes an intuitive high-resolution display with web-enabled communication and control
  • Compact Footprint: Vertically-stacked drive components reduce footprint and allow for easy maintenance

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The R-Series 11 kW (15HP) delivers optimum performance and easier maintenance, all in a robust, innovative package. Improved innovations such as leak-free PTFE hoses with O-ring face seals, a next-generation airend, and a reduced number of components continues our legacy of reliability in a compact design that fits virtually any application environment. Total Air System (TAS) models incorporate a refrigerated dryer and filter system to further simplify installation protect your downstream processes and equipment.

What's Included

    (1) Rotary Screw Air Compressor

Features + Benefits

  • 15 HP (11 kW) Rotary Screw Air Compressor with Integrated Dryer System
  • Increased Efficiency: Advanced airend design integrates key components to reduce leak paths and improve reliability
  • Leak-free Operation: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals
  • Improved Productivity: Ingersoll Rand’s touch screen controller includes an intuitive high-resolution display with web-enabled communication and control
  • Compact Footprint: Vertically-stacked drive components reduce footprint and allow for easy maintenance
  • Enhanced Reliability: Sequential Cooling System significantly improves reliability and serviceability by providing cool clean ambient air to key components
  • Total Air System (TAS): Includes a refrigerated dryer and filter system. Clean, dry air in a single package that minimizes installation costs, space and features improved ISO air quality
  • 2.5 gal coolant capacity, 0.75" Connection Size, 3600 rpm motor, 45 full load amps, single stage, 56.8 max flow rate cfm, 125 max psi, 69db

Key Specs

AttributeSpecification

item#

7343874

Brand

Ingersoll Rand

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1093.49 LB

Horsepower

15 HP

Air Tank Size

120 Gal

Volts

230

Engine Brand

OEM

Max. PSI

125

Stage

1

Amps

45

Motor RPM

3,600

Motor Phase

3

Pump Drive

Direct
AttributeSpecification

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

56.8

Noise Level

69 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Air Dryer

Integral

Drain Type

Automatic

Tank Orientation

Horizontal

Product Weight

1093.4915 lb

Dimensions L x W x H (in.)

72.9528 x 28.3071 x 73.189 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
