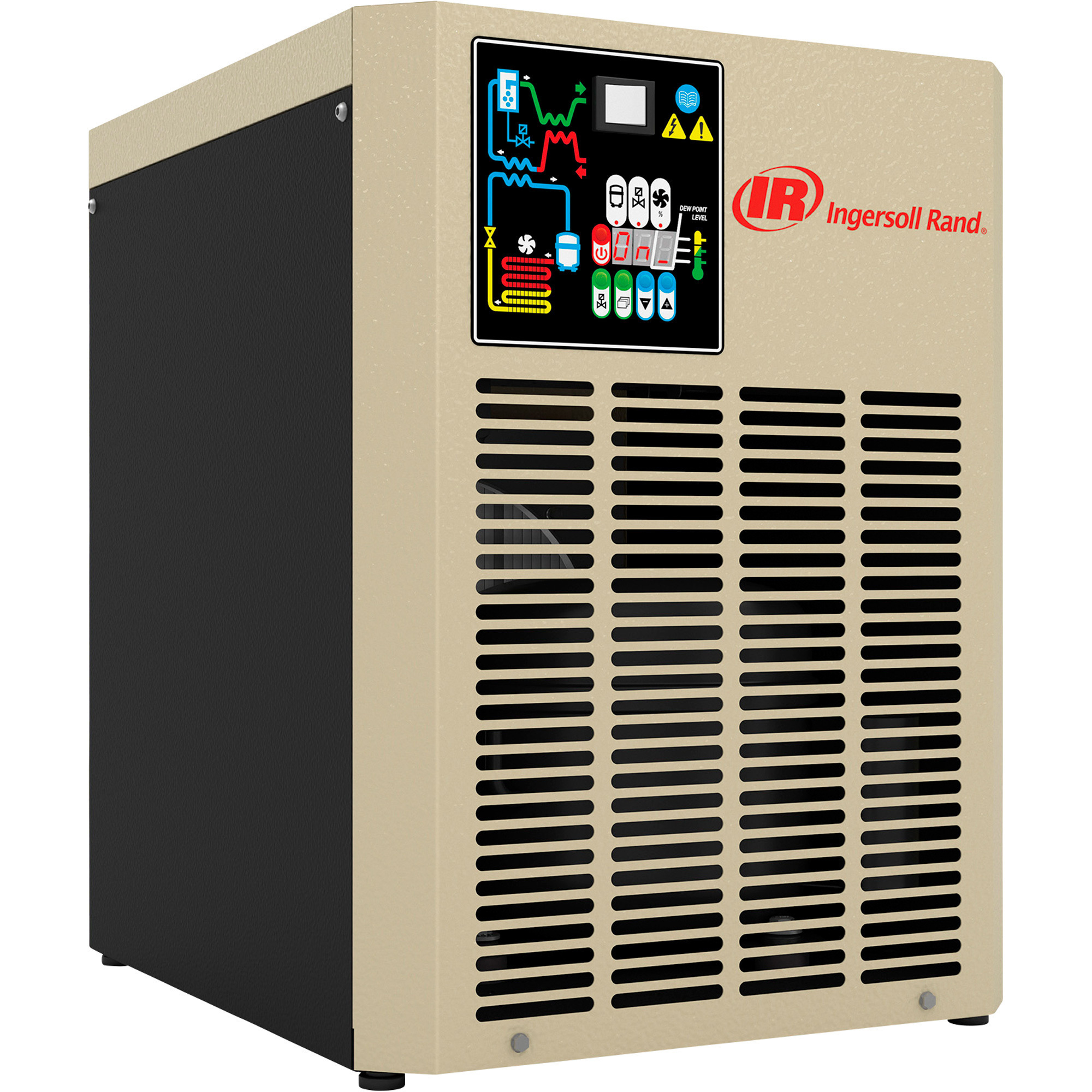

Ingersoll Rand Refrigerated Air Dryer, 64 CFM, 115 Volt, Model# D108IN

Item# 1592067
Ingersoll Rand Refrigerated Air Dryer, 64 CFM, 115 Volt, Model# D108IN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Refrigerated Air Dryer, 64 CFM, 115 Volt, Model# D108IN

Click or Tap image to Zoom

  • Energy-consumption reducing and reliability-improving technology
  • Corrosion-resistant heat exchangers reduce air flow restriction
  • Dryer provides more efficient throughput with less wasted energy
  • Microprocessor control with easy-to-use graphic interface lets you adjust and manage system parameters efficiently
  • Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity while ensuring a consistent dew point

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Make providing continuous dry air easy by piping the Ingersoll Rand self-contained refrigerated air dryer unit into your compressed air supply line.

What's Included

    (1) Air dryer

Features + Benefits

  • Energy-consumption reducing and reliability-improving technology
  • Corrosion-resistant heat exchangers reduce air flow restriction
  • Dryer provides more efficient throughput with less wasted energy
  • Microprocessor control with easy-to-use graphic interface lets you adjust and manage system parameters efficiently
  • Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity while ensuring a consistent dew point
  • Fully adjustable programmable electronic drain valve helps minimize air loss
  • Capacity: 64 CFM
  • Connection Air In/Out (NPT): 3/4in.
  • Operating Power (kW): 0.48
  • Max Air Inlet Temp 140F
  • Min - Max Ambient Temp 36F - 122F
  • Max Air Pressure 203 Psig
  • <50F ISO Class 6 Dew Point

Key Specs

AttributeSpecification

item#

1592067

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

120.0 LB

Max. Flow Rate

64 cfm

Volts

115

Air Inlet Size

3/4 in

Max. Temperature

140 °F
AttributeSpecification

Dew Point

50 °F

Watts

0.48

Filter Type

Coalescing

Adjustable

Yes

Environmentally Friendly

Yes

Product Weight

lb

Dimensions L x W x H (in.)

21.5 x 16.5 x 22.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Does this come with a power cord and if so, how long is it?

    1 answer

    1. The dryer includes a 5 foot 115 volt power cord with plug. This will plug into a standard 15 amp outlet.

      Helpful?

  2. is this dryer recommended to handle a 15 hp compressor

    1 answer

    1. The air dryer can be used with air compressors that are rated at up to a maximum 64 CFM. If your 15 HP compressor is rated at 64 CFM or less, you can use this air dryer.

      Helpful?

  3. Is this a non cycling or cycling dryer

    1 answer

    1. This is a non-cycling air dryer.

      Helpful?

  4. What is the temperature of the discharge air?

    Specifically, I need a less than room temperature supply of compressed air. Is the air discharged cold?

    1 answer

    1. This unit will try to keep the discharged air at about 50 degrees Fahrenheit. This requires that the inlet air is at or below 100 degrees Fahrenheit at 100 PSI. When inlet temperature is 100 degrees Fahrenheit, the ambient temperature stated above for discharge has a plus or minus of 5 percent.
      Inlet air temperature above 100 degrees Fahrenheit would produce a more variable discharge air temperature that could fluctuate more depending on the actual inlet air temperature .

      Helpful?

  5. Is this a class 4, 5 or 6 dryer?

    1 answer

    1. This is a Class 6 Refrigerated Air Dryer.

      Helpful?

  6. What is the max PSI input

    1 answer

    1. The maximum PSI is 203.

      Helpful?

  7. What if inlet temp is over 200f

    1 answer

    1. The unit is designed to accept a maximum inlet temperature of 140 degrees Fahrenheit. The unit may not function properly or do what it is designed to do at higher inlet temperatures. Possible damage to unit could also occur.

      Helpful?

  8. Is it a float drain, or a automatic timer drain?

    1 answer

    1. The Ingersoll Rand Air Dryer has an automatic electric drain.

      Helpful?

  9. What is the maximum inlet temperature?

    1 answer

    1. The maximum inlet temperature of the Ingersoll Rand Air Dryer is 140 degrees.

      Helpful?

  10. Does this unit take 115 or 220 for power .

    1 answer

    1. This Ingersoll Rand Refrigerated Air Dryer uses 115 volts.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
