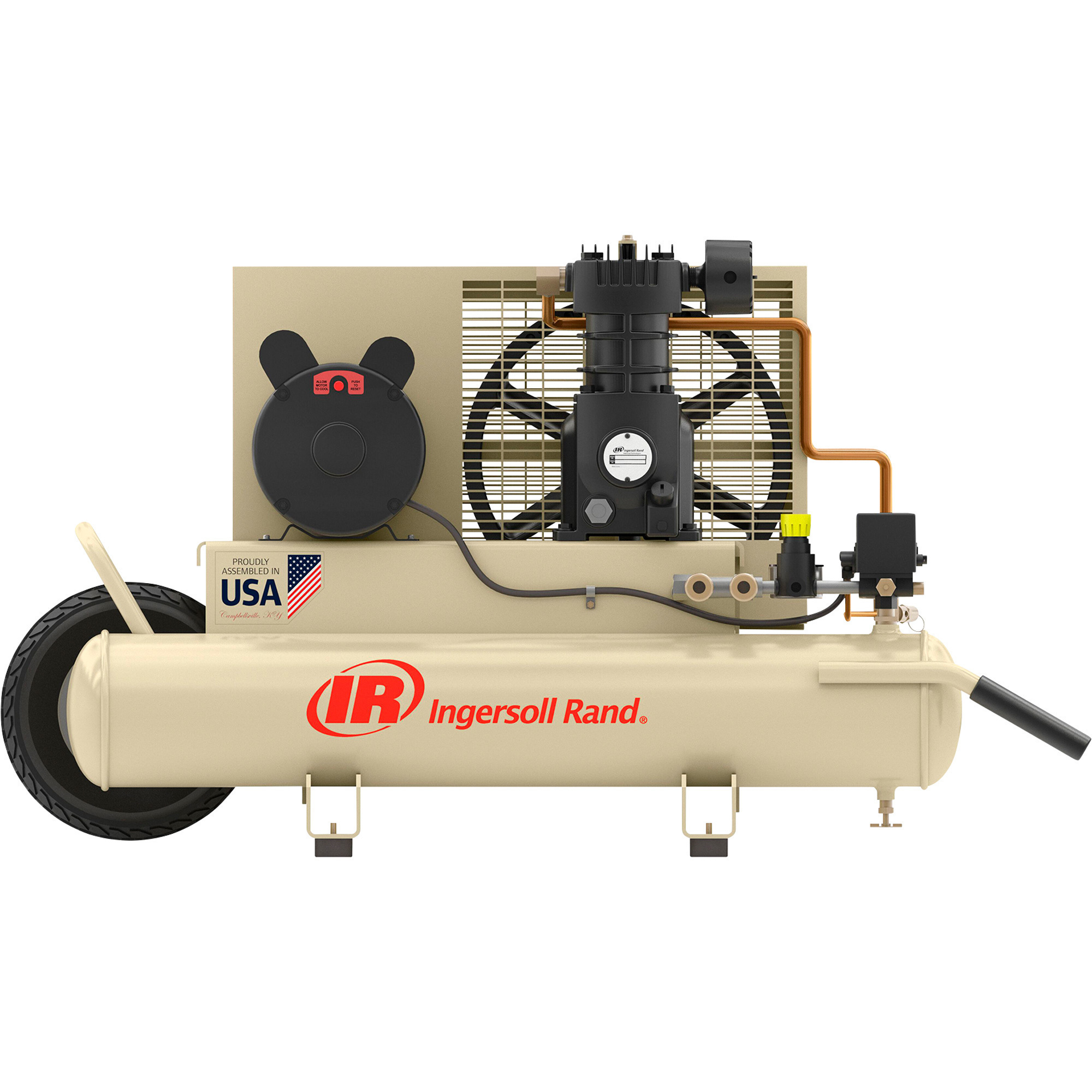

Ingersoll Rand Portable Electric Air Compressor, 3 HP, 230 Volt, 8 Gallon, Model# SS3J3-WB

Item# 1592059
"Ingersoll Rand Portable Electric Air Compressor, 3 HP, 230 Volt, 8 Gallon, Model# SS3J3-WB"
Ingersoll Rand Portable Electric Air Compressor, 3 HP, 230 Volt, 8 Gallon, Model# SS3J3-WB

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Portable Electric Air Compressor, 3 HP, 230 Volt, 8 Gallon, Model# SS3J3-WB

Click or Tap image to Zoom

$1230.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Single phase
  • 100% duty cycle
  • Engineered cast iron design
  • Splash lubricated
  • Ball bearing supported crank shaft

See full description

Complete Your Solution

  • Ingersoll Rand Portable Electric Air Compressor, 3 HP, 230 Volt, 8 Gallon, Model# SS3J3-WB
  • Ingersoll Rand, 2 Year Warranty Startup Kit - SS3 ELEC, Model# 47853635001-R
  • Ingersoll Rand T-30 Select Compressor Oil, 1 Liter Bottle
  • Ingersoll Rand Impact Socket Set, 8-Pc. Set, 3/8in. Drive, SAE, Model# SK3H8
Price for all four:

$1454.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand's legendary air compressors provide unsurpassed performance in the most demanding applications. The electric wheel barrow compressor provides the classic performance of Ingersoll Rand to the contractor with long-lasting durability and hard-working features. Warranty on the pump extends to 2 years with the purchase using of the 2yr Warranty Start Up Kit (Item# 6131968 - sold seperately).

What's Included

    (1) Compressor

Downloads

Additional Product Info

Features + Benefits

  • Single phase
  • 100% duty cycle
  • Engineered cast iron design
  • Splash lubricated
  • Ball bearing supported crank shaft
  • Balanced flywheel with safety cage
  • OSHA Compliant
  • Extend the pump arranty to 2yrs by purchasing & using the 2yr Warranty Start Up Kit (Item# 6131968 - sold seperately)

Key Specs

AttributeSpecification

item#

1592059

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

180.0 LB

Horsepower

3 HP

Air Tank Size

8 Gal

Volts

230

Max. PSI

135
AttributeSpecification

Amps

15

Duty Cycle

100 %

Pump Material

Cast Iron

Air Outlet Size

3/8 in. NPT

CFM at Max. PSI

11.3

Product Weight

lb

Dimensions L x W x H (in.)

43.0 x 18.0 x 25.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Is the 3HP, 220v motor on this compressor compatible to be run off a 12,000w, 12v to 220v inverter?

    1 answer

    1. The compressor could run off a 12,000 watt inverter with 220 volts.

      Helpful?

  2. Will this compressor run on a standard 15 amp circuit/plug?

    1 answer

    1. This compressor will operate at 14 to 15 Amps at full load.

      Helpful?

  3. What’s the cfm?

    1 answer

    1. The CFM is 11.3 at 135 PSI.

      Helpful?

  4. How loud is it?

    1 answer

    1. The noise level for this compressor would be 78 DB.

      Helpful?

  5. Where do you put the oil in and how often does it need to be changed?

    1 answer

    1. The filler plug is located on the backside of the pump on the right lower corner. Change petroleum lubricant every 3 months or 500 hours of operation, whichever is reached first, and synthetic oil every 12 months or 2000 hours, whichever is reached first.

      Helpful?

  6. How many quarts of oil does the compressor take?

    1 answer

    1. This model requires 1 pint of oil.

      Helpful?

  7. How long is the electric power cord?

    1 answer

    1. The length of the power cord is 6 feet on this Ingersoll Rand compressor.

      Helpful?

  8. can this compressor be switched to a constant run

    1 answer

    1. This compressor has 100% duty cycle and can be run constantly.

      Helpful?

  9. What is the plug pattern?

    I want to add a 220 plug in my garage for this compressor and I need to know the lug pattern

    1 answer

    1. This has a NEMA 6-15P plug.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

12 months parts/12months labor
