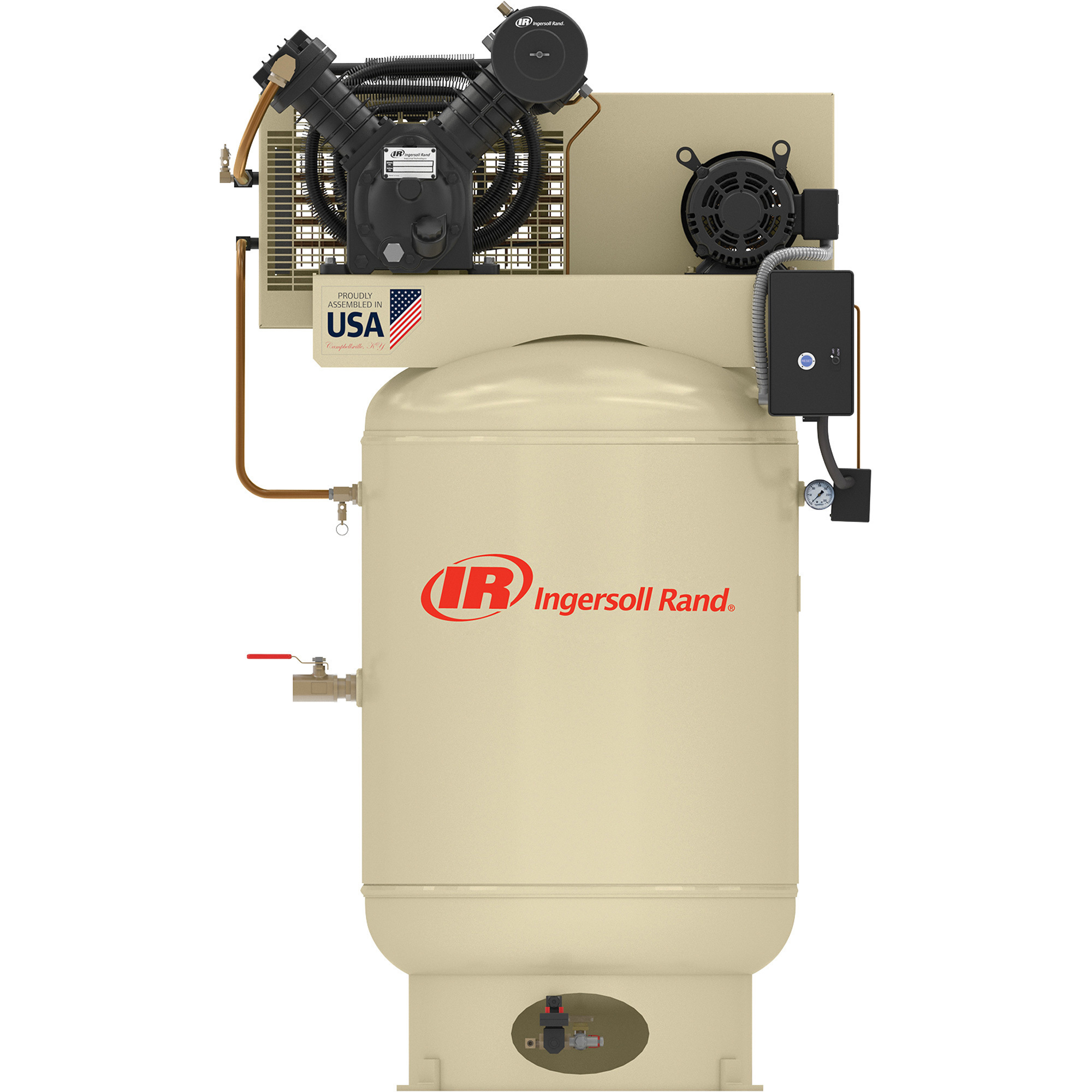

Ingersoll Rand Electric Two-Stage Air Compressor, Premium Value Package, 10 HP, 200 Volt, 3-Phase, 120 Gallon Vertical, Model# 2545K10-VP

Item# 1592166B
Ingersoll Rand Electric Two-Stage Air Compressor, Premium Value Package, 10 HP, 200 Volt, 3-Phase, 120 Gallon Vertical, Model# 2545K10-VP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Electric Two-Stage Air Compressor, Premium Value Package, 10 HP, 200 Volt, 3-Phase, 120 Gallon Vertical, Model# 2545K10-VP

Click or Tap image to Zoom

$5934.99

Choose Options for complete product description, reviews and purchasing.

VOLTAGE

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Delivers 35 CFM @ 90 PSI

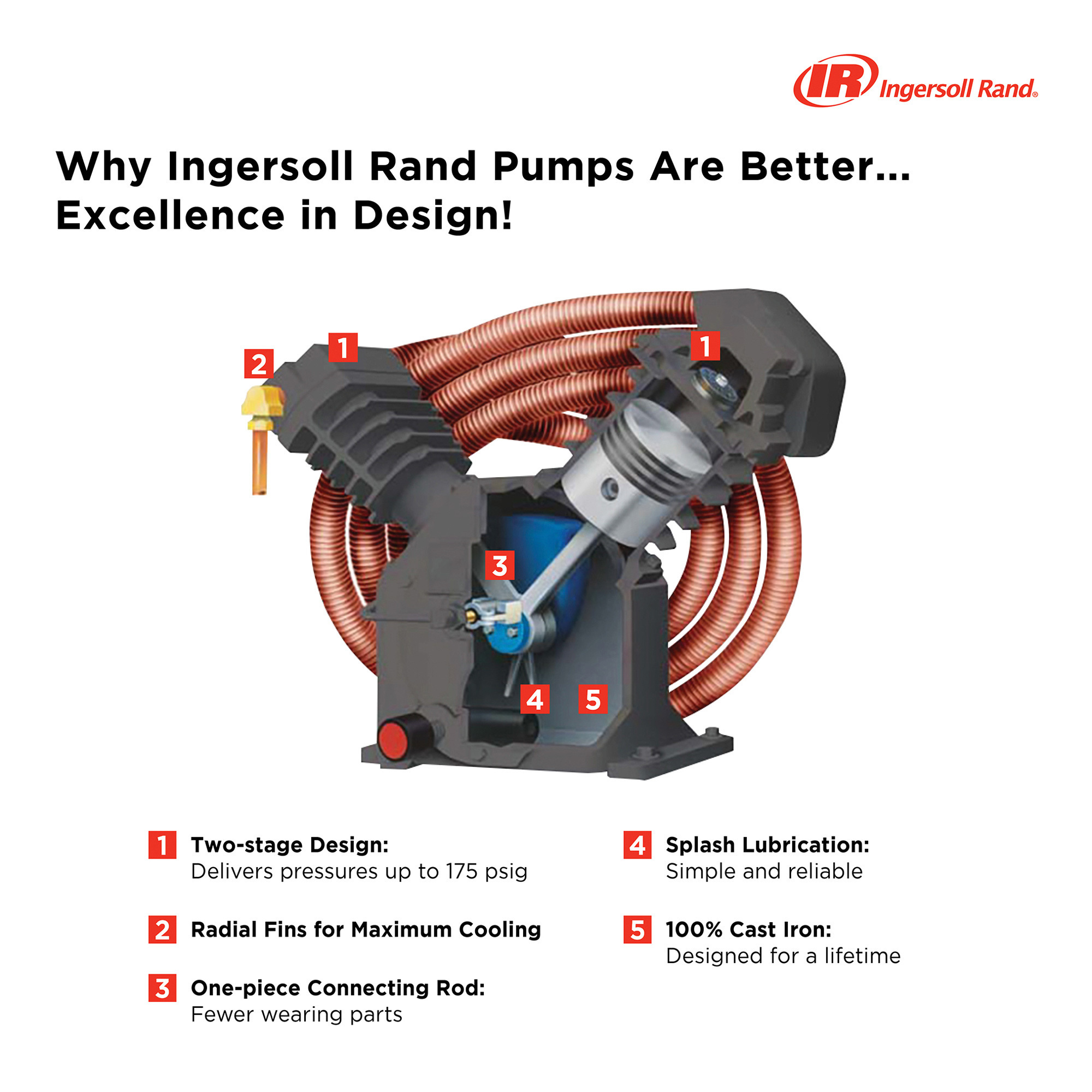

  • Durable cast iron construction with long-lasting extended pump life is designed for over 15,000 hours of trouble-free use
  • 100% continuous-duty, 10 HP 200V/3-phase two-stage air compressor
  • 175 PSIG maximum operating pressure
  • 120 gallon ASME receiver tank

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

For heavy shop or industrial use, this Ingersoll Rand 10 HP Electric Two-Stage 120 Gallon Vertical Air Compressor provides reliable performance ideal for automotive service, body shops, fleet maintenance, machine shops, car washes, manufacturing, woodworking, farming and more. Cast iron pump is designed for over 15,000 hours of use. 100% continuous-duty, 10 HP two-stage air compressor, 175 PSIG maximum operating pressure and 120 gallon ASME receiver tank provide plenty of punch for the most demanding applications. Value Plus Package Has Magnetic Starter and Electronic Drain Valve. Extend your 1yr pump warranty to 2yrs by purchasing the 2yr Warranty Start Up Kit# 6131992 - sold seperately

What's Included

    (1) 2545K10-VP 10 HP, 200V/3-phase electric air compressor with 120 gallon vertical tank

Key Specs

AttributeSpecification

item#

1592166B

Brand

Ingersoll Rand

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1100.0 LB

Horsepower

10 HP

Air Tank Size

120 Gal

Volts

200

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Amps

32.2

Duty Cycle

1 %

Motor RPM

1,775

Working Pressure

175 PSI

Engine Start Type

Electric
AttributeSpecification

Motor Phase

3

Pump Life

15,000 hr

Pump Material

Cast Iron

Air Outlet Size

1 in. NPT

CFM at Max. PSI

35

Noise Level

83 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

No

Drain Type

Automatic

Product Weight

lb

Dimensions L x W x H (in.)

51.0 x 46.0 x 83.0 in

Reviews

Questions & Answers

Questions

  1. Can this compressor be wired up in a residential garage ???

    1 answer

    1. The air compressor can be installed in a heated residential garage. Air compressors should not be operated in temperatures below 40 degrees F.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty
