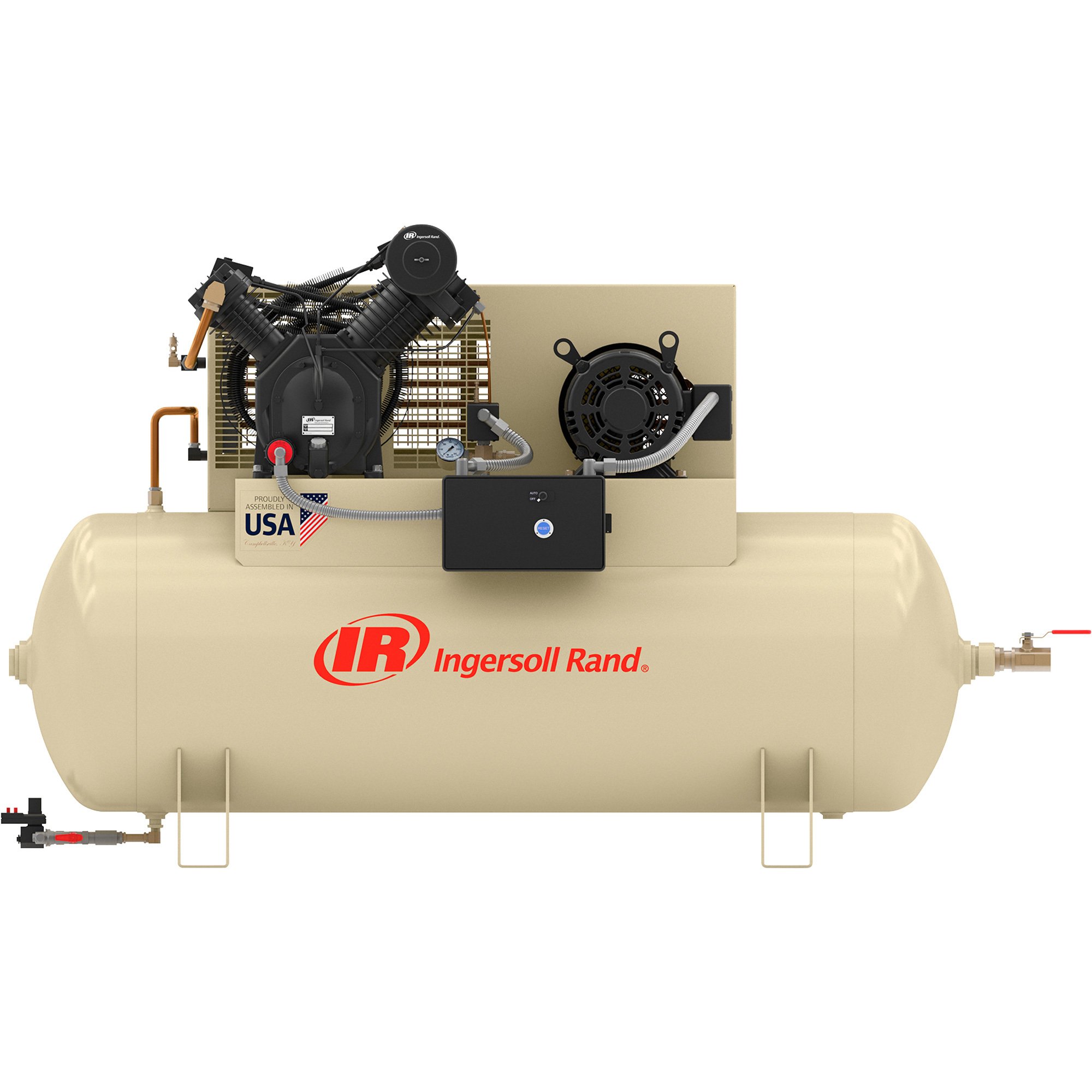

Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 3 Phase, 120 Gallons, Horizontal, 50 CFM @ 175 PSI

Item# 1592042
Ingersoll Rand Electric Stationary Air Compressor
Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 3 Phase, 120 Gallons, Horizontal, 50 CFM @ 175 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 3 Phase, 120 Gallons, Horizontal, 50 CFM @ 175 PSI

Click or Tap image to Zoom

From

$12,039.99

Save up to $3560.00

Choose Options for complete product description, reviews and purchasing.

VOLTAGE

See full description

  • Description

  • Reviews

  • Q & A

  • Accessories

  • Warranty

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability — thats why they remain the worlds best-selling reciprocating compressor. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Fully packaged compressor includes low oil level switch, after cooler and automatic tank drain. Warranty on the reciprocating pump extends from 1 year to 2 years with the use of appropriate maintenance kit. U.S.A.

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. We have purchased this unit and it's going in a 120-208v building. Will this equipment handle 208v-212v? Thank you

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"

    1. The compressor is set up for 200 volt three phase operation. It is able to be wired 208 volt three phase.

      Helpful?

  2. is this model available with a 120v coil voltage on the starter?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 460 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"

    1. The starter is integrated into the power supply on the compressor. There is not a separate 120 volt wiring needed. This is not an option available separately for the compressor.

      Helpful?

  3. does this model include the motor starter?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 230 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"

    1. The fully packaged compressor would include the mounted and wired magnetic motor starter.

      Helpful?

  4. What is compressor oil and quantity for this model?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"

    1. This model takes 2.5 quarts of T-30 select oil, item 1592005.

      Helpful?

  5. Can this compressor be used with a 1.5 cubic foot pressure blaster?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 230 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"

    1. Depending on the CFM and PSI required by the pressure blaster, this air compressor could work for your unit. This air compressor will provide up to 50 CFM at 175 PSI.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
