Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P

Item# 1592042B
"Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"
On Sale
Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P

Click or Tap image to Zoom

$12,039.99

Choose Options for complete product description, reviews and purchasing.

VOLTAGE

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Maintenance Kit: 15920081
  • For heavy shop or industrial use, this electric-driven, 2-stage air compressor provides reliable performance ideal for automotive service, body shops, fleet maintenance, machine shops, car washes, manufacturing, wood working, farming and more
  • Maximum power and flexibility: 100% continuous duty, 15 HP 2-stage air compressor, 175 PSIG maximum operating pressure and 120-gallon ASME receiver tank provide plenty of punch for the most demanding applications

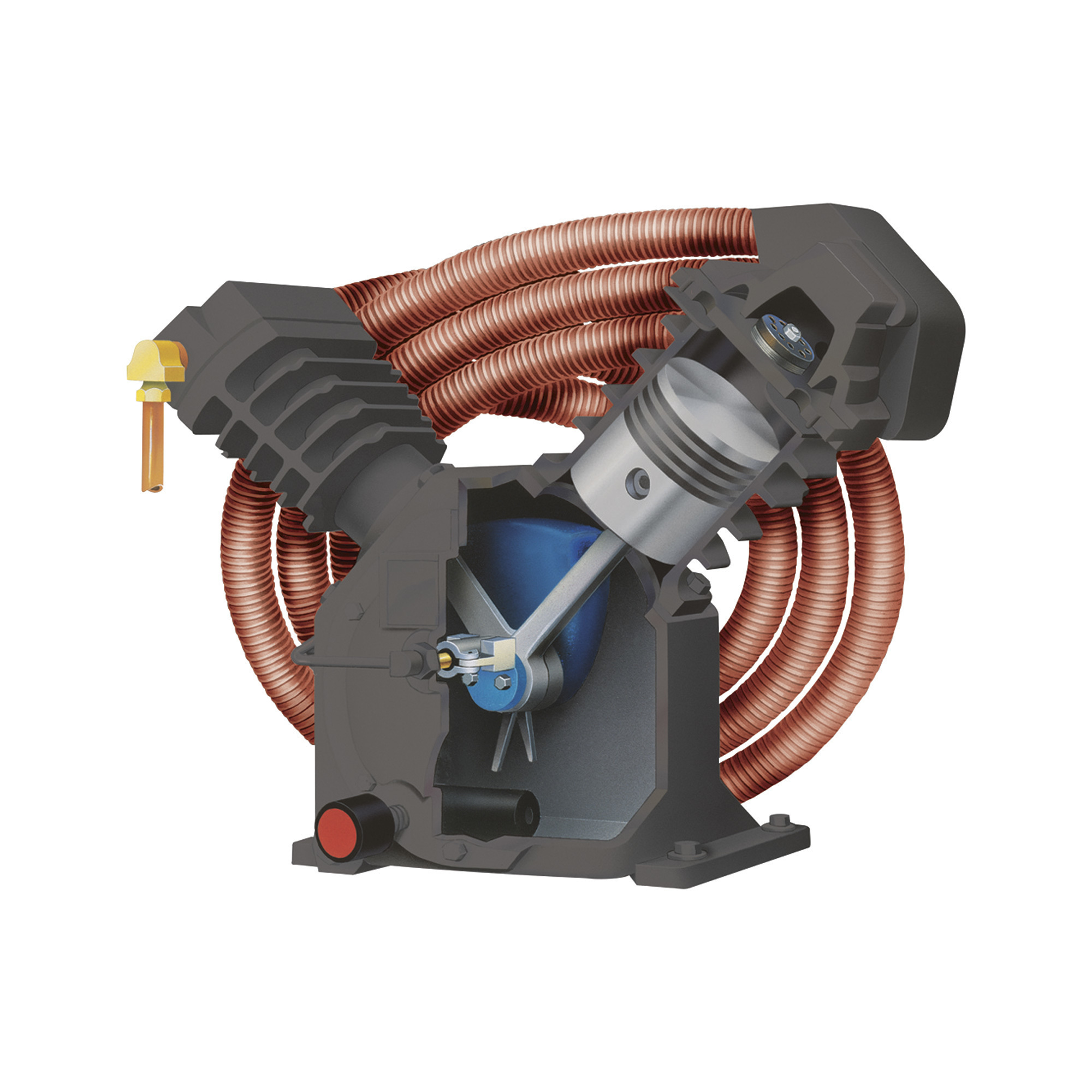

  • Easy to service: individually cast cylinders, overhung crankshaft and 1-piece connecting rod simplifies maintenance and service
  • Reliable operation: all-season select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs up to 4X longer than petroleum-based lubricants

See full description

Complete Your Solution

  • Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2545/7100 Model# 47853635005-R
  • Ingersoll Rand Non-Cycling Refrigerated Dryer — 50 CFM, R513A Refrigerant, Model# DA85INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/4in., 65 CFM, Model# FA110IG
Price for all four:

$16,413.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability -- thats why they remain the worlds best-selling reciprocating compressor. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Fully packaged compressor includes low oil level switch, after cooler and automatic tank drain. Warranty on the reciprocating pump extends from 1 year to 2 years with the purchase use of the 2yr Warranty Start Up Kit# 6131992 - sold seperately

What's Included

    (1) 100% cast iron pump (1) ASME-coded receiver tank (1) ODP motor (1) Magnetic motor starter (1) Automatic start/stop control with pressure switch (1) Oil sight glass (1) Manual drain (1) Upgraded electric drain (1) Air-cooled aftercooler

Downloads

Additional Product Info

Key Specs

AttributeSpecification

item#

1592042B

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

1297.0 LB

Air Tank Size

120 Gal

Volts

200

Motor Phase

3

Stage

2

Horsepower

15 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

45

Duty Cycle

1 %

Motor RPM

1,775

Working Pressure

175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

1 in. NPT

CFM at Max. PSI

50

Noise Level

85 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

Drain Type

Automatic

Product Weight

lb

Dimensions L x W x H (in.)

78.0 x 30.0 x 56.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. We have purchased this unit and it's going in a 120-208v building. Will this equipment handle 208v-212v? Thank you

    1 answer

    1. The compressor is set up for 200 volt three phase operation. It is able to be wired 208 volt three phase.

      Helpful?

  2. is this model available with a 120v coil voltage on the starter?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 460 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"

    1. The starter is integrated into the power supply on the compressor. There is not a separate 120 volt wiring needed. This is not an option available separately for the compressor.

      Helpful?

  3. does this model include the motor starter?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 230 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"

    1. The fully packaged compressor would include the mounted and wired magnetic motor starter.

      Helpful?

  4. What is compressor oil and quantity for this model?

    1 answer

    1. This model takes 2.5 quarts of T-30 select oil, item 1592005.

      Helpful?

  5. Can this compressor be used with a 1.5 cubic foot pressure blaster?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor (Fully Packaged), 15 HP, 230 Volts, 3 Phase, 120 Gallon Horizontal, 50 CFM At 175 PSI, Model# 7100E15-P"

    1. Depending on the CFM and PSI required by the pressure blaster, this air compressor could work for your unit. This air compressor will provide up to 50 CFM at 175 PSI.

      Helpful?
