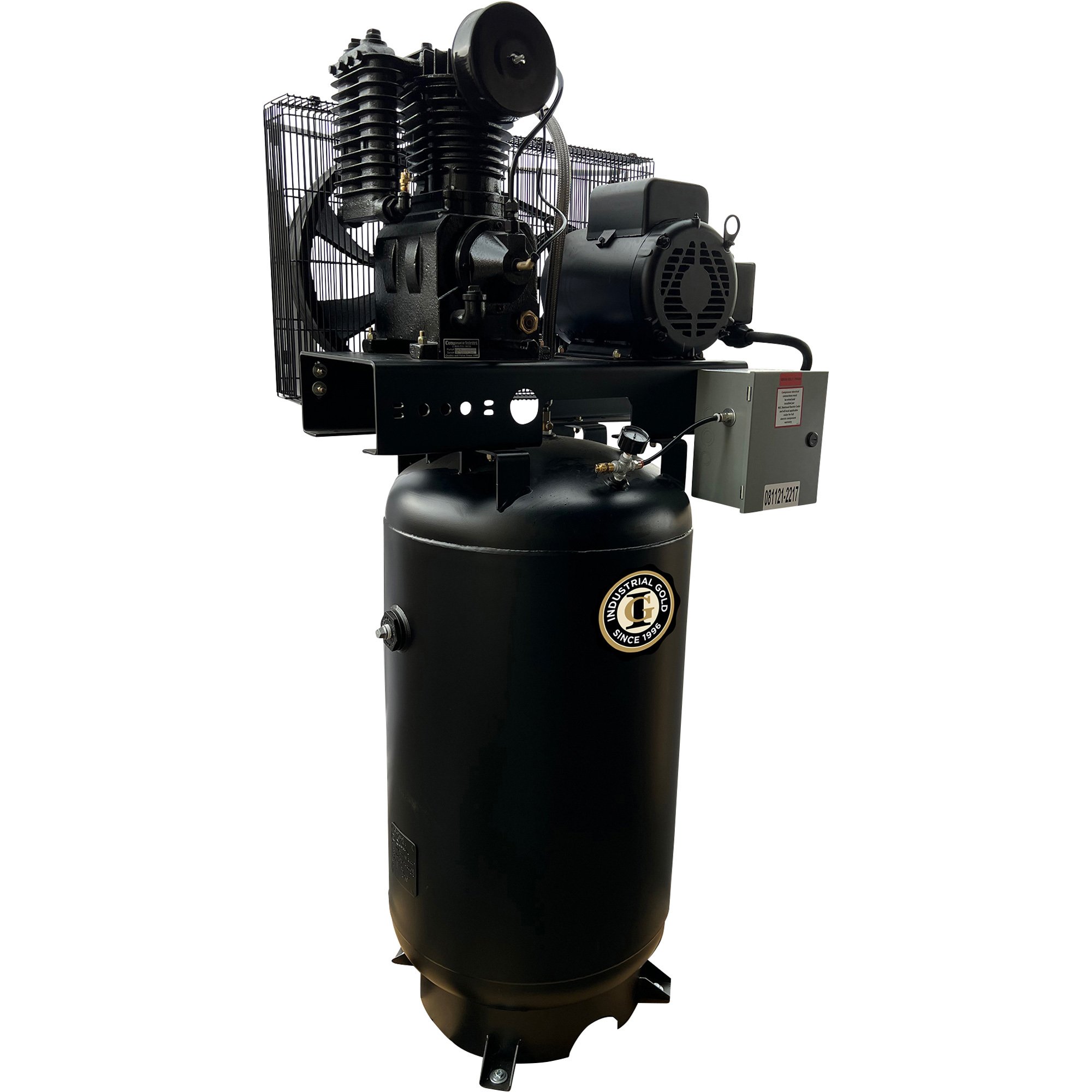

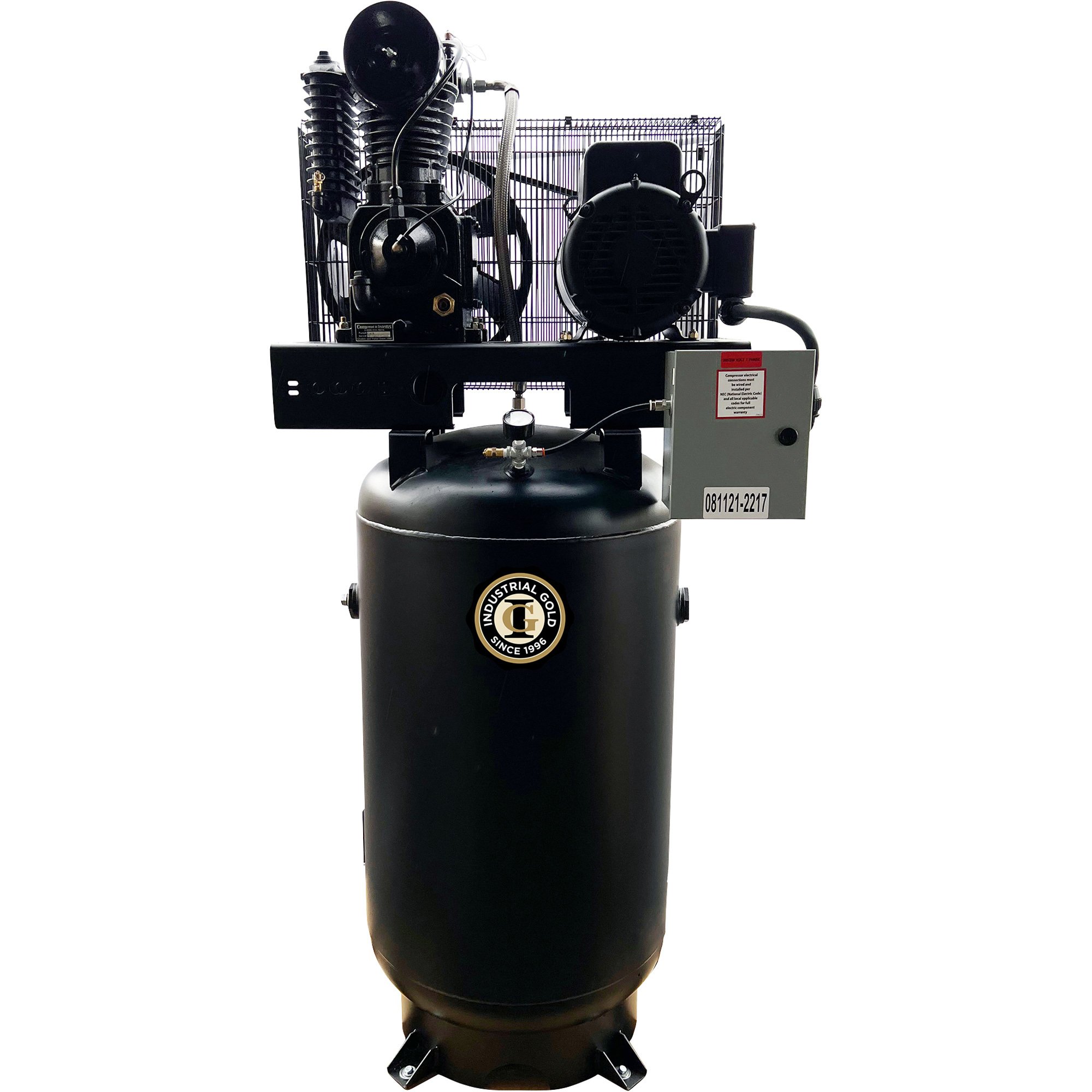

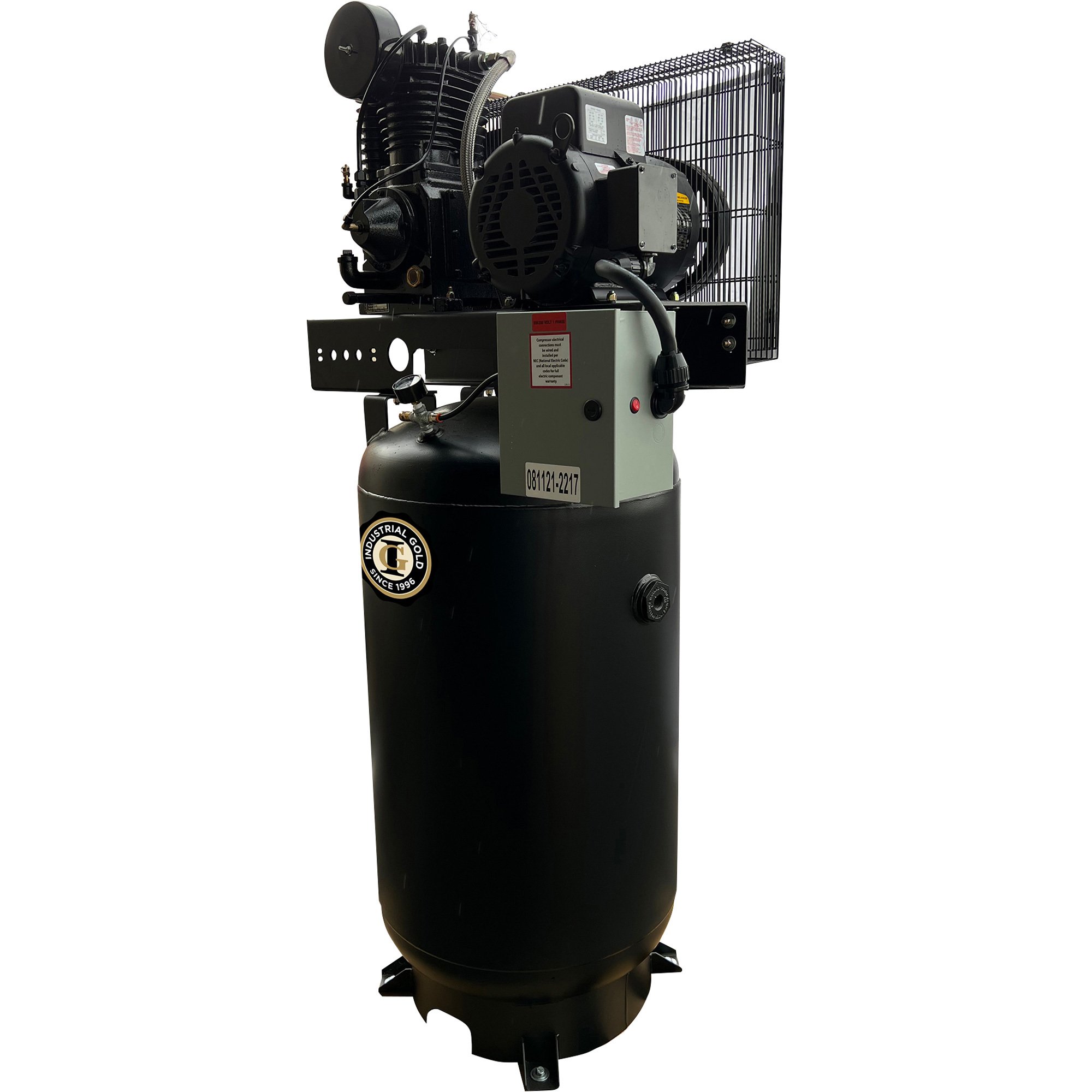

Industrial Gold Platinum Series Single Phase Electric Air Compressor, Two Stage, 7.5 HP, 32 Amp, 80-Gallon Vertical Tank, Model# CI7521E80V

Item# 114734
Industrial Gold Platinum Series Single Phase Electric Air Compressor, Two Stage, 7.5 HP, 32 Amp, 80-Gallon Vertical Tank, Model# CI7521E80V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Gold Platinum Series Single Phase Electric Air Compressor, Two Stage, 7.5 HP, 32 Amp, 80-Gallon Vertical Tank, Model# CI7521E80V

Click or Tap image to Zoom

  • Large bore, low RMP cast-iron compressor pump lowers pump heat and vibration while providing longer operating life
  • Heavy-duty, single-phase 7.5 HP drive motor provides optional voltage operation from 208–230
  • 80-gallon vertical tank
  • Full ring mounting compressor tank base for enhanced stability, vibration reduction and added compressor tank life
  • Disc and spring valve operation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Industrial Platinum Series Single-Phase, Two-Stage Electric Air Compressor is built to last. The 7.5 HP unit gives you a solid 24 CFM of power, capable of running a 3–4 person automotive shop or small body shop.

What's Included

    (1) Air compressor with 80-gallon tank

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Large bore, low RMP cast-iron compressor pump lowers pump heat and vibration while providing longer operating life
  • Heavy-duty, single-phase 7.5 HP drive motor provides optional voltage operation from 208–230
  • 80-gallon vertical tank
  • Full ring mounting compressor tank base for enhanced stability, vibration reduction and added compressor tank life
  • Disc and spring valve operation
  • Centrifugally-loaded compressor pump
  • Flexible stainless steel discharge air line from pump to tank
  • 2-pc. tank and top plate design
  • Oversized compressor flywheel with built-in cooling
  • JIC discharge line fittings for ease of use and maintenance

Key Specs

AttributeSpecification

item#

114734

Brand

Industrial Gold

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

800.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

26

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

7.5 HP

Max. PSI

200

Air Outlets (qty.)

2

Amps

32

Duty Cycle

70%
AttributeSpecification

Motor RPM

1,750

Working Pressure

175 PSI

Pump Life

20,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

26

CFM at Max. PSI

24

Noise Level

82 dB

Low Oil Shutdown

No

Lubrication System

Splash

Air Dryer

None

Drain Type

Manual

Product Weight

750 lb

Dimensions L x W x H (in.)

32 x 26 x 78

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
