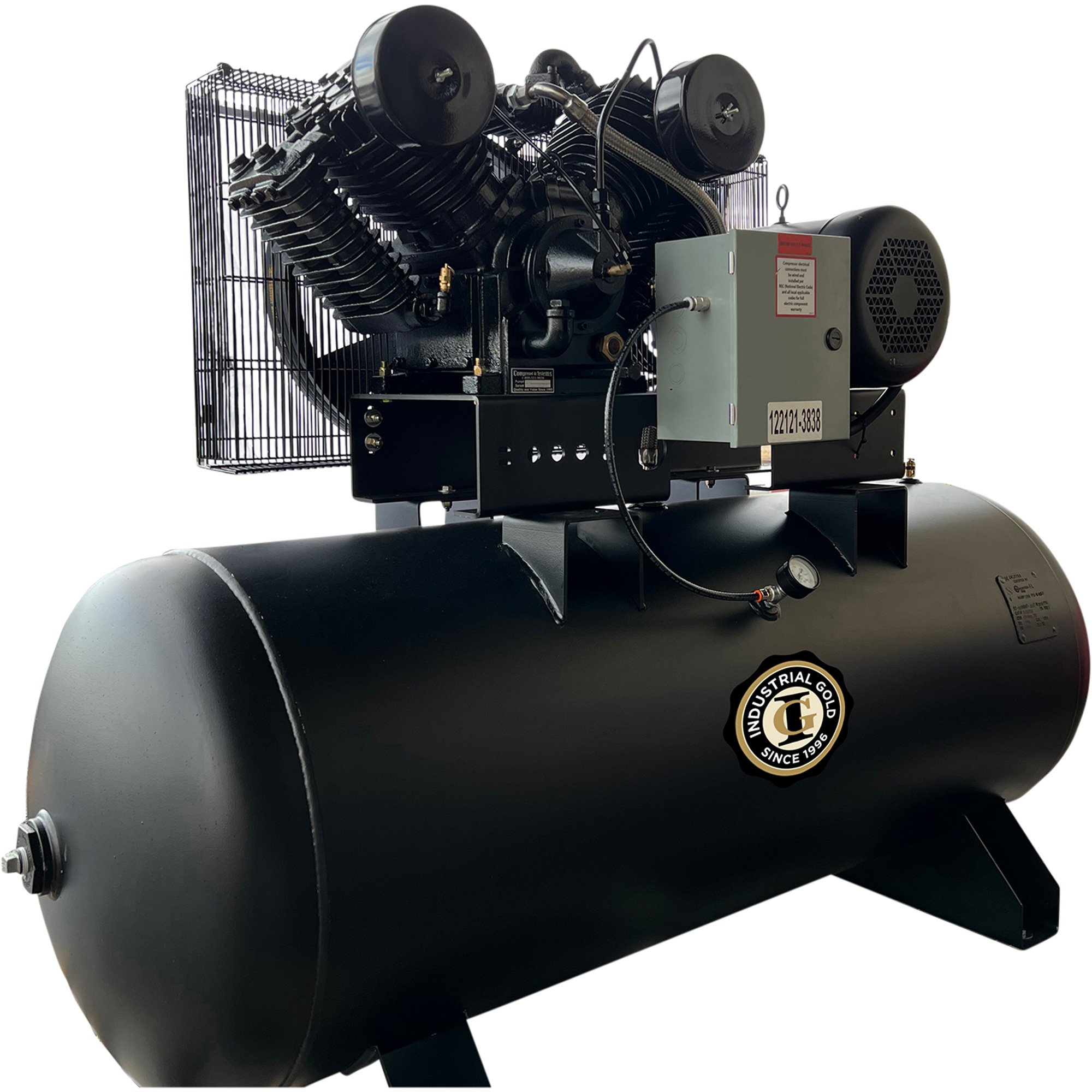

Industrial Gold Platinum Series Air Compressor, 10 HP, 208–230 Volts, 3 Phase, 2 Stage, 120 Gallons, Model# CI1023E120H

Item# 114728
Industrial Gold Platinum Series Air Compressor, 10 HP, 208–230 Volts, 3 Phase, 2 Stage, 120 Gallons, Model# CI1023E120H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Gold Platinum Series Air Compressor, 10 HP, 208–230 Volts, 3 Phase, 2 Stage, 120 Gallons, Model# CI1023E120H

Click or Tap image to Zoom

  • 10 HP; 208–230 Volts; 3-phase
  • 35.4 CFM at max. PSI
  • 175 max. PSI
  • 120-gallon tank made of ASME powder-coated steel
  • 1750 motor RPM, 612 pump RPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Industrial Gold Platinum Series Air Compressor is built for everyday use. The heavy-duty 10 HP unit features a large bore, low RPM pump for less heat, vibration and wear than many standard compressor pumps on the market.

What's Included

    (1) 10 HP air compressor with 120-gallon tank

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • 10 HP; 208–230 Volts; 3-phase
  • 35.4 CFM at max. PSI
  • 175 max. PSI
  • 120-gallon tank made of ASME powder-coated steel
  • 1750 motor RPM, 612 pump RPM
  • Heavy-duty, 2-stage solid cast iron pump with large bore
  • TEFC outdoor-rated, industrial-grade electric motor
  • NEMA 4 outdoor electrical wiring from motor to control panel
  • Disc and spring valve operation
  • Flexible stainless steel air line with JIC fittings from compressor pump to tank
  • 2-pc. compressor tank and top plate
  • Large compressor flywheel with built-in cooling system
  • Full saddle mounting feet on compressor tank
  • Centrifugal unloader
  • Heavy-duty air filter

Key Specs

AttributeSpecification

item#

114728

Brand

Industrial Gold

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

950.0 LB

Air Tank Size

120 Gal

Volts

230

CFM at 90 PSI

38

Motor Phase

3

Stage

2

Tank Orientation

Horizontal

Horsepower

10 HP

Max. PSI

200

Air Outlets (qty.)

2

Amps

28

Duty Cycle

70%
AttributeSpecification

Motor RPM

1,750

Working Pressure

175 PSI

Pump Life

20,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

40

CFM at Max. PSI

35

Noise Level

82 dB

Low Oil Shutdown

No

Lubrication System

Splash

Tank Fill Time

5.25 min

Drain Type

Manual

Product Weight

800 lb

Dimensions L x W x H (in.)

72 x 34 x 54

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
